GSU45L-BRANKC (2009)

Toyota Highlander (China)

Production May 2009 - May 2012
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0905-1205)

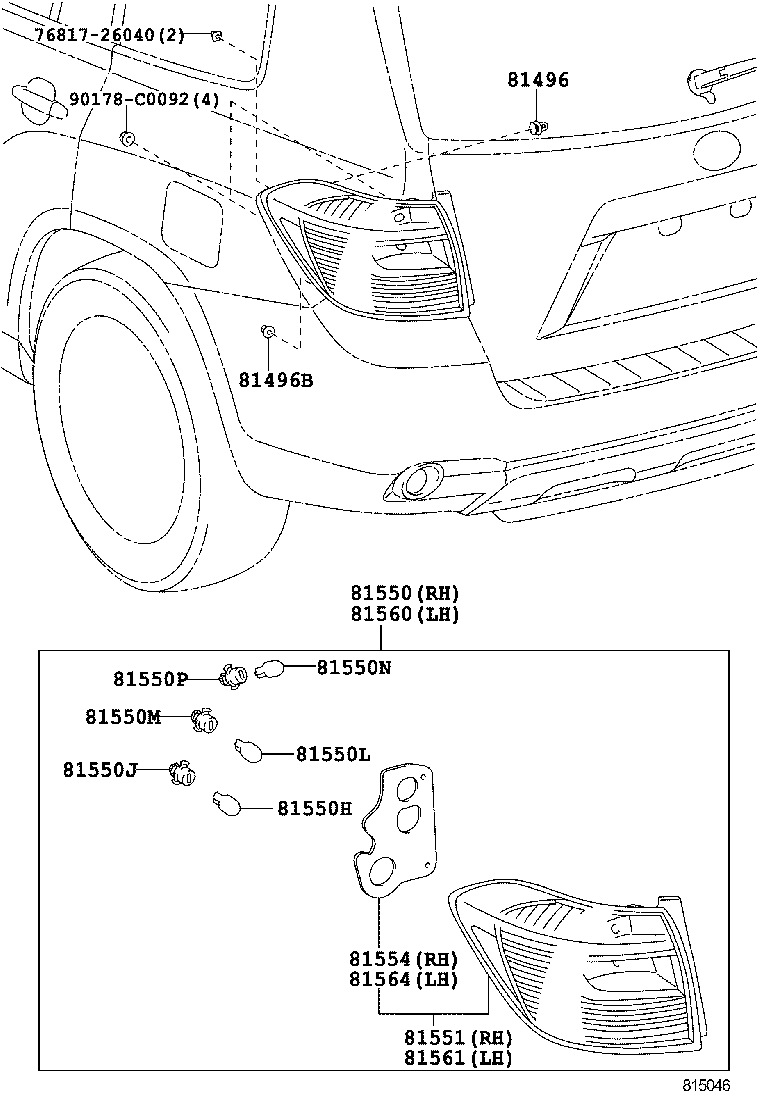

Click highlighted areas on diagram

diagram 7681726040 81496 81496B 81550 81550H 81550J 81550L 81550M 81550N 81550P 81551 81554 81560 81561 81564 90178C0092
Part # Description Qty Price
81496 - GUIDE, REAR COMBINATION LAMP
81496-48010

ASU40,GSU45

 2
81496B - GUIDE, REAR LAMP
81496-52020

ASU40,GSU45

 2
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-0E030

ASU40,GSU45..D,LIMD

 1
81550H - BULB, TAIL & STOP LAMP
90981-13044

ASU40,GSU45

 2
81550J - SOCKET, TAIL & STOP LAMP
90075-60079

ASU40,GSU45

 2
81550L - BULB, REAR TURN SIGNAL LAMP
90981-13043

ASU40,GSU45

 2
81550M - SOCKET, REAR TURN SIGNAL LAMP
90075-60070

ASU40,GSU45

 2
81550N - BULB, BACK UP LAMP
90981-11059

ASU40,GSU45

 2
81550P - SOCKET, BACK UP LAMP
90075-60063

ASU40,GSU45

 2
81551 - LENS, REAR COMBINATION LAMP, RH
81551-0E030

ASU40,GSU45..D,LIMD

 1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81554-0E030

ASU40,GSU45

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-0E030

ASU40,GSU45..D,LIMD

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-0E030

ASU40,GSU45..D,LIMD

 1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81564-0E030

ASU40,GSU45

 1
Common parts
76817-26040
90178-C0092
