GSU45L-BRANKC (2009)

Toyota Highlander (China)

Production May 2009 - May 2012
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

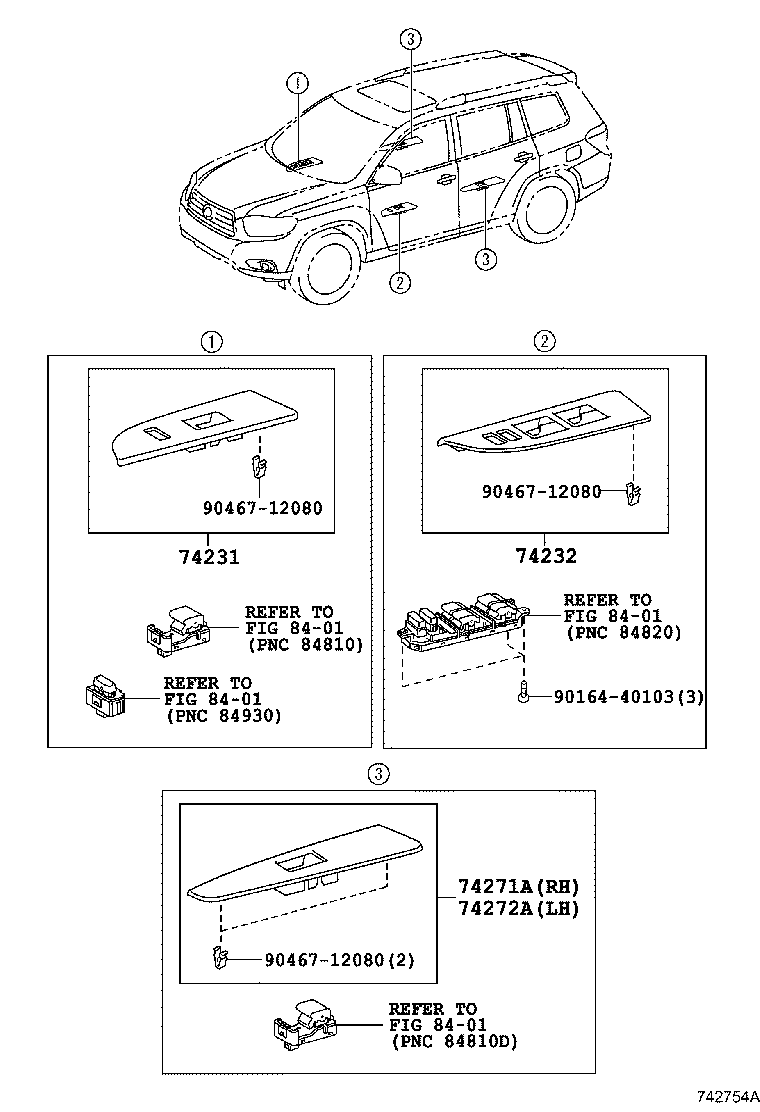

ILLUST NO. 1 OF 2(0905- )

Click highlighted areas on diagram

ARMREST

diagram 74231 74232 74271A 74272A 8401 8401 8401 8401 9016440103 9046712080 9046712080 9046712080
Part # Description Qty Price
74231 - PANEL, FRONT ARMREST BASE, UPPER RH
74231-0E020E0

ASU40,GSU45

SAND BEIGE,TRIM4#

 1
74232 - PANEL, FRONT ARMREST BASE, UPPER LH
74232-0E020E0

ASU40,GSU45

SAND BEIGE,TRIM4#

 1
74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH
74271-0E020E0

ASU40,GSU45

SAND BEIGE,TRIM4#

 1
74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH
74272-0E020E0

ASU40,GSU45

SAND BEIGE,TRIM4#

 1
Common parts
90164-40103
90467-12080
Linked diagrams
8401

ILLUST NO. 2 OF 2(0905- )

Click highlighted areas on diagram

VISOR & ASSIST GRIP

diagram 74310 74320 74325 74348 74610A 74610A 74610S 74610S 74611C 74612C 74631B 74645A 74646 90151C0003
Part # Description Qty Price
74310 - VISOR ASSY, RH
74310-0E030E0

ASU40,GSU45

SAND BEIGE,TRIM4#

 1
74320 - VISOR ASSY, LH
74320-0E030E0

ASU40,GSU45

SAND BEIGE,TRIM4#

 1
74325 - COVER, VISOR BRACKET
74317-60020E0

ASU40,GSU45

SAND BEIGE,TRIM4#

 2
74348 - HOLDER, VISOR
74348-33040E1

ASU40,GSU45

SAND BEIGE,TRIM4#

 2
74610A - GRIP SUB-ASSY, ASSIST
74610-52020E1

ASU40,GSU45..D

SAND BEIGE,TRIM4#

 2
74610A - GRIP SUB-ASSY, ASSIST
74610-52020E1

ASU40,GSU45..D

SAND BEIGE,TRIM4#

 2
74610S - GRIP ASSY, ASSIST
74610-52030E2

ASU40,GSU45..D

SAND BEIGE,TRIM4#

 2
74610S - GRIP ASSY, ASSIST
74610-52030E2

ASU40,GSU45..D

SAND BEIGE,TRIM4#

 2
74611C - COVER, ASSIST GRIP, LH
74611-0E020E0

ASU40,GSU45..D

SAND BEIGE,TRIM4#

 1
74612C - COVER, ASSIST GRIP, RH
74612-0E020E0

ASU40,GSU45..D

SAND BEIGE,TRIM4#

 1
74645A - COVER, DOOR ASSIST GRIP, RH
74645-0E010E0

ASU40,GSU45..D

SAND BEIGE,TRIM4#

 1
74646 - COVER, DOOR ASSIST GRIP, LH
74646-0E010E0

ASU40,GSU45..D

SAND BEIGE,TRIM4#

 1
Common parts
90151-C0003
