GSU45L-BRANKC (2009)

Toyota Highlander (China)

Production May 2009 - May 2012
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

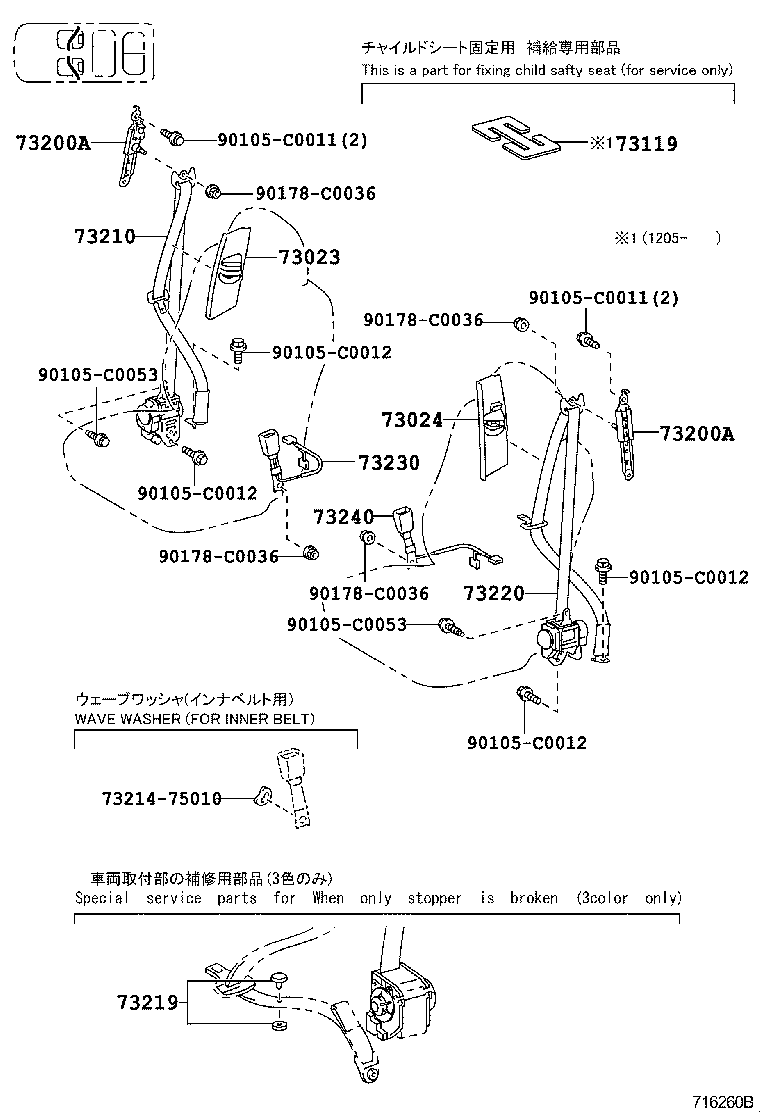

ILLUST NO. 1 OF 3(0905- )

Click highlighted areas on diagram

FRONT SEAT

diagram 73023 73024 73119 73200A 73200A 73210 7321475010 73219 73220 73230 73240 90105C0011 90105C0011 90105C0012 90105C0012 90105C0012 90105C0012 90105C0053 90105C0053 90178C0036 90178C0036 90178C0036 90178C0036
Part # Description Qty Price
73023 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
73023-06110E1

ASU40,GSU45

SAND BEIGE,TRIM4#

 1
73024 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
73024-06090E1

ASU40,GSU45

SAND BEIGE,TRIM4#

 1
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-06080

ASU40,GSU45

 2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-06080

ASU40,GSU45

 2
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-0E040A0

ASU40,GSU45

IVORY,TRIM4#

 1
73219 - STOPPER, TONGUE PLATE
73219-33020

ASU40,GSU45

GRAY

 1
73219-33010

ASU40,GSU45

BLACK

 1
73219-33030

ASU40,GSU45

BEIGE

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-0E040A0

ASU40,GSU45

IVORY,TRIM4#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-0E100E0

ASU40,GSU45..D

SAND BEIGE,TRIM4#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-0E120E0

ASU40,GSU45..D

SAND BEIGE,TRIM4#

 1
Common parts
73214-75010
90105-C0011
90105-C0012
90105-C0053
90178-C0036

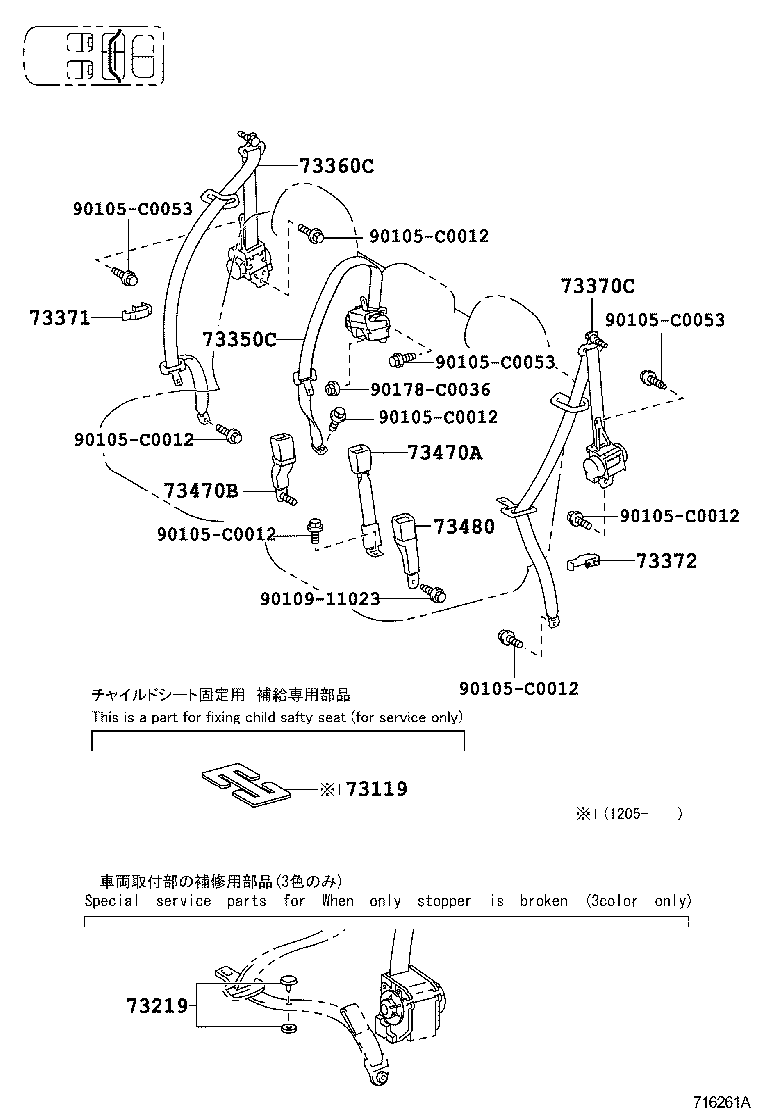

ILLUST NO. 2 OF 3(0905- )

Click highlighted areas on diagram

REAR NO.1 SEAT

diagram 73119 73219 73350C 73360C 73370C 73371 73372 73470A 73470B 73480 90105C0012 90105C0012 90105C0012 90105C0012 90105C0012 90105C0012 90105C0053 90105C0053 90105C0053 9010911023 90178C0036
Part # Description Qty Price
73219 - STOPPER, TONGUE PLATE
73219-33020

ASU40,GSU45

GRAY

 1
73219-33010

ASU40,GSU45

BLACK

 1
73219-33030

ASU40,GSU45

BEIGE

 1
73350C - BELT ASSY, REAR SEAT, OUTER CENTER
73350-0E030A0

ASU40,GSU45

SAND BEIGE,TRIM4#

 1
73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH
73360-0E030A0

ASU40,GSU45

IVORY,TRIM4#

 1
73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH
73370-0E030A0

ASU40,GSU45

IVORY,TRIM4#

 1
73371 - HANGER, REAR SEAT SHOULDER BELT, RH
73371-0E020E0

ASU40,GSU45

SAND BEIGE,TRIM4#

 1
73372 - HANGER, REAR SEAT SHOULDER BELT, LH
73371-0E020E0

ASU40,GSU45

SAND BEIGE,TRIM4#

 1
73470A - BELT ASSY, REAR SEAT, INNER CENTER
73380-0E060E0

ASU40,GSU45

SAND BEIGE,TRIM4#

 1
73470B - BELT ASSY, REAR SEAT INNER W/CENTER, RH
73380-0E050E0

ASU40,GSU45

SAND BEIGE,TRIM4#

 1
73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH
73480-0E030E0

ASU40,GSU45

SAND BEIGE,TRIM4#

 1
Common parts
90105-C0012
90105-C0053
90109-11023
90178-C0036

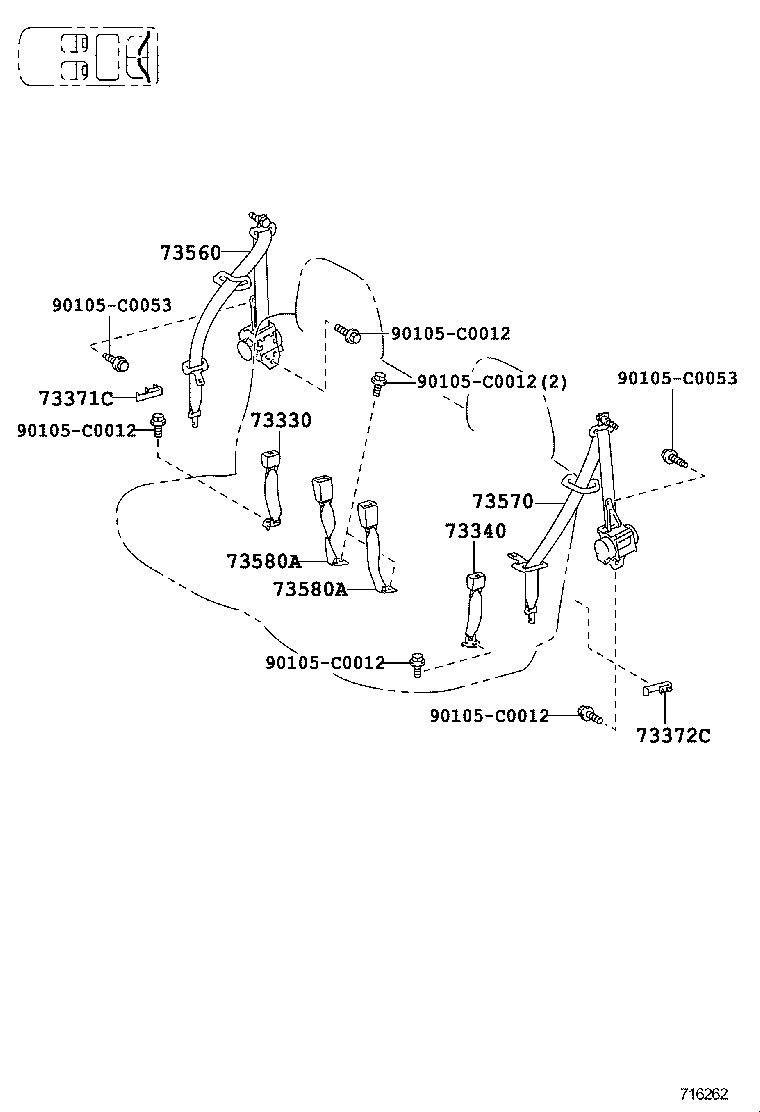

ILLUST NO. 3 OF 3(0905-1205)

Click highlighted areas on diagram

REAR NO.2 SEAT

diagram 73330 73340 73371C 73372C 73560 73570 73580A 73580A 90105C0012 90105C0012 90105C0012 90105C0012 90105C0012 90105C0053 90105C0053
Part # Description Qty Price
73330 - BELT ASSY, REAR SEAT LAP TYPE, RH
73330-0E010A0

ASU40,GSU45

SAND BEIGE,TRIM4#

 1
73340 - BELT ASSY, REAR SEAT LAP TYPE, LH
73330-0E020A0

ASU40,GSU45

SAND BEIGE,TRIM4#

 1
73371C - HANGER, REAR NO.2 SEAT SHOULDER BELT, RH
73371-0E030E0

ASU40,GSU45

SAND BEIGE,TRIM4#

 1
73372C - HANGER, REAR NO.2 SEAT SHOULDER BELT, LH
73371-0E030E0

ASU40,GSU45

SAND BEIGE,TRIM4#

 1
73560 - BELT ASSY, REAR NO.2 SEAT, OUTER RH
73560-0E010A0

ASU40,GSU45

SAND BEIGE,TRIM4#

 1
73570 - BELT ASSY, REAR NO.2 SEAT, OUTER LH
73570-0E010A0

ASU40,GSU45..D,SPO

SAND BEIGE,TRIM4#

 1
73580A - BELT SUB ASSY, REAR NO.2 SEAT, INNER
73580-0E010A0

ASU40,GSU45

SAND BEIGE,TRIM4#

 2
73580A - BELT SUB ASSY, REAR NO.2 SEAT, INNER
73580-0E010A0

ASU40,GSU45

SAND BEIGE,TRIM4#

 2
Common parts
90105-C0012
90105-C0053
