GSU45L-BRANKC (2009)
Toyota Highlander (China)
Production
May 2009
-
May 2012
Engine
2GRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0905- )GSU45

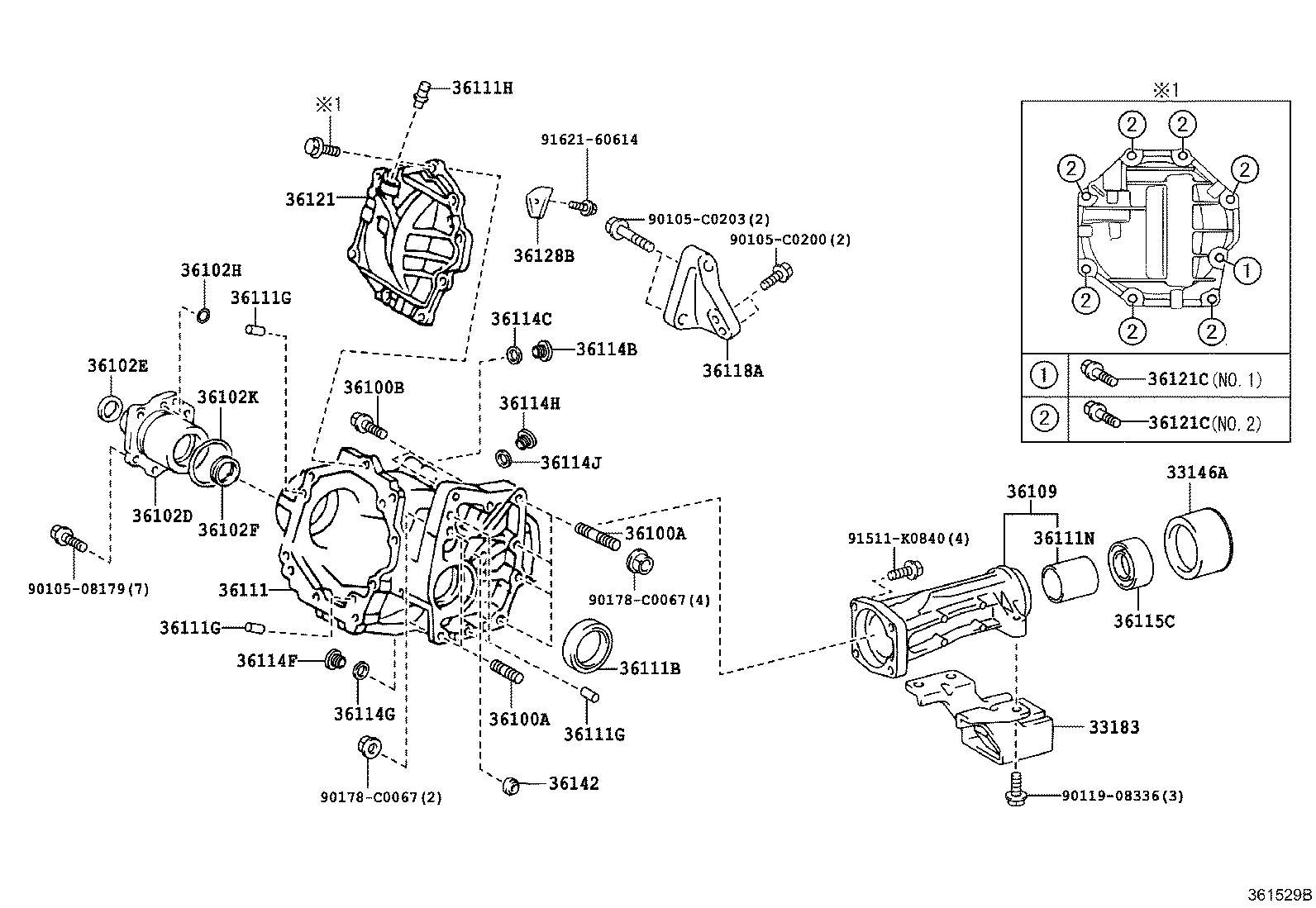

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33146A - DEFLECTOR, TRANSFER EXTENSION HOUSING DUST | ||||
| 33146-30020 |
GSU45 |
1 | ||
| 33183 - DAMPER, TRANSFER DYNAMIC | ||||
| 33183-33010 |
GSU45 |
1 | ||
| 36100A - BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING) | ||||
| 90116-12033 |
GSU45 S=15 & 27,L=58 |
4 | ||
| 90116-12034 |
GSU45 S=19 & 19,L=47 |
2 | ||
| 36100A - BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING) | ||||
| 90116-12033 |
GSU45 S=15 & 27,L=58 |
4 | ||
| 90116-12034 |
GSU45 S=19 & 19,L=47 |
2 | ||
| 36100B - BOLT (FOR TRANSFER & TRANSAXLE SETTING) | ||||
| 90105-C0198 |
GSU45 *12-1.25PX32-24 |
2 | ||
| 36102D - RETAINER SUB-ASSY, TRANSFER RH BEARING | ||||
| 36102-48010 |
GSU45 |
1 | ||
| 36102E - SEAL, OIL, NO.1 (FOR TRANSFER RH BEARING RETAINER) | ||||
| 90311-34021 |
GSU45 |
1 | ||
| 36102F - SEAL, OIL, NO.2 (FOR TRANSFER RH BEARING RETAINER) | ||||
| 90316-37001 |
GSU45 |
1 | ||
| 36102H - RING, O (FOR TRANSFER RH BEARING RETAINER) | ||||
| 90301-11018 |
GSU45 |
1 | ||
| 36102K - RING, O | ||||
| 90301-70002 |
GSU45 |
1 | ||
| 36109 - HOUSING SUB-ASSY, TRANSFER EXTENSION | ||||
| 36109-33010 |
GSU45 |
1 | ||
| 36111 - CASE, TRANSFER | ||||
| 36111-48051 |
GSU45 |
1 | ||
| 36111B - SEAL, OIL (FOR TRANSFER CASE) | ||||
| 90311-58009 |
GSU45 |
1 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-10017 |
GSU45 L=20,OD=10 |
2 | ||
| 90250-08046 |
GSU45 L=16,OD=8 |
2 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-10017 |
GSU45 L=20,OD=10 |
2 | ||
| 90250-08046 |
GSU45 L=16,OD=8 |
2 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-10017 |
GSU45 L=20,OD=10 |
2 | ||
| 90250-08046 |
GSU45 L=16,OD=8 |
2 | ||
| 36111H - PLUG, BREATHER (FOR TRANSFER CASE) | ||||
| 90930-03133 |
GSU45 |
1 | ||
| 36111N - BUSH (FOR TRANSFER CASE) | ||||
| 90999-73105 |
GSU45 |
1 | ||
| 36114B - PLUG, NO.1 (FOR TRANSFER CASE) | ||||
| 90341-18072 |
GSU45 |
1 | ||
| 90341-18055 |
GSU45 |
1 | ||
| 36114C - GASKET, NO.1 (FOR TRANSFER CASE) | ||||
| 12157-10010 |
GSU45 |
1 | ||
| 36114F - PLUG (FOR TRANSFER DRAIN) | ||||
| 90341-18057 |
GSU45 |
1 | ||
| 36114G - GASKET (FOR TRANSFER DRAIN PLUG) | ||||
| 12157-10010 |
GSU45 |
1 | ||
| 36114H - PLUG, NO.2 (FOR TRANSFER CASE) | ||||
| 90341-18006 |
GSU45 |
1 | ||
| 36114J - GASKET, NO.2 (FOR TRANSFER CASE) | ||||
| 12157-10010 |
GSU45 |
1 | ||
| 36115C - SEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING) | ||||
| 90311-38090 |
GSU45 |
1 | ||
| 36118A - PLATE, TRANSFER STIFFENER, RH | ||||
| 36118-0E010 |
GSU45 |
1 | ||
| 36121 - COVER, TRANSFER CASE, NO.1 | ||||
| 36121-48010 |
GSU45 |
1 | ||
| 36121C - BOLT, WASHER BASED HEAD HEXAGON (FOR TRANSFER CASE COVE | ||||
| 90105-08351 |
GSU45 NO.1 |
1 | ||
| 91511-J0820 |
GSU45 NO.2 |
7 | ||
| 36121C - BOLT, WASHER BASED HEAD HEXAGON (FOR TRANSFER CASE COVE | ||||
| 90105-08351 |
GSU45 NO.1 |
1 | ||
| 91511-J0820 |
GSU45 NO.2 |
7 | ||
| 36128B - DEFLECTOR, BREATHER OIL | ||||
| 36128-21010 |
GSU45 |
1 | ||
| 36142 - GASKET, TRANSFER COVER | ||||
| 36141-21010 |
GSU45 |
1 | ||
| Common parts | ||||
| 90105-08179 | ||||
| 90105-C0200 | ||||
| 90105-C0203 | ||||
| 90119-08336 | ||||
| 90178-C0067 | ||||
| 91511-K0840 | ||||
| 91621-60614 | ||||
