GSU45L-BRAGKC (2009)

Toyota Highlander (China)

Production May 2009 - May 2012
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

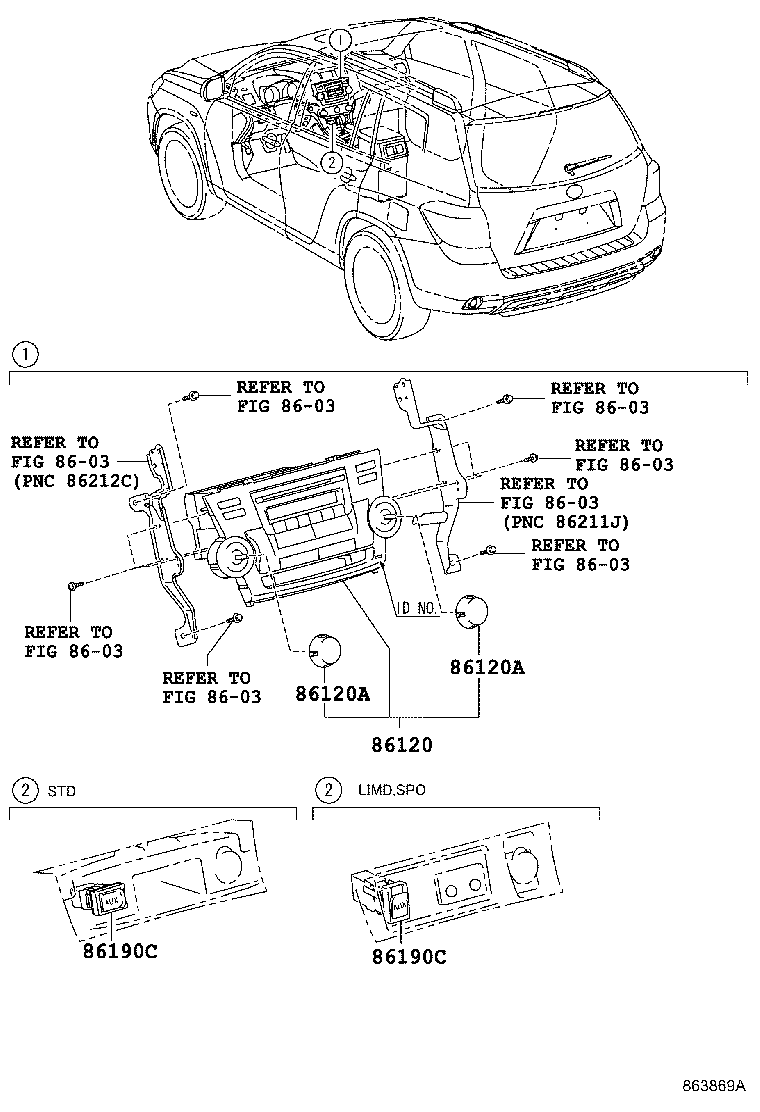

ILLUST NO. 1 OF 2(0905- )

Click highlighted areas on diagram

diagram 8603 8603 8603 8603 8603 8603 8603 8603 86120 86120A 86120A 86190C 86190C
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-0E210E0

ASU40,GSU45..D,SPO

MATSUSHITA,DK. BROWN,TRIM4#

 1
86120A - KNOB, RADIO RECEIVER SWITCH
90010-24127

ASU40,GSU45..D,SPO

 2
86120A - KNOB, RADIO RECEIVER SWITCH
90010-24127

ASU40,GSU45..D,SPO

 2
86190C - ADAPTER ASSY, STEREO JACK, NO.1
86190-0E080

ASU40,GSU45..LIMD,SPO

 1
86190-0E060

ASU40,GSU45..D

 1
86190C - ADAPTER ASSY, STEREO JACK, NO.1
86190-0E080

ASU40,GSU45..LIMD,SPO

 1
86190-0E060

ASU40,GSU45..D

 1
Linked diagrams
8603

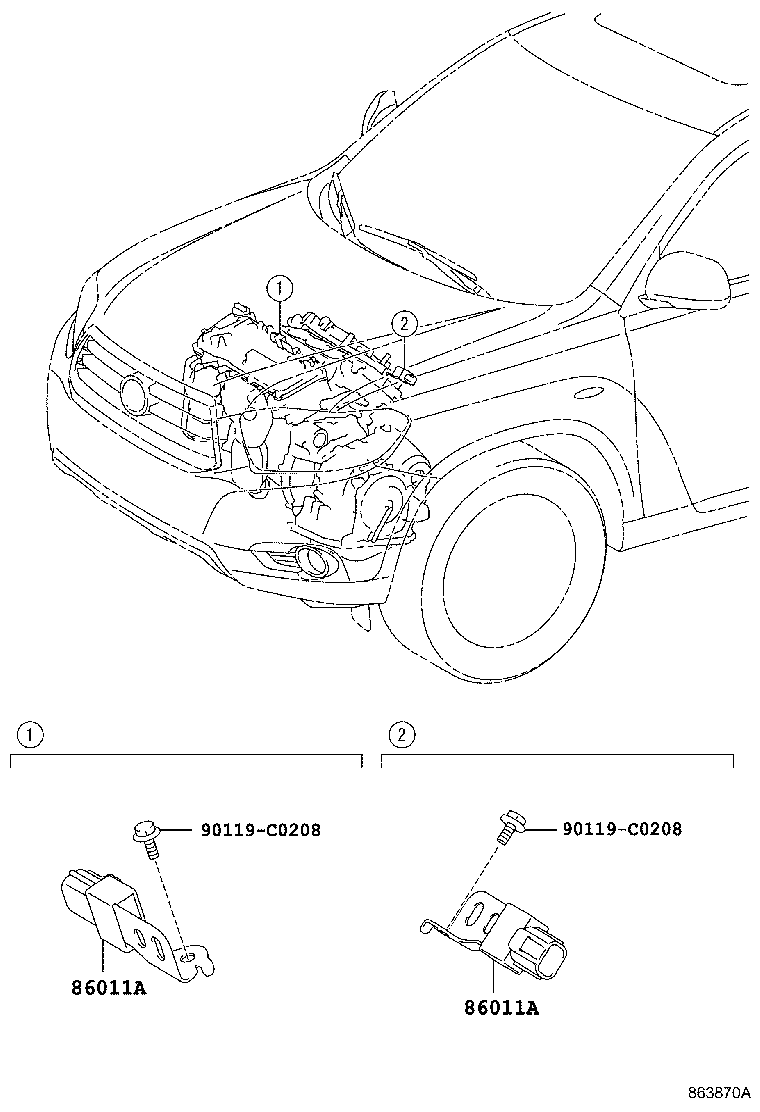

ILLUST NO. 2 OF 2(0905- )GSU45

Click highlighted areas on diagram

CONDENSER

diagram 86011A 86011A 90119C0208 90119C0208
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04182

GSU45

 2
86011A - CONDENSER, RADIO SETTING
90980-04182

GSU45

 2
Common parts
90119-C0208
