GSU45L-BRAGKC (2009)
Toyota Highlander (China)
Production
May 2009
-
May 2012
Engine
2GRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0905-1205)

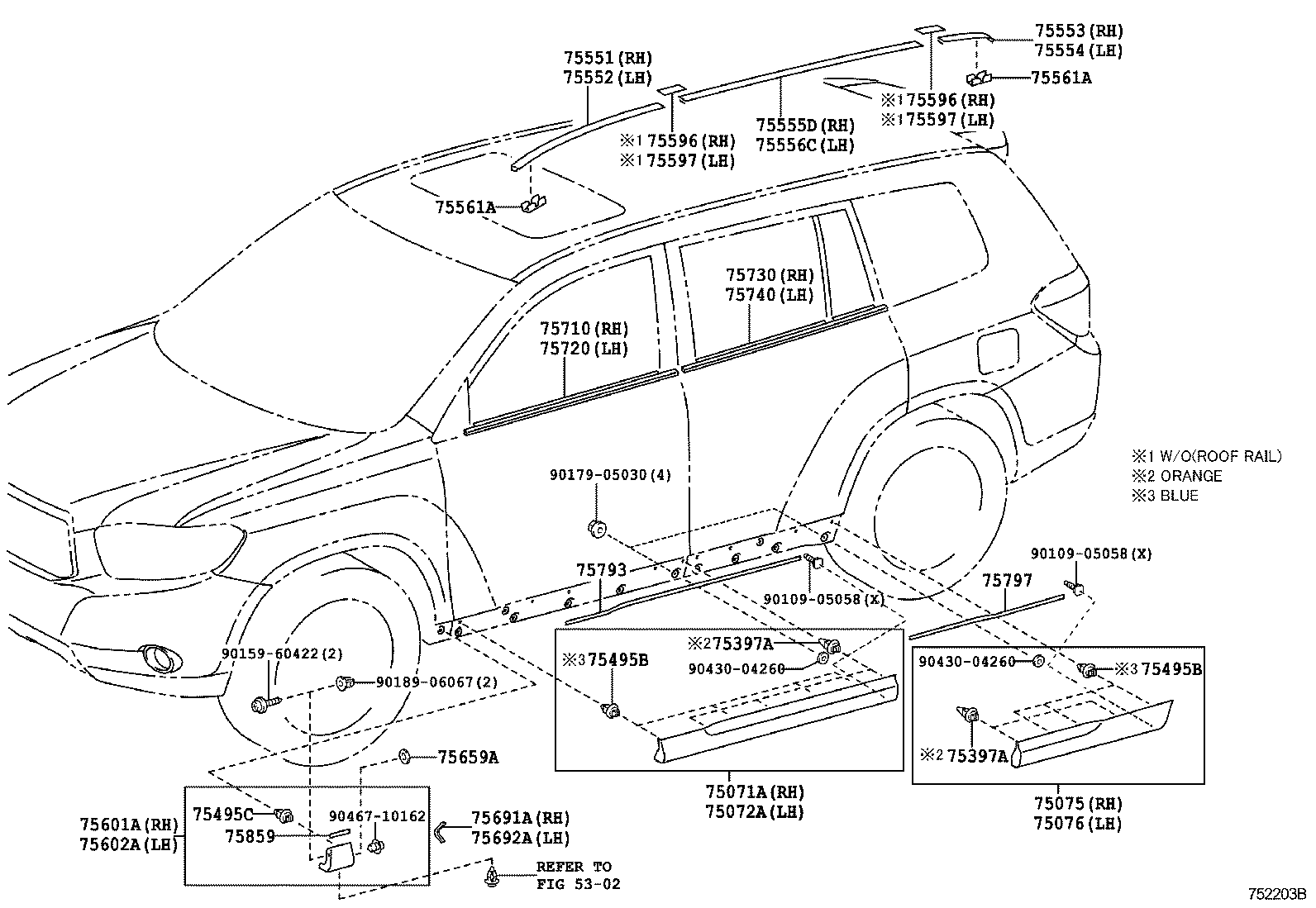

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75071A - MOULDING SUB-ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 75071-0E900 |
ASU40,GSU45 |
1 | ||
| 75072A - MOULDING SUB-ASSY, FRONT DOOR, OUTSIDE LH | ||||
| 75072-0E900 |
ASU40,GSU45 |
1 | ||
| 75075 - MOULDING SUB-ASSY, REAR DOOR, OUTSIDE RH | ||||
| 75075-0E900 |
ASU40,GSU45 |
1 | ||
| 75076 - MOULDING SUB-ASSY, REAR DOOR, OUTSIDE LH | ||||
| 75076-0E900 |
ASU40,GSU45 |
1 | ||
| 75397A - CLIP, OUTSIDE MOULDING, NO.3 | ||||
| 75397-35010 |
ASU40,GSU45 |
10 | ||
| 75397A - CLIP, OUTSIDE MOULDING, NO.3 | ||||
| 75397-35010 |
ASU40,GSU45 |
10 | ||
| 75495B - CLIP, OUTSIDE MOULDING, NO.4 | ||||
| 75495-35010 |
ASU40,GSU45 |
28 | ||
| 75495B - CLIP, OUTSIDE MOULDING, NO.4 | ||||
| 75495-35010 |
ASU40,GSU45 |
28 | ||
| 75495C - CLIP, OUTSIDE MOULDING, NO.4 | ||||
| 75495-35010 |
ASU40,GSU45 |
4 | ||
| 75396-35020 |
ASU40,GSU45 |
4 | ||
| 75551 - MOULDING, ROOF DRIP SIDE FINISH, RH | ||||
| 75551-0E030 |
ASU40,GSU45 NO PAINT REQ. |
1 | ||
| 75552 - MOULDING, ROOF DRIP SIDE FINISH, LH | ||||
| 75552-0E030 |
ASU40,GSU45 NO PAINT REQ. |
1 | ||
| 75553 - MOULDING, ROOF DRIP SIDE FINISH, RH | ||||
| 75553-0E030 |
ASU40,GSU45 NO PAINT REQ. |
1 | ||
| 75554 - MOULDING, ROOF DRIP SIDE FINISH, LH | ||||
| 75554-0E030 |
ASU40,GSU45 NO PAINT REQ. |
1 | ||
| 75555D - MOULDING, ROOF DRIP SIDE FINISH, CENTER RH | ||||
| 75555-0E030 |
ASU40,GSU45 |
1 | ||
| 75556C - MOULDING, ROOF DRIP SIDE FINISH, CENTER LH | ||||
| 75555-0E030 |
ASU40,GSU45 |
1 | ||
| 75561A - CLIP, ROOF DRIP SIDE FINISH MOULDING | ||||
| 75561-52020 |
ASU40,GSU45 |
4 | ||
| 75561A - CLIP, ROOF DRIP SIDE FINISH MOULDING | ||||
| 75561-52020 |
ASU40,GSU45 |
4 | ||
| 75596 - COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, RH | ||||
| 75596-0E030 |
ASU40,GSU45..D |
2 | ||
| 75596 - COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, RH | ||||
| 75596-0E030 |
ASU40,GSU45..D |
2 | ||
| 75597 - COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, LH | ||||
| 75596-0E030 |
ASU40,GSU45..D |
2 | ||
| 75597 - COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, LH | ||||
| 75596-0E030 |
ASU40,GSU45..D |
2 | ||
| 75601A - MOULDING SUB-ASSY, FRONT FENDER, RH | ||||
| 75601-0E900 |
ASU40,GSU45 PAINT REQ. |
1 | ||
| 75602A - MOULDING SUB-ASSY, FRONT FENDER, LH | ||||
| 75602-0E900 |
ASU40,GSU45 PAINT REQ. |
1 | ||
| 75659A - PAD, QUARTER PANEL MOULDING, NO.1 | ||||
| 75659-68010 |
ASU40,GSU45 |
2 | ||
| 75691A - PAD, FRONT FENDER OUTSIDE MOULDING, RH | ||||
| 75691-0E010 |
ASU40,GSU45 |
1 | ||
| 75692A - PAD, FRONT FENDER OUTSIDE MOULDING, LH | ||||
| 75691-0E010 |
ASU40,GSU45 |
1 | ||
| 75710 - MOULDING ASSY, FRONT DOOR BELT, RH | ||||
| 75710-0E030 |
ASU40,GSU45 |
1 | ||
| 75720 - MOULDING ASSY, FRONT DOOR BELT, LH | ||||
| 75720-0E030 |
ASU40,GSU45 |
1 | ||
| 75730 - MOULDING ASSY, REAR DOOR BELT, RH | ||||
| 75730-0E030 |
ASU40,GSU45 |
1 | ||
| 75740 - MOULDING ASSY, REAR DOOR BELT, LH | ||||
| 75740-0E030 |
ASU40,GSU45 |
1 | ||
| 75793 - PAD, FRONT DOOR OUTSIDE MOULDING, UPPER | ||||
| 75793-0E010 |
ASU40,GSU45 |
2 | ||
| 75797 - PAD, REAR DOOR OUTSIDE MOULDING, UPPER | ||||
| 75797-0E010 |
ASU40,GSU45 |
2 | ||
| 75859 - PROTECTOR, FRONT FENDER SIDE | ||||
| 53829-0E010 |
ASU40,GSU45 |
2 | ||
| Common parts | ||||
| 90109-05058 | ||||
| 90159-60422 | ||||
| 90179-05030 | ||||
| 90189-06067 | ||||
| 90430-04260 | ||||
| 90467-10162 | ||||
| Linked diagrams | ||||
| 5302 | ||||
