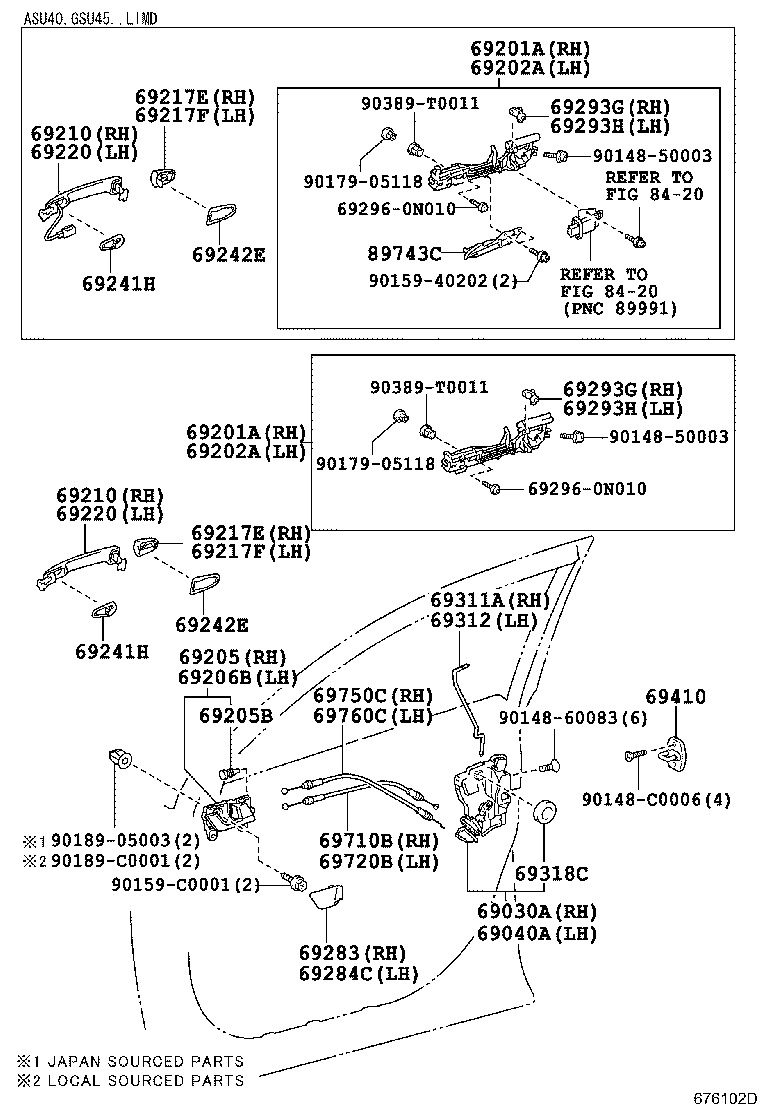

GSU45L-BRAGKC (2009)
Toyota Highlander (China)
(0905- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69030A - LOCK ASSY, FRONT DOOR W/MOTOR, RH | ||||
| 69030-06221 |
ASU40,GSU45 |
1 | ||
| 69040A - LOCK ASSY, FRONT DOOR W/MOTOR, LH | ||||
| 69040-06191 |
ASU40,GSU45 |
1 | ||
| 69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69201-0E040 |
ASU40,GSU45..LIMD |
1 | ||
| 69201-06060 |
ASU40,GSU45..D,SPO |
1 | ||
| 69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69201-0E040 |
ASU40,GSU45..LIMD |
1 | ||
| 69201-06060 |
ASU40,GSU45..D,SPO |
1 | ||
| 69202A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69202-0E040 |
ASU40,GSU45..LIMD |
1 | ||
| 69202-06060 |
ASU40,GSU45..D,SPO |
1 | ||
| 69202A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69202-0E040 |
ASU40,GSU45..LIMD |
1 | ||
| 69202-06060 |
ASU40,GSU45..D,SPO |
1 | ||
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-0E020E0 |
ASU40,GSU45 DK. BROWN,TRIM4# |
1 | ||
| 69205-0E020C0 |
ASU40,GSU45..LIMD,SPO BLACK,TRIM2# |
1 | ||
| 69205B - CUSHION(FOR FRONT DOOR INSIDE HANDLE) | ||||
| 47131-0E010 |
ASU40,GSU45 |
2 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-0E020E0 |
ASU40,GSU45 DK. BROWN,TRIM4# |
1 | ||
| 69206-0E020C0 |
ASU40,GSU45..LIMD,SPO BLACK,TRIM2# |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-06090E1 |
ASU40,GSU45..LIMD BEIGE ME.,4T8 |
1 | ||
| 69211-0E020B1 |
ASU40,GSU45..D,SPO SILVER ME.,1D4 |
1 | ||
| 69210-06090C0 |
ASU40,GSU45..LIMD BLACK,202 |
1 | ||
| 69211-0E020A0 |
ASU40,GSU45..D,SPO WHITE PEARL CS.,070 |
1 | ||
| 69210-06090B1 |
ASU40,GSU45..LIMD GRAY ME.,1G3 |
1 | ||
| 69211-0E020B2 |
ASU40,GSU45..D,SPO GRAY ME.,1G3 |
1 | ||
| 69211-0E020G0 |
ASU40,GSU45..D,SPO GREEN M.M.,6V2 |
1 | ||
| 69211-0E020E0 |
ASU40,GSU45..D,SPO BEIGE ME.,4T8 |
1 | ||
| 69210-06090J1 |
ASU40,GSU45..LIMD DK.BLUE MC.,8S6 |
1 | ||
| 69211-0E020J1 |
ASU40,GSU45..D,SPO DK.BLUE MC.,8S6 |
1 | ||
| 69210-06090A0 |
ASU40,GSU45..LIMD WHITE PEARL CS.,070 |
1 | ||
| 69210-06090G1 |
ASU40,GSU45..LIMD GREEN M.M.,6V2 |
1 | ||
| 69210-06090B0 |
ASU40,GSU45..LIMD SILVER ME.,1D4 |
1 | ||
| 69211-0E020C0 |
ASU40,GSU45..D,SPO BLACK,202 |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-06090E1 |
ASU40,GSU45..LIMD BEIGE ME.,4T8 |
1 | ||
| 69211-0E020B1 |
ASU40,GSU45..D,SPO SILVER ME.,1D4 |
1 | ||
| 69210-06090C0 |
ASU40,GSU45..LIMD BLACK,202 |
1 | ||
| 69211-0E020A0 |
ASU40,GSU45..D,SPO WHITE PEARL CS.,070 |
1 | ||
| 69210-06090B1 |
ASU40,GSU45..LIMD GRAY ME.,1G3 |
1 | ||
| 69211-0E020B2 |
ASU40,GSU45..D,SPO GRAY ME.,1G3 |
1 | ||
| 69211-0E020G0 |
ASU40,GSU45..D,SPO GREEN M.M.,6V2 |
1 | ||
| 69211-0E020E0 |
ASU40,GSU45..D,SPO BEIGE ME.,4T8 |
1 | ||
| 69210-06090J1 |
ASU40,GSU45..LIMD DK.BLUE MC.,8S6 |
1 | ||
| 69211-0E020J1 |
ASU40,GSU45..D,SPO DK.BLUE MC.,8S6 |
1 | ||
| 69210-06090A0 |
ASU40,GSU45..LIMD WHITE PEARL CS.,070 |
1 | ||
| 69210-06090G1 |
ASU40,GSU45..LIMD GREEN M.M.,6V2 |
1 | ||
| 69210-06090B0 |
ASU40,GSU45..LIMD SILVER ME.,1D4 |
1 | ||
| 69211-0E020C0 |
ASU40,GSU45..D,SPO BLACK,202 |
1 | ||
| 69217E - COVER, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69217-0E060C0 |
ASU40,GSU45..D,SPO BLACK,202 |
1 | ||
| 69217-0E060B1 |
ASU40,GSU45..D,SPO SILVER ME.,1D4 |
1 | ||
| 69217-0E060B2 |
ASU40,GSU45..D,SPO GRAY ME.,1G3 |
1 | ||
| 69250-0N020B2 |
ASU40,GSU45..LIMD SILVER ME.,1D4 |
1 | ||
| 69250-0N020E2 |
ASU40,GSU45..LIMD BEIGE ME.,4T8 |
1 | ||
| 69217-0E060G0 |
ASU40,GSU45..D,SPO GREEN M.M.,6V2 |
1 | ||
| 69217-0E060J1 |
ASU40,GSU45..D,SPO DK.BLUE MC.,8S6 |
1 | ||
| 69217-0E060E0 |
ASU40,GSU45..D,SPO BEIGE ME.,4T8 |
1 | ||
| 69250-0N020B3 |
ASU40,GSU45..LIMD GRAY ME.,1G3 |
1 | ||
| 69250-0N020C0 |
ASU40,GSU45..LIMD BLACK,202 |
1 | ||
| 69250-0N020G1 |
ASU40,GSU45..LIMD GREEN M.M.,6V2 |
1 | ||
| 69250-0N020A1 |
ASU40,GSU45..LIMD WHITE PEARL CS.,070 |
1 | ||
| 69250-0N020J1 |
ASU40,GSU45..LIMD DK.BLUE MC.,8S6 |
1 | ||
| 69217-0E060A0 |
ASU40,GSU45..D,SPO WHITE PEARL CS.,070 |
1 | ||
| 69217E - COVER, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69217-0E060C0 |
ASU40,GSU45..D,SPO BLACK,202 |
1 | ||
| 69217-0E060B1 |
ASU40,GSU45..D,SPO SILVER ME.,1D4 |
1 | ||
| 69217-0E060B2 |
ASU40,GSU45..D,SPO GRAY ME.,1G3 |
1 | ||
| 69250-0N020B2 |
ASU40,GSU45..LIMD SILVER ME.,1D4 |
1 | ||
| 69250-0N020E2 |
ASU40,GSU45..LIMD BEIGE ME.,4T8 |
1 | ||
| 69217-0E060G0 |
ASU40,GSU45..D,SPO GREEN M.M.,6V2 |
1 | ||
| 69217-0E060J1 |
ASU40,GSU45..D,SPO DK.BLUE MC.,8S6 |
1 | ||
| 69217-0E060E0 |
ASU40,GSU45..D,SPO BEIGE ME.,4T8 |
1 | ||
| 69250-0N020B3 |
ASU40,GSU45..LIMD GRAY ME.,1G3 |
1 | ||
| 69250-0N020C0 |
ASU40,GSU45..LIMD BLACK,202 |
1 | ||
| 69250-0N020G1 |
ASU40,GSU45..LIMD GREEN M.M.,6V2 |
1 | ||
| 69250-0N020A1 |
ASU40,GSU45..LIMD WHITE PEARL CS.,070 |
1 | ||
| 69250-0N020J1 |
ASU40,GSU45..LIMD DK.BLUE MC.,8S6 |
1 | ||
| 69217-0E060A0 |
ASU40,GSU45..D,SPO WHITE PEARL CS.,070 |
1 | ||
| 69217F - COVER, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69217-0E050E0 |
ASU40,GSU45..D,SPO BEIGE ME.,4T8 |
1 | ||
| 69217-0E050B2 |
ASU40,GSU45..D,SPO GRAY ME.,1G3 |
1 | ||
| 69217-0E050C0 |
ASU40,GSU45..D,SPO BLACK,202 |
1 | ||
| 69250-0N010G1 |
ASU40,GSU45..LIMD GREEN M.M.,6V2 |
1 | ||
| 69217-0E050B1 |
ASU40,GSU45..D,SPO SILVER ME.,1D4 |
1 | ||
| 69250-0N010B2 |
ASU40,GSU45..LIMD SILVER ME.,1D4 |
1 | ||
| 69217-0E050A0 |
ASU40,GSU45..D,SPO WHITE PEARL CS.,070 |
1 | ||
| 69217-0E050J1 |
ASU40,GSU45..D,SPO DK.BLUE MC.,8S6 |
1 | ||
| 69250-0N010J1 |
ASU40,GSU45..LIMD DK.BLUE MC.,8S6 |
1 | ||
| 69250-0N010A1 |
ASU40,GSU45..LIMD WHITE PEARL CS.,070 |
1 | ||
| 69217-0E050G0 |
ASU40,GSU45..D,SPO GREEN M.M.,6V2 |
1 | ||
| 69250-0N010C0 |
ASU40,GSU45..LIMD BLACK,202 |
1 | ||
| 69250-0N010B3 |
ASU40,GSU45..LIMD GRAY ME.,1G3 |
1 | ||
| 69250-0N010E2 |
ASU40,GSU45..LIMD BEIGE ME.,4T8 |
1 | ||
| 69217F - COVER, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69217-0E050E0 |
ASU40,GSU45..D,SPO BEIGE ME.,4T8 |
1 | ||
| 69217-0E050B2 |
ASU40,GSU45..D,SPO GRAY ME.,1G3 |
1 | ||
| 69217-0E050C0 |
ASU40,GSU45..D,SPO BLACK,202 |
1 | ||
| 69250-0N010G1 |
ASU40,GSU45..LIMD GREEN M.M.,6V2 |
1 | ||
| 69217-0E050B1 |
ASU40,GSU45..D,SPO SILVER ME.,1D4 |
1 | ||
| 69250-0N010B2 |
ASU40,GSU45..LIMD SILVER ME.,1D4 |
1 | ||
| 69217-0E050A0 |
ASU40,GSU45..D,SPO WHITE PEARL CS.,070 |
1 | ||
| 69217-0E050J1 |
ASU40,GSU45..D,SPO DK.BLUE MC.,8S6 |
1 | ||
| 69250-0N010J1 |
ASU40,GSU45..LIMD DK.BLUE MC.,8S6 |
1 | ||
| 69250-0N010A1 |
ASU40,GSU45..LIMD WHITE PEARL CS.,070 |
1 | ||
| 69217-0E050G0 |
ASU40,GSU45..D,SPO GREEN M.M.,6V2 |
1 | ||
| 69250-0N010C0 |
ASU40,GSU45..LIMD BLACK,202 |
1 | ||
| 69250-0N010B3 |
ASU40,GSU45..LIMD GRAY ME.,1G3 |
1 | ||
| 69250-0N010E2 |
ASU40,GSU45..LIMD BEIGE ME.,4T8 |
1 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69210-06090C0 |
ASU40,GSU45..LIMD BLACK,202 |
1 | ||
| 69210-06090B1 |
ASU40,GSU45..LIMD GRAY ME.,1G3 |
1 | ||
| 69211-0E020J1 |
ASU40,GSU45..D,SPO DK.BLUE MC.,8S6 |
1 | ||
| 69211-0E020C0 |
ASU40,GSU45..D,SPO BLACK,202 |
1 | ||
| 69211-0E020B1 |
ASU40,GSU45..D,SPO SILVER ME.,1D4 |
1 | ||
| 69210-06090A0 |
ASU40,GSU45..LIMD WHITE PEARL CS.,070 |
1 | ||
| 69211-0E020E0 |
ASU40,GSU45..D,SPO BEIGE ME.,4T8 |
1 | ||
| 69210-06090J1 |
ASU40,GSU45..LIMD DK.BLUE MC.,8S6 |
1 | ||
| 69211-0E020G0 |
ASU40,GSU45..D,SPO GREEN M.M.,6V2 |
1 | ||
| 69211-0E020B2 |
ASU40,GSU45..D,SPO GRAY ME.,1G3 |
1 | ||
| 69210-06090B0 |
ASU40,GSU45..LIMD SILVER ME.,1D4 |
1 | ||
| 69210-06090G1 |
ASU40,GSU45..LIMD GREEN M.M.,6V2 |
1 | ||
| 69211-0E020A0 |
ASU40,GSU45..D,SPO WHITE PEARL CS.,070 |
1 | ||
| 69210-06090E1 |
ASU40,GSU45..LIMD BEIGE ME.,4T8 |
1 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69210-06090C0 |
ASU40,GSU45..LIMD BLACK,202 |
1 | ||
| 69210-06090B1 |
ASU40,GSU45..LIMD GRAY ME.,1G3 |
1 | ||
| 69211-0E020J1 |
ASU40,GSU45..D,SPO DK.BLUE MC.,8S6 |
1 | ||
| 69211-0E020C0 |
ASU40,GSU45..D,SPO BLACK,202 |
1 | ||
| 69211-0E020B1 |
ASU40,GSU45..D,SPO SILVER ME.,1D4 |
1 | ||
| 69210-06090A0 |
ASU40,GSU45..LIMD WHITE PEARL CS.,070 |
1 | ||
| 69211-0E020E0 |
ASU40,GSU45..D,SPO BEIGE ME.,4T8 |
1 | ||
| 69210-06090J1 |
ASU40,GSU45..LIMD DK.BLUE MC.,8S6 |
1 | ||
| 69211-0E020G0 |
ASU40,GSU45..D,SPO GREEN M.M.,6V2 |
1 | ||
| 69211-0E020B2 |
ASU40,GSU45..D,SPO GRAY ME.,1G3 |
1 | ||
| 69210-06090B0 |
ASU40,GSU45..LIMD SILVER ME.,1D4 |
1 | ||
| 69210-06090G1 |
ASU40,GSU45..LIMD GREEN M.M.,6V2 |
1 | ||
| 69211-0E020A0 |
ASU40,GSU45..D,SPO WHITE PEARL CS.,070 |
1 | ||
| 69210-06090E1 |
ASU40,GSU45..LIMD BEIGE ME.,4T8 |
1 | ||
| 69241H - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT | ||||
| 69241-06040 |
ASU40,GSU45 |
2 | ||
| 69241H - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT | ||||
| 69241-06040 |
ASU40,GSU45 |
2 | ||
| 69242E - PAD, FRONT DOOR OUTSIDE HANDLE, REAR | ||||
| 69242-06030 |
ASU40,GSU45 |
2 | ||
| 69242-06040 |
ASU40,GSU45 |
2 | ||
| 69242E - PAD, FRONT DOOR OUTSIDE HANDLE, REAR | ||||
| 69242-06030 |
ASU40,GSU45 |
2 | ||
| 69242-06040 |
ASU40,GSU45 |
2 | ||
| 69283 - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH | ||||
| 69283-0E020 |
ASU40,GSU45 |
1 | ||
| 69284C - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH | ||||
| 69284-0E020 |
ASU40,GSU45 |
1 | ||
| 69293G - SNAP, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69293-0D010 |
ASU40,GSU45 |
1 | ||
| 69293G - SNAP, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69293-0D010 |
ASU40,GSU45 |
1 | ||
| 69293H - SNAP, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69293-0D020 |
ASU40,GSU45 |
1 | ||
| 69293H - SNAP, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69293-0D020 |
ASU40,GSU45 |
1 | ||
| 69311A - ROD, FRONT DOOR LOCK OPEN, RH | ||||
| 69311-0E030 |
ASU40,GSU45 |
1 | ||
| 69312 - ROD, FRONT DOOR LOCK OPEN, LH | ||||
| 69312-0E020 |
ASU40,GSU45 |
1 | ||
| 69318C - SEAL, DOOR LOCK WIRING HARNESS | ||||
| 69318-51010 |
ASU40,GSU45 |
2 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-0P010 |
ASU40,GSU45 |
2 | ||
| 69710B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH | ||||
| 69710-0E030 |
ASU40,GSU45 |
1 | ||
| 69720B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH | ||||
| 69710-0E030 |
ASU40,GSU45 |
1 | ||
| 69750C - CABLE ASSY, FRONT DOOR INSIDE LOCKING, RH | ||||
| 69750-0E030 |
ASU40,GSU45 |
1 | ||
| 69760C - CABLE ASSY, FRONT DOOR INSIDE LOCKING LH | ||||
| 69750-0E030 |
ASU40,GSU45 |
1 | ||
| 89743C - BRACKET, ELECTRICAL KEY WIRE HARNESS | ||||
| 89743-0N020 |
ASU40,GSU45..LIMD LH |
1 | ||
| 89743-0N010 |
ASU40,GSU45..LIMD RH |
1 | ||
| Common parts | ||||
| 69296-0N010 | ||||
| 90148-50003 | ||||
| 90148-60083 | ||||
| 90148-C0006 | ||||
| 90159-40202 | ||||
| 90159-C0001 | ||||
| 90179-05118 | ||||
| 90189-05003 | ||||
| 90189-C0001 | ||||
| 90389-T0011 | ||||
| Linked diagrams | ||||
| 8420 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
