GSU45L-BRAGKC (2009)
Toyota Highlander (China)
Production
May 2009
-
May 2012
Engine
2GRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0905-1205)

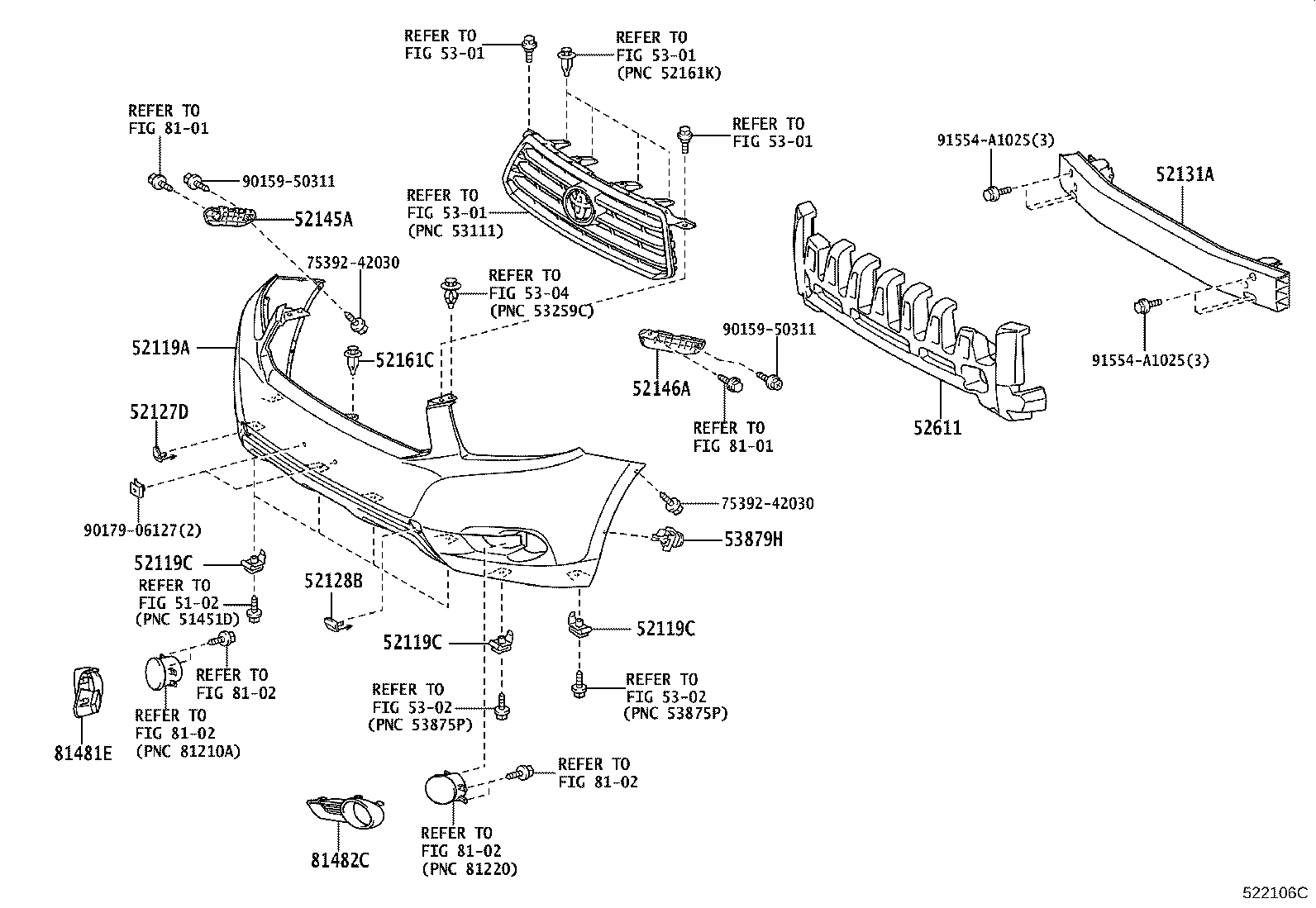

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-0E910 |
ASU40,GSU45 PAINT REQ. |
1 | ||
| 52119C - CLIP, FRONT BUMPER COVER | ||||
| 90467-05114 |
ASU40,GSU45 |
7 | ||
| 52119C - CLIP, FRONT BUMPER COVER | ||||
| 90467-05114 |
ASU40,GSU45 |
7 | ||
| 52119C - CLIP, FRONT BUMPER COVER | ||||
| 90467-05114 |
ASU40,GSU45 |
7 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-0E915 |
ASU40,GSU45 |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-0E915 |
ASU40,GSU45 |
1 | ||
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52131-48100 |
ASU40,GSU45 |
1 | ||
| 52145A - STAY, FRONT BUMPER, NO.2 RH | ||||
| 52145-0E020 |
ASU40,GSU45 |
1 | ||
| 52146A - STAY, FRONT BUMPER, NO.2 LH | ||||
| 52146-0E020 |
ASU40,GSU45 |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
ASU40,GSU45 |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-0E030 |
ASU40,GSU45 |
1 | ||
| 53879H - RETAINER, FRONT FENDER LINER | ||||
| 53879-28010 |
ASU40,GSU45 |
2 | ||
| 81481E - COVER, FOG LAMP, RH | ||||
| 81481-0E020B1 |
ASU40,GSU45 SILVER ME.,1D4 |
1 | ||
| 81481-0E020B2 |
ASU40,GSU45 GRAY ME.,1G3 |
1 | ||
| 81481-0E020J1 |
ASU40,GSU45 DK.BLUE MC.,8S6 |
1 | ||
| 81481-0E020A0 |
ASU40,GSU45 WHITE PEARL CS.,070 |
1 | ||
| 81481-0E020G0 |
ASU40,GSU45 GREEN M.M.,6V2 |
1 | ||
| 81481-0E020E0 |
ASU40,GSU45 BEIGE ME.,4T8 |
1 | ||
| 81481-0E020C0 |
ASU40,GSU45 BLACK,202 |
1 | ||
| 81482C - COVER, FOG LAMP, LH | ||||
| 81482-0E020A0 |
ASU40,GSU45 WHITE PEARL CS.,070 |
1 | ||
| 81482-0E020C0 |
ASU40,GSU45 BLACK,202 |
1 | ||
| 81482-0E020B1 |
ASU40,GSU45 SILVER ME.,1D4 |
1 | ||
| 81482-0E020B2 |
ASU40,GSU45 GRAY ME.,1G3 |
1 | ||
| 81482-0E020J1 |
ASU40,GSU45 DK.BLUE MC.,8S6 |
1 | ||
| 81482-0E020G0 |
ASU40,GSU45 GREEN M.M.,6V2 |
1 | ||
| 81482-0E020E0 |
ASU40,GSU45 BEIGE ME.,4T8 |
1 | ||
| Common parts | ||||
| 75392-42030 | ||||
| 90159-50311 | ||||
| 90179-06127 | ||||
| 91554-A1025 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5301 | ||||
| 5302 | ||||
| 5304 | ||||
| 8101 | ||||
| 8102 | ||||
