GSU45L-BRAGKC (2009)
Toyota Highlander (China)
Production
May 2009
-
May 2012
Engine
2GRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

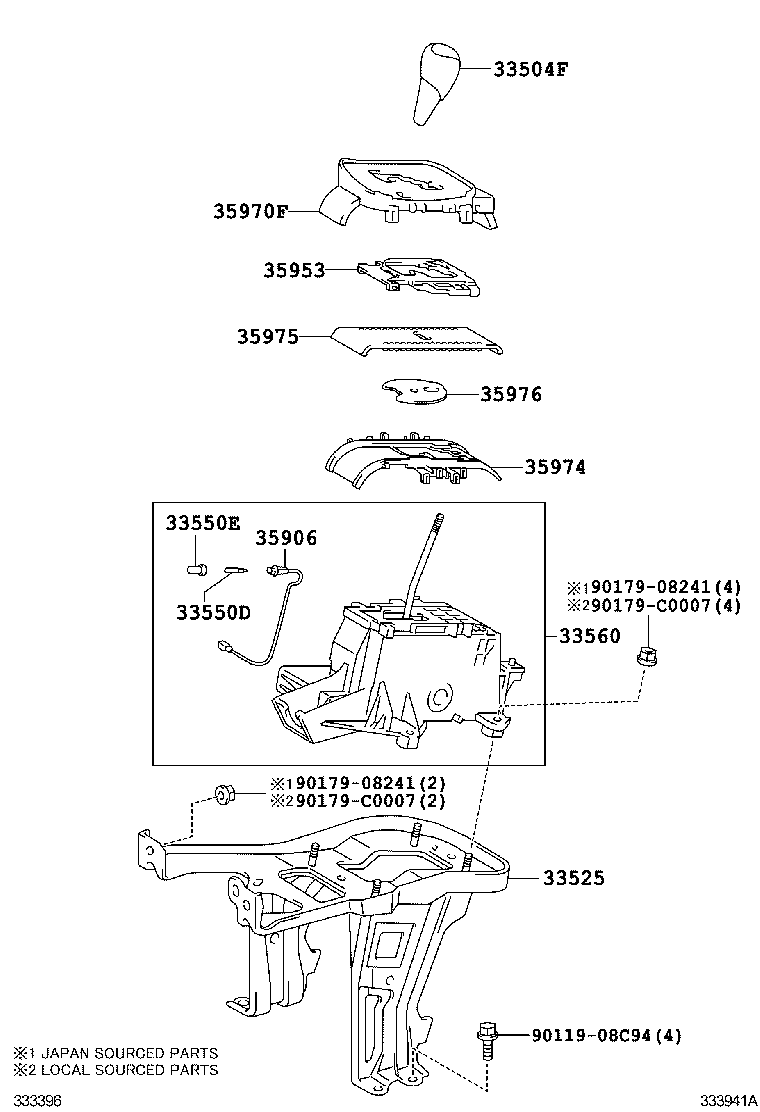

ILLUST NO. 1 OF 2(0905- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-0E080C0 |
ASU40,GSU45..LIMD BLACK,TRIM2# |
1 | ||
| 33504-0E080E0 |
ASU40,GSU45..LIMD DK. BROWN,TRIM4# |
1 | ||
| 33504-06130E1 |
ASU40,GSU45..D DK. BROWN,TRIM4# |
1 | ||
| 33525 - SUPPORT, SHIFT LEVER | ||||
| 58123-0E010 |
ASU40,GSU45 |
1 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 90981-11018 |
ASU40,GSU45 12V 1.2W W/O SOCKET |
1 | ||
| 33550E - CAP, POSITION INDICATOR LAMP | ||||
| 90339-04049 |
ASU40,GSU45 |
1 | ||
| 33560 - UNIT ASSY, SHIFT LOCK CONTROL | ||||
| 33560-0E040 |
ASU40,GSU45..LIMD |
1 | ||
| 33560-0E030 |
ASU40,GSU45..D,SPO |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-0E030 |
ASU40,GSU45 |
1 | ||
| 35953 - GUIDE, POSITION INDICATOR LIGHT | ||||
| 35953-48080 |
ASU40,GSU45 |
1 | ||
| 35970F - HOUSING ASSY, POSITION INDICATOR | ||||
| 35970-0E040 |
ASU40,GSU45 |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-48090 |
ASU40,GSU45 |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-48060 |
ASU40,GSU45 |
1 | ||
| 35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR) | ||||
| 35976-48040 |
ASU40,GSU45 |
1 | ||
| Common parts | ||||
| 90119-08C94 | ||||
| 90179-08241 | ||||
| 90179-C0007 | ||||

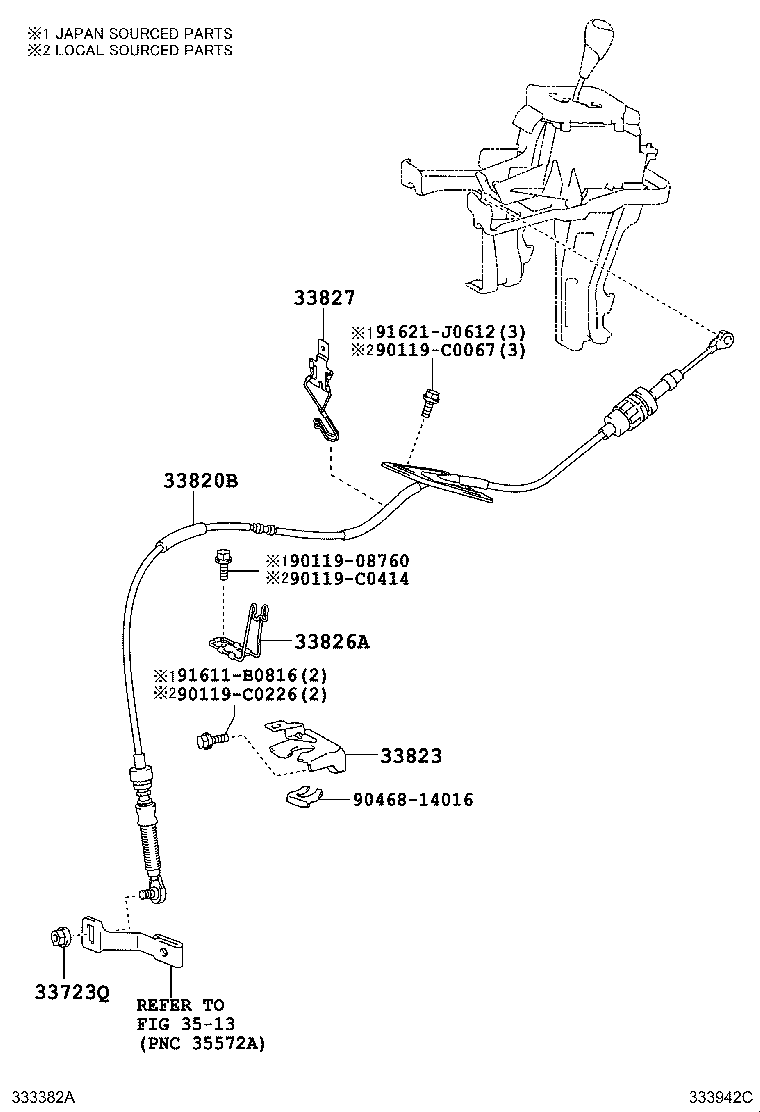

ILLUST NO. 2 OF 2(0905- )GSU45
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33723Q - NUT (FOR CONNECTING ROD SWIVEL) | ||||
| 90179-08054 |
ASU40,GSU45 |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-0E030 |
GSU45 |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-0E030 |
GSU45 |
1 | ||
| 33826A - BRACKET, TRANSMISSION CONTROL CABLE, NO.2 | ||||
| 33826-48090 |
GSU45 |
1 | ||
| 33827 - BRACKET, TRANSMISSION CONTROL CABLE, NO.3 | ||||
| 33827-48020 |
GSU45 |
1 | ||
| Common parts | ||||
| 90119-08760 | ||||
| 90119-C0067 | ||||
| 90119-C0226 | ||||
| 90119-C0414 | ||||
| 90468-14016 | ||||
| 91611-B0816 | ||||
| 91621-J0612 | ||||
| Linked diagrams | ||||
| 3513 | ||||
