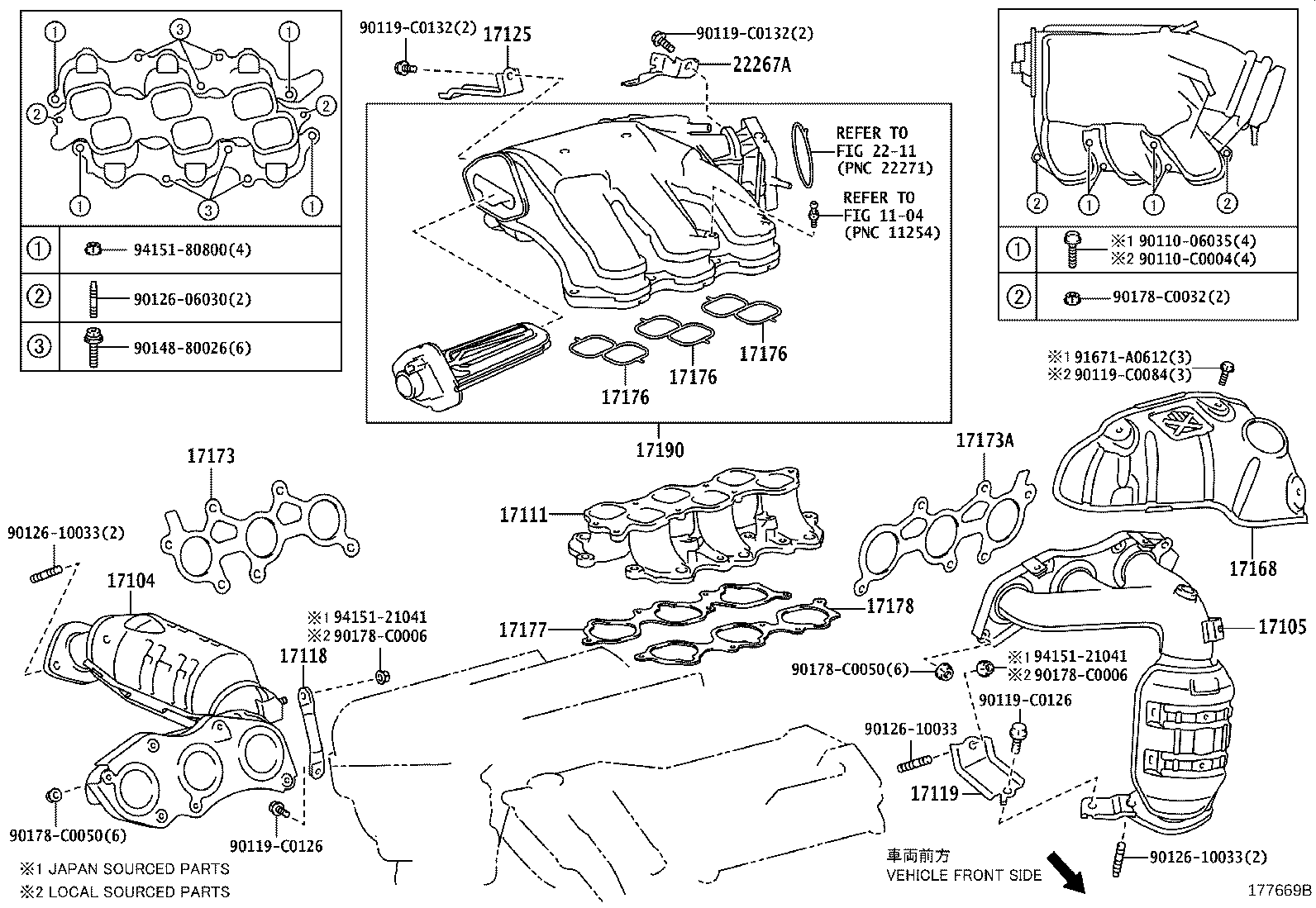

Toyota Highlander (china) GSU45 MANIFOLD

Part #	Description	Period	Qty
17104 - MANIFOLD SUB-ASSY, EXHAUST, RH
17140-31200	2GRFE..GSU45 *114=TOYOTA/R31200/Y	05/2009 - 05/2012	1
17105 - MANIFOLD SUB-ASSY, EXHAUST, LH
17150-31270	2GRFE..GSU45 *114=TOYOTA/L31270/Y	05/2009 - 05/2012	1
17111 - MANIFOLD, INTAKE
17111-31141	2GRFE..GSU45	05/2009 - 05/2012	1
17118 - STAY, MANIFOLD
17118-31070	2GRFE..GSU45	05/2009 - 05/2012	1
17119 - STAY, MANIFOLD, NO.2
17119-31020	2GRFE..GSU45	05/2009 - 05/2012	1
17125 - STAY, SURGE TANK, NO.1
17125-31040	2GRFE..GSU45	05/2009 - 05/2012	1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-31021	2GRFE..GSU45	05/2009 - 05/2012	1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-31020	2GRFE..GSU45	05/2009 - 02/2010	1
17173-0P030	2GRFE..GSU45	02/2010 - 05/2012	1
17173A - GASKET, EXHAUST MANIFOLD TO HEAD, LH
17173-0P030	2GRFE..GSU45	02/2010 - 05/2012	1
17173-31020	2GRFE..GSU45	05/2009 - 02/2010	1
17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17176-31040	2GRFE..GSU45	05/2009 - 10/2011	3
17176-31040	2GRFE..GSU45	11/2011 - 05/2012	3
17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17176-31040	2GRFE..GSU45	05/2009 - 10/2011	3
17176-31040	2GRFE..GSU45	11/2011 - 05/2012	3
17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17176-31040	2GRFE..GSU45	05/2009 - 10/2011	3
17176-31040	2GRFE..GSU45	11/2011 - 05/2012	3
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-31040	2GRFE..GSU45	05/2009 - 05/2012	1
17178 - GASKET, INTAKE MANIFOLD TO HEAD, NO.2
17178-31030	2GRFE..GSU45	05/2009 - 05/2012	1
17190 - TANK ASSY, INTAKE AIR SURGE
17190-31061	2GRFE..GSU45	05/2009 - 05/2012	1
22267A - BRACKET, THROTTLE BODY
22267-31030	2GRFE..GSU45	05/2009 - 05/2012	1
Common parts
90110-06035
90110-C0004
90119-C0084
90119-C0126
90119-C0132
90126-06030
90126-10033
90148-80026
90178-C0006
90178-C0032
90178-C0050
91671-A0612
94151-21041
94151-80800
Linked diagrams
1104
2211

GSU45L-BRAGKC (2009)

(0905- )2GRFE
