GSU45L-BRAGKC (2009)

Toyota Highlander (China)

Production May 2009 - May 2012
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0905- )

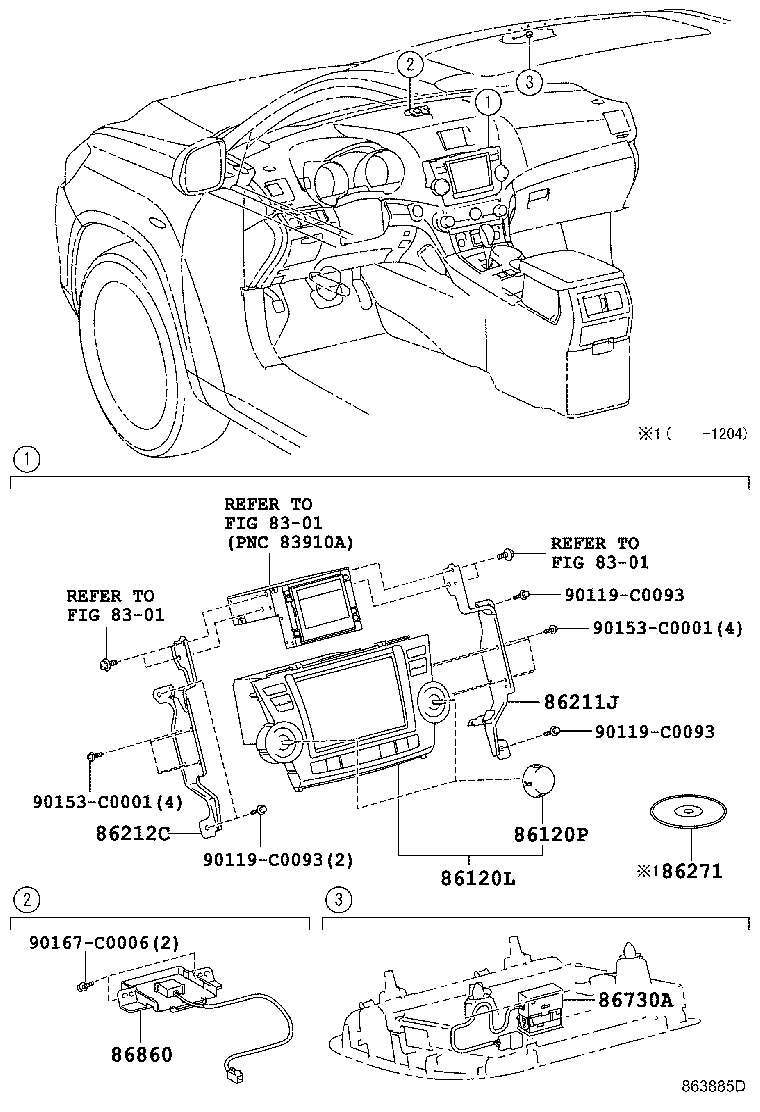

Click highlighted areas on diagram

diagram 8301 8301 8301 86120L 86120P 86211J 86212C 86271 86730A 86860 90119C0093 90119C0093 90119C0093 90153C0001 90153C0001 90167C0006
Part # Description Qty Price
86120L - RECEIVER ASSY, NAVIGATION
86120-0E261C0

ASU40,GSU45..LIMD

DENSO,ID=E8016,BLACK,TRIM2#

 1
86120-0E262C0

ASU40,GSU45..LIMD

DENSO,ID=E8029,BLACK,TRIM2#

 1
86120-0E261E0

ASU40,GSU45..LIMD

DENSO,ID=E8016,DK. BROWN,TRIM4#

 1
86120-0E262E0

ASU40,GSU45..LIMD

DENSO,ID=E8029,DK. BROWN,TRIM4#

 1
86120-0E261E0

ASU40,GSU45..LIMD

DENSO,ID=E8016,DK. BROWN,TRIM4#

 1
86120-0E261C0

ASU40,GSU45..LIMD

DENSO,ID=E8016,BLACK,TRIM2#

 1
86120P - KNOB, NAVIGATION RECEIVER SWITCH
90010-26004

ASU40,GSU45..LIMD

 2
86211J - BRACKET, RADIO RECEIVER, NO.1
86211-0E020

ASU40,GSU45..D,SPO

 1
86211-0E030

ASU40,GSU45..LIMD

 1
86212C - BRACKET, RADIO RECEIVER, NO.2
86212-0E030

ASU40,GSU45..LIMD

 1
86212-0E020

ASU40,GSU45..D,SPO

 1
86271 - DISC, DISC PLAYER
86807-06020

ASU40,GSU45..LIMD

 1
86807-0W026

ASU40,GSU45..LIMD

 1
86807-0W190

ASU40,GSU45..LIMD

 1
86807-0W027

ASU40,GSU45..LIMD

 1
86807-0W029

ASU40,GSU45..LIMD

 1
86807-0W028

ASU40,GSU45..LIMD

 1
86730A - MICROPHONE ASSY, TELEPHONE
86730-20050

ASU40,GSU45..LIMD

 1
86860 - ANTENNA ASSY, NAVIGATION
86860-48100

ASU40,GSU45..LIMD

 1
86860-0E020

ASU40,GSU45..LIMD

 1
Common parts
90119-C0093
90153-C0001
90167-C0006
Linked diagrams
8301
