GSU45L-BRAGKC (2009)

Toyota Highlander (China)

Production May 2009 - May 2012
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0905- )

Click highlighted areas on diagram

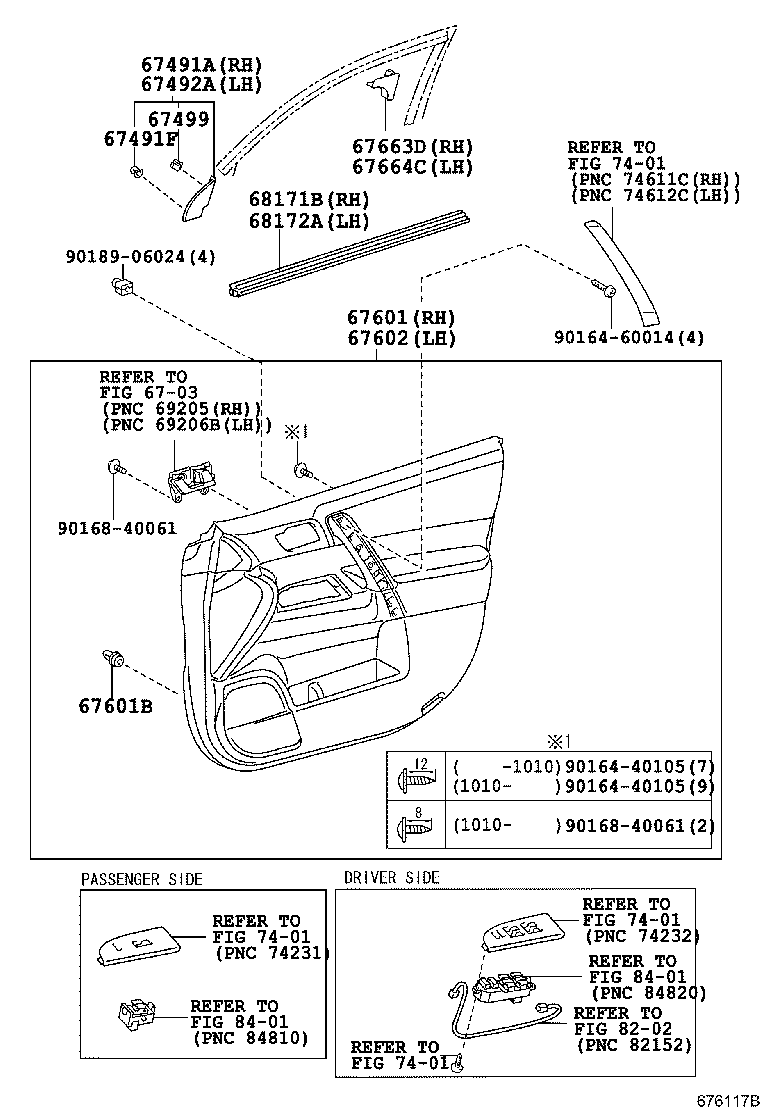

DOOR TRIM

diagram 6703 67491A 67491F 67492A 67499 67601 67601B 67602 67663D 67664C 68171B 68172A 7401 7401 7401 7401 8202 8401 8401 9016440105 9016440105 9016460014 9016840061 9016840061 9018906024
Part # Description Qty Price
67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67491-0E020

ASU40,GSU45

 1
67491F - CLIP(FOR DOOR TRIM)
90468-05106

ASU40,GSU45

 2
67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67492-0E020

ASU40,GSU45

 1
67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
90468-04181

ASU40,GSU45

 2
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-0E050E0

ASU40,GSU45..LIMD,SPO

DK. BROWN,TRIM4#

 1
67610-0E040E0

ASU40,GSU45..D

DK. BROWN,TRIM4#

 1
67610-0E050C0

ASU40,GSU45..LIMD,SPO

BLACK,TRIM2#

 1
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-09206

ASU40,GSU45

 18
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-0E050C0

ASU40,GSU45..LIMD,SPO

BLACK,TRIM2#

 1
67620-0E040E0

ASU40,GSU45..D

DK. BROWN,TRIM4#

 1
67620-0E050E0

ASU40,GSU45..LIMD,SPO

DK. BROWN,TRIM4#

 1
67663D - GARNISH, DOOR FRAME, RH
67663-0E030

ASU40,GSU45

 1
67664C - GARNISH, DOOR FRAME, LH
67664-0E030

ASU40,GSU45

 1
68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH
68171-0E030

ASU40,GSU45

 1
68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH
68172-0E030

ASU40,GSU45

 1
Common parts
90164-40105
90164-60014
90168-40061
90189-06024
Linked diagrams
6703
7401
8202
8401

ILLUST NO. 1 OF 2(0905- )

Click highlighted areas on diagram

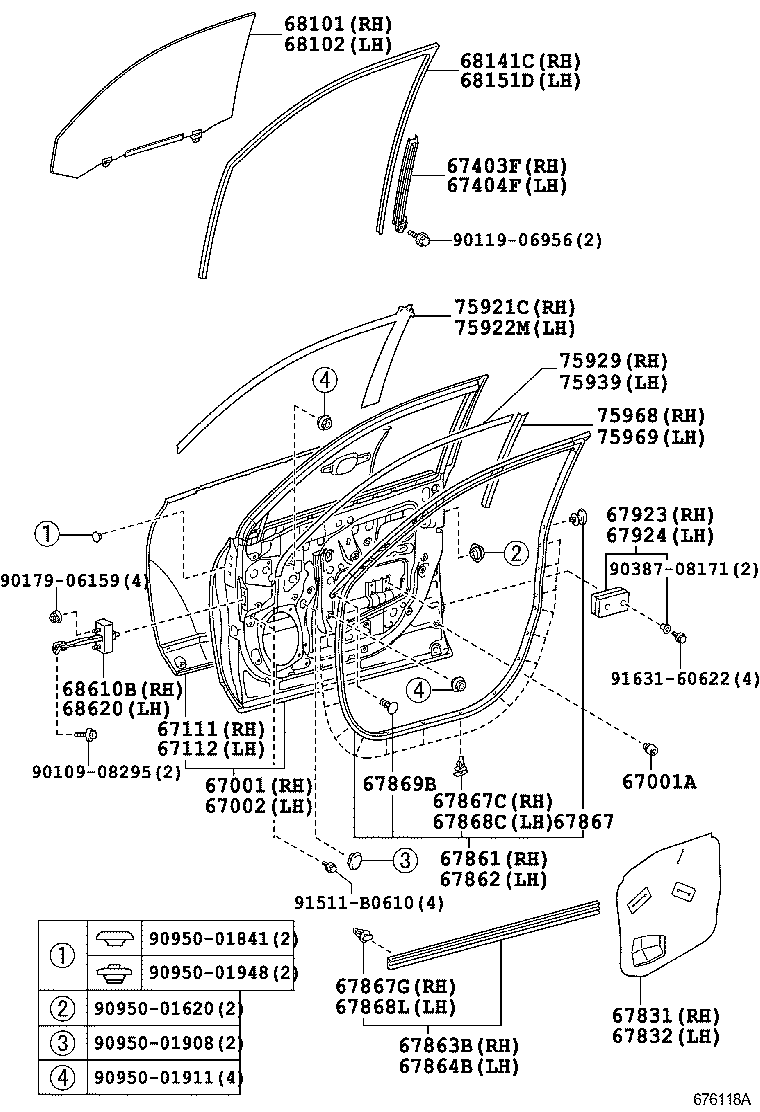

DOOR PANEL

diagram 67001 67001A 67002 67111 67112 67403F 67404F 67831 67832 67861 67862 67863B 67864B 67867 67867C 67867G 67868C 67868L 67869B 67923 67924 68101 68102 68141C 68151D 68610B 68620 75921C 75922M 75929 75939 75968 75969 9010908295 9011906956 9017906159 9038708171 9095001620 9095001841 9095001908 9095001911 9095001948 91511B0610 9163160622
Part # Description Qty Price
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-0E040

ASU40,GSU45

 1
67001A - CUSHION, FRONT DOOR PANEL
90541-09069

ASU40,GSU45

 2
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-0E040

ASU40,GSU45

 1
67111 - PANEL, FRONT DOOR, OUTER RH
67111-0E030

ASU40,GSU45

 1
67112 - PANEL, FRONT DOOR, OUTER LH
67112-0E030

ASU40,GSU45

 1
67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67403-0E030

ASU40,GSU45

 1
67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67404-0E030

ASU40,GSU45

 1
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67831-0E030

ASU40,GSU45

 1
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67832-0E030

ASU40,GSU45

 1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-0E040

ASU40,GSU45

 1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-0E040

ASU40,GSU45

 1
67863B - WEATHERSTRIP, FRONT DOOR, NO.2 RH
67863-0E010

ASU40,GSU45

 1
67864B - WEATHERSTRIP, FRONT DOOR, NO.2 LH
67864-0E010

ASU40,GSU45

 1
67867 - CLIP, DOOR WEATHERSTRIP
90467-04034

ASU40,GSU45

 2
67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH
67867-12150

ASU40,GSU45

 16
67867G - RETAINER, DOOR WEATHERSTRIP, RH
67867-0E010

ASU40,GSU45

 8
67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH
67867-12150

ASU40,GSU45

 16
67868L - RETAINER, DOOR WEATHERSTRIP, LH
67867-0E010

ASU40,GSU45

 8
67869B - CLIP, FRONT DOOR WEATHERSTRIP
67869-24010

ASU40,GSU45

 2
67923 - CUSHION, FRONT DOOR STIFFENER, NO.1
67923-0E030

ASU40,GSU45

 1
67924 - CUSHION, FRONT DOOR STIFFENER, NO.2
67924-0E010

ASU40,GSU45

 1
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68101-0E030

ASU40,GSU45

*HSEA,T=4.0,S.GREEN

 1
68101-0E031

ASU40,GSU45

*HSEA,T=4.0,S.GREEN

 1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68102-0E030

ASU40,GSU45

*HSEA,T=4.0,S.GREEN

 1
68102-0E031

ASU40,GSU45

*HSEA,T=4.0,S.GREEN

 1
68141C - RUN, FRONT DOOR GLASS, RH
68141-0E030

ASU40,GSU45

 1
68151D - RUN, FRONT DOOR GLASS, LH
68151-0E030

ASU40,GSU45

 1
68610B - CHECK ASSY, FRONT DOOR, RH
68610-0E030

ASU40,GSU45

 1
68620 - CHECK ASSY, FRONT DOOR, LH
68620-0E030

ASU40,GSU45

 1
75921C - TAPE, BLACK OUT, NO.1 RH
75921-0E020

ASU40,GSU45

 1
75922M - TAPE, BLACK OUT, NO.1 LH
75922-0E020

ASU40,GSU45

 1
75929 - TAPE, BLACK OUT FRONT DOOR, INNER UPPER RH
75929-0E010

ASU40,GSU45

 1
75939 - TAPE, BLACK OUT FRONT DOOR, INNER UPPER LH
75939-0E010

ASU40,GSU45

 1
75968 - TAPE, BLACK OUT FRONT DOOR, INNER REAR RH
75968-0E010

ASU40,GSU45

 1
75969 - TAPE, BLACK OUT FRONT DOOR, INNER REAR LH
75969-0E010

ASU40,GSU45

 1
Common parts
90109-08295
90119-06956
90179-06159
90387-08171
90950-01620
90950-01841
90950-01908
90950-01911
90950-01948
91511-B0610
91631-60622
