ASU55L-BRTNTC (2015)

Toyota Highlander (China)

Production Mar 2015 - Mar 2018
Engine 8ARFTS
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1503- )8ARFTS

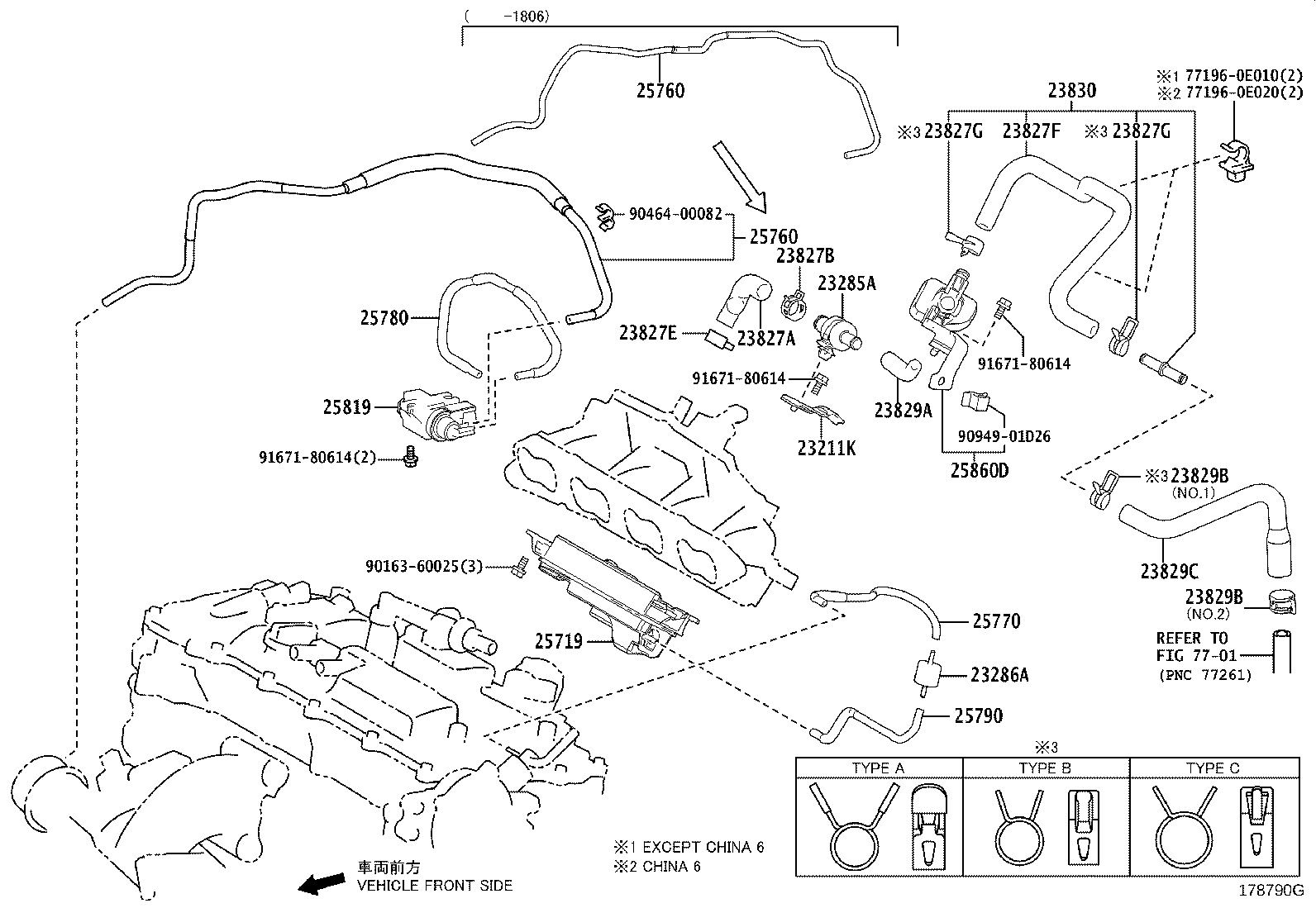

Click highlighted areas on diagram

diagram 23211K 23285A 23286A 23827A 23827B 23827E 23827F 23827G 23827G 23829A 23829B 23829B 23829C 23830 25719 25760 25760 25770 25780 25790 25819 25860D 7701 771960E010 771960E020 9016360025 9046400082 9094901D26 9167180614 9167180614 9167180614
Part # Description Qty Price
23211K - BRACKET
23211-36010

8ARFTS..ASU5#

 1
23285A - VALVE, CHECK, NO.1
25748-36010

8ARFTS..ASU5#

 1
23286A - VALVE, CHECK, NO.2
90917-10065

8ARFTS..ASU5#

 1
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-36150

8ARFTS..ASU5#

 1
23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
96136-42201

8ARFTS..ASU5#

 1
23827E - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
96137-41901

8ARFTS..ASU5#

 1
23827F - HOSE, FUEL VAPOR FEED, NO.3
23827-0V060

8ARFTS..ASU5#

 1
23827G - CLIP(FOR FUEL VAPOR FEED HOSE, NO.3)
90466-13004

8ARFTS..ASU5#

TYPE A:REFER ILLUST.

 2
90466-C0033

8ARFTS..ASU5#

TYPE B:REFER ILLUST.

 2
23827G - CLIP(FOR FUEL VAPOR FEED HOSE, NO.3)
90466-13004

8ARFTS..ASU5#

TYPE A:REFER ILLUST.

 2
90466-C0033

8ARFTS..ASU5#

TYPE B:REFER ILLUST.

 2
23829A - HOSE, FUEL VAPOR FEED
23826-36170

8ARFTS..ASU5#

 1
23829B - CLIP(FOR FUEL VAPOR FEED HOSE)
90466-C0033

8ARFTS..ASU5#

NO.1,TYPE B:REF ILL.

 1
90466-C0032

8ARFTS..ASU5#

(L),NO.2:SEE ILLUST

 1
90466-13004

8ARFTS..ASU5#

NO.1,TYPE A:REF ILL.

 1
96137-41901

8ARFTS..ASU5#

(J),NO.2:SEE ILLUST

 1
96137-41901

8ARFTS..ASU5#

NO.2:REFER ILLUST.

 1
90466-C0039

8ARFTS..ASU5#

NO.2:REFER ILLUST.

 1
23829B - CLIP(FOR FUEL VAPOR FEED HOSE)
90466-C0033

8ARFTS..ASU5#

NO.1,TYPE B:REF ILL.

 1
90466-C0032

8ARFTS..ASU5#

(L),NO.2:SEE ILLUST

 1
90466-13004

8ARFTS..ASU5#

NO.1,TYPE A:REF ILL.

 1
96137-41901

8ARFTS..ASU5#

(J),NO.2:SEE ILLUST

 1
96137-41901

8ARFTS..ASU5#

NO.2:REFER ILLUST.

 1
90466-C0039

8ARFTS..ASU5#

NO.2:REFER ILLUST.

 1
23829C - HOSE, FUEL VAPOR FEED, NO.2
23829-0V020

8ARFTS..ASU5#

 1
23830 - HOSE ASSY, FUEL VAPOR FEED, NO.2
23830-0V150

8ARFTS..ASU5#

 1
25719 - TANK, VACUUM SURGE
25719-36010

8ARFTS..ASU5#

 1
25760 - HOSE ASSY, VACUUM TRANSMITTING
25760-36040

8ARFTS..ASU5#

 1
25760 - HOSE ASSY, VACUUM TRANSMITTING
25760-36040

8ARFTS..ASU5#

 1
25770 - HOSE ASSY, VACUUM TRANSMITTING, NO.2
25770-36010

8ARFTS..ASU5#

 1
25780 - HOSE ASSY, VACUUM TRANSMITTING, NO.3
25780-36010

8ARFTS..ASU5#

 1
25790 - HOSE ASSY, VACUUM TRANSMITTING, NO.4
25790-36010

8ARFTS..ASU5#

 1
25819 - VALVE ASSY, VACUUM REGULATING
25819-0W010

8ARFTS..ASU5#

 1
25860D - VALVE ASSY, VACUUM SWITCHING, NO.2
25860-36121

8ARFTS..ASU5#

 1
Common parts
77196-0E010
77196-0E020
90163-60025
90464-00082
90949-01D26
91671-80614
