ASU55L-BRTNTC (2015)

Toyota Highlander (China)

Production Mar 2015 - Mar 2018
Engine 8ARFTS
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

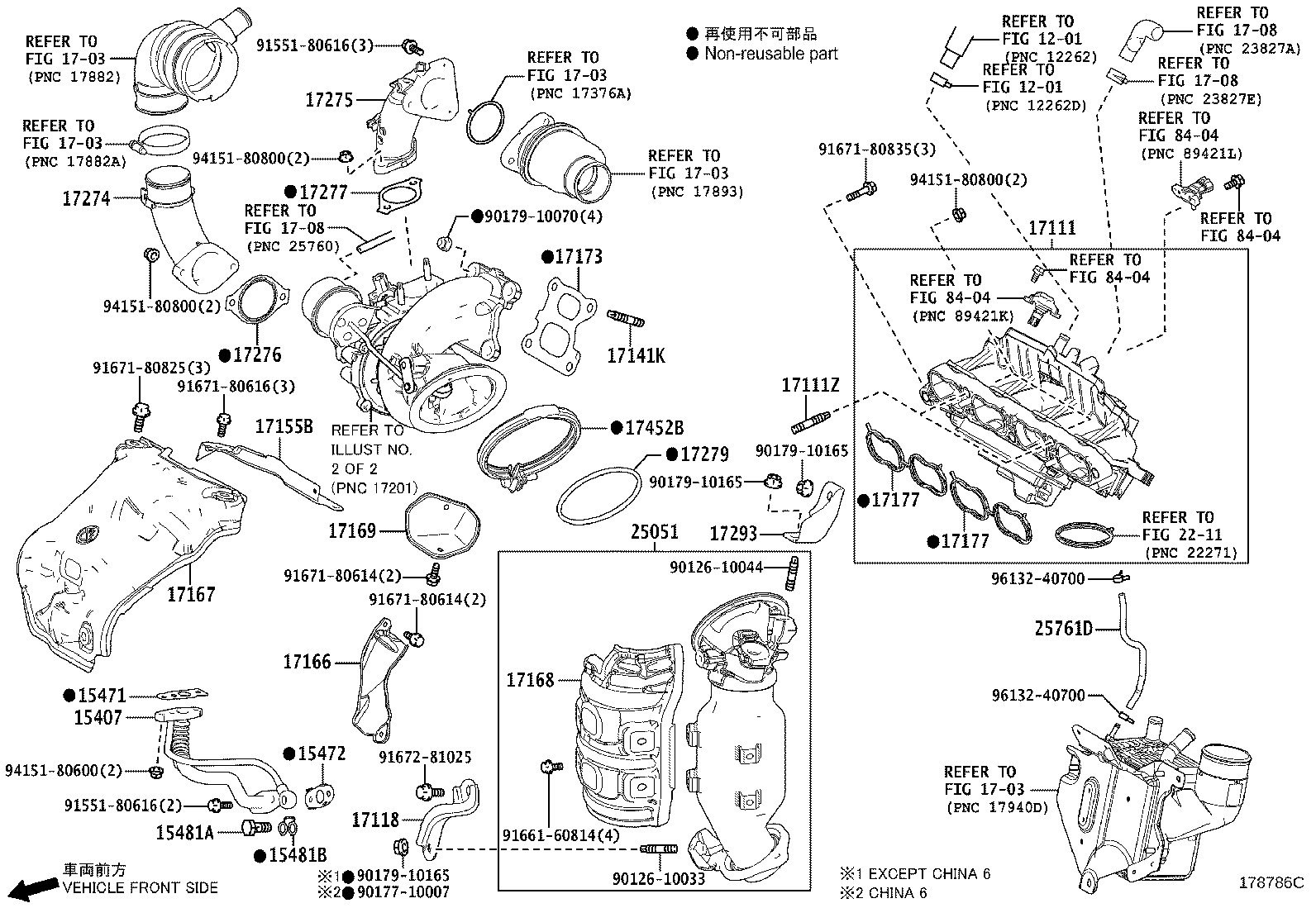

ILLUST NO. 1 OF 2(1503- )8ARFTS

Click highlighted areas on diagram

MANIFOLD

diagram 1201 1201 15407 15471 15472 15481A 15481B 1703 1703 1703 1703 1703 1708 1708 1708 17111 17111Z 17118 17141K 17155B 17166 17167 17168 17169 17173 17177 17177 17274 17275 17276 17277 17279 17293 17452B 2211 25051 25761D 8404 8404 8404 8404 9012610033 9012610044 9017710007 9017910070 9017910165 9017910165 9017910165 9155180616 9155180616 9166160814 9167180614 9167180614 9167180616 9167180825 9167180835 9167281025 9415180600 9415180800 9415180800 9415180800 9613240700 9613240700
Part # Description Qty Price
15407 - PIPE SUB-ASSY, TURBO OIL INLET
15407-36010

8ARFTS..ASU5#

 1
15471 - GASKET, TURBO OIL INLET
15471-36010

8ARFTS..ASU5#

 1
15472 - GASKET, TURBO OIL OUTLET, NO.1
15472-36010

8ARFTS..ASU5#

 1
15481A - BOLT, UNION, NO.1
90401-12097

8ARFTS..ASU5#

 1
15481B - GASKET(FOR UNION BOLT NO.1)
90904-30004

8ARFTS..ASU5#

 1
17111 - MANIFOLD, INTAKE
17101-36081

8ARFTS..ASU5#

 1
17101-36082

8ARFTS..ASU5#

 1
17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
90126-08062

8ARFTS..ASU5#

 2
17118 - STAY, MANIFOLD
17118-36060

8ARFTS..ASU5#

 1
17141K - BOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
90126-10045

8ARFTS..ASU5#

 4
17155B - INSULATOR, EXHAUST MANIFOLD HEAT, NO.5
17155-36010

8ARFTS..ASU5#

 1
17166 - INSULATOR, EXHAUST MANIFOLD HEAT,NO.4
17166-36010

8ARFTS..ASU5#

 1
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-36041

8ARFTS..ASU5#

 1
17167-36040

8ARFTS..ASU5#

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-36050

8ARFTS..ASU5#

 1
17169 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.3
17169-36020

8ARFTS..ASU5#

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-36040

8ARFTS..ASU5#

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17171-36040

8ARFTS..ASU5#

 2
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17171-36040

8ARFTS..ASU5#

 2
17274 - ELBOW, COMPRESSOR INLET
17274-36010

8ARFTS..ASU5#

 1
17275 - ELBOW, COMPRESSOR OUTLET
17275-36010

8ARFTS..ASU5#

 1
17276 - GASKET, COMPRESSOR INLET
17276-36010

8ARFTS..ASU5#

 1
17277 - GASKET, COMPRESSOR OUTLET
17277-36010

8ARFTS..ASU5#

 1
17279 - GASKET, TURBINE OUTLET ELBOW
17279-0W010

8ARFTS..ASU5#

 1
17293 - STAY, TURBOCHARGER
17293-36040

8ARFTS..ASU5#

 1
17293-36020

8ARFTS..ASU5#

 1
17452B - CLAMP, EXHAUST PIPE
17452-36010

8ARFTS..ASU5#

 1
25051 - CONVERTER SUB-ASSY, EXHAUST MANIFOLD
25051-36250

8ARFTS..ASU5#

*114=TOYOTA/36250/Y

 1
25761D - HOSE, VACCUM TRANSMITTING, NO.1
257A1-36010

8ARFTS..ASU5#

 1
Common parts
90126-10033
90126-10044
90177-10007
90179-10070
90179-10165
91551-80616
91661-60814
91671-80614
91671-80616
91671-80825
91671-80835
91672-81025
94151-80600
94151-80800
96132-40700
Linked diagrams
1201
1703
1708
2211
8404

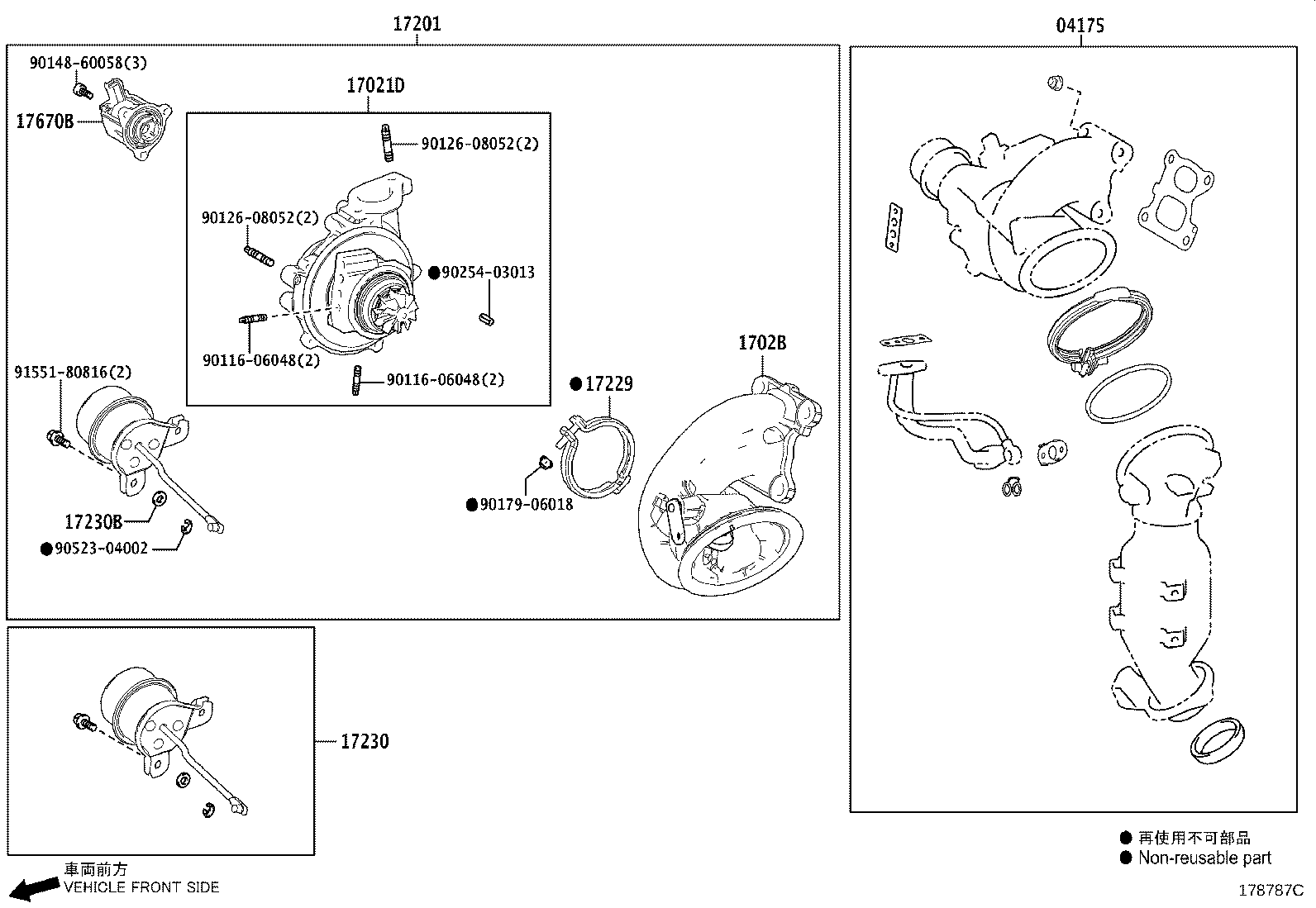

ILLUST NO. 2 OF 2(1503- )8ARFTS

Click highlighted areas on diagram

TURBOCHARGER

diagram 04175 17021D 1702B 17201 17229 17230 17230B 17670B 9011606048 9011606048 9012608052 9012608052 9014860058 9017906018 9025403013 9052304002 9155180816
Part # Description Qty Price
04175 - GASKET KIT, TURBOCHARGER
04175-36020

8ARFTS..ASU5#

 1
17021D - HOUSING SUB-ASSY, BEARING, W/COMPRESSOR HOUSING
1702A-36011

8ARFTS..ASU5#

 1
1702A-36010

8ARFTS..ASU5#

 1
1702B - HOUSING SUB-ASSY, TURBINE W/VALVE
1702B-36011

8ARFTS..ASU5#

 1
1702B-36013

8ARFTS..ASU5#

 1
17201 - TURBOCHARGER SUB-ASSY
17201-36010

8ARFTS..ASU5#

 1
17229 - BAND, V
17229-36010

8ARFTS..ASU5#

 1
17230 - ACTUATOR ASSY, W/BRACKET
17230-39146

8ARFTS..ASU5#

 1
17230-39145

8ARFTS..ASU5#

 1
17230B - WASHER, PLATE(FOR REPAIR ACTUATOR SET)
94612-10800

8ARFTS..ASU5#

T=1.6

 1
17670B - VALVE ASSY, AIR BY-PASS
17670-0W011

8ARFTS..ASU5#

 1
17670-0W010

8ARFTS..ASU5#

 1
Common parts
90116-06048
90126-08052
90148-60058
90179-06018
90254-03013
90523-04002
91551-80816
