ASU55L-BRTMTC (2015)

Toyota Highlander (China)

Production Mar 2015 - Mar 2018
Engine 8ARFTS
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 4(1503- )

Click highlighted areas on diagram

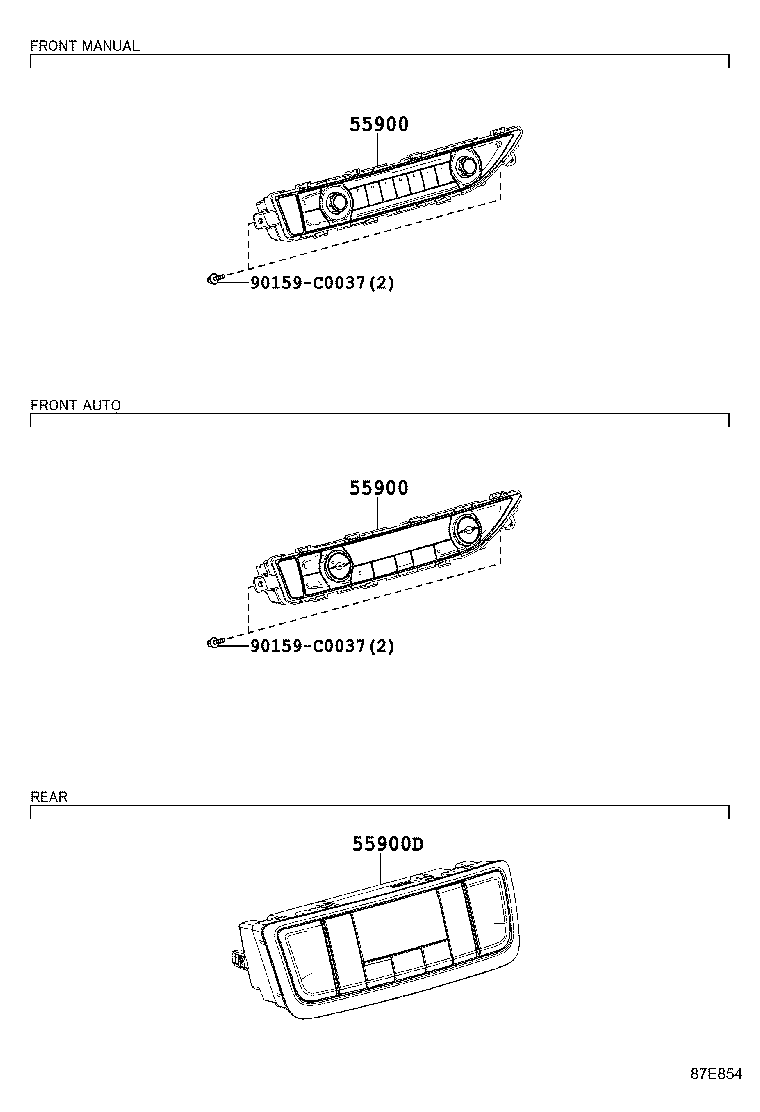

HEATER CONTROL PANEL

diagram 55900 55900 55900D 90159C0037 90159C0037
Part # Description Qty Price
55900 - CONTROL ASSY, AIR CONDITIONER
55900-0E510

ASU5#..SPO

 1
55900-0E520

ASU5#..D

 1
55900 - CONTROL ASSY, AIR CONDITIONER
55900-0E510

ASU5#..SPO

 1
55900-0E520

ASU5#..D

 1
55900D - CONTROL ASSY, AIR CONDITIONER, NO.2
55900-0E530

ASU5#..D

 1
55900-0E540

ASU5#..LIMD,SPO

 1
Common parts
90159-C0037

ILLUST NO. 2 OF 4(1503- )

Click highlighted areas on diagram

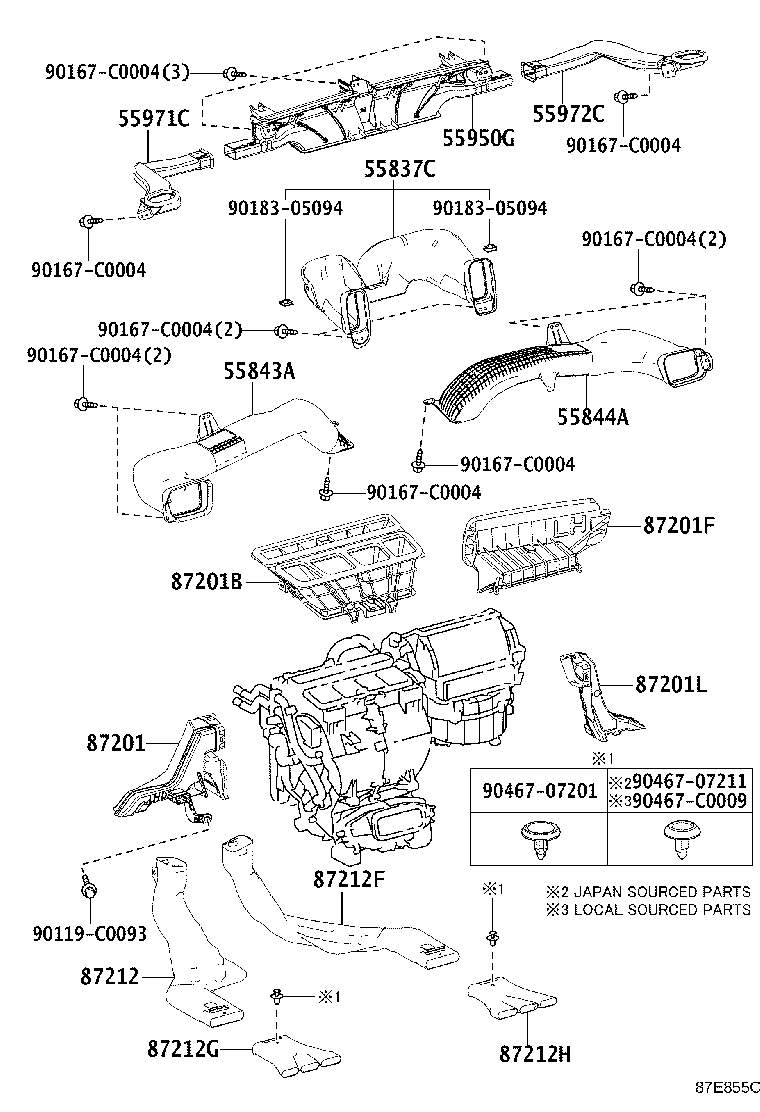

FRONT AIR DUCT

diagram 55837C 55843A 55844A 55950G 55971C 55972C 87201 87201B 87201F 87201L 87212 87212F 87212G 87212H 90119C0093 90167C0004 90167C0004 90167C0004 90167C0004 90167C0004 90167C0004 90167C0004 90167C0004 9018305094 9018305094 9046707201 9046707211 90467C0009
Part # Description Qty Price
55837C - DUCT, HEATER TO REGISTER CENTER SUB
55837-0E070

ASU5#,GSU55

 1
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-0E080

ASU5#

 1
55844A - DUCT, REAR HEATER TO REGISTER, NO.2
55846-0E070

ASU5#

 1
55950G - NOZZLE ASSY, DEFROSTER
55950-0E060

ASU5#

 1
55971C - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55971-0E070

ASU5#

 1
55972C - DUCT, SIDE DEFROSTER NOZZLE, NO.2
55972-0E070

ASU5#

 1
87201 - DUCT SUB-ASSY, AIR, NO.1
87201-0E250

ASU5#

 1
87201B - DUCT SUB-ASSY, AIR, NO.2
87201-0E240

ASU5#

 1
87201F - DUCT SUB-ASSY, AIR, NO.3
87201-0E230

ASU5#

 1
87201L - DUCT SUB-ASSY, AIR, NO.4
87201-06410

ASU5#

 1
87212 - DUCT, AIR, REAR NO.1
87213-0E070

ASU5#

 1
87212F - DUCT, AIR, REAR NO.2
87212-0E070

ASU5#

 1
87212G - DUCT, AIR, REAR NO.3
87216-0E020

ASU5#

 1
87212H - DUCT, AIR, REAR NO.4
87215-0E020

ASU5#

 1
Common parts
90119-C0093
90167-C0004
90183-05094
90467-07201
90467-07211
90467-C0009

ILLUST NO. 3 OF 4(1503- )

Click highlighted areas on diagram

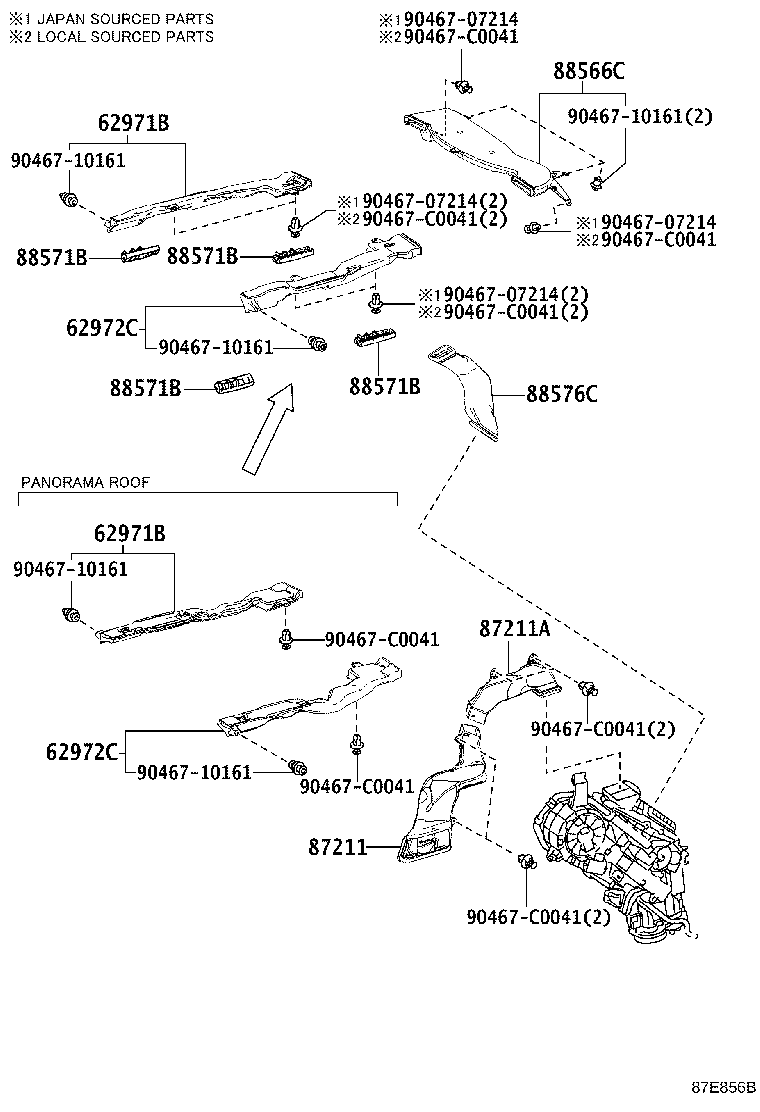

REAR AIR DUCT

diagram 62971B 62971B 62972C 62972C 87211 87211A 88566C 88571B 88571B 88571B 88571B 88576C 9046707214 9046707214 9046707214 9046707214 9046710161 9046710161 9046710161 9046710161 9046710161 90467C0041 90467C0041 90467C0041 90467C0041 90467C0041 90467C0041 90467C0041 90467C0041
Part # Description Qty Price
62971B - DUCT, ROOF SIDE AIR, NO.1 RH
62971-0E100

ASU5#..D

 1
62971-0E090

ASU5#..LIMD,SPO

 1
62971B - DUCT, ROOF SIDE AIR, NO.1 RH
62971-0E100

ASU5#..D

 1
62971-0E090

ASU5#..LIMD,SPO

 1
62972C - DUCT, ROOF SIDE AIR, NO.1 LH
62972-0E100

ASU5#..D

 1
62972-0E090

ASU5#..LIMD,SPO

 1
62972C - DUCT, ROOF SIDE AIR, NO.1 LH
62972-0E100

ASU5#..D

 1
62972-0E090

ASU5#..LIMD,SPO

 1
87211 - DUCT, AIR, NO.1
87211-0E080

ASU5#

 1
87211A - DUCT, AIR, NO.2
87217-0E050

ASU5#

 1
88566C - DUCT, COOLER AIR, NO.3
62973-0E040

ASU5#

 1
88571B - GRILLE, AIR OUTLET
88571-0E020B0

ASU5#,GSU55..LIMD,SPO

GRAY,TRIM2#

 4
88571-0E020A0

ASU5#,GSU55

FLAXEN,TRIM0#

 4
88571B - GRILLE, AIR OUTLET
88571-0E020B0

ASU5#,GSU55..LIMD,SPO

GRAY,TRIM2#

 4
88571-0E020A0

ASU5#,GSU55

FLAXEN,TRIM0#

 4
88571B - GRILLE, AIR OUTLET
88571-0E020B0

ASU5#,GSU55..LIMD,SPO

GRAY,TRIM2#

 4
88571-0E020A0

ASU5#,GSU55

FLAXEN,TRIM0#

 4
88571B - GRILLE, AIR OUTLET
88571-0E020B0

ASU5#,GSU55..LIMD,SPO

GRAY,TRIM2#

 4
88571-0E020A0

ASU5#,GSU55

FLAXEN,TRIM0#

 4
88576C - DUCT, COOLER AIR, NO.1
62974-0E040

ASU5#

 1
Common parts
90467-07214
90467-10161
90467-C0041

ILLUST NO. 4 OF 4(1503- )

Click highlighted areas on diagram

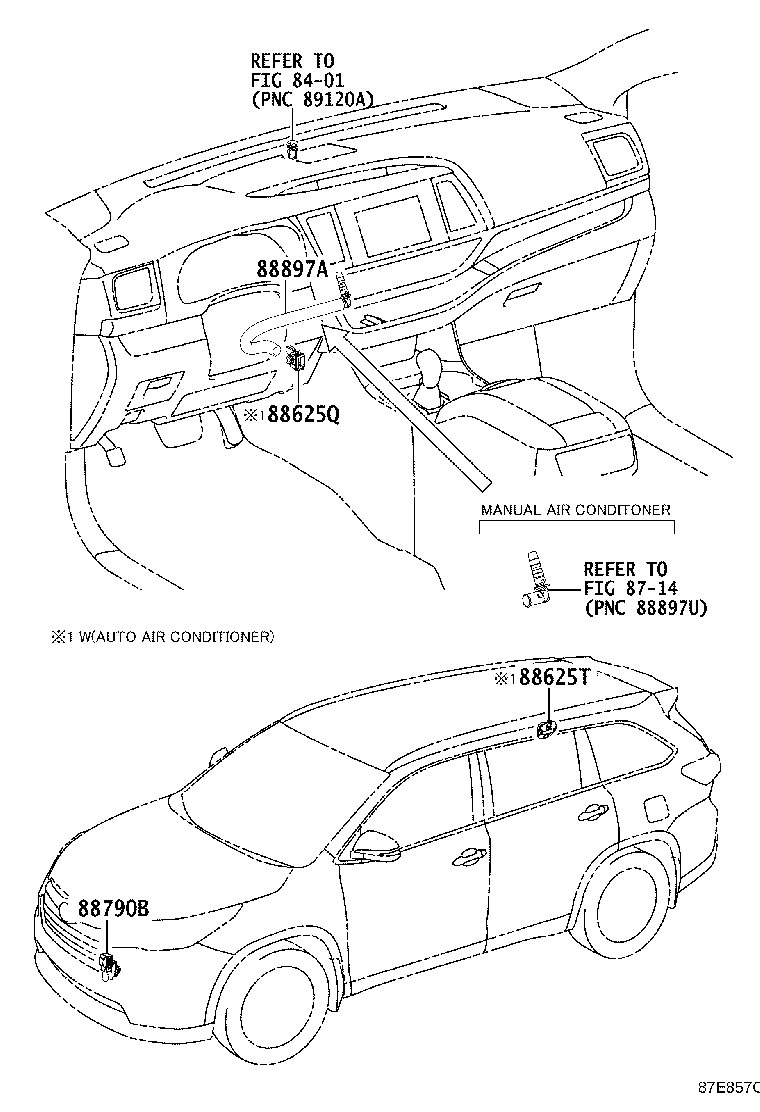

SENSOR

diagram 8401 8714 88625Q 88625T 88790B 88897A
Part # Description Qty Price
88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR)
88625-47021

ASU5#..LIMD,SPO

 1
88625T - THERMISTOR, COOLER (ROOM TEMP. SENSOR NO.2)
88625-45020A5

ASU5#,GSU55..LIMD,SPO

FLAXEN,TRIM0#

 1
88625-45020C0

ASU5#,GSU55..LIMD,SPO

BLACK,TRIM2#

 1
88790B - THERMISTOR ASSY
88790-02010

ASU5#

 1
88897A - PIPE, ASPIRATOR
87201-0E090

ASU5#..LIMD,SPO

 1
Linked diagrams
8401
8714
