ASU55L-BRTMTC (2015)
Toyota Highlander (China)
Production
Mar 2015
-
Mar 2018
Engine
8ARFTS
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 2(1503- )
Click highlighted areas on diagram

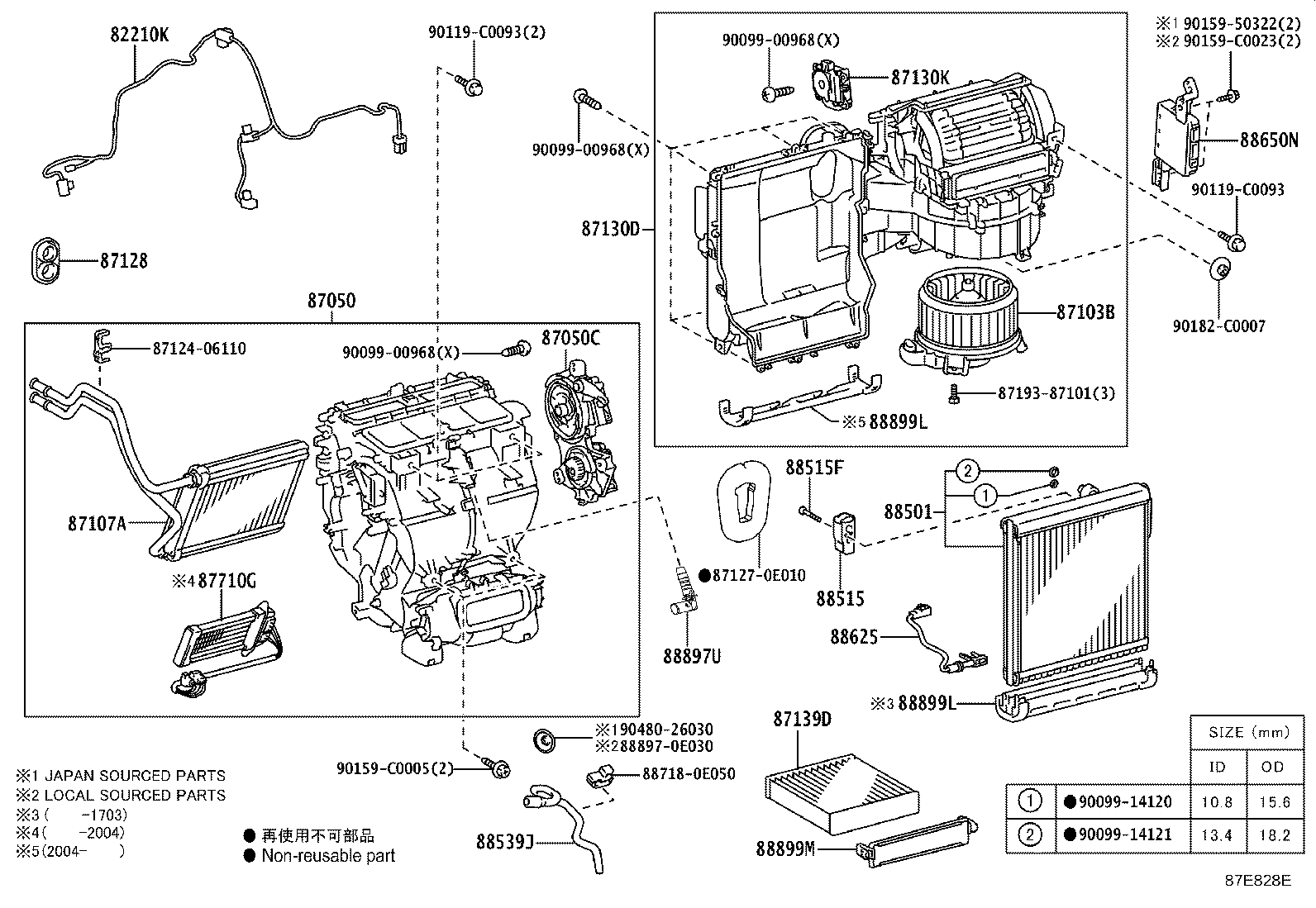

FRONT MANUAL AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-0E011 |
ASU5#,GSU55..D |
1 | ||
| 82212-06040 |
ASU5#,GSU55..LIMD,SPO |
1 | ||
| 82212-0E010 |
ASU5#,GSU55..D |
1 | ||
| 82212-06041 |
ASU5#,GSU55..LIMD,SPO |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-0E040 |
ASU5#..D |
1 | ||
| 87050-0E050 |
ASU5#..LIMD,SPO |
1 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-0E080 |
ASU5# |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-0E070 |
ASU5# |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-06080 |
ASU5# |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 90480-01696 |
ASU5# |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-06361 |
ASU5# |
1 | ||
| 87130-06360 |
ASU5#,GSU55 |
1 | ||
| 87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1 | ||||
| 87106-06240 |
ASU5# |
1 | ||
| 87139D - ELEMENT, AIR REFINER | ||||
| 87139-06140 |
ASU5# MICRO DUST FILTER |
1 | ||
| 87139-50100 |
ASU5# *DPF |
1 | ||
| 87710G - QUICK HEATER ASSY | ||||
| 87710-0E010 |
ASU5# |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-06450 |
ASU5# |
1 | ||
| 88501-0E070 |
ASU5# |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-06100 |
ASU5# |
1 | ||
| 88515F - BOLT(FOR COOLER EXPANSION VALVE) | ||||
| 90099-04542 |
ASU5# |
2 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-0E031 |
ASU5# |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-0E030 |
ASU5# |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-0E380 |
ASU5#..SPO |
1 | ||
| 88650-0E370 |
ASU5#..D |
1 | ||
| 88897U - PIPE, ASPIRATOR | ||||
| 88897-06030 |
ASU5#,GSU55..D |
1 | ||
| 88899L - PARTS, COOLING UNIT | ||||
| 88899-06130 |
ASU5#,GSU55 |
1 | ||
| 88899L - PARTS, COOLING UNIT | ||||
| 88899-06130 |
ASU5#,GSU55 |
1 | ||
| 88899M - PLATE, COVER(FOR AIR FILTER) | ||||
| 88899-06070 |
ASU5# |
1 | ||
| Common parts | ||||
| 87124-06110 | ||||
| 87127-0E010 | ||||
| 87193-87101 | ||||
| 88718-0E050 | ||||
| 88897-0E030 | ||||
| 90099-00968 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-C0093 | ||||
| 90159-50322 | ||||
| 90159-C0005 | ||||
| 90159-C0023 | ||||
| 90182-C0007 | ||||
| 90480-26030 | ||||
ILLUST NO. 1 OF 2(1503- )
Click highlighted areas on diagram

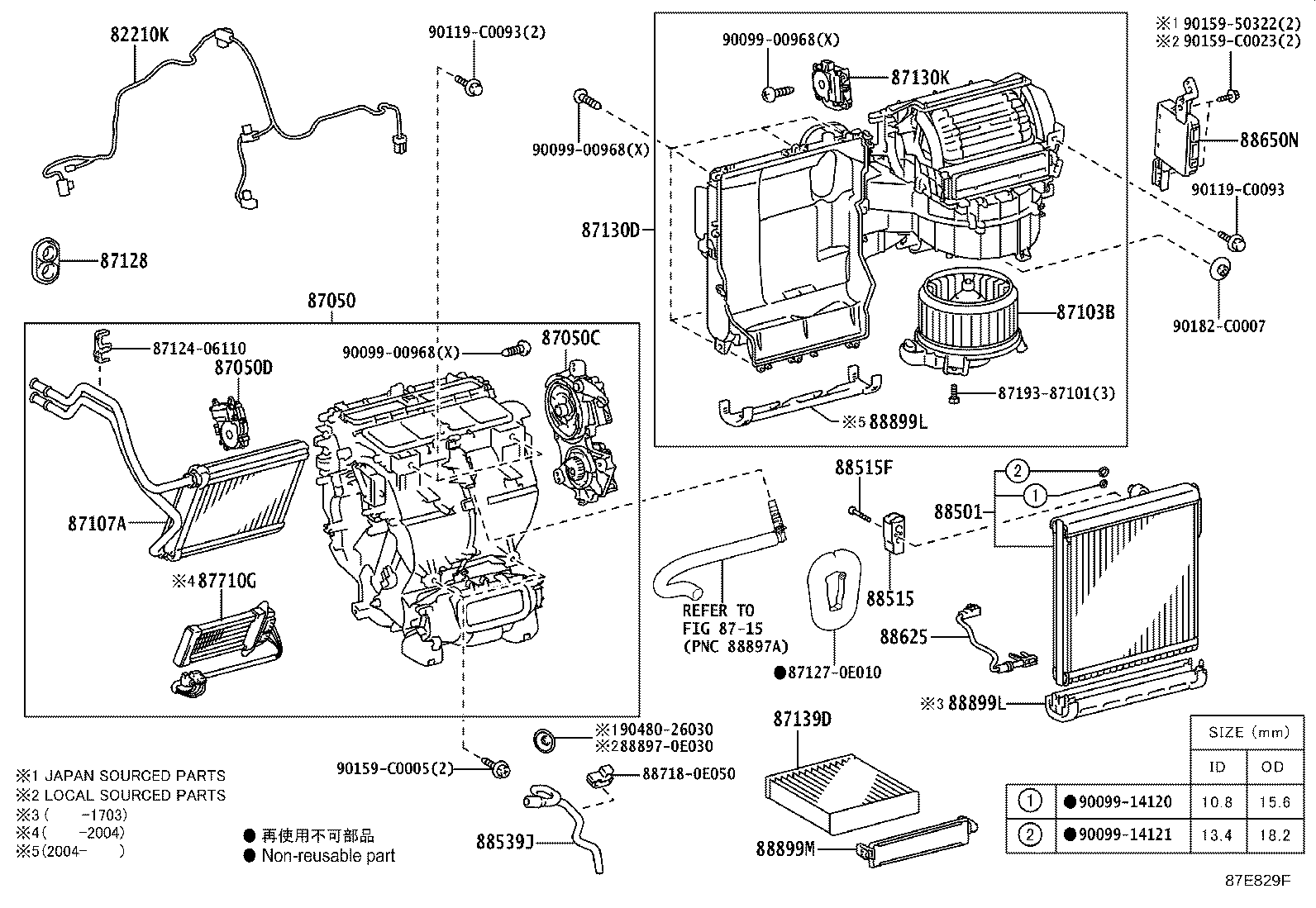

FRONT AUTO AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-0E011 |
ASU5#,GSU55..D |
1 | ||
| 82212-06040 |
ASU5#,GSU55..LIMD,SPO |
1 | ||
| 82212-0E010 |
ASU5#,GSU55..D |
1 | ||
| 82212-06041 |
ASU5#,GSU55..LIMD,SPO |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-0E040 |
ASU5#..D |
1 | ||
| 87050-0E050 |
ASU5#..LIMD,SPO |
1 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-0E080 |
ASU5# |
1 | ||
| 87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2 | ||||
| 87106-06230 |
ASU5#..LIMD,SPO |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-0E070 |
ASU5# |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-06080 |
ASU5# |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 90480-01696 |
ASU5# |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-06361 |
ASU5# |
1 | ||
| 87130-06360 |
ASU5#,GSU55 |
1 | ||
| 87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1 | ||||
| 87106-06240 |
ASU5# |
1 | ||
| 87139D - ELEMENT, AIR REFINER | ||||
| 87139-06140 |
ASU5# MICRO DUST FILTER |
1 | ||
| 87139-50100 |
ASU5# *DPF |
1 | ||
| 87710G - QUICK HEATER ASSY | ||||
| 87710-0E010 |
ASU5# |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-06450 |
ASU5# |
1 | ||
| 88501-0E070 |
ASU5# |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-06100 |
ASU5# |
1 | ||
| 88515F - BOLT(FOR COOLER EXPANSION VALVE) | ||||
| 90099-04542 |
ASU5# |
2 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-0E031 |
ASU5# |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-0E030 |
ASU5# |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-0E380 |
ASU5#..SPO |
1 | ||
| 88650-0E370 |
ASU5#..D |
1 | ||
| 88899L - PARTS, COOLING UNIT | ||||
| 88899-06130 |
ASU5#,GSU55 |
1 | ||
| 88899L - PARTS, COOLING UNIT | ||||
| 88899-06130 |
ASU5#,GSU55 |
1 | ||
| 88899M - PLATE, COVER(FOR AIR FILTER) | ||||
| 88899-06070 |
ASU5# |
1 | ||
| Common parts | ||||
| 87124-06110 | ||||
| 87127-0E010 | ||||
| 87193-87101 | ||||
| 88718-0E050 | ||||
| 88897-0E030 | ||||
| 90099-00968 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-C0093 | ||||
| 90159-50322 | ||||
| 90159-C0005 | ||||
| 90159-C0023 | ||||
| 90182-C0007 | ||||
| 90480-26030 | ||||
| Linked diagrams | ||||
| 8715 | ||||
ILLUST NO. 2 OF 2(1503- )
Click highlighted areas on diagram

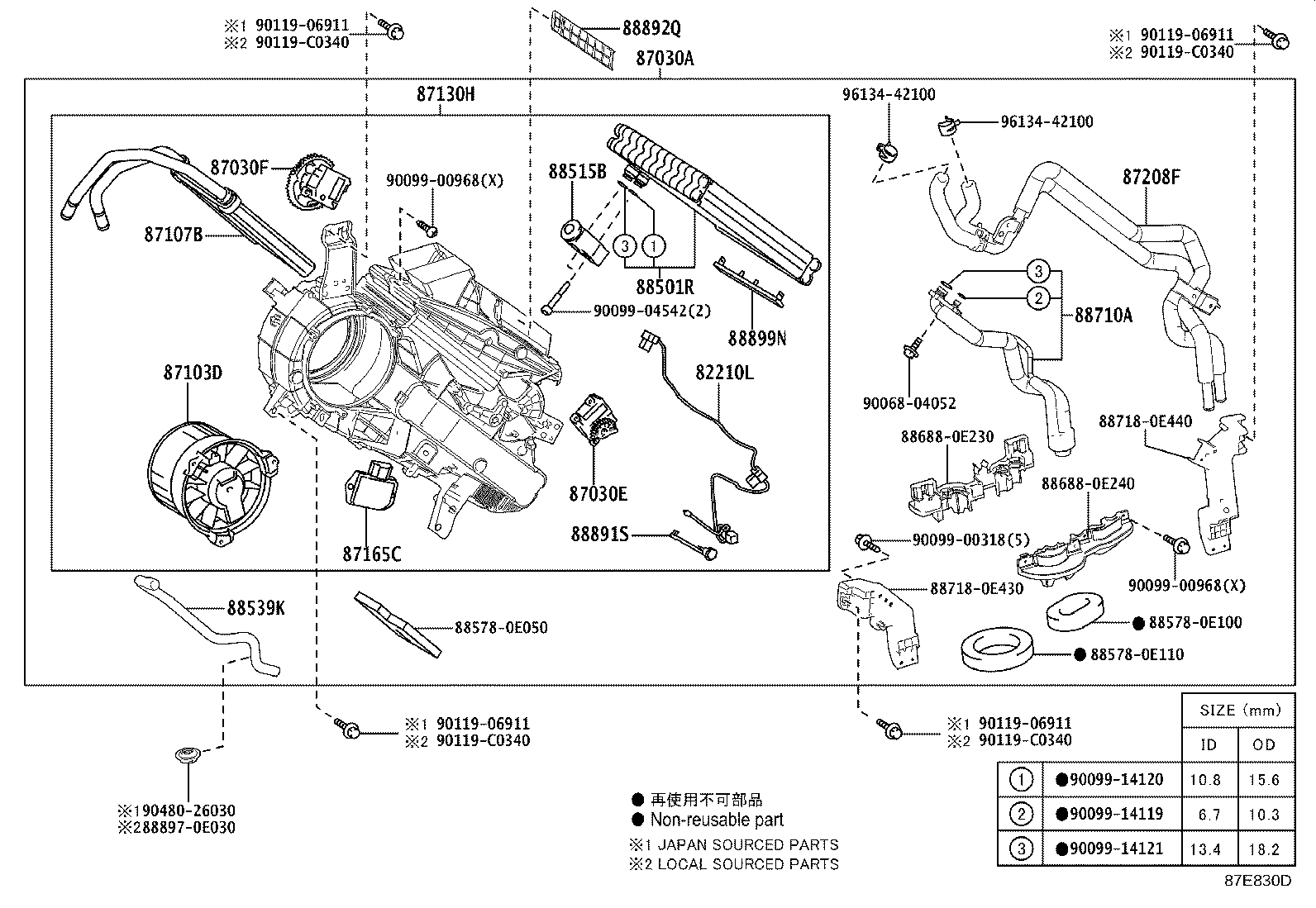

REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210L - HARNESS ASSY, AIR CONDITIONER, NO.2 | ||||
| 82212-0E020 |
ASU5#,GSU55 |
1 | ||
| 82212-0E021 |
ASU5#,GSU55 |
1 | ||
| 87030A - UNIT ASSY, COOLING, REAR | ||||
| 87030-0E050 |
ASU5# |
1 | ||
| 87030E - DAMPER SERVO SUB-ASSY, REAR COOLING UNIT, NO.1 | ||||
| 87106-0E060 |
ASU5# |
1 | ||
| 87030F - DAMPER SERVO SUB-ASSY, REAR COOLING UNIT, NO.2 | ||||
| 87106-0E070 |
ASU5# |
1 | ||
| 87103D - MOTOR SUB-ASSY, BLOWER W/FAN(FOR REAR) | ||||
| 87103-0E031 |
ASU5# |
1 | ||
| 87107B - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-0E020 |
ASU5# |
1 | ||
| 87130H - BLOWER ASSY, REAR | ||||
| 87130-0E140 |
ASU5# |
1 | ||
| 87165C - CONTROL, BLOWER MOTOR | ||||
| 87165-45030 |
ASU5#,GSU55 |
1 | ||
| 87165-36010 |
ASU5# |
1 | ||
| 87165-28020 |
ASU5#,GSU55 |
1 | ||
| 87208F - PIPE SUB-ASSY, WATER | ||||
| 87207-0E050 |
ASU5# |
1 | ||
| 88501R - EVAPORATOR SUB-ASSY (REAR) | ||||
| 88501-0E060 |
ASU5# |
1 | ||
| 88515B - VALVE, REAR COOLING UNIT EXPANSION | ||||
| 88515-0E120 |
ASU5# |
1 | ||
| 88539K - HOSE, DRAIN COOLER | ||||
| 88539-0E070 |
ASU5# |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-0E300 |
ASU5# |
1 | ||
| 88891S - COVER, COOLER, NO.1 | ||||
| 88891-20240 |
ASU5# |
1 | ||
| 88892Q - PLATE, COOLER | ||||
| 88892-0E020 |
ASU5# |
1 | ||
| 88899N - PLATE, COVER | ||||
| 88899-60450 |
ASU5# |
1 | ||
| Common parts | ||||
| 88578-0E050 | ||||
| 88578-0E100 | ||||
| 88578-0E110 | ||||
| 88688-0E230 | ||||
| 88688-0E240 | ||||
| 88718-0E430 | ||||
| 88718-0E440 | ||||
| 88897-0E030 | ||||
| 90068-04052 | ||||
| 90099-00318 | ||||
| 90099-00968 | ||||
| 90099-04542 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06911 | ||||
| 90119-C0340 | ||||
| 90480-26030 | ||||
| 96134-42100 | ||||
