ASU55L-BRTMTC (2015)
Toyota Highlander (China)
Production
Mar 2015
-
Mar 2018
Engine
8ARFTS
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

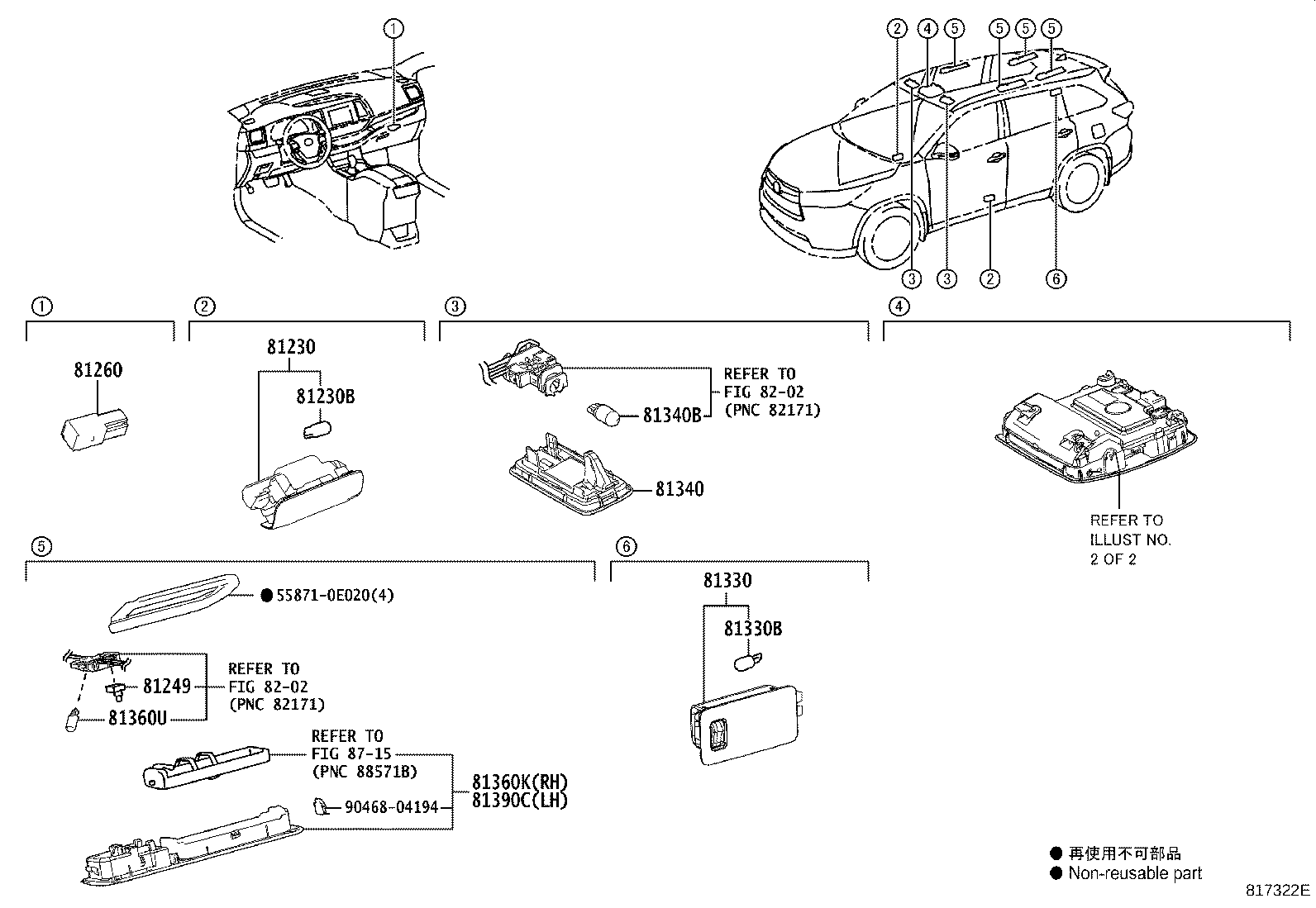

ILLUST NO. 1 OF 2(1503- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81230 - LAMP ASSY, COURTESY | ||||
| 81230-30200 |
ASU5# |
2 | ||
| 81230B - BULB(FOR COURTESY LAMP) | ||||
| 90981-12010 |
ASU5# 12V 5W |
2 | ||
| 81249 - SWITCH, ROOM LAMP | ||||
| 84532-58010 |
ASU5# |
4 | ||
| 81260 - LAMP ASSY, GLOVE BOX | ||||
| 81080-0N020 |
ASU5# |
1 | ||
| 81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1 | ||||
| 81330-58010 |
ASU5# |
1 | ||
| 81330B - BULB, LUGGAGE COMPARTMENT LAMP | ||||
| 99132-12050 |
ASU5# 12V 5W |
1 | ||
| 81340 - LAMP ASSY, VANITY | ||||
| 81340-0F010 |
ASU5#,GSU55 |
2 | ||
| 81340B - BULB (FOR VANITY LAMP) | ||||
| 90981-11062 |
ASU5# 12V 8W |
2 | ||
| 81360K - LAMP ASSY, SPOT, RH | ||||
| 81360-0E030A0 |
ASU5#,GSU55 FLAXEN,TRIM0# |
2 | ||
| 81360-0E030B0 |
ASU5#,GSU55..LIMD,SPO GRAY,TRIM2# |
2 | ||
| 81360U - BULB, SPOT LAMP | ||||
| 90981-11062 |
ASU5# |
4 | ||
| 81390C - LAMP ASSY, SPOT, LH | ||||
| 81390-0E020A0 |
ASU5#,GSU55 FLAXEN,TRIM0# |
2 | ||
| 81390-0E020B0 |
ASU5#,GSU55..LIMD,SPO GRAY,TRIM2# |
2 | ||
| Common parts | ||||
| 55871-0E020 | ||||
| 90468-04194 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8715 | ||||

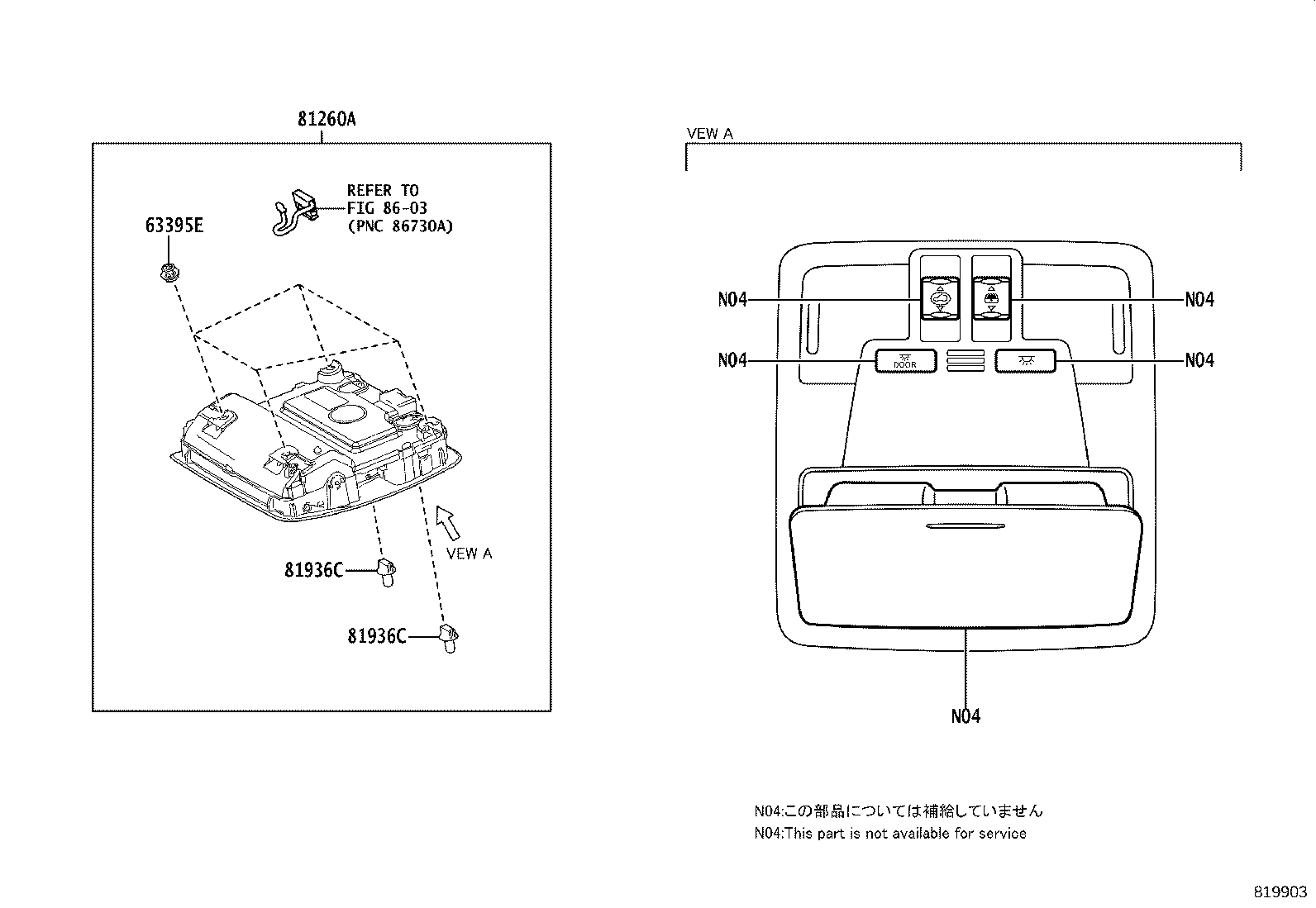

ILLUST NO. 2 OF 2(1503- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63395E - CLIP(FOR MAP LAMP) | ||||
| 90467-09236 |
ASU5# |
4 | ||
| 81260A - LAMP ASSY, MAP | ||||
| 63650-0E220A0 |
ASU5#,GSU55..LIMD,SPO FLAXEN,TRIM0# |
1 | ||
| 63650-0E200A0 |
ASU5#,GSU55..D FLAXEN,TRIM0# |
1 | ||
| 63650-0E220B0 |
ASU5#,GSU55..LIMD,SPO GRAY,TRIM2# |
1 | ||
| 81936C - BULB ASSY | ||||
| 81936-12160 |
ASU5# |
2 | ||
| 81936C - BULB ASSY | ||||
| 81936-12160 |
ASU5# |
2 | ||
| Linked diagrams | ||||
| 8603 | ||||
