ASU55L-BRTMTC (2015)
Toyota Highlander (China)
Production
Mar 2015
-
Mar 2018
Engine
8ARFTS
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

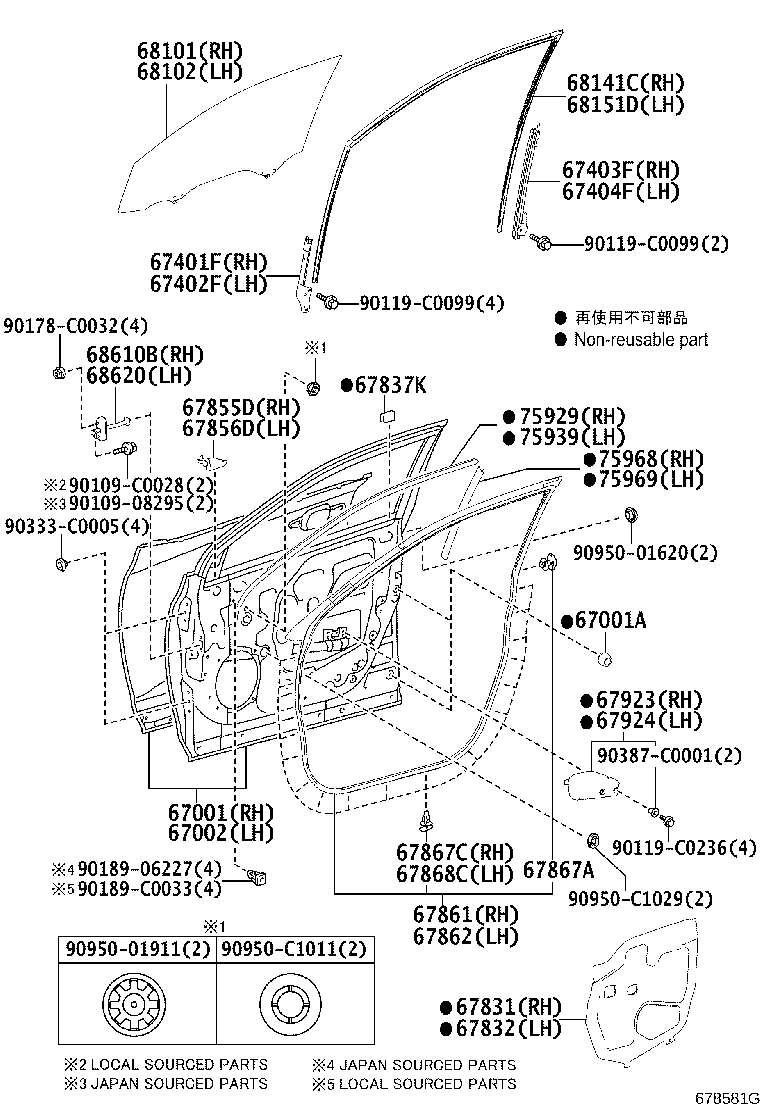

ILLUST NO. 1 OF 2(1503- )
Click highlighted areas on diagram
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-0E130 |
ASU5# |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09124 |
ASU5#,GSU55 |
4 | ||
| 90541-C0003 |
ASU5# |
4 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-0E130 |
ASU5# |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-0E020 |
ASU5# |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-0E020 |
ASU5# |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-0E070 |
ASU5# |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-0E060 |
ASU5# |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-0E070 |
ASU5# |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-0E070 |
ASU5# |
1 | ||
| 67837K - SEAL, FRONT DOOR VENT | ||||
| 67837-0E040 |
ASU5# |
2 | ||
| 67855D - PROTECTOR, FRONT DOOR PANEL, RH | ||||
| 67855-0E030 |
ASU5# |
1 | ||
| 67856D - PROTECTOR, FRONT DOOR PANEL, LH | ||||
| 67856-0E020 |
ASU5# |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-0E070 |
ASU5# |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-0E070 |
ASU5# |
1 | ||
| 67867A - CLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR) | ||||
| 90467-04034 |
ASU5# |
2 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
ASU5# |
17 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
ASU5# |
17 | ||
| 67923 - CUSHION, FRONT DOOR STIFFENER, NO.1 | ||||
| 67923-0E080 |
ASU5# |
1 | ||
| 67924 - CUSHION, FRONT DOOR STIFFENER, NO.2 | ||||
| 67924-0E040 |
ASU5# |
1 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-0E071 |
ASU5# |
1 | ||
| 68101-0E070 |
ASU5#,GSU55 |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-0E070 |
ASU5#,GSU55 |
1 | ||
| 68102-0E071 |
ASU5# |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-0E060 |
ASU5# |
1 | ||
| 68151D - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-0E060 |
ASU5# |
1 | ||
| 68610B - CHECK ASSY, FRONT DOOR, RH | ||||
| 68610-0E070 |
ASU5# |
1 | ||
| 68620 - CHECK ASSY, FRONT DOOR, LH | ||||
| 68620-0E070 |
ASU5# |
1 | ||
| 75929 - TAPE, BLACK OUT FRONT DOOR, INNER UPPER RH | ||||
| 75929-0E040 |
ASU5# |
1 | ||
| 75939 - TAPE, BLACK OUT FRONT DOOR, INNER UPPER LH | ||||
| 75939-0E040 |
ASU5# |
1 | ||
| 75968 - TAPE, BLACK OUT FRONT DOOR, INNER REAR RH | ||||
| 75968-0E040 |
ASU5# |
1 | ||
| 75969 - TAPE, BLACK OUT FRONT DOOR, INNER REAR LH | ||||
| 75969-0E040 |
ASU5# |
1 | ||
| Common parts | ||||
| 90109-08295 | ||||
| 90109-C0028 | ||||
| 90119-C0099 | ||||
| 90119-C0236 | ||||
| 90178-C0032 | ||||
| 90189-06227 | ||||
| 90189-C0033 | ||||
| 90333-C0005 | ||||
| 90387-C0001 | ||||
| 90950-01620 | ||||
| 90950-01911 | ||||
| 90950-C1011 | ||||
| 90950-C1029 | ||||

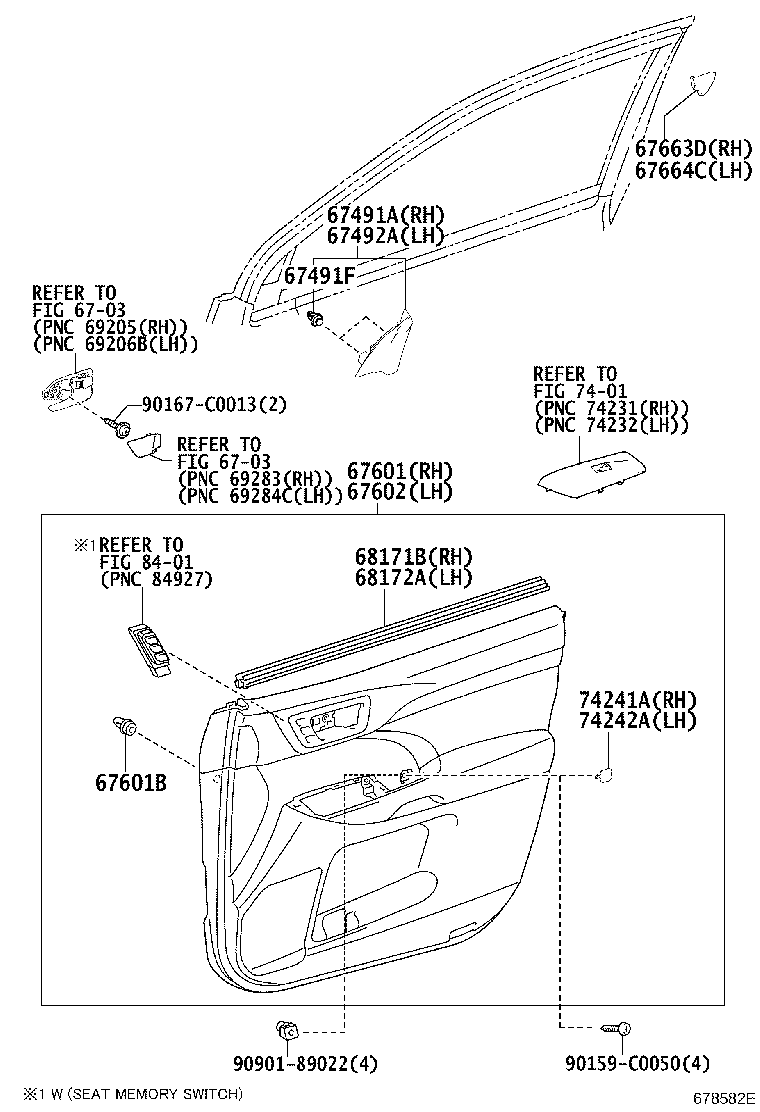

ILLUST NO. 2 OF 2(1503- )
Click highlighted areas on diagram
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-0E050 |
ASU5# |
1 | ||
| 67491F - CLIP(FOR DOOR TRIM) | ||||
| 90467-10167 |
ASU5# |
4 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-0E050 |
ASU5# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-0E330C1 |
ASU5#,GSU55..SPO BLACK,TRIM2# |
1 | ||
| 67610-0E330C0 |
ASU5#,GSU55..D,SPO FLAXEN,TRIM0# |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09206 |
ASU5# |
20 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-0E330C0 |
ASU5#,GSU55..D,SPO FLAXEN,TRIM0# |
1 | ||
| 67620-0E330C1 |
ASU5#,GSU55..SPO BLACK,TRIM2# |
1 | ||
| 67663D - GARNISH, DOOR FRAME, RH | ||||
| 67663-0E050 |
ASU5# |
1 | ||
| 67664C - GARNISH, DOOR FRAME, LH | ||||
| 67663-0E050 |
ASU5# |
1 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-0E060 |
ASU5#,GSU55 |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-0E060 |
ASU5#,GSU55 |
1 | ||
| 74241A - PLUG, FRONT DOOR ARMREST, RH | ||||
| 74241-0E020C0 |
ASU5#,GSU55..LIMD,SPO BLACK,TRIM2# |
1 | ||
| 74241-0E020A0 |
ASU5#,GSU55 FLAXEN,TRIM0# |
1 | ||
| 74242A - PLUG, FRONT DOOR ARMREST, LH | ||||
| 74242-0E020C0 |
ASU5#,GSU55..LIMD,SPO BLACK,TRIM2# |
1 | ||
| 74242-0E020A0 |
ASU5#,GSU55 FLAXEN,TRIM0# |
1 | ||
| Common parts | ||||
| 90159-C0050 | ||||
| 90167-C0013 | ||||
| 90901-89022 | ||||
| Linked diagrams | ||||
| 6703 | ||||
| 7401 | ||||
| 8401 | ||||
