ASU55L-BRTMTC (2015)

Toyota Highlander (China)

Production Mar 2015 - Mar 2018
Engine 8ARFTS
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1503- )

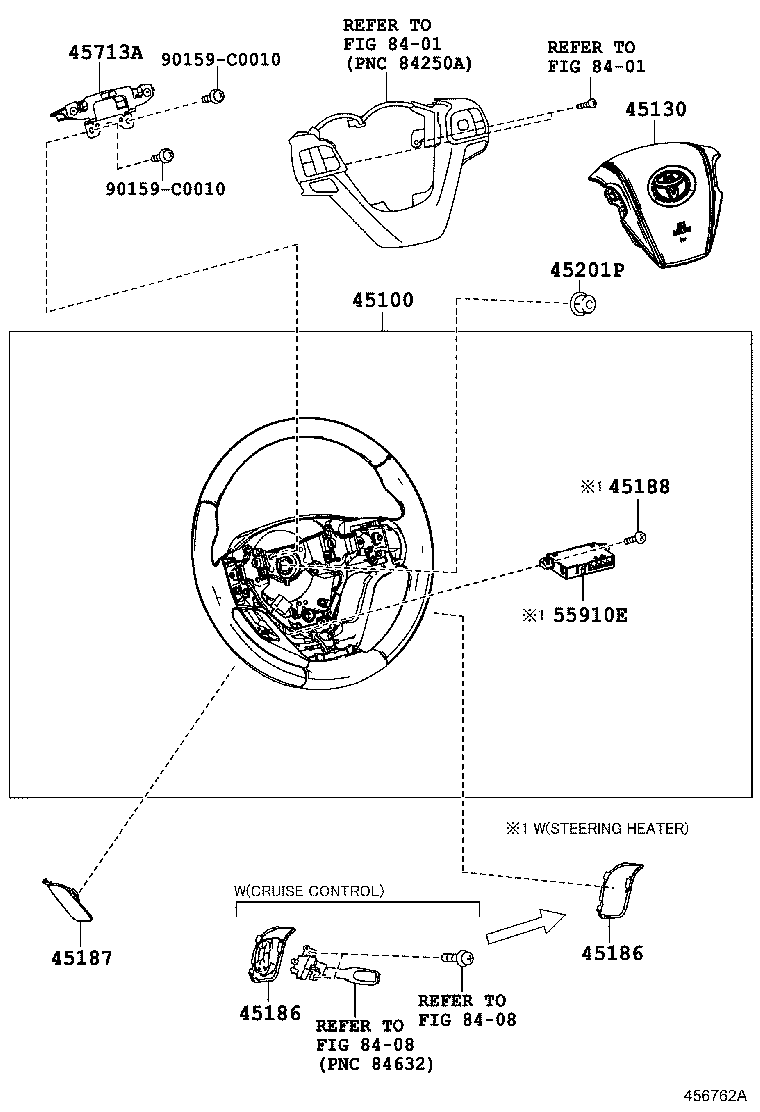

Click highlighted areas on diagram

3-SPOKE

diagram 45100 45130 45186 45186 45187 45188 45201P 45713A 55910E 8401 8401 8408 8408 90159C0010 90159C0010
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-0E390C0

ASU5#,GSU55..SPO

3-SPOKE,LEATHER,BLACK,TRIM0#,2#

 1
45100-0E380C0

ASU5#,GSU55..D

3-SPOKE,URETHANE,BLACK,TRIM0#

 1
45130 - BUTTON ASSY, HORN
45130-0E080C0

ASU5#,GSU55..LIMD,SPO

BLACK,TRIM0#,2#

 1
45130-0E080C0

ASU5#,GSU55..D

BLACK,TRIM0#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-0E080C0

ASU5#,GSU55..D

BLACK,TRIM0#

 1
45186-0E070C0

ASU5#,GSU55..LIMD,SPO

BLACK,TRIM0#,2#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-0E080C0

ASU5#,GSU55..D

BLACK,TRIM0#

 1
45186-0E070C0

ASU5#,GSU55..LIMD,SPO

BLACK,TRIM0#,2#

 1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-0E060C0

ASU5#,GSU55..D

BLACK,TRIM0#

 1
45187-0E060C0

ASU5#,GSU55..LIMD,SPO

BLACK,TRIM0#,2#

 1
45201P - NUT, STEERING WHEEL SET
90178-C0025

ASU5#

 1
45713A - DAMPER, STEERING SHAKE
45713-0E020

ASU5#

 1
Common parts
90159-C0010
Linked diagrams
8401
8408
