ASU55L-BRTMTC (2015)

Toyota Highlander (China)

Production Mar 2015 - Mar 2018
Engine 8ARFTS
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1503- )ASU5#

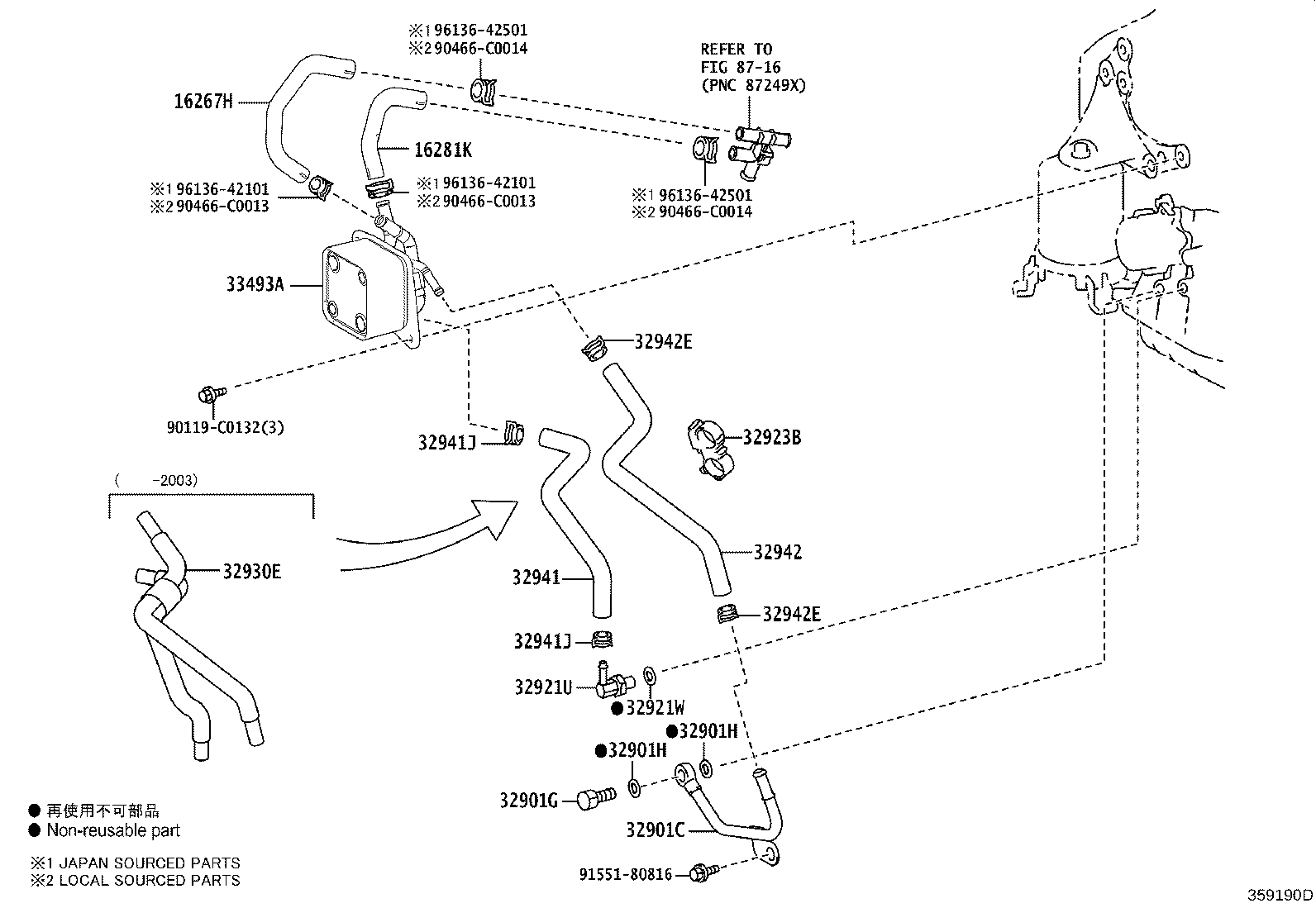

Click highlighted areas on diagram

U661E,U661F

diagram 16267H 16281K 32901C 32901G 32901H 32901H 32921U 32921W 32923B 32930E 32941 32941J 32941J 32942 32942E 32942E 33493A 8716 90119C0132 90466C0013 90466C0013 90466C0014 90466C0014 9155180816 9613642101 9613642101 9613642501 9613642501
Part # Description Qty Price
16267H - HOSE, WATER BY-PASS, NO.3
16267-0V070

8ARFTS..ASU5#

 1
16281K - HOSE, WATER BY-PASS, NO.4
16281-0V070

8ARFTS..ASU5#

 1
32901C - UNION SUB-ASSY, OIL COOLER
32901-48010

ASU5#

 1
32901G - BOLT, UNION(FOR OIL COOLER)
90401-14003

ASU5#

 1
32901H - GASKET(FOR OIL COOLER UNION)
90430-14013

ASU5#

 2
32901H - GASKET(FOR OIL COOLER UNION)
90430-14013

ASU5#

 2
32921U - ELBOW(FOR OIL COOLER TUBE)
90407-14032

ASU5#

 1
32921W - RING, O(FOR OIL COOLER TUBE ELBOW)
90301-11031

ASU5#

 1
32930E - HOSE ASSY, TRANSMISSION OIL COOLER, NO.1
32930-0E120

ASU5#

 1
32941J - CLIP, NO.1(FOR OIL COOLER HOSE)
90466-C0024

ASU5#

 2
32941J - CLIP, NO.1(FOR OIL COOLER HOSE)
90466-C0024

ASU5#

 2
32942E - CLIP, NO.2(FOR OIL COOLER HOSE)
90466-C0024

ASU5#

 2
32942E - CLIP, NO.2(FOR OIL COOLER HOSE)
90466-C0024

ASU5#

 2
33493A - COOLER, TRANSMISSION OIL
33493-0E010

ASU5#

 1
Common parts
90119-C0132
90466-C0013
90466-C0014
91551-80816
96136-42101
96136-42501
