ASU55L-BRTMTC (2015)

Toyota Highlander (China)

Production Mar 2015 - Mar 2018
Engine 8ARFTS
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 6(1503- )8ARFTS

Click highlighted areas on diagram

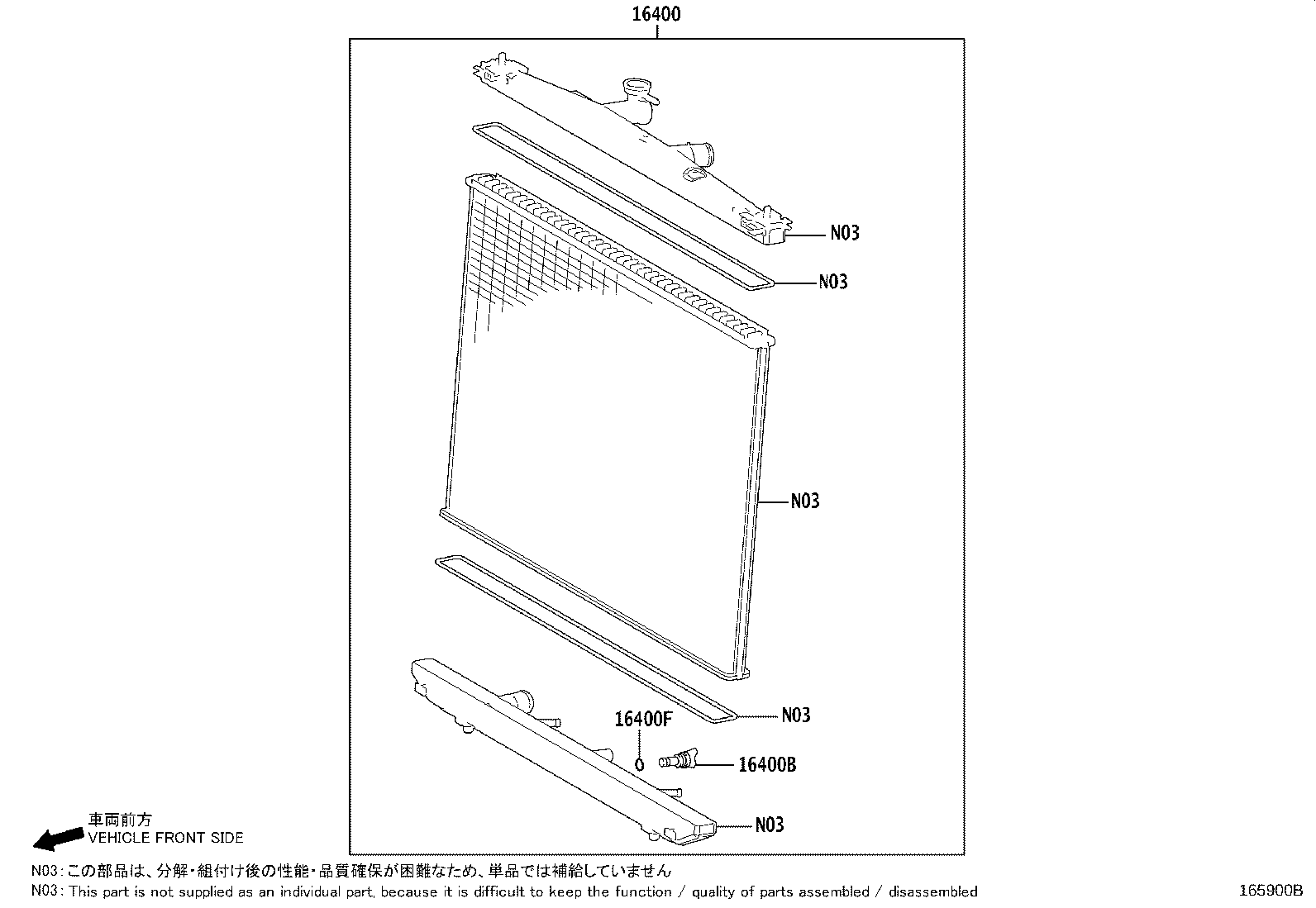

RADIATOR

diagram 16400 16400B 16400F
Part # Description Qty Price
16400 - RADIATOR ASSY
16400-0V100

8ARFTS..ASU5#

 1
16400B - PLUG, RADIATOR DRAIN COCK
16417-0H290

8ARFTS..ASU5#

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16492-0T270

8ARFTS..ASU5#

 1
16492-21050

8ARFTS..ASU5#

 1

ILLUST NO. 2 OF 6(1503- )8ARFTS

Click highlighted areas on diagram

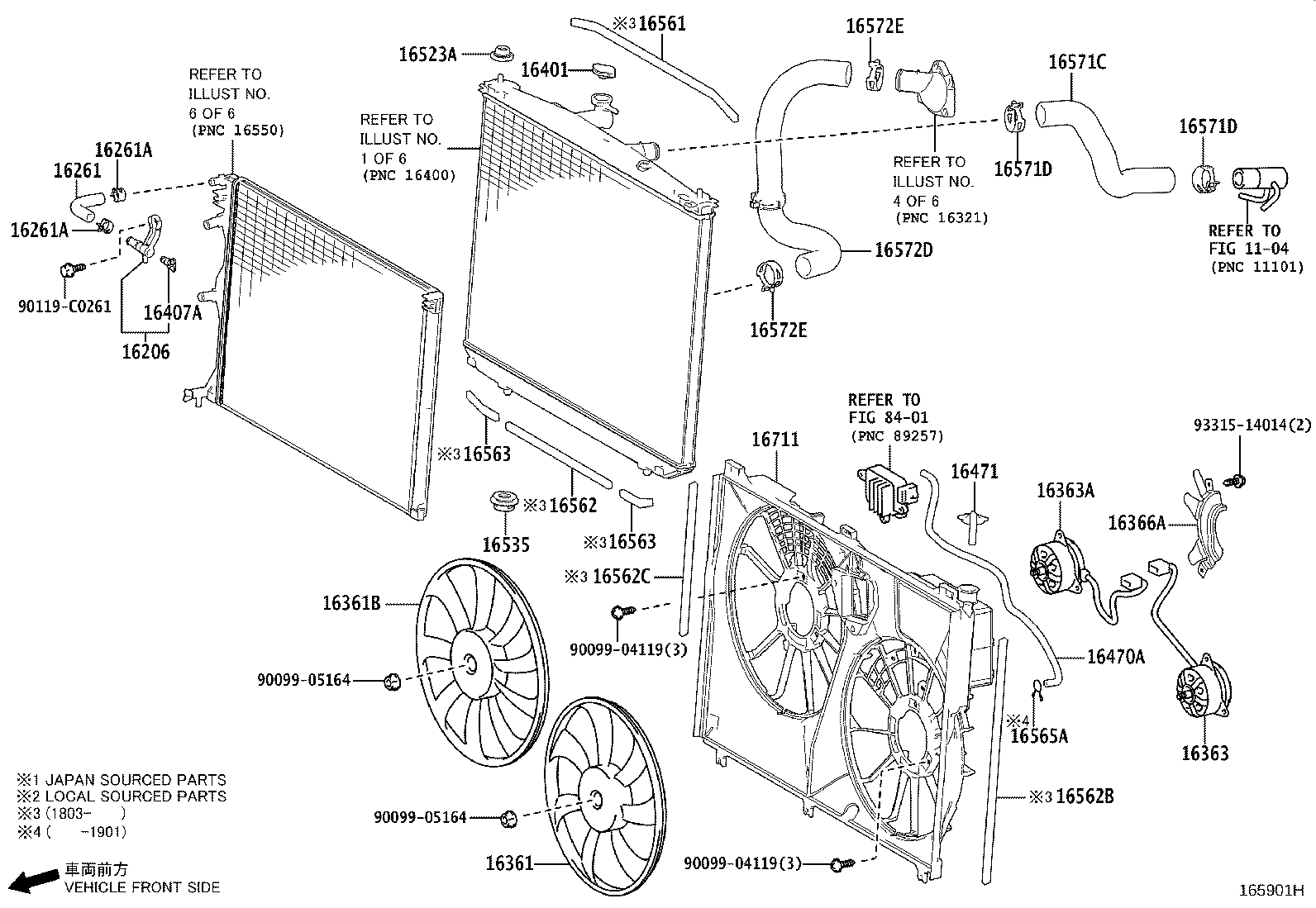

RADIATOR SIDE

diagram 1104 16206 16261 16261A 16261A 16361 16361B 16363 16363A 16366A 16401 16407A 16470A 16471 16523A 16535 16561 16562 16562B 16562C 16563 16563 16565A 16571C 16571D 16571D 16572D 16572E 16572E 16711 8401 9009904119 9009904119 9009905164 9009905164 90119C0261 9331514014
Part # Description Qty Price
16206 - PIPE SUB-ASSY, WATER BY-PASS
16206-36030

8ARFTS..ASU5#

 1
16261 - HOSE, WATER BY-PASS
16261-0V070

8ARFTS..ASU5#

 1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96136-52101

8ARFTS..ASU5#

(J)

 2
90466-C0004

8ARFTS..ASU5#

(L)

 2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96136-52101

8ARFTS..ASU5#

(J)

 2
90466-C0004

8ARFTS..ASU5#

(L)

 2
16361 - FAN
16361-0V470

8ARFTS..ASU5#

 1
16361B - FAN, NO.2
16361-0V460

8ARFTS..ASU5#

 1
16363 - MOTOR, COOLING FAN
16363-0V410

8ARFTS..ASU5#

 1
16363A - MOTOR, COOLING FAN, NO.2
16363-0V420

8ARFTS..ASU5#

 1
16366A - INSULATOR, COOLING FAN MOTOR
16366-0V110

8ARFTS..ASU5#

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-0Y060

8ARFTS..ASU5#

 1
16401-0Y060

8ARFTS..ASU5#

 1
16401-0M010

8ARFTS..ASU5#

 1
16407A - COCK SUB-ASSY, RADIATOR DRAIN
16407-36160

8ARFTS..ASU5#

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16377-0V110

8ARFTS..ASU5#

 1
16471 - CAP SUB-ASSY, RESERVE TANK
16405-0V090

8ARFTS..ASU5#

 1
16523A - CUSHION, RADIATOR SUPPORT
16523-0H040

8ARFTS..ASU5#

 2
16535 - SUPPORT, RADIATOR, LOWER
16535-28060

8ARFTS..ASU5#

(J)

 2
16535-0V020

8ARFTS..ASU5#

(L)

 2
16565A - CLIP
90467-11085

8ARFTS..ASU5#

 1
16571C - HOSE, RADIATOR, NO.1
16571-0V180

8ARFTS..ASU5#

 1
16571D - CLIP, RADIATOR HOSE, NO.1
90466-C0009

8ARFTS..ASU5#

(L)

 2
96136-44301

8ARFTS..ASU5#

(J)

 2
16571D - CLIP, RADIATOR HOSE, NO.1
90466-C0009

8ARFTS..ASU5#

(L)

 2
96136-44301

8ARFTS..ASU5#

(J)

 2
16572D - HOSE, RADIATOR, NO.2
16572-0V220

8ARFTS..ASU5#

 1
16572E - CLIP, RADIATOR HOSE, NO.2
90466-C0009

8ARFTS..ASU5#

(L)

 2
96136-44301

8ARFTS..ASU5#

(J)

 2
16572E - CLIP, RADIATOR HOSE, NO.2
90466-C0009

8ARFTS..ASU5#

(L)

 2
96136-44301

8ARFTS..ASU5#

(J)

 2
16711 - SHROUD, FAN
16711-0V080

8ARFTS..ASU5#

 1
Common parts
90099-04119
90099-05164
90119-C0261
93315-14014
Linked diagrams
1104
8401

ILLUST NO. 3 OF 6(1503- )8ARFTS

Click highlighted areas on diagram

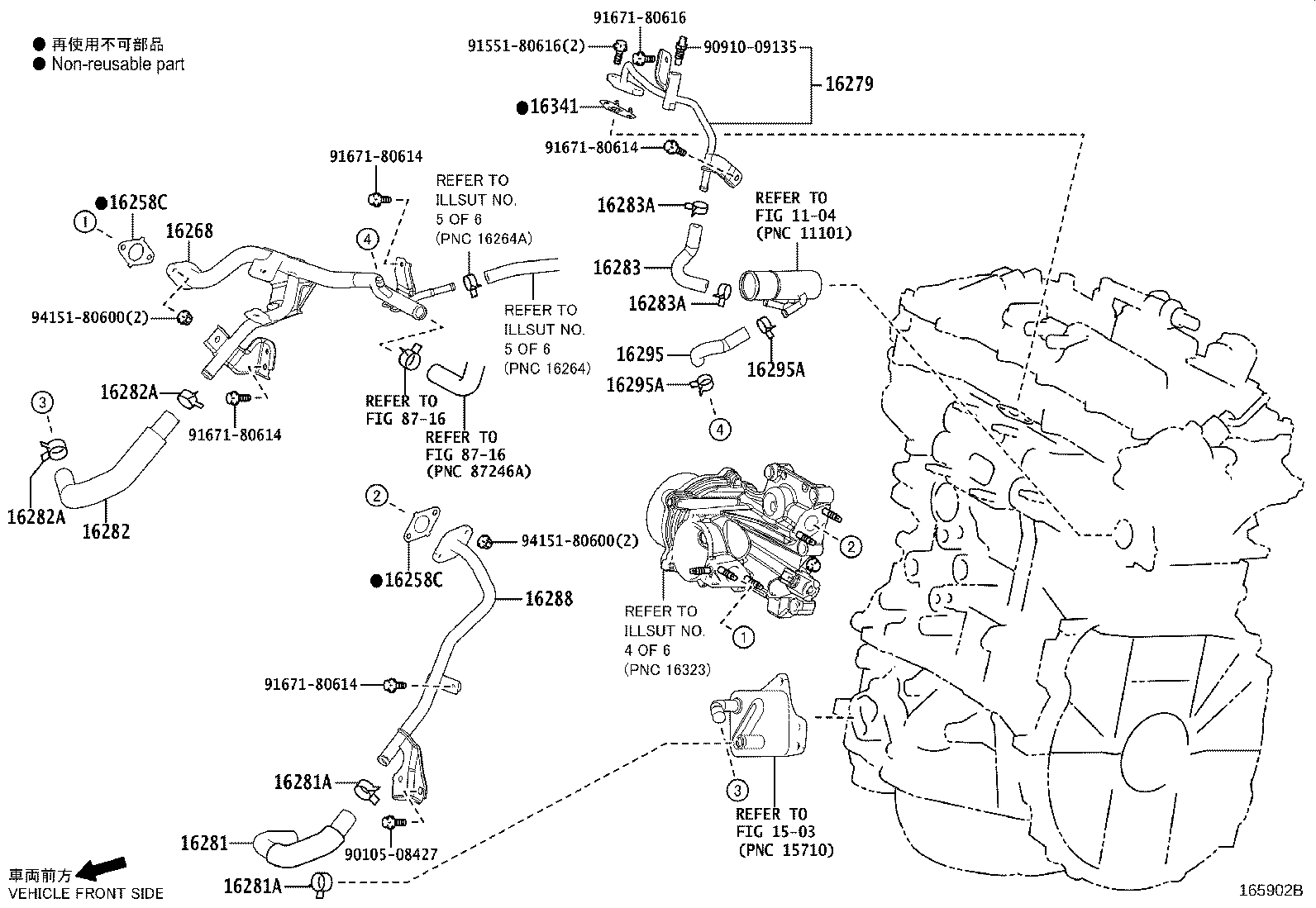

ENGINE SIDE PIPING(1/3)

diagram 1104 1503 16258C 16258C 16268 16279 16281 16281A 16281A 16282 16282A 16282A 16283 16283A 16283A 16288 16295 16295A 16295A 16341 8716 8716 9010508427 9091009135 9155180616 9167180614 9167180614 9167180614 9167180614 9167180616 9415180600 9415180600
Part # Description Qty Price
16258C - GASKET(FOR WATER BY-PASS PIPE)
16258-36040

8ARFTS..ASU5#

 2
16258C - GASKET(FOR WATER BY-PASS PIPE)
16258-36040

8ARFTS..ASU5#

 2
16268 - PIPE, WATER BY-PASS, NO.1
16268-36170

8ARFTS..ASU5#

 1
16279 - PIPE, WATER BY-PASS, NO.3
16279-36040

8ARFTS..ASU5#

 1
16281 - HOSE, WATER BY-PASS, NO.4
16281-36040

8ARFTS..ASU5#

 1
16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)
96136-42101

8ARFTS..ASU5#

 2
16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)
96136-42101

8ARFTS..ASU5#

 2
16282 - HOSE, WATER BY-PASS, NO.5
16282-36080

8ARFTS..ASU5#

 1
16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)
96136-42101

8ARFTS..ASU5#

 2
16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)
96136-42101

8ARFTS..ASU5#

 2
16283 - HOSE, WATER BY-PASS, NO.6
16283-36070

8ARFTS..ASU5#

 1
16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)
96136-41501

8ARFTS..ASU5#

 2
16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)
96136-41501

8ARFTS..ASU5#

 2
16288 - PIPE, WATER BY-PASS, NO.4
16288-36020

8ARFTS..ASU5#

 1
16295 - HOSE, WATER BY-PASS, NO.7
16295-36020

8ARFTS..ASU5#

 1
16295A - CLIP(FOR WATER BY-PASS HOSE NO.7)
96136-41501

8ARFTS..ASU5#

 2
16295A - CLIP(FOR WATER BY-PASS HOSE NO.7)
96136-41501

8ARFTS..ASU5#

 2
16341 - GASKET, WATER OUTLET
16341-36020

8ARFTS..ASU5#

 1
Common parts
90105-08427
90910-09135
91551-80616
91671-80614
91671-80616
94151-80600
Linked diagrams
1104
1503
8716

ILLUST NO. 4 OF 6(1503- )8ARFTS

Click highlighted areas on diagram

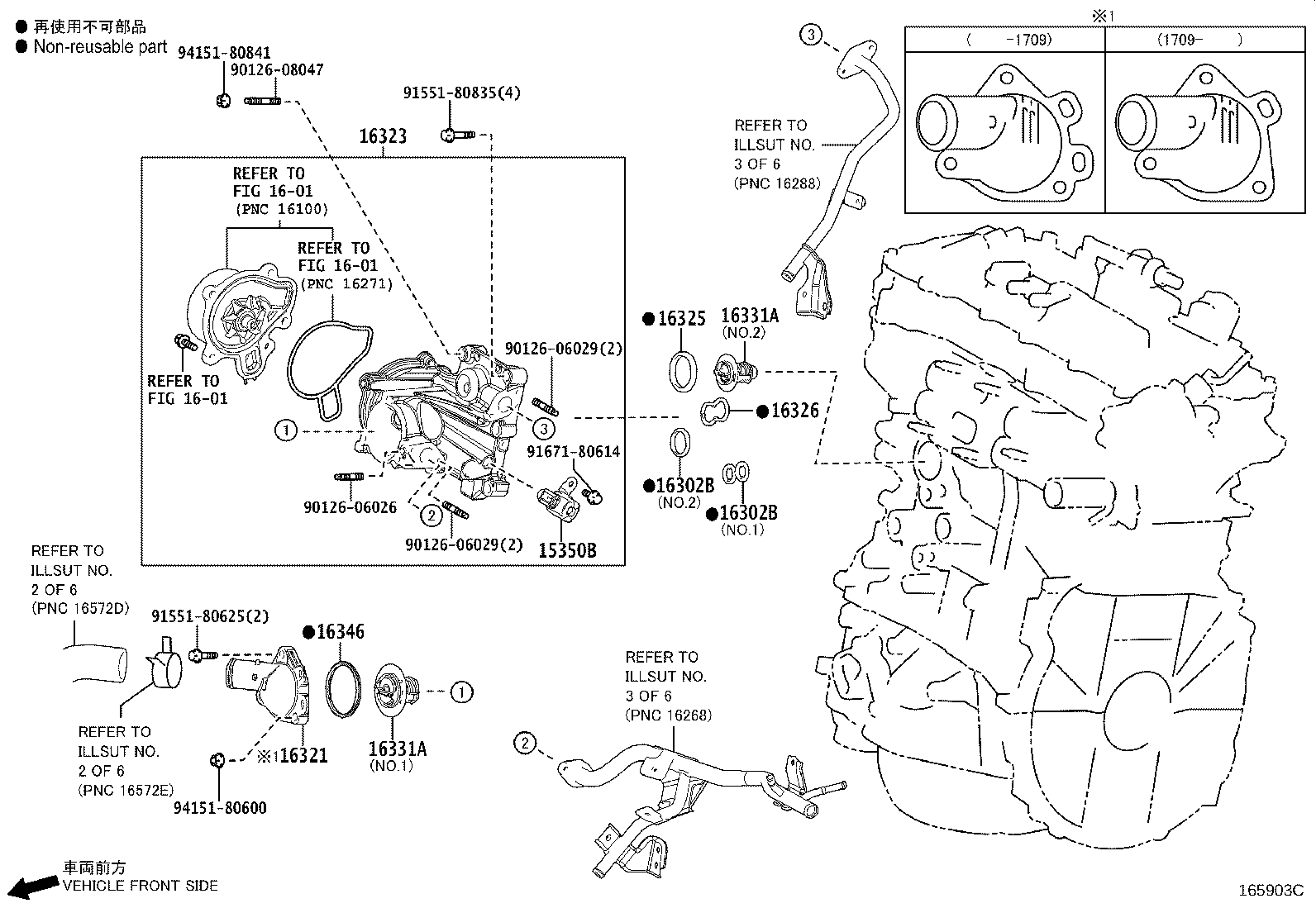

ENGINE SIDE PIPING(2/3)

diagram 15350B 1601 1601 1601 16302B 16302B 16321 16323 16325 16326 16331A 16331A 16346 9012606026 9012606029 9012606029 9012608047 9155180625 9155180835 9167180614 9415180600 9415180841
Part # Description Qty Price
15350B - VALVE ASSY, OIL PRESSURE SWITCHING
15350-33012

8ARFTS..ASU5#

 1
16302B - GASKET(FOR WATER INLET HOUSING)
16258-36050

8ARFTS..ASU5#

NO.1:REFER ILLUST.

 1
16258-36060

8ARFTS..ASU5#

NO.2:REFER ILLUST.

 1
16302B - GASKET(FOR WATER INLET HOUSING)
16258-36050

8ARFTS..ASU5#

NO.1:REFER ILLUST.

 1
16258-36060

8ARFTS..ASU5#

NO.2:REFER ILLUST.

 1
16321 - INLET, WATER
16321-36070

8ARFTS..ASU5#

 1
16321-36040

8ARFTS..ASU5#

 1
16321-36041

8ARFTS..ASU5#

 1
16323 - HOUSING, WATER INLET
16032-36060

8ARFTS..ASU5#

 1
16325 - GASKET, WATER INLET HOUSING, NO.1
16325-36051

8ARFTS..ASU5#

 1
16326 - GASKET, WATER INLET HOUSING, NO.2
16326-36030

8ARFTS..ASU5#

 1
16331A - THERMOSTAT
90916-03154

8ARFTS..ASU5#

*WAX 78-91,NO.2:REFER ILLUST.

 1
90916-03156

8ARFTS..ASU5#

*WAX 82-95,NO.1:REFER ILLUST.

 1
16331A - THERMOSTAT
90916-03154

8ARFTS..ASU5#

*WAX 78-91,NO.2:REFER ILLUST.

 1
90916-03156

8ARFTS..ASU5#

*WAX 82-95,NO.1:REFER ILLUST.

 1
16346 - GASKET, THERMOSTAT
16346-36011

8ARFTS..ASU5#

 1
Common parts
90126-06026
90126-06029
90126-08047
91551-80625
91551-80835
91671-80614
94151-80600
94151-80841
Linked diagrams
1601

ILLUST NO. 5 OF 6(1503- )8ARFTS

Click highlighted areas on diagram

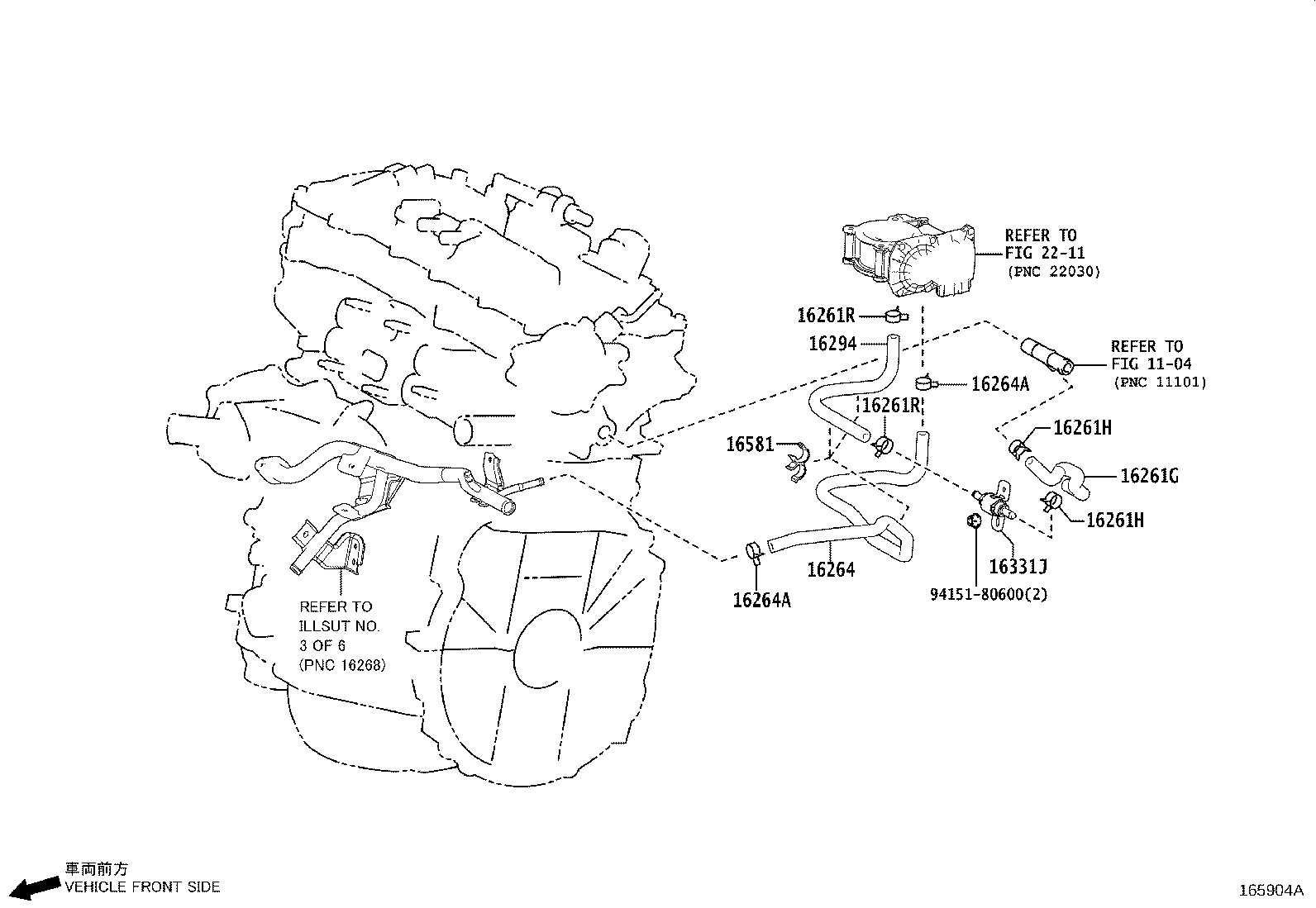

ENGINE SIDE PIPING(3/3)

diagram 1104 16261G 16261H 16261H 16261R 16261R 16264 16264A 16264A 16294 16331J 16581 2211 9415180600
Part # Description Qty Price
16261G - HOSE, WATER BY-PASS, NO.1
16261-36100

8ARFTS..ASU5#

 1
16261H - CLIP(FOR WATER BY-PASS HOSE NO.1)
96136-41501

8ARFTS..ASU5#

 2
16261H - CLIP(FOR WATER BY-PASS HOSE NO.1)
96136-41501

8ARFTS..ASU5#

 2
16261R - CLAMP OR CLIP(FOR WATER BY-PASS HOSE)
96136-41501

8ARFTS..ASU5#

 2
16261R - CLAMP OR CLIP(FOR WATER BY-PASS HOSE)
96136-41501

8ARFTS..ASU5#

 2
16264 - HOSE, WATER BY-PASS, NO.2
16264-36090

8ARFTS..ASU5#

 1
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
96136-41501

8ARFTS..ASU5#

 2
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
96136-41501

8ARFTS..ASU5#

 2
16294 - HOSE, WATER BY-PASS, NO.11
16294-36020

8ARFTS..ASU5#

 1
16331J - THERMOSTAT, MANIFOLD
90916-03155

8ARFTS..ASU5#

 1
16581 - CLAMP, HOSE(FOR WATER HOSE)
16581-33080

8ARFTS..ASU5#

 3
Common parts
94151-80600
Linked diagrams
1104
2211

ILLUST NO. 6 OF 6(1503- )8ARFTS

Click highlighted areas on diagram

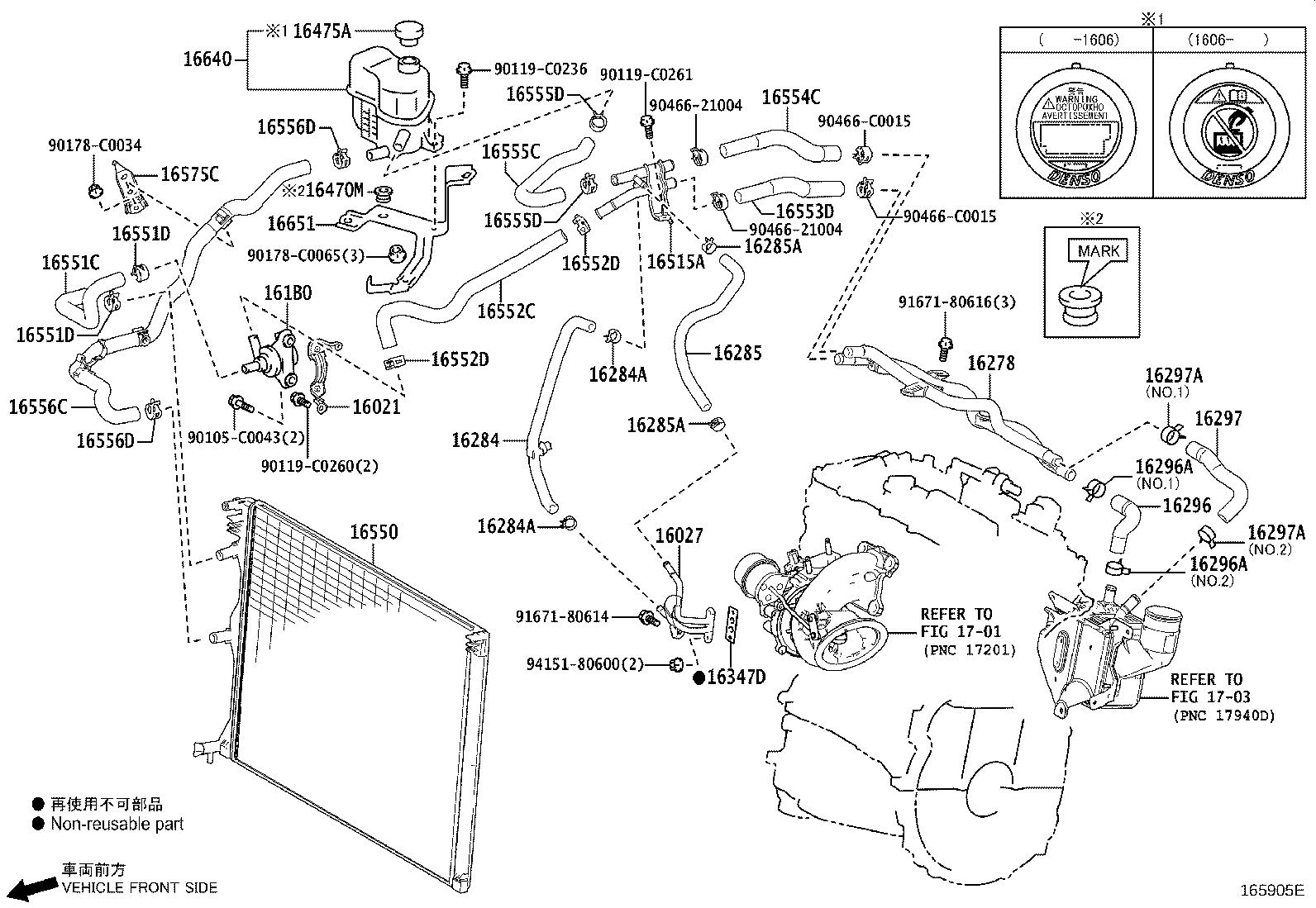

INTERCOOLER SIDE

diagram 16021 16027 161B0 16278 16284 16284A 16284A 16285 16285A 16285A 16296 16296A 16296A 16297 16297A 16297A 16347D 16470M 16475A 16515A 16550 16551C 16551D 16551D 16552C 16552D 16552D 16553D 16554C 16555C 16555D 16555D 16556C 16556D 16556D 16575C 16640 16651 1701 1703 90105C0043 90119C0236 90119C0260 90119C0261 90178C0034 90178C0065 9046621004 9046621004 90466C0015 90466C0015 9167180614 9167180616 9415180600
Part # Description Qty Price
16021 - BRACKET SUB-ASSY, WATER PUMP
16021-0V010

8ARFTS..ASU5#

 1
16027 - PIPE SUB-ASSY, TURBO WATER, NO.1
16027-36010

8ARFTS..ASU5#

 1
161B0 - PUMP ASSY, ELECTRIC WATER
161B0-36010

8ARFTS..ASU5#

 1
161B0-36010

8ARFTS..ASU5#

(J)

 1
161B0-0V010

8ARFTS..ASU5#

(L)

 1
16278 - PIPE, WATER BY-PASS, NO.2
16278-36030

8ARFTS..ASU5#

 1
16284 - HOSE, TURBO WATER, NO.1
16284-0V010

8ARFTS..ASU5#

 1
16284A - CLIP(FOR TURBO WATER HOSE NO.1)
90466-C0043

8ARFTS..ASU5#

 2
16284A - CLIP(FOR TURBO WATER HOSE NO.1)
90466-C0043

8ARFTS..ASU5#

 2
16285 - HOSE, TURBO WATER, NO.2
16285-0V010

8ARFTS..ASU5#

 1
16285A - CLIP(FOR TURBO WATER HOSE NO.2)
90466-C0043

8ARFTS..ASU5#

 2
16285A - CLIP(FOR TURBO WATER HOSE NO.2)
90466-C0043

8ARFTS..ASU5#

 2
16296 - HOSE, WATER BY-PASS, NO.8
16296-36030

8ARFTS..ASU5#

 1
16296A - CLIP(FOR WATER BY-PASS HOSE NO.8)
96136-42701

8ARFTS..ASU5#

NO.1:REFER ILLUST.

 1
96136-42501

8ARFTS..ASU5#

NO.2:REFER ILLUST.

 1
16296A - CLIP(FOR WATER BY-PASS HOSE NO.8)
96136-42701

8ARFTS..ASU5#

NO.1:REFER ILLUST.

 1
96136-42501

8ARFTS..ASU5#

NO.2:REFER ILLUST.

 1
16297 - HOSE, WATER BY-PASS, NO.9
16297-36030

8ARFTS..ASU5#

 1
16297A - CLIP(FOR WATER BY-PASS HOSE NO.9)
96136-42501

8ARFTS..ASU5#

NO.2:REFER ILLUST.

 1
96136-42701

8ARFTS..ASU5#

NO.1:REFER ILLUST.

 1
16297A - CLIP(FOR WATER BY-PASS HOSE NO.9)
96136-42501

8ARFTS..ASU5#

NO.2:REFER ILLUST.

 1
96136-42701

8ARFTS..ASU5#

NO.1:REFER ILLUST.

 1
16347D - GASKET, WATER BY-PASS
16347-36020

8ARFTS..ASU5#

 1
16470M - GROMMET
90480-C0006

8ARFTS..ASU5#

MARK 90480-C0006

 1
90480-16044

8ARFTS..ASU5#

 1
90480-16044

8ARFTS..ASU5#

NO MARK

 1
16475A - CAP, RESERVE TANK
16475-28140

8ARFTS..ASU5#

 1
16475-37010

8ARFTS..ASU5#

 1
16515A - PIPE, INTERCOOLER COOLING WATER, NO.1
16515-0V010

8ARFTS..ASU5#

 1
16550 - RADIATOR ASSY, INTERCOOLER COOLING
16550-0V010

8ARFTS..ASU5#

 1
16551C - HOSE, INTERCOOLER COOLING WATER, NO.1
16551-0V010

8ARFTS..ASU5#

 1
16551D - CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.1)
96136-42501

8ARFTS..ASU5#

(J)

 2
90466-C0014

8ARFTS..ASU5#

(L)

 2
16551D - CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.1)
96136-42501

8ARFTS..ASU5#

(J)

 2
90466-C0014

8ARFTS..ASU5#

(L)

 2
16552C - HOSE, INTERCOOLER COOLING WATER, NO.2
16552-0V010

8ARFTS..ASU5#

 1
16552D - CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.2)
96136-42501

8ARFTS..ASU5#

(J)

 2
90466-C0014

8ARFTS..ASU5#

(L)

 2
16552D - CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.2)
96136-42501

8ARFTS..ASU5#

(J)

 2
90466-C0014

8ARFTS..ASU5#

(L)

 2
16553D - HOSE, INTERCOOLER COOLING WATER, NO.3
16553-0V010

8ARFTS..ASU5#

 1
16554C - HOSE, INTERCOOLER COOLING WATER, NO.4
16554-0V010

8ARFTS..ASU5#

 1
16555C - HOSE, INTERCOOLER COOLING WATER, NO.5
16555-0V010

8ARFTS..ASU5#

 1
16555D - CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.5)
90466-C0014

8ARFTS..ASU5#

(L)

 2
96136-42501

8ARFTS..ASU5#

(J)

 2
16555D - CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.5)
90466-C0014

8ARFTS..ASU5#

(L)

 2
96136-42501

8ARFTS..ASU5#

(J)

 2
16556C - HOSE, INTERCOOLER COOLING WATER, NO.6
16556-0V010

8ARFTS..ASU5#

 1
16556D - CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.6)
90466-C0014

8ARFTS..ASU5#

(L)

 2
96136-42501

8ARFTS..ASU5#

(J)

 2
16556D - CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.6)
90466-C0014

8ARFTS..ASU5#

(L)

 2
96136-42501

8ARFTS..ASU5#

(J)

 2
16575C - BRACKET, WATER HOSE CLAMP, NO.1
16575-0V010

8ARFTS..ASU5#

 1
16640 - TANK ASSY, INTERCOOLER RESERVE
16640-0V010

8ARFTS..ASU5#

 1
16651 - BRACKET, INTERCOOLER RESERVE TANK
16651-0V010

8ARFTS..ASU5#

 1
Common parts
90105-C0043
90119-C0236
90119-C0260
90119-C0261
90178-C0034
90178-C0065
90466-21004
90466-C0015
91671-80614
91671-80616
94151-80600
Linked diagrams
1701
1703
