ASU55L-BRTGTC (2015)

Toyota Highlander (China)

Production Mar 2015 - Mar 2018
Engine 8ARFTS
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

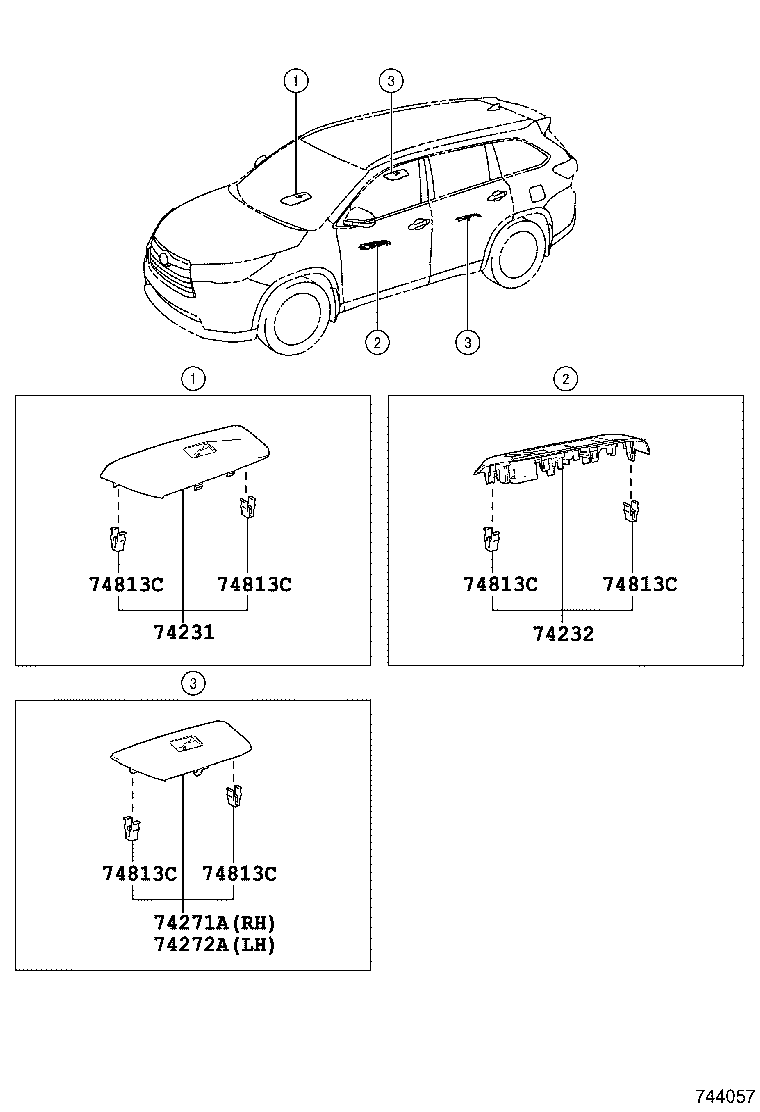

ILLUST NO. 1 OF 2(1503- )

Click highlighted areas on diagram

ARMREST

diagram 74231 74232 74271A 74272A 74813C 74813C 74813C 74813C 74813C 74813C
Part # Description Qty Price
74231 - PANEL, FRONT ARMREST BASE, UPPER RH
74231-0E080

ASU5#

 1
74232 - PANEL, FRONT ARMREST BASE, UPPER LH
74232-0E080

ASU5#,GSU55..LIMD,SPO

 1
74232-0E090

ASU5#,GSU55..D

 1
74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH
74271-0E060

ASU5#

 1
74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH
74272-0E060

ASU5#

 1
74813C - CLIP
90467-12080

ASU5#

 8
74813C - CLIP
90467-12080

ASU5#

 8
74813C - CLIP
90467-12080

ASU5#

 8
74813C - CLIP
90467-12080

ASU5#

 8
74813C - CLIP
90467-12080

ASU5#

 8
74813C - CLIP
90467-12080

ASU5#

 8

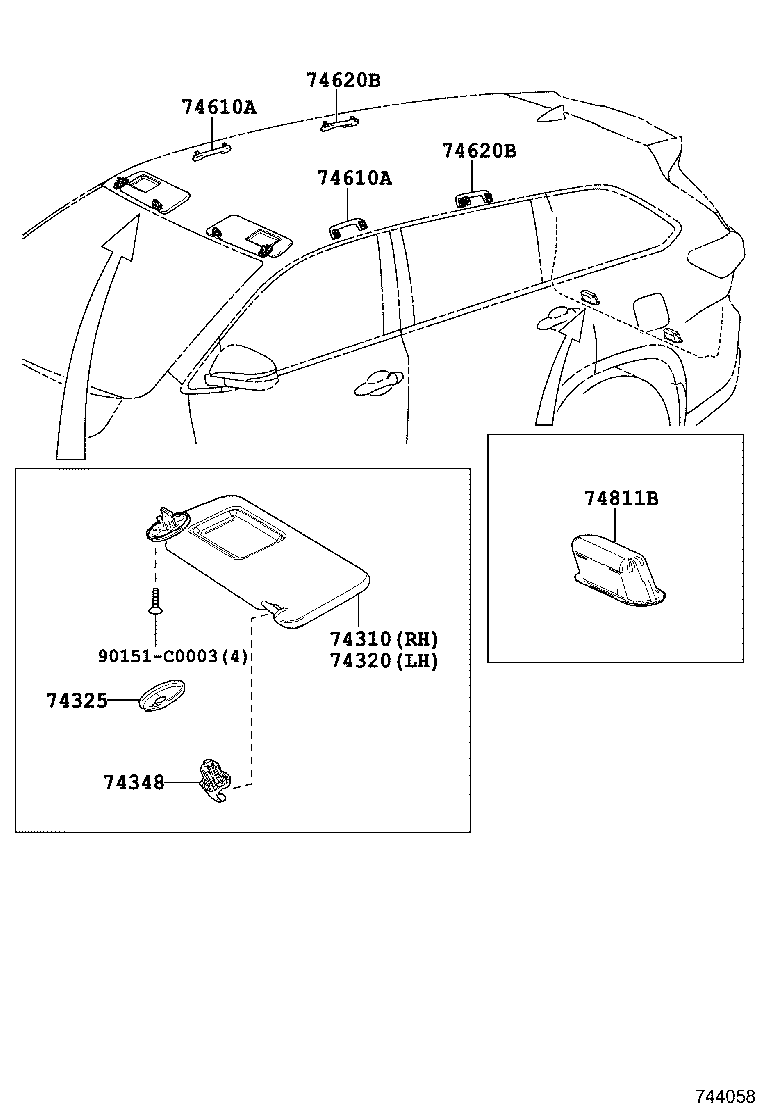

ILLUST NO. 2 OF 2(1503- )

Click highlighted areas on diagram

VISOR & ASSIST GRIP

diagram 74310 74320 74325 74348 74610A 74610A 74620B 74620B 74811B 90151C0003
Part # Description Qty Price
74310 - VISOR ASSY, RH
74310-0E110A0

ASU5#,GSU55

FLAXEN,TRIM0#

 1
74310-0E110B0

ASU5#,GSU55..LIMD,SPO

GRAY,TRIM2#

 1
74310-0E111B0

ASU5#,GSU55..LIMD,SPO

GRAY,TRIM2#

 1
74310-0E111A0

ASU5#,GSU55

FLAXEN,TRIM0#

 1
74320 - VISOR ASSY, LH
74320-0E110A0

ASU5#,GSU55

FLAXEN,TRIM0#

 1
74320-0E111B0

ASU5#,GSU55..LIMD,SPO

GRAY,TRIM2#

 1
74320-0E111A0

ASU5#,GSU55

FLAXEN,TRIM0#

 1
74320-0E110B0

ASU5#,GSU55..LIMD,SPO

GRAY,TRIM2#

 1
74325 - COVER, VISOR BRACKET
74317-0N020A1

ASU5#,GSU55

FLAXEN,TRIM0#

 2
74317-0N020B0

ASU5#,GSU55..LIMD,SPO

GRAY,TRIM2#

 2
74348 - HOLDER, VISOR
74348-0D140B0

ASU5#,GSU55..LIMD,SPO

GRAY,TRIM2#

 2
74348-0D140A1

ASU5#,GSU55

FLAXEN,TRIM0#

 2
74610A - GRIP SUB-ASSY, ASSIST
74610-0E060A0

ASU5#,GSU55

FLAXEN,TRIM0#

 2
74610-0D130B0

ASU5#,GSU55..LIMD,SPO

GRAY,TRIM2#

 2
74610-0D130A1

ASU5#,GSU55

FLAXEN,TRIM0#

 2
74610-0E060B0

ASU5#,GSU55..LIMD,SPO

GRAY,TRIM2#

 2
74610A - GRIP SUB-ASSY, ASSIST
74610-0E060A0

ASU5#,GSU55

FLAXEN,TRIM0#

 2
74610-0D130B0

ASU5#,GSU55..LIMD,SPO

GRAY,TRIM2#

 2
74610-0D130A1

ASU5#,GSU55

FLAXEN,TRIM0#

 2
74610-0E060B0

ASU5#,GSU55..LIMD,SPO

GRAY,TRIM2#

 2
74620B - GRIP ASSY, ASSIST, REAR
74610-0E050A0

ASU5#,GSU55

FLAXEN,TRIM0#

 2
74610-02270B1

ASU5#,GSU55..LIMD,SPO

GRAY,TRIM2#

 2
74610-0E050B0

ASU5#,GSU55..LIMD,SPO

GRAY,TRIM2#

 2
74610-02270A1

ASU5#,GSU55

FLAXEN,TRIM0#

 2
74620B - GRIP ASSY, ASSIST, REAR
74610-0E050A0

ASU5#,GSU55

FLAXEN,TRIM0#

 2
74610-02270B1

ASU5#,GSU55..LIMD,SPO

GRAY,TRIM2#

 2
74610-0E050B0

ASU5#,GSU55..LIMD,SPO

GRAY,TRIM2#

 2
74610-02270A1

ASU5#,GSU55

FLAXEN,TRIM0#

 2
74811B - HANDLE, DOOR PULL
69285-0D070

ASU5#

 2
Common parts
90151-C0003
