ASU55L-BRTGTC (2015)

Toyota Highlander (China)

Production Mar 2015 - Mar 2018
Engine 8ARFTS
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

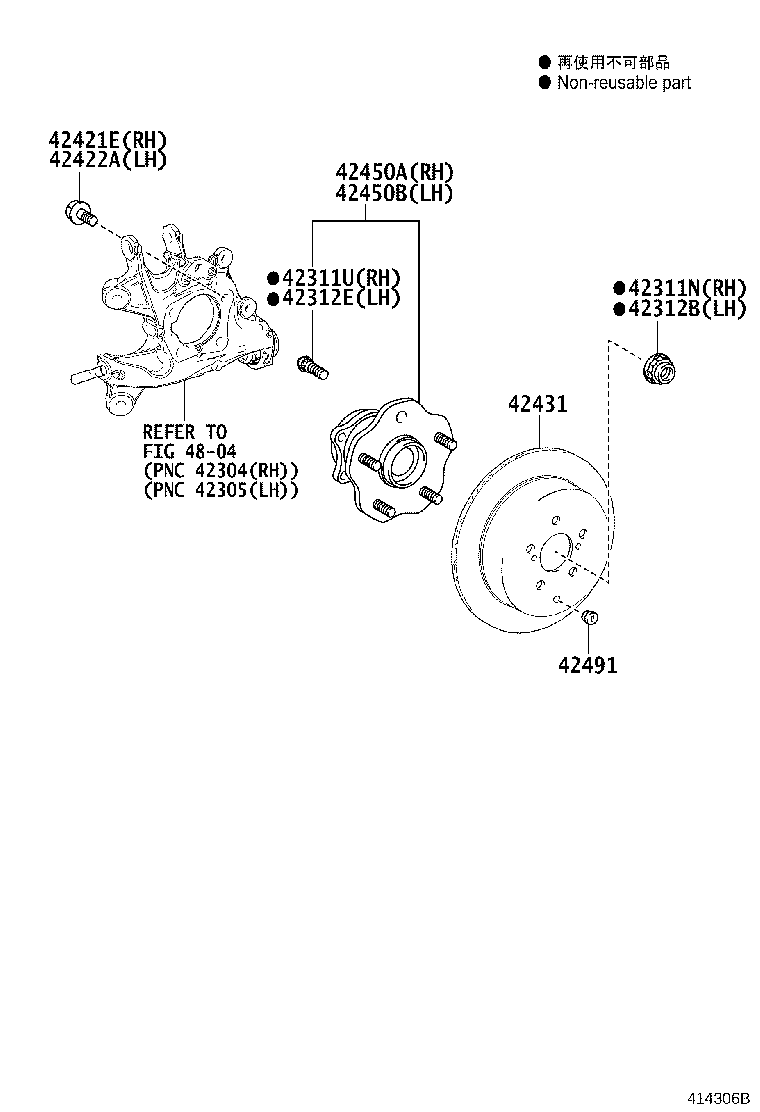

ILLUST NO. 1 OF 2(1503- )ASU55,GSU55

Click highlighted areas on diagram

diagram 42311N 42311U 42312B 42312E 42421E 42422A 42431 42450A 42450B 42491 4804
Part # Description Qty Price
42311N - NUT (FOR REAR AXLE SHAFT RH)
90177-C0004

ASU55

 1
42311U - BOLT, HUB (FOR REAR AXLE RH)
90942-02049

ASU5#

 5
42312B - NUT (FOR REAR AXLE SHAFT LH)
90177-C0004

ASU55

 1
42312E - BOLT, HUB (FOR REAR AXLE LH)
90942-02049

ASU5#

 5
42421E - BOLT (FOR REAR AXLE BEARING CASE RH)
90105-C0284

ASU5#,GSU55

 4
42422A - BOLT (FOR REAR AXLE BEARING CASE LH)
90105-C0284

ASU5#,GSU55

 4
42431 - DISC, REAR
42431-0E050

ASU5#,GSU55

 2
42450A - HUB & BEARING ASSY, REAR AXLE, RH
42410-0E060

ASU55

 1
42450B - HUB & BEARING ASSY, REAR AXLE, LH
42410-0E060

ASU55

 1
42491 - PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)
47493-06010

ASU5#,GSU55

 2
Linked diagrams
4804

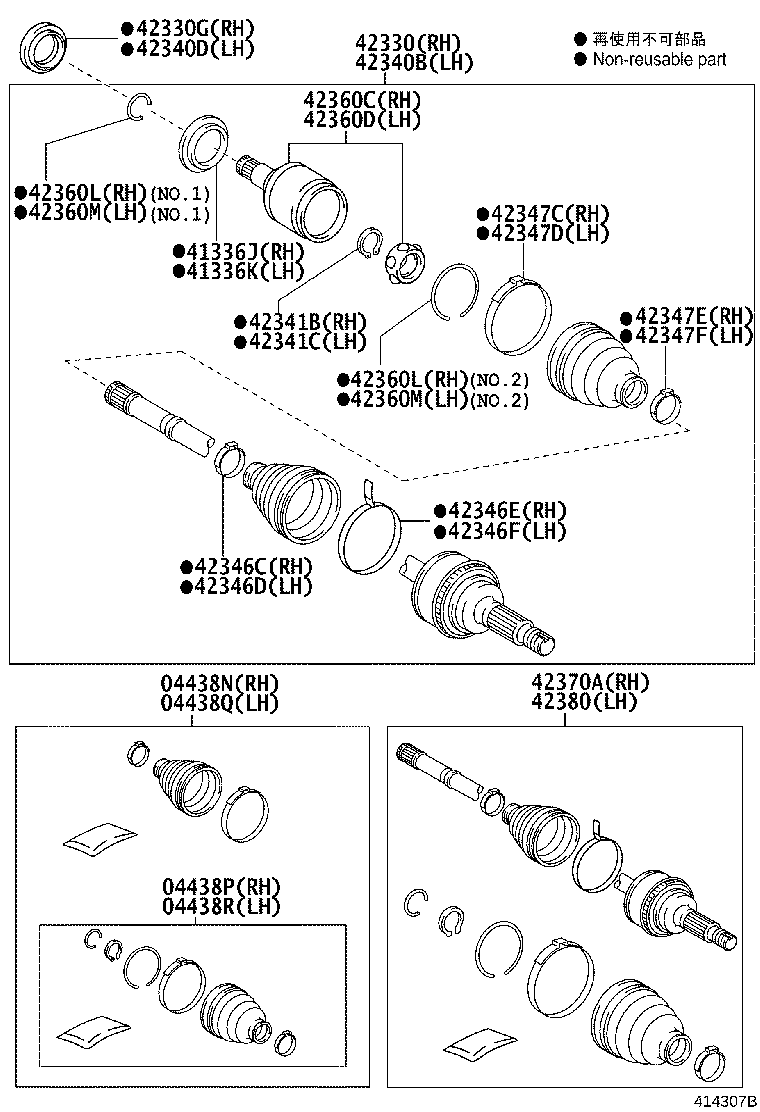

ILLUST NO. 2 OF 2(1503- )ASU55,GSU55

Click highlighted areas on diagram

diagram 04438N 04438P 04438Q 04438R 41336J 41336K 42330 42330G 42340B 42340D 42341B 42341C 42346C 42346D 42346E 42346F 42347C 42347D 42347E 42347F 42360C 42360D 42360L 42360L 42360M 42360M 42370A 42380
Part # Description Qty Price
04438N - BOOT KIT, REAR DRIVE SHAFT, IN & OUTBOARD JOINT, RH
04429-21040

ASU55

 1
04438P - BOOT KIT, REAR DRIVE SHAFT, INBOARD JOINT, RH
04439-21030

ASU55

 1
04438Q - BOOT KIT, REAR DRIVE SHAFT, IN & OUTBOARD JOINT, LH
04429-21040

ASU55

 1
04438R - BOOT KIT, REAR DRIVE SHAFT, INBOARD JOINT, LH
04439-21030

ASU55

 1
41336J - COVER, REAR DRIVE SHAFT DUST, RH
41336-0E130

ASU55

 1
41336K - COVER, REAR DRIVE SHAFT DUST, LH
41336-0E130

ASU55

 1
42330 - SHAFT ASSY, REAR DRIVE, RH
42340-0E120

ASU55,GSU55

 1
42330G - OIL SEAL, REAR DRIVE SHAFT, RH
90311-42047

ASU55

 1
42340B - SHAFT ASSY, REAR DRIVE, LH
42340-0E130

ASU55,GSU55

 1
42340D - OIL SEAL, REAR DRIVE SHAFT, LH
90311-42047

ASU55

 1
42341B - RING, SNAP (FOR REAR DRIVE SHAFT RH)
43425-0E260

ASU55

 1
42341C - RING, SNAP (FOR REAR DRIVE SHAFT LH)
43425-0E260

ASU55

 1
42346C - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH)
42345-0E320

ASU55

 1
42346D - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH)
42345-0E320

ASU55

 1
42346E - CLAMP, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT R
42345-0E310

ASU55

 1
42346F - CLAMP, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT L
42345-0E310

ASU55

 1
42347C - CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)
42345-0E290

ASU55

 1
42347D - CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH)
42345-0E290

ASU55

 1
42347E - CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH
42345-0E300

ASU55

 1
42347F - CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH
42345-0E300

ASU55

 1
42360C - JOINT ASSY, REAR DRIVE SHAFT INBOARD, RH
42360-0E070

ASU55

 1
42360D - JOINT ASSY, REAR DRIVE SHAFT INBOARD, LH
42360-0E070

ASU55

 1
42360L - RING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT RH
43425-0E250

ASU55

NO.1:REFER ILLUST.

 1
43425-0E270

ASU55

NO.2:REFER ILLUST.

 1
42360L - RING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT RH
43425-0E250

ASU55

NO.1:REFER ILLUST.

 1
43425-0E270

ASU55

NO.2:REFER ILLUST.

 1
42360M - RING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT LH
43425-0E270

ASU55

NO.2:REFER ILLUST.

 1
43425-0E250

ASU55

NO.1:REFER ILLUST.

 1
42360M - RING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT LH
43425-0E270

ASU55

NO.2:REFER ILLUST.

 1
43425-0E250

ASU55

NO.1:REFER ILLUST.

 1
42370A - SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, RH
42370-09140

ASU55

 1
42380 - SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, LH
42370-09150

ASU55

 1
