ASU50L-BRTNTC (2015)

Toyota Highlander (China)

Production Mar 2015 - Mar 2018
Engine 8ARFTS
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1503- )ASU5#

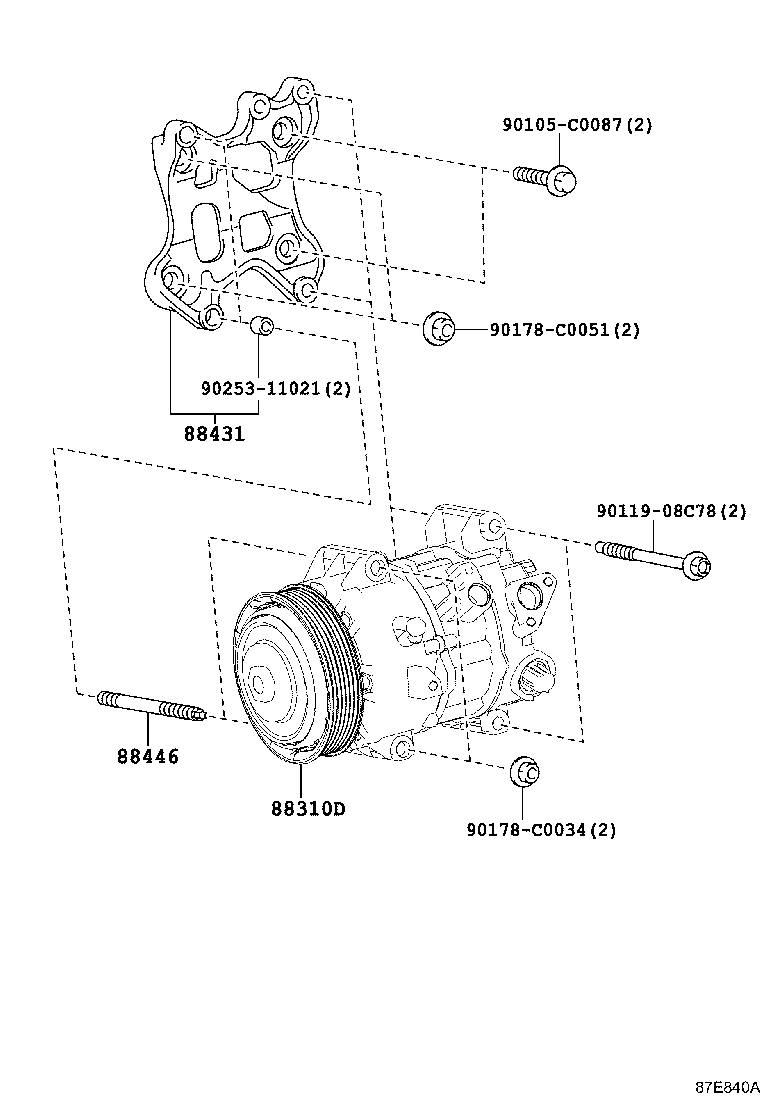

Click highlighted areas on diagram

diagram 88310D 88431 88446 90105C0087 9011908C78 90178C0034 90178C0051 9025311021
Part # Description Qty Price
88310D - COMPRESSOR ASSY, W/PULLEY
88310-0E150

ASU5#

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
12502-0V060

ASU5#

 1
88446 - BOLT, IDLE PULLEY
88446-60050

ASU5#

 2
Common parts
90105-C0087
90119-08C78
90178-C0034
90178-C0051
90253-11021
