ASU50L-BRTNTC (2015)

Toyota Highlander (China)

Production Mar 2015 - Mar 2018
Engine 8ARFTS
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1503- )

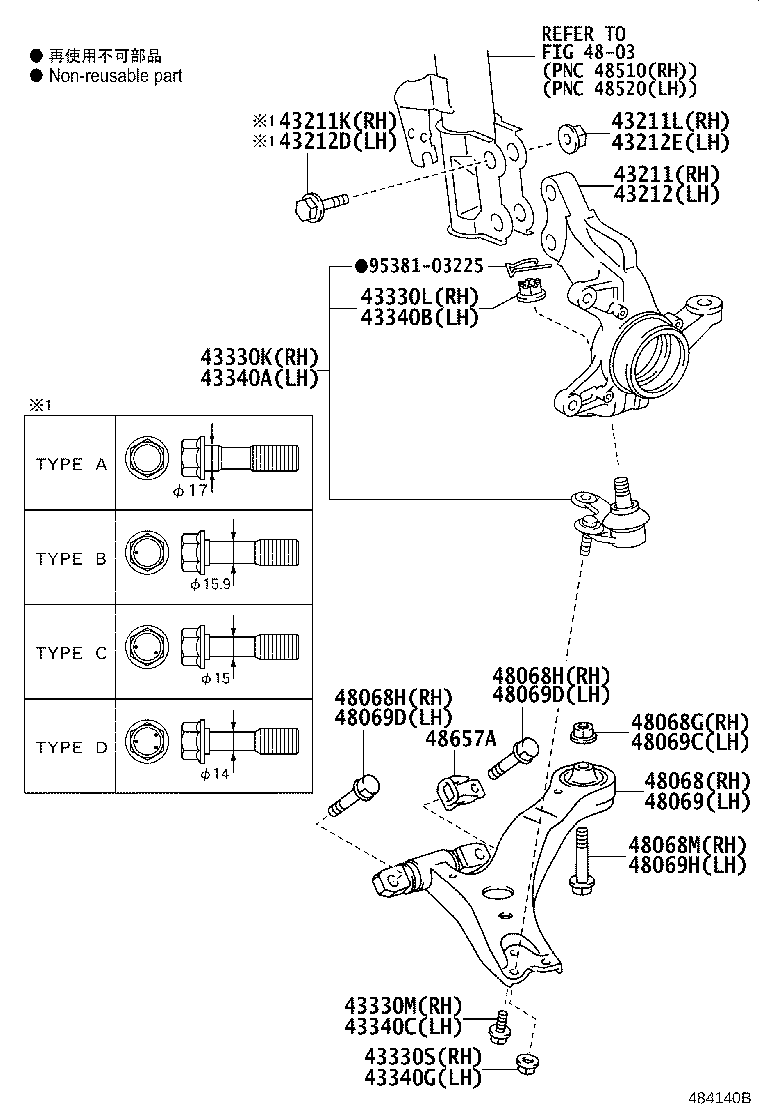

Click highlighted areas on diagram

diagram 43211 43211K 43211L 43212 43212D 43212E 43330K 43330L 43330M 43330S 43340A 43340B 43340C 43340G 4803 48068 48068G 48068H 48068H 48068M 48069 48069C 48069D 48069D 48069H 48657A 9538103225
Part # Description Qty Price
43211 - KNUCKLE, STEERING, RH
43211-0E020

ASU5#

 1
43211K - BOLT (FOR STEERING KNUCKLE RH)
90105-17015

ASU5#

OD=14,TYPE D:REFER ILLUST.

 1
90105-17014

ASU5#

OD=15,TYPE C:REFER ILLUST.

 1
90105-17013

ASU5#

OD=15.9,TYPE B:REFER ILLUST.

 1
90105-C0247

ASU5#

OD=17,TYPE A:REFER ILLUST.

 2
43211L - NUT (FOR STEERING KNUCKLE RH)
90178-17002

ASU5#

 2
43212 - KNUCKLE, STEERING, LH
43212-0E020

ASU5#

 1
43212D - BOLT (FOR STEERING KNUCKLE LH)
90105-17015

ASU5#

OD=14,TYPE D:REFER ILLUST.

 1
90105-C0247

ASU5#

OD=17,TYPE A:REFER ILLUST.

 2
90105-17013

ASU5#

OD=15.9,TYPE B:REFER ILLUST.

 1
90105-17014

ASU5#

OD=15,TYPE C:REFER ILLUST.

 1
43212E - NUT (FOR STEERING KNUCKLE LH)
90178-17002

ASU5#

 2
43330K - JOINT ASSY, LOWER BALL, FRONT RH
43330-09800

ASU5#

 1
43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
90171-14003

ASU5#

 1
43330M - BOLT (FOR FRONT LOWER BALL JOINT RH)
90105-C0067

ASU5#

 1
43330S - NUT (FOR FRONT LOWER BALL JOINT RH)
90178-C0062

ASU5#

 2
43340A - JOINT ASSY, LOWER BALL, FRONT LH
43340-09160

ASU5#

 1
43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
90171-14003

ASU5#

 1
43340C - BOLT (FOR FRONT LOWER BALL JOINT LH)
90105-C0067

ASU5#

 1
43340G - NUT (FOR FRONT LOWER BALL JOINT LH)
90178-C0062

ASU5#

 2
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-0E030

ASU5#

 1
48068G - NUT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
90178-C0030

ASU5#

 1
48068H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
90105-C0024

ASU5#

 2
48068H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
90105-C0024

ASU5#

 2
48068M - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
90119-C0198

ASU5#

 1
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069-0E030

ASU5#

 1
48069C - NUT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
90178-C0030

ASU5#

 1
48069D - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
90105-C0024

ASU5#

 2
48069D - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
90105-C0024

ASU5#

 2
48069H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
90119-C0198

ASU5#

 1
48657A - STOPPER, FRONT LOWER ARM BUSH
48657-06060

ASU5#

(L)

 2
48657-28010

ASU5#

(J)

 2
48657-28010

ASU5#,GSU55

 2
Common parts
95381-03225
Linked diagrams
4803
