ASU50L-BRTNTC (2015)

Toyota Highlander (China)

Production Mar 2015 - Mar 2018
Engine 8ARFTS
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1503- )

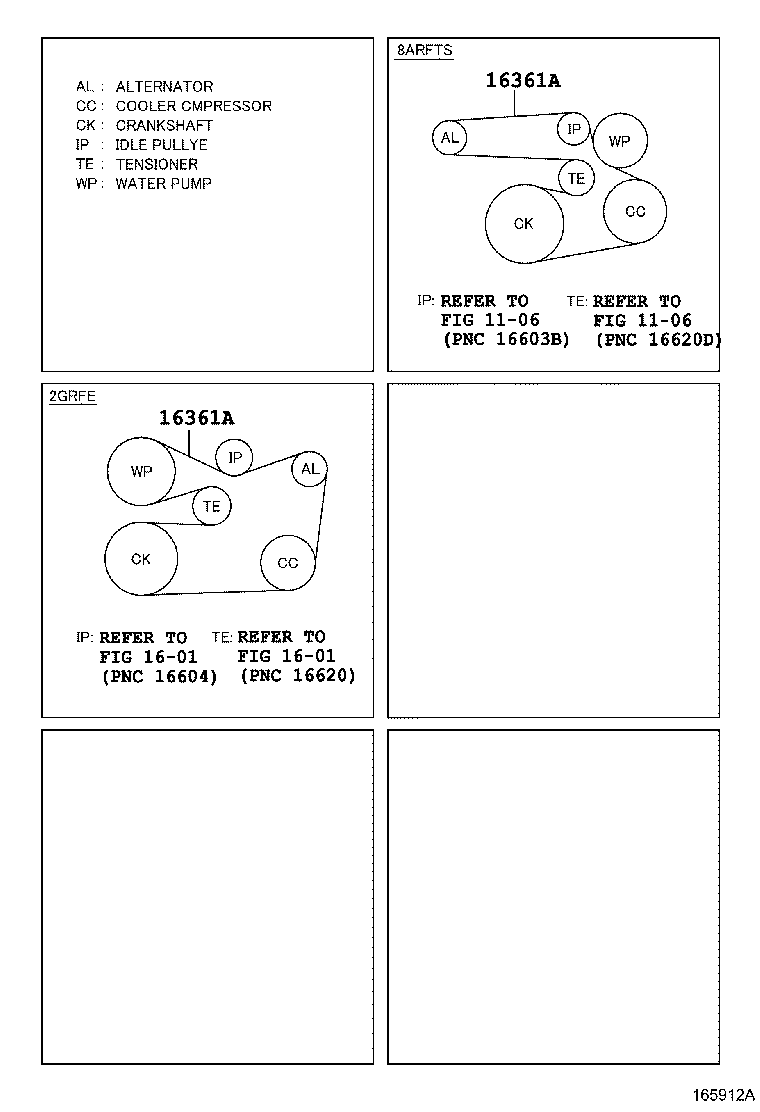

Click highlighted areas on diagram

diagram 1106 1106 1601 1601 16361A 16361A
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
90916-02727

8ARFTS..ASU5#

 1
16361A - BELT, V(FOR FAN & ALTERNATOR)
90916-02727

8ARFTS..ASU5#

 1
Linked diagrams
1106
1601
