ASU50L-BRTNTC (2015)

Toyota Highlander (China)

Production Mar 2015 - Mar 2018
Engine 8ARFTS
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1503- )

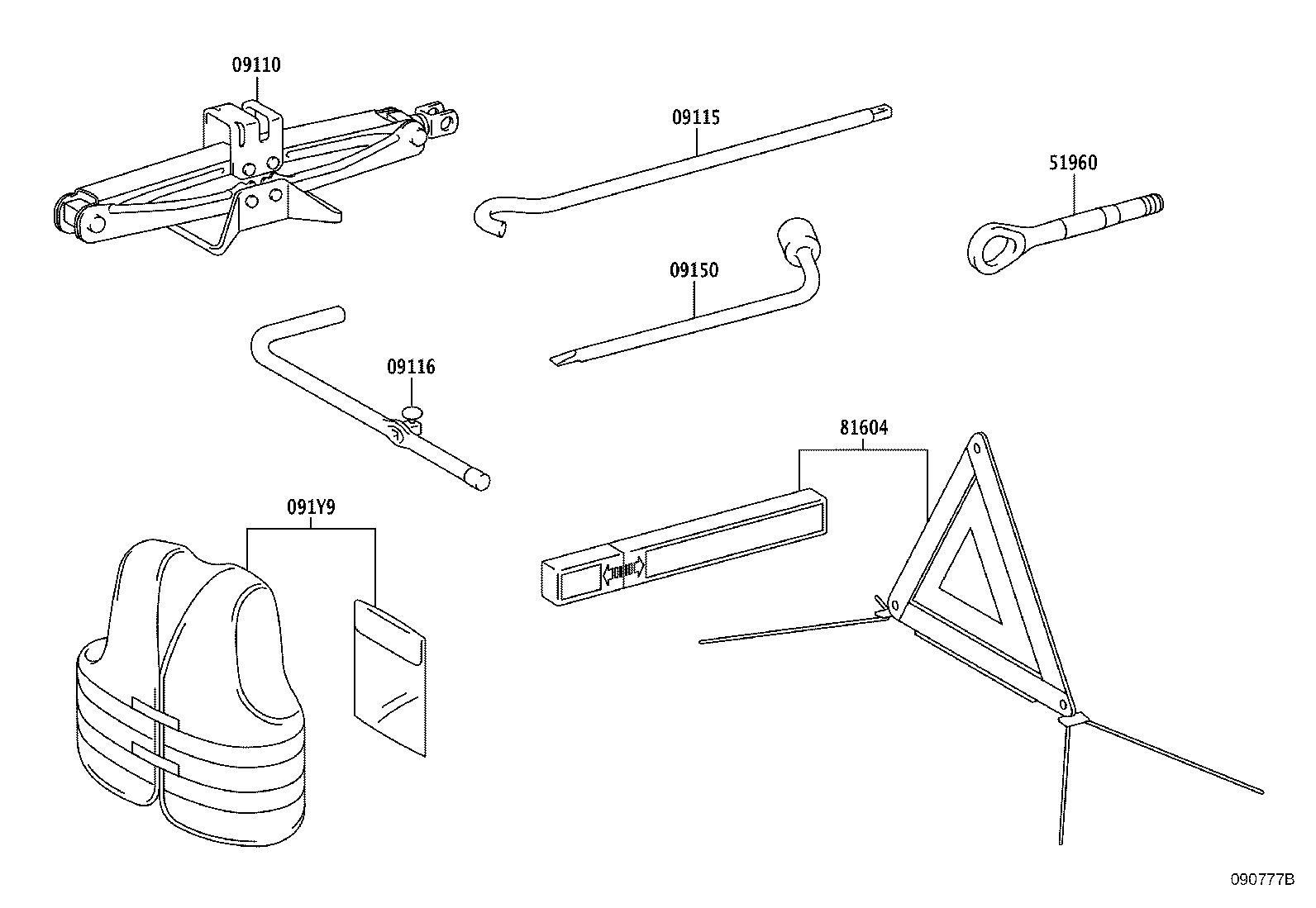

Click highlighted areas on diagram

diagram 09110 09115 09116 09150 091Y9 51960 81604
Part # Description Qty Price
09110 - JACK ASSY
09111-0E040

ASU5#

 1
09115 - ROD SUB-ASSY, JACK HANDLE
09115-48010

ASU5#

 1
09116 - LEVER, JACK HANDLE
09116-48010

ASU5#

 1
09150 - WRENCH, HUB NUT BOX
09150-0D020

ASU5#

 1
091Y9 - JACKET, W/REFLECTOR
091Y9-02010

ASU5#

 1
51960 - HOOK ASSY, FRONT
51961-0E030

ASU5#

 1
51961-0E030

ASU5#,GSU55

 2
81604 - REFLECTOR SET, TRIANGLE
81604-0E010

ASU5#

 1
