ASU50L-BRTMTC (2015)

Toyota Highlander (China)

Production Mar 2015 - Mar 2018
Engine 8ARFTS
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1503- )ASU5#

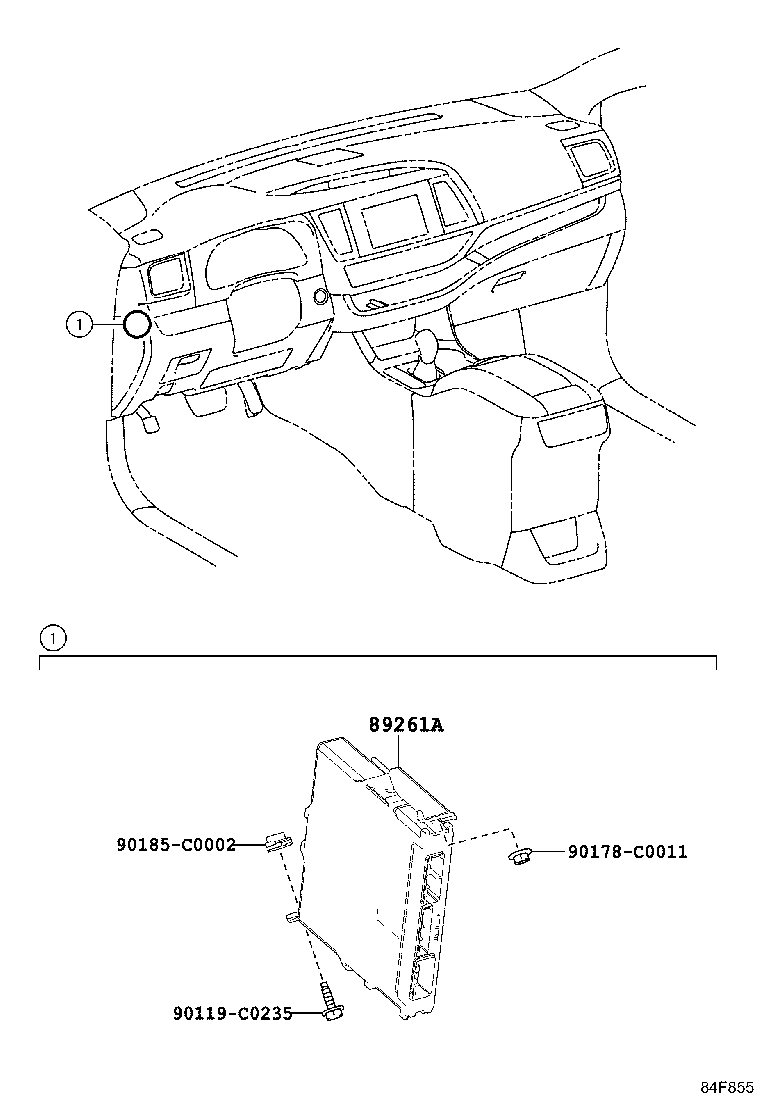

Click highlighted areas on diagram

diagram 89261A 90119C0235 90178C0011 90185C0002
Part # Description Qty Price
89261A - COMPUTER, ENGINE STOP AND START
89260-0E010

ASU5#..D,SPO

WITHOUT(STOP & START SYSTEM)

 1
89260-0E010

ASU5#

 1
Common parts
90119-C0235
90178-C0011
90185-C0002
