ASU50L-BRTMTC (2015)

Toyota Highlander (China)

Production Mar 2015 - Mar 2018
Engine 8ARFTS
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1503- )

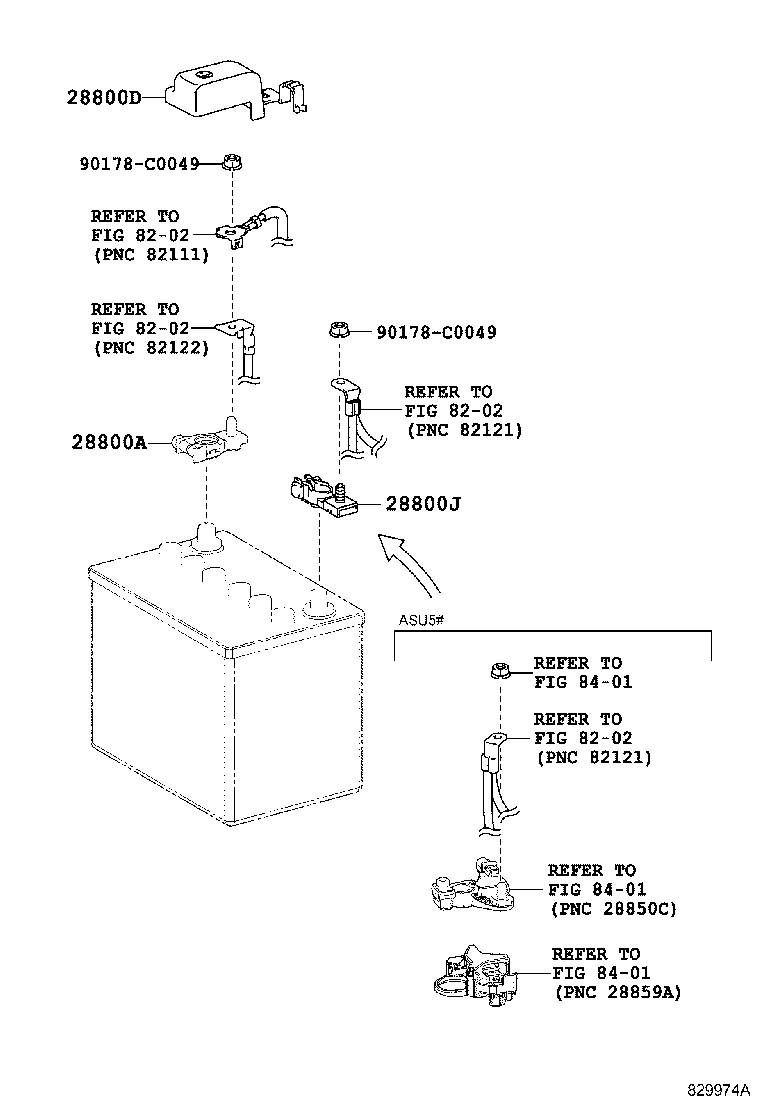

Click highlighted areas on diagram

diagram 28800A 28800D 28800J 8202 8202 8202 8202 8401 8401 8401 90178C0049 90178C0049
Part # Description Qty Price
28800A - TERMINAL, BATTERY POSITIVE
90982-05061

8ARFTS..ASU5#

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-48020

8ARFTS..ASU5#

 1
Common parts
90178-C0049
Linked diagrams
8202
8401
