ASU50L-BRTMTC (2015)
Toyota Highlander (China)
Production
Mar 2015
-
Mar 2018
Engine
8ARFTS
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

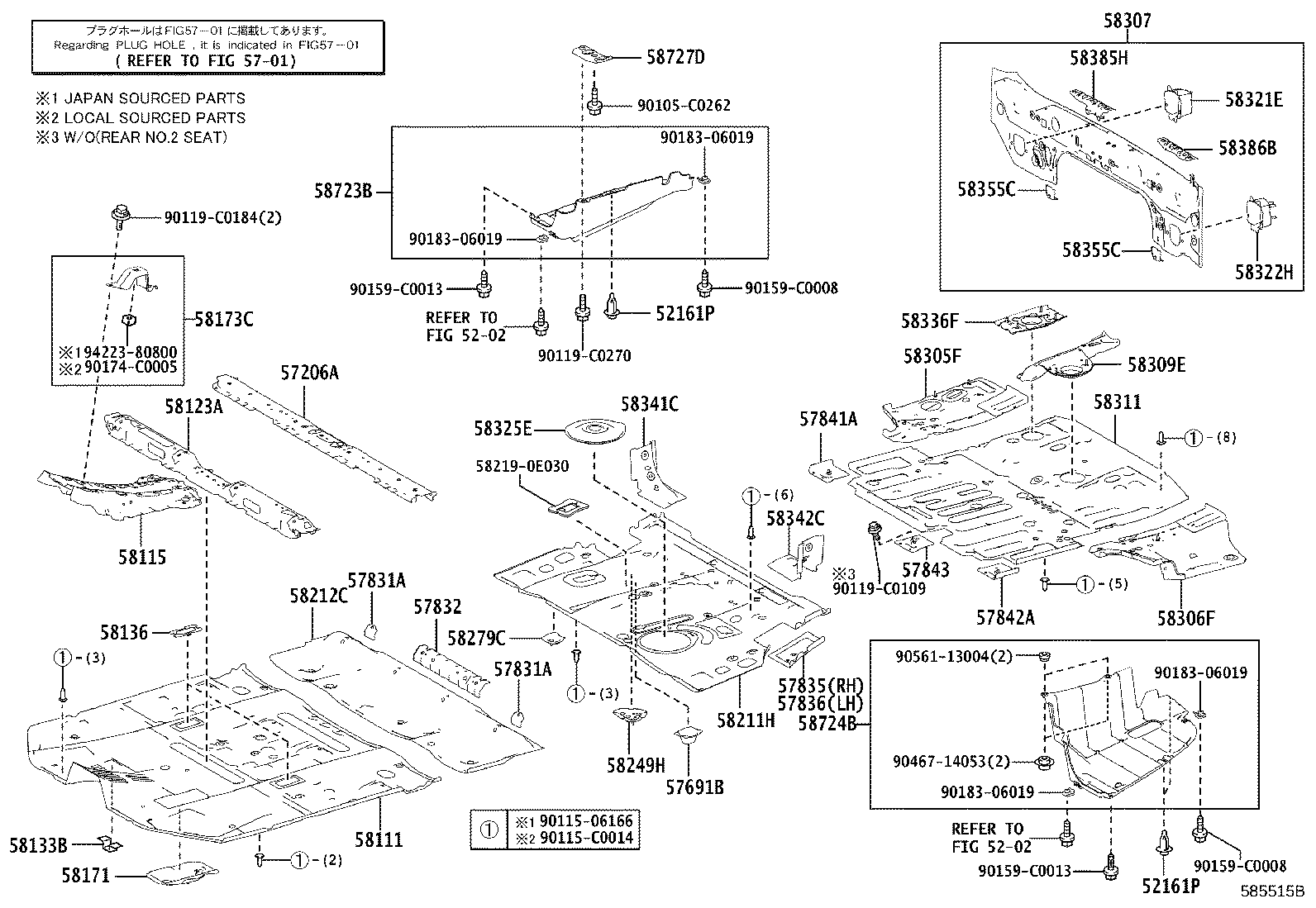

ILLUST NO. 1 OF 2(1503- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52161P - PIECE, REAR BUMPER | ||||
| 52161-0E030 |
ASU5#,GSU55 (L) |
3 | ||
| 52161-16010 |
ASU5#,GSU55 (J) |
3 | ||
| 52161-0E030 |
ASU5#,GSU55 |
3 | ||
| 52161P - PIECE, REAR BUMPER | ||||
| 52161-0E030 |
ASU5#,GSU55 (L) |
3 | ||
| 52161-16010 |
ASU5#,GSU55 (J) |
3 | ||
| 52161-0E030 |
ASU5#,GSU55 |
3 | ||
| 57206A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, NO.2 | ||||
| 57206-0E020 |
ASU5# |
1 | ||
| 57691B - BRACKET, FUEL TANK MOUNTING, FRONT CENTER | ||||
| 57691-0E060 |
ASU5# |
1 | ||
| 57831A - REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.1 | ||||
| 57831-0E020 |
ASU5# |
2 | ||
| 57831A - REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.1 | ||||
| 57831-0E020 |
ASU5# |
2 | ||
| 57832 - REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.2 | ||||
| 57832-0E060 |
ASU5# |
1 | ||
| 57835 - REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.1 | ||||
| 57835-0E050 |
ASU5# |
1 | ||
| 57836 - REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.2 | ||||
| 57836-0E050 |
ASU5# |
1 | ||
| 57841A - REINFORCEMENT, REAR NO.2 SEAT LEG, FRONT RH | ||||
| 57841-0E020 |
ASU5# |
1 | ||
| 57842A - REINFORCEMENT, REAR NO.2 SEAT LEG, FRONT LH | ||||
| 57842-0E020 |
ASU5# |
1 | ||
| 57843 - REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.5 | ||||
| 57843-0E020 |
ASU5# |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-0E914 |
ASU5# |
1 | ||
| 58115 - REINFORCEMENT, FRONT FLOOR PANEL, FRONT | ||||
| 58115-0E030 |
ASU5# |
1 | ||
| 58123A - SUPPORT, SHIFT & SELECT LEVER | ||||
| 58013-0E031 |
ASU5#,GSU55 |
1 | ||
| 58133B - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.3 | ||||
| 58133-0E040 |
ASU5# |
1 | ||
| 58136 - COVER, FRONT FLOOR HOLE | ||||
| 58136-0E020 |
ASU5# |
2 | ||
| 58171 - REINFORCEMENT, PARKING BRAKE BASE | ||||
| 58171-0E020 |
ASU5# |
1 | ||
| 58173C - BRACKET, WIRING HARNESS PROTECTOR | ||||
| 58173-0E020 |
ASU5# |
1 | ||
| 58211H - PAN, CENTER FLOOR | ||||
| 58211-0E908 |
ASU5# |
1 | ||
| 58212C - PAN, CENTER FLOOR, FRONT | ||||
| 58212-0E060 |
ASU5# |
1 | ||
| 58249H - BRACKET, CENTER FLOOR BOARD SUPPORT | ||||
| 58249-0E060 |
ASU5# |
1 | ||
| 58249-0E061 |
ASU5# |
1 | ||
| 58279C - PROTECTOR, FUEL TANK, UPPER NO.2 | ||||
| 58279-0E050 |
ASU5# |
1 | ||
| 58305F - PANEL SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 58305-0E060 |
ASU5# |
1 | ||
| 58306F - PANEL SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 58306-0E070 |
ASU5# |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-0E060 |
ASU5# |
1 | ||
| 58309E - PLATE SUB-ASSY, REAR FLOOR | ||||
| 58309-0E040 |
ASU5# |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-0E060 |
ASU5# |
1 | ||
| 58321E - PLATE, REAR BUMPER ARM SUPPORT, RH | ||||
| 58321-0E040 |
ASU5# |
1 | ||
| 58322H - PLATE, REAR BUMPER ARM SUPPORT, LH | ||||
| 58322-0E040 |
ASU5# |
1 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-0E020 |
ASU5# |
1 | ||
| 58336F - REINFORCEMENT, REAR FLOOR PAN, RH | ||||
| 58336-0E070 |
ASU5# |
1 | ||
| 58341C - BRACKET, REAR ABSORBER MOUNTING, NO.1 RH | ||||
| 58341-0E020 |
ASU5# |
1 | ||
| 58342C - BRACKET, REAR ABSORBER MOUNTING, NO.1 LH | ||||
| 58342-0E020 |
ASU5# |
1 | ||
| 58355C - BRACKET, REAR BUMPER ARM | ||||
| 58355-0E010 |
ASU5# |
2 | ||
| 58355C - BRACKET, REAR BUMPER ARM | ||||
| 58355-0E010 |
ASU5# |
2 | ||
| 58385H - BRACKET, REAR BUMPER COVER, NO.1 | ||||
| 58385-0E050 |
ASU5# |
1 | ||
| 58386B - BRACKET, REAR BUMPER COVER, NO.2 | ||||
| 58386-0E050 |
ASU5# |
1 | ||
| 58723B - PROTECTOR, LUGGAGE COMPARTMENT SIDE COVER, NO.1 | ||||
| 58723-0E060 |
ASU5# |
1 | ||
| 58724B - PROTECTOR, LUGGAGE COMPARTMENT SIDE COVER, NO.2 | ||||
| 58724-0E070 |
ASU5# |
1 | ||
| 58727D - PLATE, ENGINE SERVICE COVER, NO.1 | ||||
| 58727-0E020 |
ASU5# |
1 | ||
| Common parts | ||||
| 58219-0E030 | ||||
| 90105-C0262 | ||||
| 90115-06166 | ||||
| 90115-C0014 | ||||
| 90119-C0109 | ||||
| 90119-C0184 | ||||
| 90119-C0270 | ||||
| 90159-C0008 | ||||
| 90159-C0013 | ||||
| 90174-C0005 | ||||
| 90183-06019 | ||||
| 90467-14053 | ||||
| 90561-13004 | ||||
| 94223-80800 | ||||
| Linked diagrams | ||||
| 5202 | ||||
| 5701 | ||||

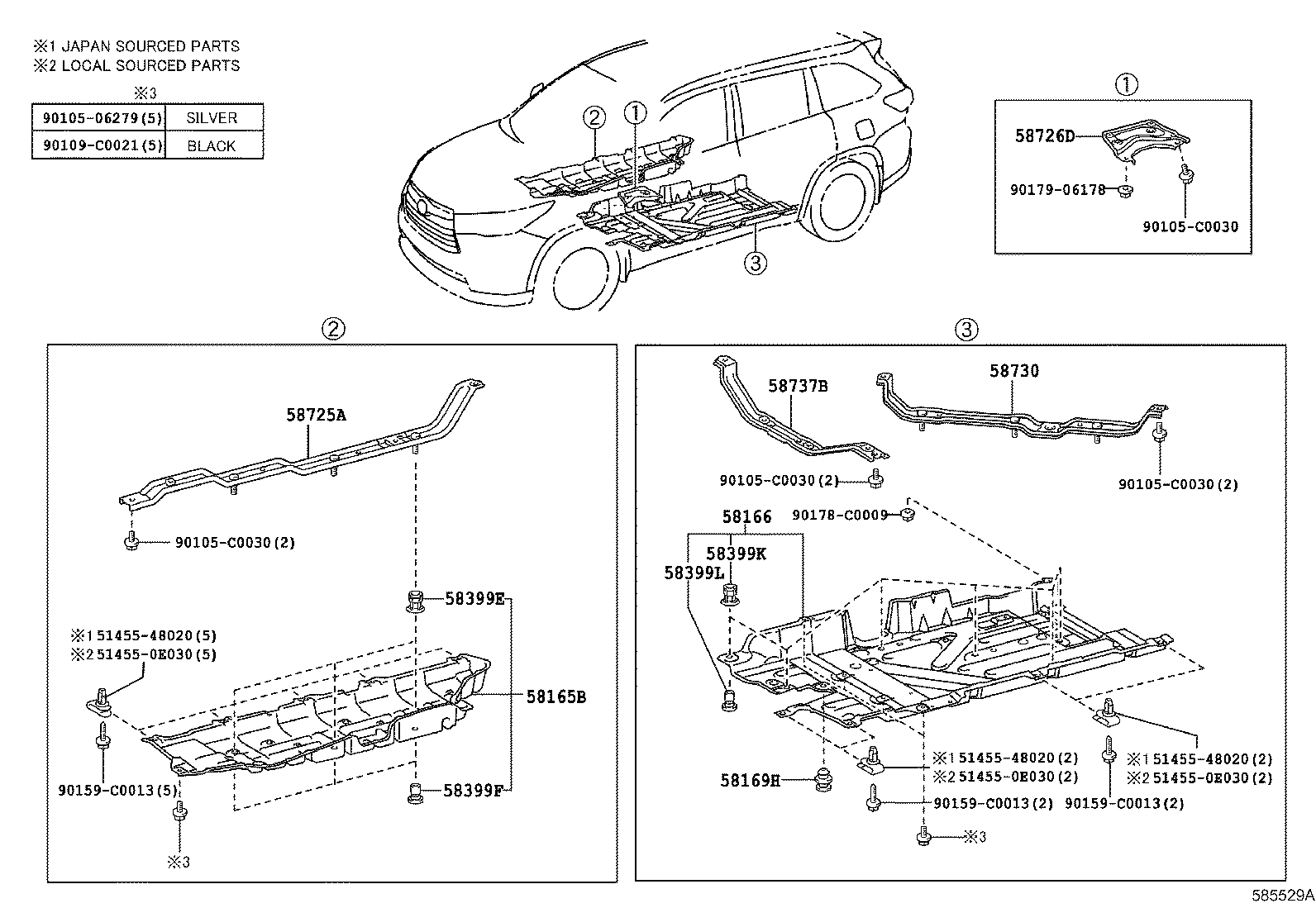

ILLUST NO. 2 OF 2(1503- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58165B - COVER, FRONT FLOOR, RH | ||||
| 58165-0E050 |
ASU5# |
1 | ||
| 58166 - COVER, FRONT FLOOR, LH | ||||
| 58166-0E040 |
ASU5# |
1 | ||
| 58169H - PATCH, FRONT FLOOR, REAR | ||||
| 58169-48010 |
ASU5# |
1 | ||
| 58399E - CLIP, NO.1(FOR FLOOR UNDER COVER) | ||||
| 90467-17026A0 |
ASU5#,GSU55 SUPER WHITE 2 |
3 | ||
| 58399F - CLIP, NO.2(FOR FLOOR UNDER COVER) | ||||
| 90467-17027C0 |
ASU5#,GSU55 BLACK |
3 | ||
| 58399K - CLIP, NO.1(FOR FLOOR UNDER COVER) | ||||
| 90467-17026A0 |
ASU5#,GSU55 SUPER WHITE 2 |
6 | ||
| 58399L - CLIP, NO.2(FOR FLOOR UNDER COVER) | ||||
| 90467-17027C0 |
ASU5#,GSU55 BLACK |
6 | ||
| 58725A - STAY, ENGINE SERVICE COVER | ||||
| 58720-0E020 |
ASU5# |
1 | ||
| 58726D - STAY, ENGINE SERVICE COVER CATCH, REAR LH | ||||
| 58726-0E020 |
ASU5# |
1 | ||
| 58730 - COVER ASSY, ENGINE SERVICE, REAR | ||||
| 58730-0E020 |
ASU5# |
1 | ||
| 58737B - BRACKET, ENGINE SERVICE COVER | ||||
| 58737-0E020 |
ASU5# |
1 | ||
| Common parts | ||||
| 51455-0E030 | ||||
| 51455-48020 | ||||
| 90105-06279 | ||||
| 90105-C0030 | ||||
| 90109-C0021 | ||||
| 90159-C0013 | ||||
| 90178-C0009 | ||||
| 90179-06178 | ||||
