ASU50L-BRTMTC (2015)

Toyota Highlander (China)

Production Mar 2015 - Mar 2018
Engine 8ARFTS
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

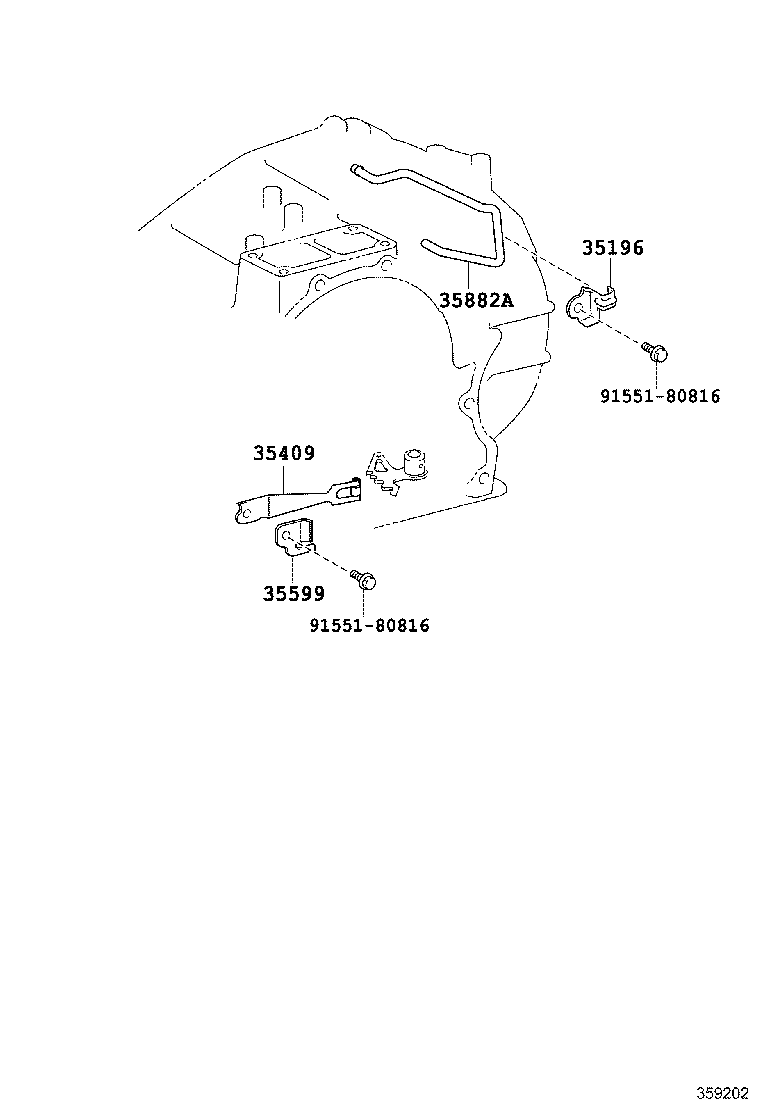

ILLUST NO. 2 OF 2(1503- )

Click highlighted areas on diagram

U660F,U661E,U661F

diagram 35196 35409 35599 35882A 9155180816 9155180816
Part # Description Qty Price
35196 - CLAMP, TRANSAXLE APPLY TUBE, NO.2
35196-33010

ASU5#

 1
35409 - SPRING SUB-ASSY, MANUAL DETENT
35409-33010

ASU5#

 1
35599 - COVER, MANUAL DETENT SPRING
35599-33010

ASU5#

 1
35882A - TUBE, DIFFERENTIAL GEAR LUBE APPLY
35882-33040

ASU5#

 1
Common parts
91551-80816

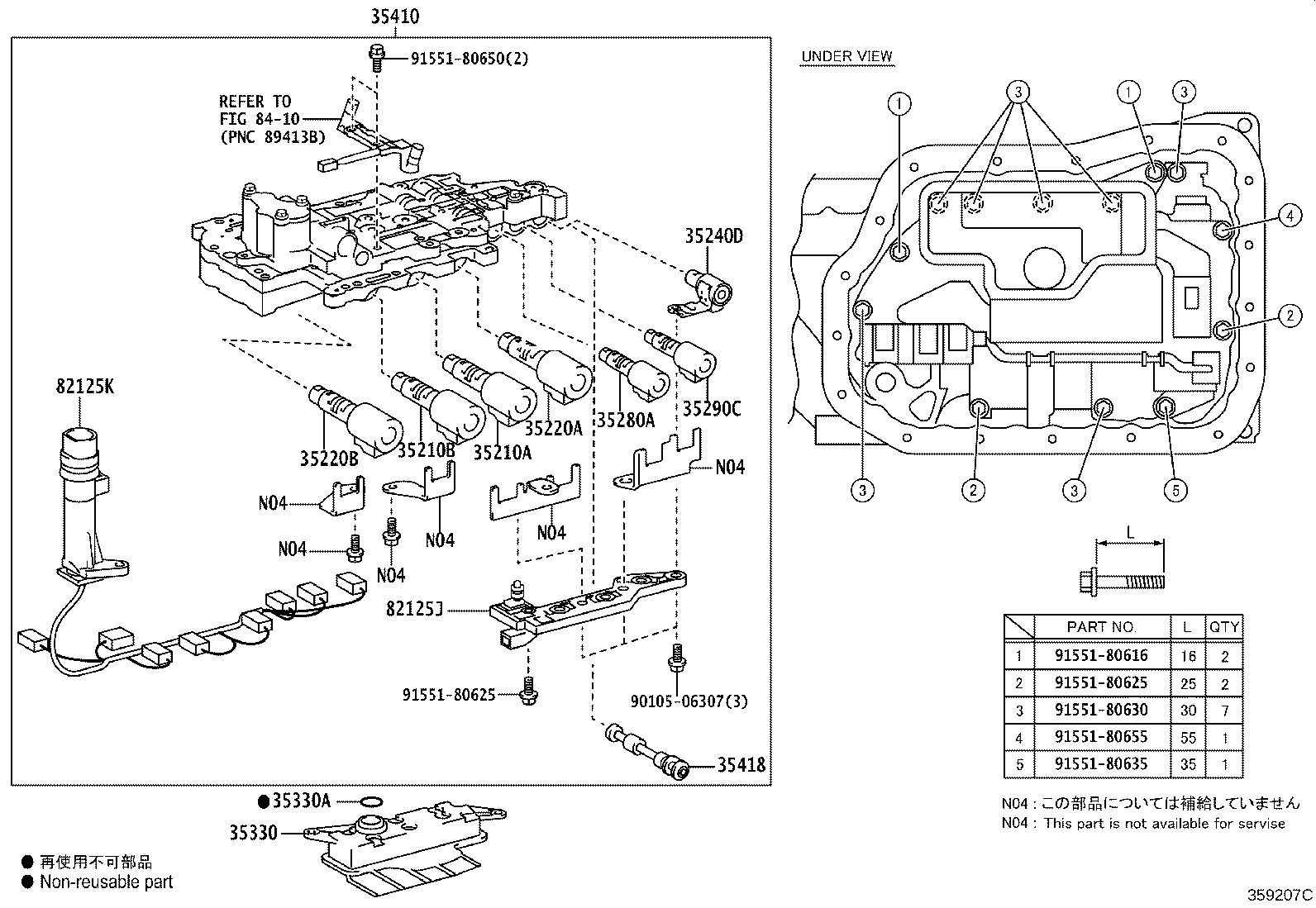

ILLUST NO. 1 OF 2(1503- )ASU5#

Click highlighted areas on diagram

U661E,U661F

diagram 35210A 35210B 35220A 35220B 35240D 35280A 35290C 35330 35330A 35410 35418 82125J 82125K 8410 9010506307 9155180616 9155180625 9155180625 9155180630 9155180635 9155180650 9155180655
Part # Description Qty Price
35210A - VALVE, SOLENOID(SL1)
35210-48030

ASU5#

 1
35210B - VALVE, SOLENOID(SL3)
35210-48030

ASU5#

 1
35220A - VALVE, SOLENOID(SL2)
35220-33040

ASU5#

 1
35220B - VALVE, SOLENOID(SL4)
35220-33040

ASU5#

 1
35240D - VALVE, SOLENOID(SL)
35240-73010

ASU5#

 1
35280A - VALVE, SOLENOID(SLU)
35280-48020

ASU5#

 1
35290C - VALVE, SOLENOID(SLT)
35290-48020

ASU5#

 1
35330 - STRAINER ASSY, VALVE BODY OIL
35330-48030

ASU5#

 1
35330A - RING, O (FOR OIL STRAINER)
90301-27015

ASU5#

 1
35410 - BODY ASSY, TRANSMISSION VALVE
35410-48051

ASU5#

 1
35418 - VALVE, MANUAL
35418-73010

ASU5#

 1
82125J - WIRE, TRANSMISSION
82125-33150

ASU5#,GSU55

 1
82125K - WIRE, TRANSMISSION
82125-78010

ASU5#

 1
Common parts
90105-06307
91551-80616
91551-80625
91551-80630
91551-80635
91551-80650
91551-80655
Linked diagrams
8410
