ASU50L-BRTMTC (2015)

Toyota Highlander (China)

Production Mar 2015 - Mar 2018
Engine 8ARFTS
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1503- )8ARFTS

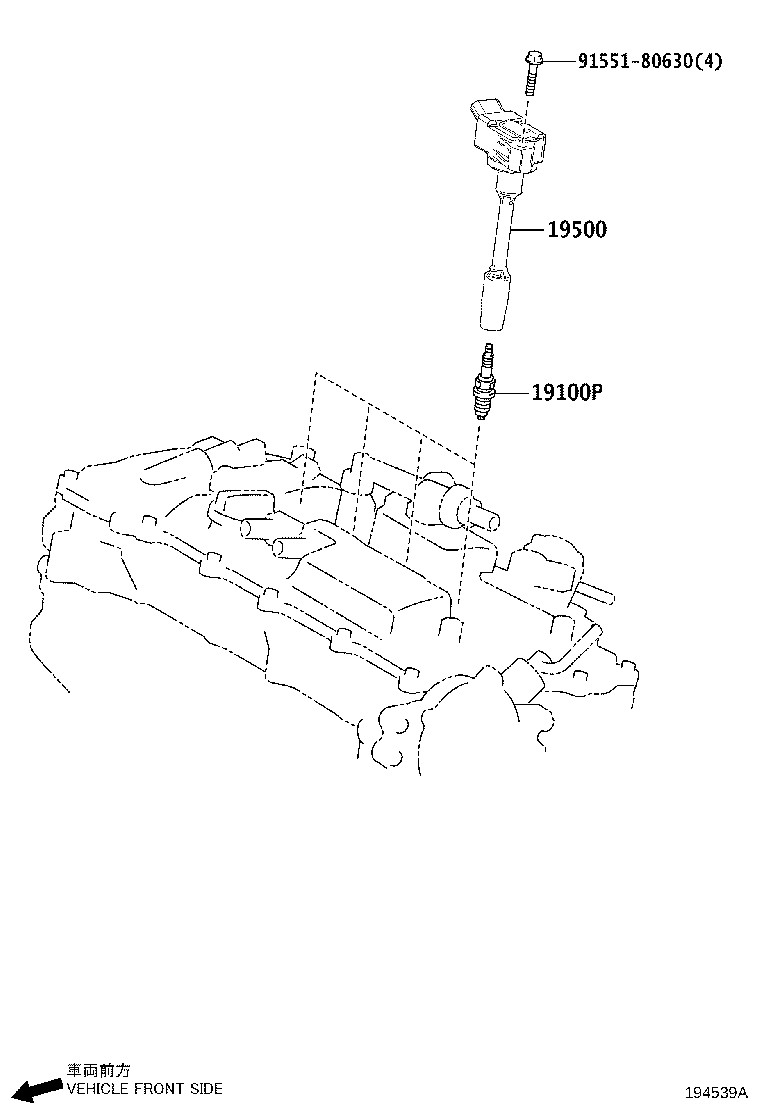

Click highlighted areas on diagram

diagram 19100P 19500 9155180630
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01276

8ARFTS..ASU5#

DILFR7K9G

 4
19500 - COIL ASSY, IGNITION
90919-02269

8ARFTS..ASU5#

 4
Common parts
91551-80630
