ASU50L-BRTGTC (2015)

Toyota Highlander (China)

Production Mar 2015 - Mar 2018
Engine 8ARFTS
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1503- )

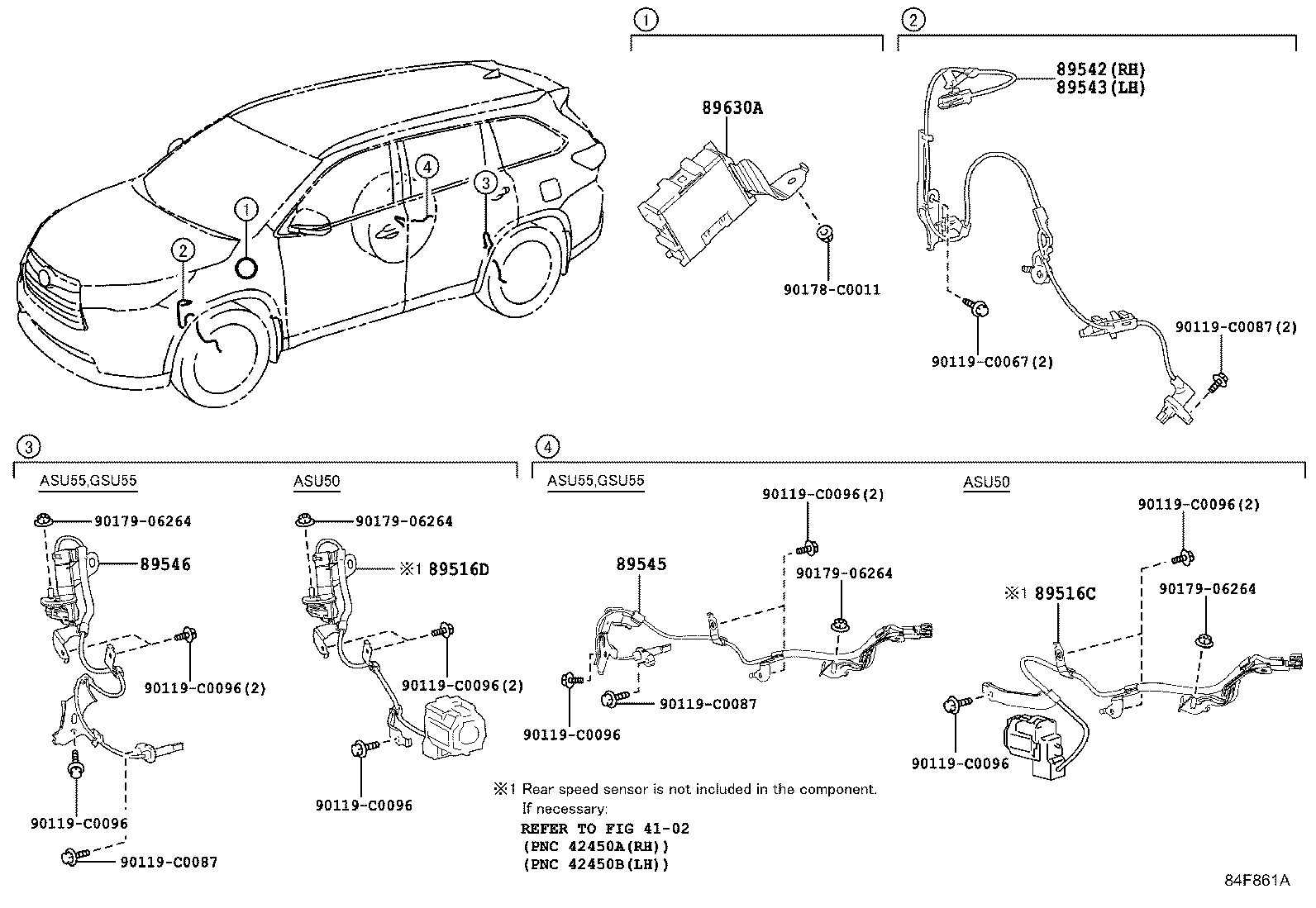

Click highlighted areas on diagram

diagram 4102 89516C 89516D 89542 89543 89545 89546 89630A 90119C0067 90119C0087 90119C0087 90119C0087 90119C0096 90119C0096 90119C0096 90119C0096 90119C0096 90119C0096 90119C0096 90119C0096 90178C0011 9017906264 9017906264 9017906264 9017906264
Part # Description Qty Price
89516C - WIRE, SKID CONTROL SENSOR, RH
89516-0E100

ASU50

 1
89516D - WIRE, SKID CONTROL SENSOR, LH
89516-0E110

ASU50

 1
89542 - SENSOR, SPEED, FRONT RH
89542-0E090

ASU5#

 1
89543 - SENSOR, SPEED, FRONT LH
89543-0E090

ASU5#

 1
Common parts
90119-C0067
90119-C0087
90119-C0096
90178-C0011
90179-06264
Linked diagrams
4102
