ASU50L-BRTGTC (2015)

Toyota Highlander (China)

Production Mar 2015 - Mar 2018
Engine 8ARFTS
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1503- )ASU5#

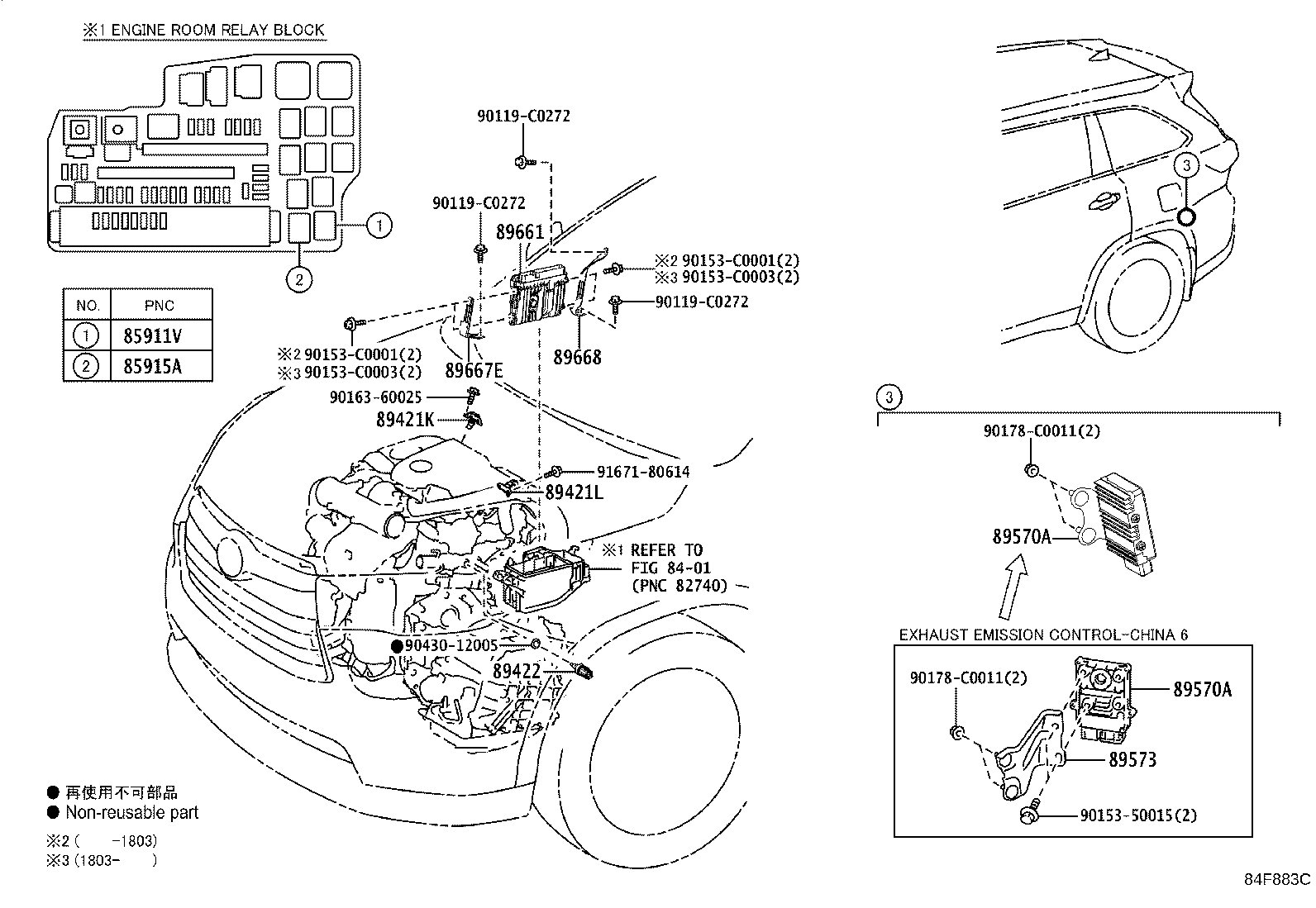

Click highlighted areas on diagram

diagram 8401 85911V 85915A 89421K 89421L 89422 89570A 89570A 89573 89661 89667E 89668 90119C0272 90119C0272 90119C0272 9015350015 90153C0001 90153C0001 90153C0003 90153C0003 9016360025 90178C0011 90178C0011 9043012005 9167180614
Part # Description Qty Price
85911V - RELAY, ELECTRONIC DRIVER UNIT
90987-T2005

ASU5#

 1
85915A - RELAY, MAIN
90987-T2005

ASU5#

 1
89421K - SENSOR, TURBO PRESSURE, NO.1
89421-78010

ASU5#

 1
89421L - SENSOR, TURBO PRESSURE, NO.2
89421-78020

ASU5#

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-33030

ASU5#

 1
89570A - COMPUTER ASSY, FUEL PUMP CONTROL
89570-48010

ASU5#

 1
89570A - COMPUTER ASSY, FUEL PUMP CONTROL
89570-48010

ASU5#

 1
89661 - COMPUTER, ENGINE CONTROL
89661-0E650

ASU50

 1
89667E - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-0E080

ASU5#

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-0E080

ASU5#

 1
Common parts
90119-C0272
90153-50015
90153-C0001
90153-C0003
90163-60025
90178-C0011
90430-12005
91671-80614
Linked diagrams
8401
