ASU50L-BRTGTC (2015)

Toyota Highlander (China)

Production Mar 2015 - Mar 2018
Engine 8ARFTS
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1503-1803)

Click highlighted areas on diagram

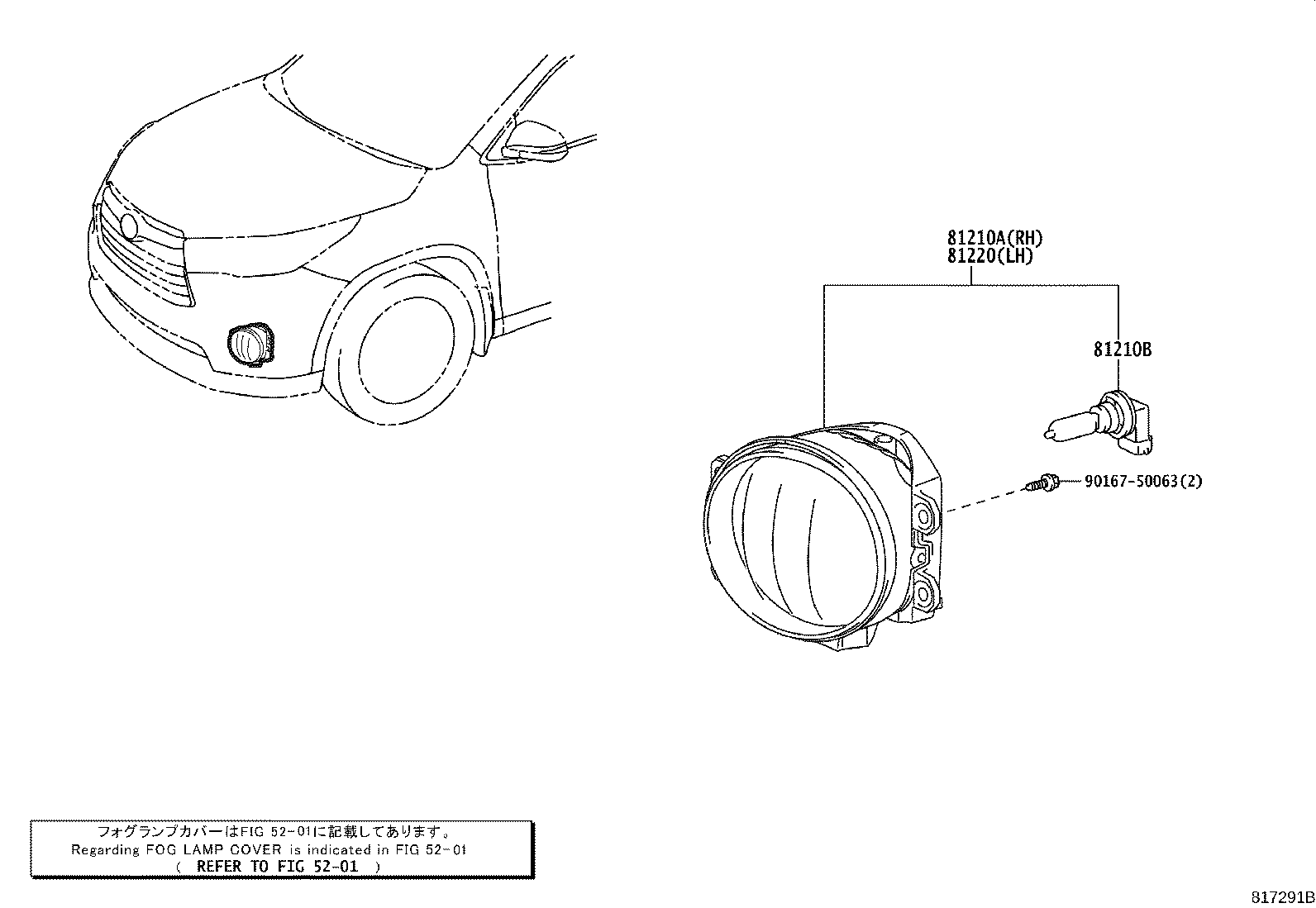

diagram 5201 81210A 81210B 81220 9016750063
Part # Description Qty Price
81210A - LAMP ASSY, FOG, RH
81210-0D100

ASU5#,GSU55

 1
81210B - BULB, FOG LAMP
90981-CD003

ASU5#

12V 19W

 2
81220 - LAMP ASSY, FOG, LH
81220-0D100

ASU5#,GSU55

 1
Common parts
90167-50063
Linked diagrams
5201
