ASU50L-BRTGTC (2015)
Toyota Highlander (China)
(1503- )

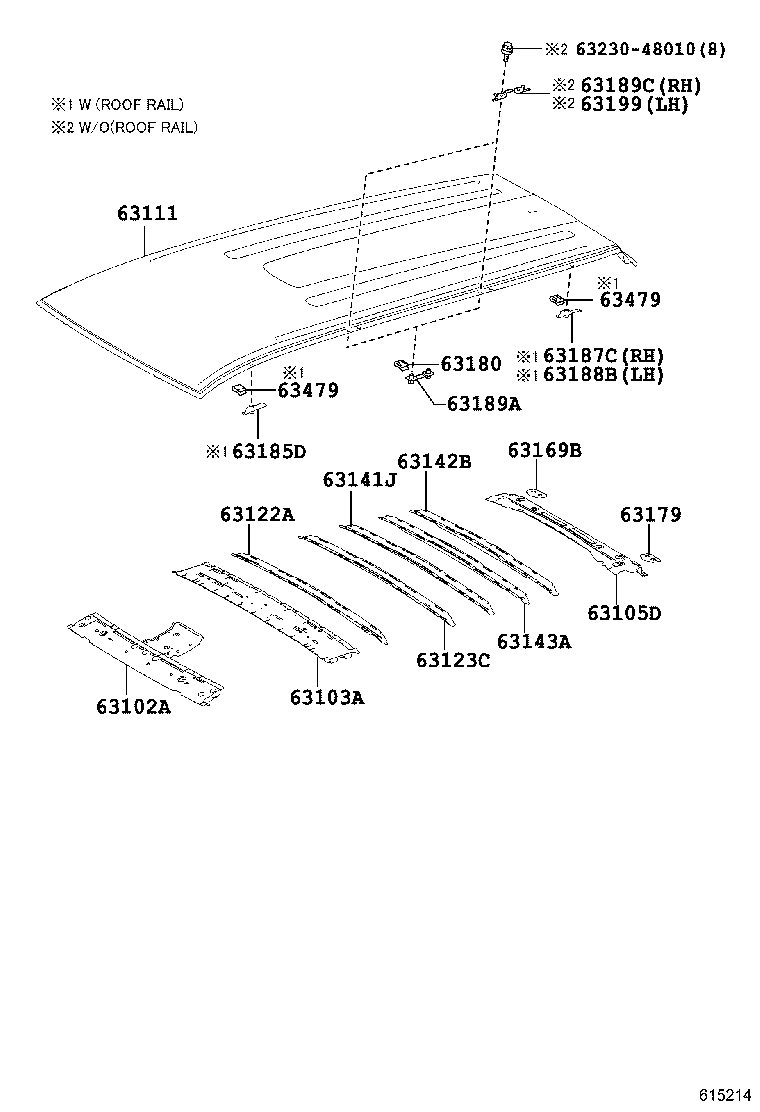

ROOF PANEL(NORMAL)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-0E908 |
ASU5#..LIMD,SPO |
1 | ||
| 63102-0E909 |
ASU5#..D |
1 | ||
| 63103A - REINFORCEMENT SUB-ASSY, ROOF PANEL | ||||
| 63103-0E050 |
ASU5#..LIMD,SPO |
1 | ||
| 63103-0E060 |
ASU5#..D |
1 | ||
| 63105D - FRAME SUB-ASSY, BACK WINDOW, UPPER | ||||
| 63105-0E060 |
ASU5# |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-0E220 |
ASU5#..D |
1 | ||
| 63111-0E170 |
ASU5#..LIMD,SPO |
1 | ||
| 63111-0E180 |
ASU5#..D ROOF RAIL-WITH(SILVER PAINTED) |
1 | ||
| 63122A - REINFORCEMENT, ROOF PANEL, FRONT | ||||
| 63143-0E080 |
ASU5#..D |
1 | ||
| 63123C - REINFORCEMENT, ROOF PANEL | ||||
| 63123-0E060 |
ASU5#..D |
1 | ||
| 63141J - REINFORCEMENT, ROOF PANEL | ||||
| 63177-0E020 |
ASU5#..D |
1 | ||
| 63142B - REINFORCEMENT, ROOF PANEL, REAR | ||||
| 63144-0E060 |
ASU5# |
1 | ||
| 63143A - REINFORCEMENT, ROOF PANEL | ||||
| 63178-0E040 |
ASU5#..D |
1 | ||
| 63169B - PLATE, ROOF PANEL REINFORCEMENT, RH | ||||
| 63169-0E050 |
ASU5# |
1 | ||
| 63179 - PLATE, ROOF PANEL REINFORCEMENT, LH | ||||
| 63179-0E050 |
ASU5# |
1 | ||
| 63180 - CLIP(BRACKET, ROOF RACK) | ||||
| 63479-48020 |
ASU5#..D FRONT |
2 | ||
| 63479-48010 |
ASU5#..D REAR |
2 | ||
| 63185D - BRACKET, ROOF RACK, FRONT | ||||
| 63188-48010 |
ASU5#..LIMD,SPO LH |
1 | ||
| 63187-48060 |
ASU5#..D ROOF RAIL-WITH(SILVER PAINTED) |
2 | ||
| 63187-48030 |
ASU5#..LIMD,SPO RH |
1 | ||
| 63187C - BRACKET, ROOF RACK, NO.1 REAR RH | ||||
| 63187-48050 |
ASU5#..D ROOF RAIL-WITH(SILVER PAINTED) |
1 | ||
| 63187-48050 |
ASU5#..LIMD,SPO |
1 | ||
| 63188B - BRACKET, ROOF RACK, NO.1 REAR LH | ||||
| 63187-48050 |
ASU5#..D ROOF RAIL-WITH(SILVER PAINTED) |
1 | ||
| 63187-48050 |
ASU5#..LIMD,SPO |
1 | ||
| 63189A - BRACKET, ROOF RACK, CENTER | ||||
| 63187-48040 |
ASU5#,GSU55..LIMD,SPO |
4 | ||
| 63187-0E110 |
ASU5#,GSU55..D REAR |
2 | ||
| 63187-0E100 |
ASU5#,GSU55..D FRONT |
2 | ||
| 63189C - BRACKET, ROOF RACK, CENTER RH | ||||
| 63185-48010 |
ASU5#..D |
2 | ||
| 63199 - BRACKET, ROOF RACK, CENTER LH | ||||
| 63185-48010 |
ASU5#..D |
2 | ||
| 63479 - RETAINER, ROOF INNER RACK | ||||
| 63479-48020 |
ASU5#..D ROOF RAIL-WITH(SILVER PAINTED),FRONT |
2 | ||
| 63479-48010 |
ASU5#..LIMD,SPO |
2 | ||
| 63479-48010 |
ASU5#..D ROOF RAIL-WITH(SILVER PAINTED),REAR |
2 | ||
| 63479 - RETAINER, ROOF INNER RACK | ||||
| 63479-48020 |
ASU5#..D ROOF RAIL-WITH(SILVER PAINTED),FRONT |
2 | ||
| 63479-48010 |
ASU5#..LIMD,SPO |
2 | ||
| 63479-48010 |
ASU5#..D ROOF RAIL-WITH(SILVER PAINTED),REAR |
2 | ||
| Common parts | ||||
| 63230-48010 | ||||
(1503- )

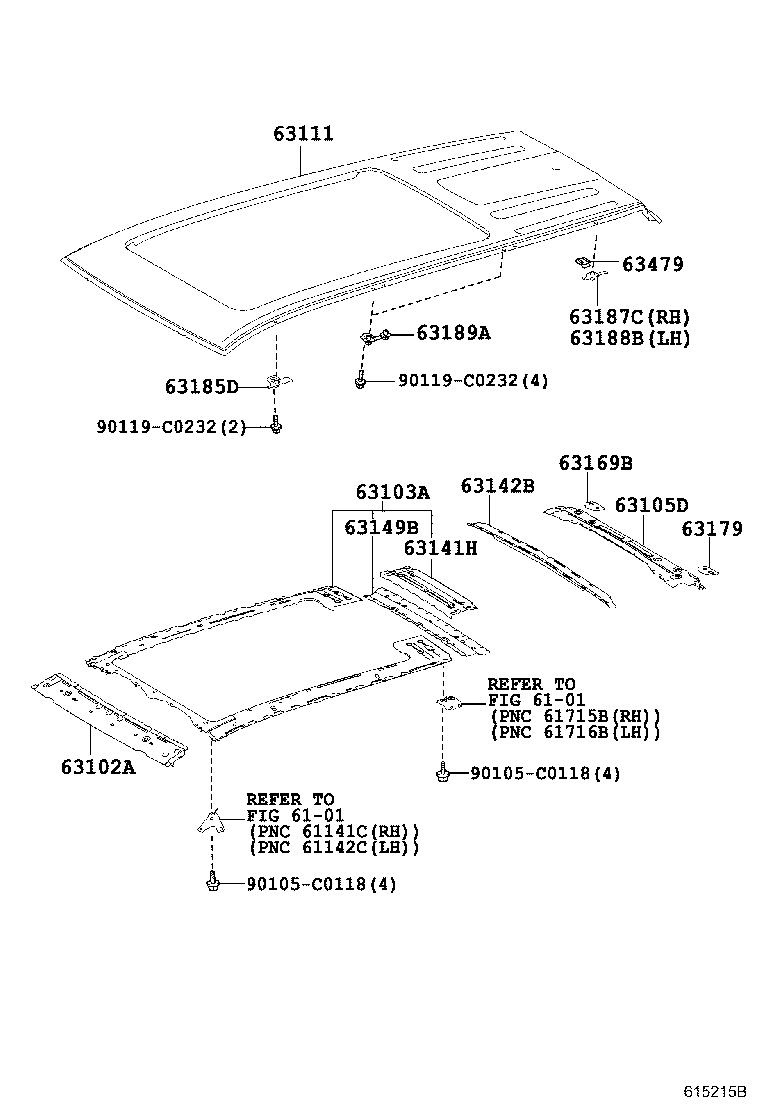

ROOF PANEL(PANORAMIC ROOF)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-0E908 |
ASU5#..LIMD,SPO |
1 | ||
| 63102-0E909 |
ASU5#..D |
1 | ||
| 63103A - REINFORCEMENT SUB-ASSY, ROOF PANEL | ||||
| 63103-0E050 |
ASU5#..LIMD,SPO |
1 | ||
| 63103-0E060 |
ASU5#..D |
1 | ||
| 63105D - FRAME SUB-ASSY, BACK WINDOW, UPPER | ||||
| 63105-0E060 |
ASU5# |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-0E220 |
ASU5#..D |
1 | ||
| 63111-0E170 |
ASU5#..LIMD,SPO |
1 | ||
| 63111-0E180 |
ASU5#..D ROOF RAIL-WITH(SILVER PAINTED) |
1 | ||
| 63141H - REINFORCEMENT, ROOF PANEL, CENTER | ||||
| 63142-0E070 |
ASU5#..LIMD,SPO |
1 | ||
| 63142B - REINFORCEMENT, ROOF PANEL, REAR | ||||
| 63144-0E060 |
ASU5# |
1 | ||
| 63149B - REINFORCEMENT, ROOF PANEL, NO.1 REAR | ||||
| 63143-0E070 |
ASU5#..LIMD,SPO |
1 | ||
| 63169B - PLATE, ROOF PANEL REINFORCEMENT, RH | ||||
| 63169-0E050 |
ASU5# |
1 | ||
| 63179 - PLATE, ROOF PANEL REINFORCEMENT, LH | ||||
| 63179-0E050 |
ASU5# |
1 | ||
| 63185D - BRACKET, ROOF RACK, FRONT | ||||
| 63188-48010 |
ASU5#..LIMD,SPO LH |
1 | ||
| 63187-48060 |
ASU5#..D ROOF RAIL-WITH(SILVER PAINTED) |
2 | ||
| 63187-48030 |
ASU5#..LIMD,SPO RH |
1 | ||
| 63187C - BRACKET, ROOF RACK, NO.1 REAR RH | ||||
| 63187-48050 |
ASU5#..D ROOF RAIL-WITH(SILVER PAINTED) |
1 | ||
| 63187-48050 |
ASU5#..LIMD,SPO |
1 | ||
| 63188B - BRACKET, ROOF RACK, NO.1 REAR LH | ||||
| 63187-48050 |
ASU5#..D ROOF RAIL-WITH(SILVER PAINTED) |
1 | ||
| 63187-48050 |
ASU5#..LIMD,SPO |
1 | ||
| 63189A - BRACKET, ROOF RACK, CENTER | ||||
| 63187-48040 |
ASU5#,GSU55..LIMD,SPO |
4 | ||
| 63187-0E110 |
ASU5#,GSU55..D REAR |
2 | ||
| 63187-0E100 |
ASU5#,GSU55..D FRONT |
2 | ||
| 63479 - RETAINER, ROOF INNER RACK | ||||
| 63479-48020 |
ASU5#..D ROOF RAIL-WITH(SILVER PAINTED),FRONT |
2 | ||
| 63479-48010 |
ASU5#..LIMD,SPO |
2 | ||
| 63479-48010 |
ASU5#..D ROOF RAIL-WITH(SILVER PAINTED),REAR |
2 | ||
| Common parts | ||||
| 90105-C0118 | ||||
| 90119-C0232 | ||||
| Linked diagrams | ||||
| 6101 | ||||
(1503- )

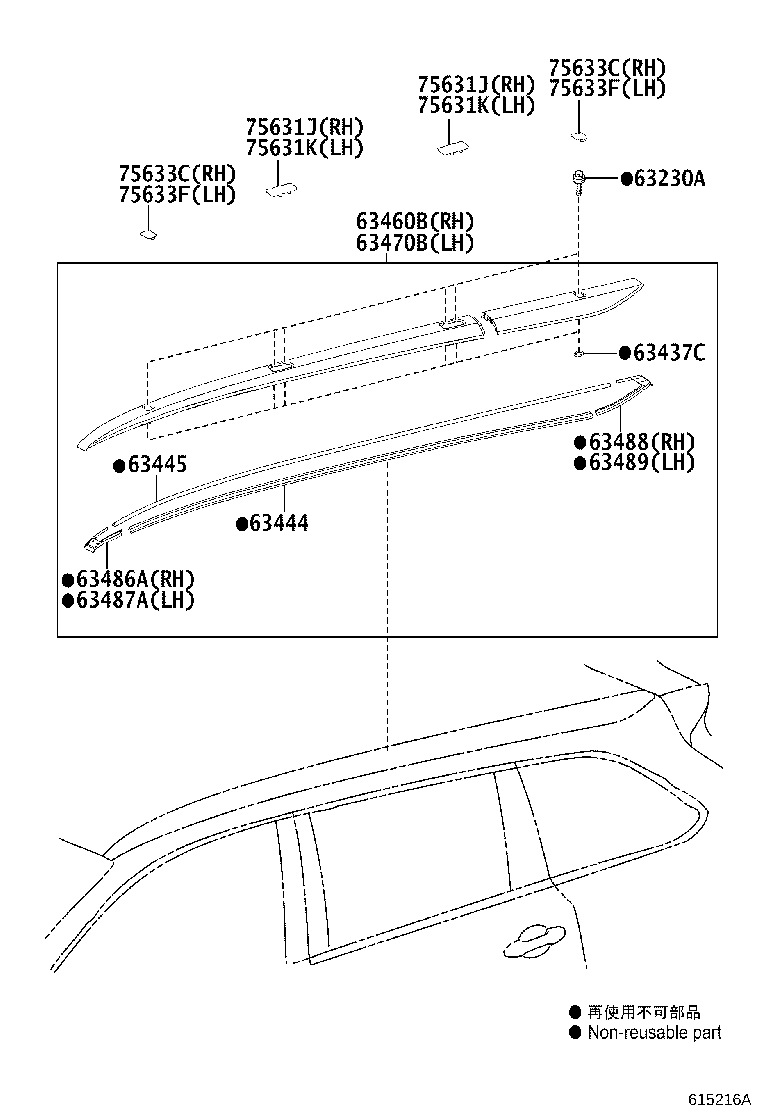

ROOF RAIL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63230A - BOLT ASSY, REMOVABLE ROOF | ||||
| 63230-42010 |
ASU5#..LIMD,SPO |
12 | ||
| 63230-42010 |
ASU5#..D ROOF RAIL-WITH(SILVER PAINTED) |
12 | ||
| 63437C - SEAL, ROOF CARRIER | ||||
| 63437-0E060 |
ASU5#..LIMD,SPO |
12 | ||
| 63437-0E060 |
ASU5#..D ROOF RAIL-WITH(SILVER PAINTED) |
12 | ||
| 63444 - PROTECTOR, ROOF CARRIER, NO.1 | ||||
| 63444-0E030 |
ASU5#..LIMD,SPO OUTER |
2 | ||
| 63444-0E030 |
ASU5#..D ROOF RAIL-WITH(SILVER PAINTED),OUTER |
2 | ||
| 63445 - PROTECTOR, ROOF CARRIER, NO.2 | ||||
| 63446-0E030 |
ASU5#..LIMD,SPO INNER |
2 | ||
| 63446-0E030 |
ASU5#..D ROOF RAIL-WITH(SILVER PAINTED),INNER |
2 | ||
| 63460B - RACK ASSY, ROOF, RH | ||||
| 63460-0E151 |
ASU5#,GSU55..LIMD,SPO |
1 | ||
| 63460-0E150 |
ASU5#,GSU55..LIMD,SPO |
1 | ||
| 63460-0E150 |
ASU5#,GSU55..D ROOF RAIL-WITH(SILVER PAINTED) |
1 | ||
| 63460-0E151 |
ASU5#,GSU55..D ROOF RAIL-WITH(SILVER PAINTED) |
1 | ||
| 63470B - RACK ASSY, ROOF, LH | ||||
| 63470-0E150 |
ASU5#,GSU55..LIMD,SPO |
1 | ||
| 63470-0E150 |
ASU5#,GSU55..D ROOF RAIL-WITH(SILVER PAINTED) |
1 | ||
| 63470-0E151 |
ASU5#,GSU55..D ROOF RAIL-WITH(SILVER PAINTED) |
1 | ||
| 63470-0E151 |
ASU5#,GSU55..LIMD,SPO |
1 | ||
| 63486A - CUSHION, ROOF RACK LEG, FRONT RH | ||||
| 63486-0E070 |
ASU5#..D ROOF RAIL-WITH(SILVER PAINTED) |
1 | ||
| 63486-0E070 |
ASU5#..LIMD,SPO |
1 | ||
| 63487A - CUSHION, ROOF RACK LEG, FRONT LH | ||||
| 63487-0E060 |
ASU5#..LIMD,SPO |
1 | ||
| 63487-0E060 |
ASU5#..D ROOF RAIL-WITH(SILVER PAINTED) |
1 | ||
| 63488 - CUSHION, ROOF RACK LEG, REAR RH | ||||
| 63488-0E070 |
ASU5#..D ROOF RAIL-WITH(SILVER PAINTED) |
1 | ||
| 63488-0E070 |
ASU5#..LIMD,SPO |
1 | ||
| 63489 - CUSHION, ROOF RACK LEG, REAR LH | ||||
| 63489-0E060 |
ASU5#..LIMD,SPO |
1 | ||
| 63489-0E060 |
ASU5#..D ROOF RAIL-WITH(SILVER PAINTED) |
1 | ||
| 75631J - LID, ROOF SIDE GARNISH, NO.1 RH | ||||
| 75633-0E020 |
ASU5#,GSU55..LIMD,SPO |
2 | ||
| 75633-0E020 |
ASU5#,GSU55..D ROOF RAIL-WITH(SILVER PAINTED) |
2 | ||
| 75631J - LID, ROOF SIDE GARNISH, NO.1 RH | ||||
| 75633-0E020 |
ASU5#,GSU55..LIMD,SPO |
2 | ||
| 75633-0E020 |
ASU5#,GSU55..D ROOF RAIL-WITH(SILVER PAINTED) |
2 | ||
| 75631K - LID, ROOF SIDE GARNISH, NO.1 LH | ||||
| 75633-0E020 |
ASU5#,GSU55..D ROOF RAIL-WITH(SILVER PAINTED) |
2 | ||
| 75633-0E020 |
ASU5#,GSU55..LIMD,SPO |
2 | ||
| 75631K - LID, ROOF SIDE GARNISH, NO.1 LH | ||||
| 75633-0E020 |
ASU5#,GSU55..D ROOF RAIL-WITH(SILVER PAINTED) |
2 | ||
| 75633-0E020 |
ASU5#,GSU55..LIMD,SPO |
2 | ||
| 75633C - LID, ROOF SIDE GARNISH, NO.2 RH | ||||
| 75632-0E020 |
ASU5#,GSU55..D ROOF RAIL-WITH(SILVER PAINTED) |
2 | ||
| 75632-0E020 |
ASU5#,GSU55..LIMD,SPO |
2 | ||
| 75633C - LID, ROOF SIDE GARNISH, NO.2 RH | ||||
| 75632-0E020 |
ASU5#,GSU55..D ROOF RAIL-WITH(SILVER PAINTED) |
2 | ||
| 75632-0E020 |
ASU5#,GSU55..LIMD,SPO |
2 | ||
| 75633F - LID, ROOF SIDE GARNISH, NO.2 LH | ||||
| 75632-0E020 |
ASU5#,GSU55..LIMD,SPO |
2 | ||
| 75632-0E020 |
ASU5#,GSU55..D ROOF RAIL-WITH(SILVER PAINTED) |
2 | ||
| 75633F - LID, ROOF SIDE GARNISH, NO.2 LH | ||||
| 75632-0E020 |
ASU5#,GSU55..LIMD,SPO |
2 | ||
| 75632-0E020 |
ASU5#,GSU55..D ROOF RAIL-WITH(SILVER PAINTED) |
2 | ||
(1503- )

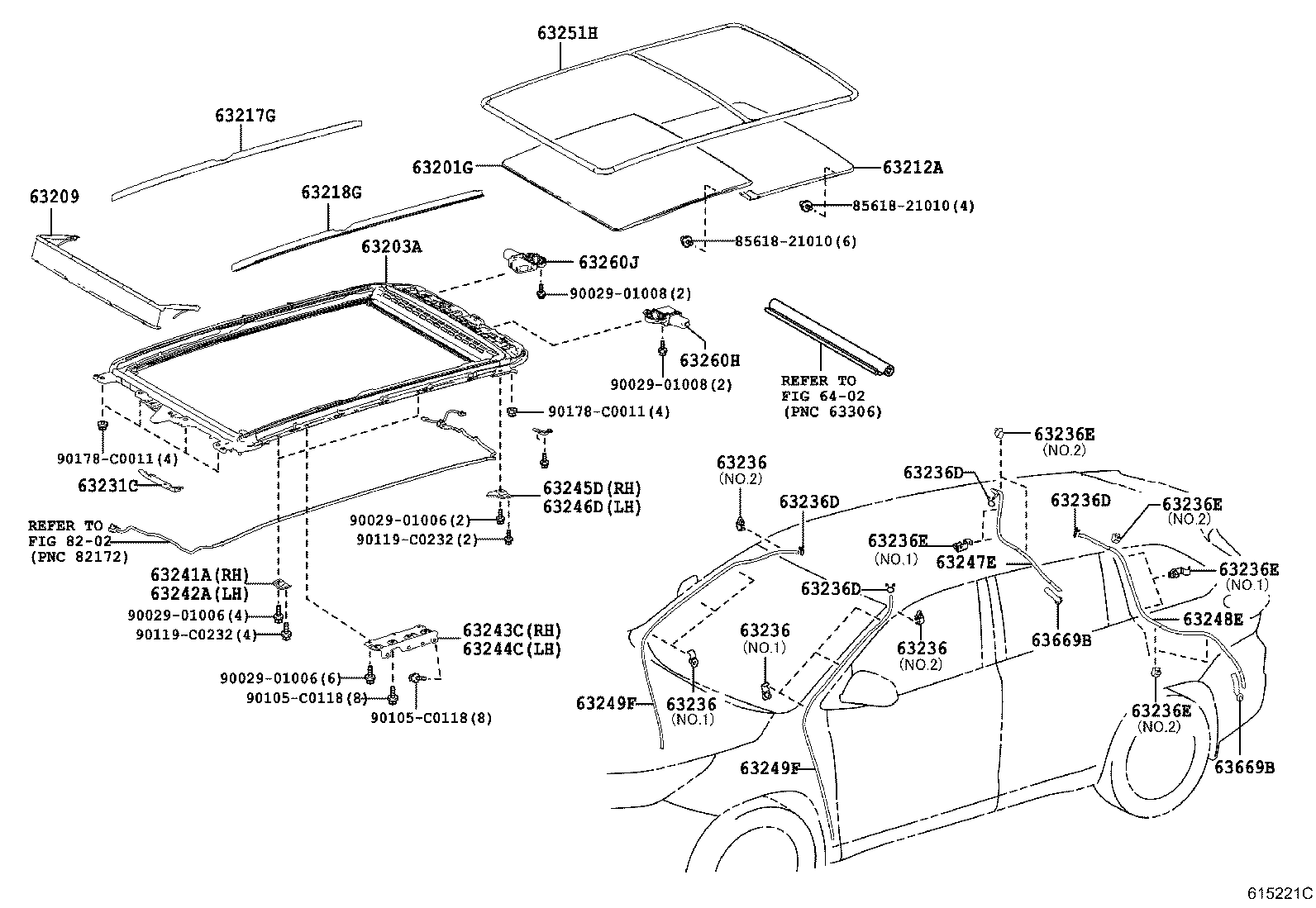

REMOVABLE ROOF HOUSING(PANORAMA)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201G - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-0E070 |
ASU5#..LIMD,SPO |
1 | ||
| 63203A - HOUSING SUB-ASSY, SLIDING ROOF OR REMOVABLE ROOF | ||||
| 63203-0E100 |
ASU5#..LIMD,SPO |
1 | ||
| 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR | ||||
| 63209-0E060 |
ASU5#..LIMD,SPO |
1 | ||
| 63212A - GLASS, ROOF WINDOW | ||||
| 63201-0E080 |
ASU5#..LIMD,SPO |
1 | ||
| 63217G - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-0E040 |
ASU5#..LIMD,SPO |
1 | ||
| 63218G - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63218-0E040 |
ASU5#..LIMD,SPO |
1 | ||
| 63231C - BRACKET, ROOM LAMP | ||||
| 63231-0E070 |
ASU5#..LIMD,SPO |
1 | ||
| 63236 - CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE | ||||
| 63236-0E010 |
ASU5#..LIMD,SPO NO.1:REFER ILLUST. |
6 | ||
| 90959-01592 |
ASU5#..LIMD,SPO NO.2:REFER ILLUST. |
2 | ||
| 63236 - CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE | ||||
| 63236-0E010 |
ASU5#..LIMD,SPO NO.1:REFER ILLUST. |
6 | ||
| 90959-01592 |
ASU5#..LIMD,SPO NO.2:REFER ILLUST. |
2 | ||
| 63236 - CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE | ||||
| 63236-0E010 |
ASU5#..LIMD,SPO NO.1:REFER ILLUST. |
6 | ||
| 90959-01592 |
ASU5#..LIMD,SPO NO.2:REFER ILLUST. |
2 | ||
| 63236 - CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE | ||||
| 63236-0E010 |
ASU5#..LIMD,SPO NO.1:REFER ILLUST. |
6 | ||
| 90959-01592 |
ASU5#..LIMD,SPO NO.2:REFER ILLUST. |
2 | ||
| 63236D - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 90467-14017 |
ASU5#..LIMD,SPO |
4 | ||
| 63236D - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 90467-14017 |
ASU5#..LIMD,SPO |
4 | ||
| 63236D - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 90467-14017 |
ASU5#..LIMD,SPO |
4 | ||
| 63236D - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 90467-14017 |
ASU5#..LIMD,SPO |
4 | ||
| 63236E - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 63236-0E030 |
ASU5#..LIMD,SPO NO.2:REFER ILLUST. |
5 | ||
| 63236-48020 |
ASU5#,GSU55..LIMD,SPO NO.2:REFER ILLUST. |
5 | ||
| 63236-0E040 |
ASU5#..LIMD,SPO NO.1:REFER ILLUST. |
4 | ||
| 63236E - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 63236-0E030 |
ASU5#..LIMD,SPO NO.2:REFER ILLUST. |
5 | ||
| 63236-48020 |
ASU5#,GSU55..LIMD,SPO NO.2:REFER ILLUST. |
5 | ||
| 63236-0E040 |
ASU5#..LIMD,SPO NO.1:REFER ILLUST. |
4 | ||
| 63236E - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 63236-0E030 |
ASU5#..LIMD,SPO NO.2:REFER ILLUST. |
5 | ||
| 63236-48020 |
ASU5#,GSU55..LIMD,SPO NO.2:REFER ILLUST. |
5 | ||
| 63236-0E040 |
ASU5#..LIMD,SPO NO.1:REFER ILLUST. |
4 | ||
| 63236E - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 63236-0E030 |
ASU5#..LIMD,SPO NO.2:REFER ILLUST. |
5 | ||
| 63236-48020 |
ASU5#,GSU55..LIMD,SPO NO.2:REFER ILLUST. |
5 | ||
| 63236-0E040 |
ASU5#..LIMD,SPO NO.1:REFER ILLUST. |
4 | ||
| 63236E - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 63236-0E030 |
ASU5#..LIMD,SPO NO.2:REFER ILLUST. |
5 | ||
| 63236-48020 |
ASU5#,GSU55..LIMD,SPO NO.2:REFER ILLUST. |
5 | ||
| 63236-0E040 |
ASU5#..LIMD,SPO NO.1:REFER ILLUST. |
4 | ||
| 63241A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH | ||||
| 63241-0E070 |
ASU5#..LIMD,SPO |
2 | ||
| 63242A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, LH | ||||
| 63241-0E070 |
ASU5#..LIMD,SPO |
2 | ||
| 63243C - BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, RH | ||||
| 63243-0E060 |
ASU5#..LIMD,SPO |
1 | ||
| 63244C - BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, LH | ||||
| 63244-0E030 |
ASU5#..LIMD,SPO |
1 | ||
| 63245D - BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, RH | ||||
| 63245-0E060 |
ASU5#..LIMD,SPO |
1 | ||
| 63246D - BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, LH | ||||
| 63246-0E030 |
ASU5#..LIMD,SPO |
1 | ||
| 63247E - HOSE, SLIDING ROOF DRAIN, REAR RH | ||||
| 63247-0E090 |
ASU5#..LIMD,SPO |
1 | ||
| 63248E - HOSE, SLIDING ROOF DRAIN, REAR LH | ||||
| 63248-0E050 |
ASU5#..LIMD,SPO |
1 | ||
| 63249F - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-0E070 |
ASU5#..LIMD,SPO |
2 | ||
| 63249F - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-0E070 |
ASU5#..LIMD,SPO |
2 | ||
| 63251H - WEATHERSTRIP, SLIDING ROOF | ||||
| 63251-0E060 |
ASU5#..LIMD,SPO |
1 | ||
| 63260H - GEAR ASSY, SLIDING ROOF DRIVE | ||||
| 63260-0E080 |
ASU5#..LIMD,SPO |
1 | ||
| 63260J - GEAR ASSY, SLIDING ROOF DRIVE | ||||
| 63260-0E090 |
ASU5#..LIMD,SPO |
1 | ||
| 63669B - GROMMET, SLIDING ROOF DRAIN | ||||
| 63669-34010 |
ASU5#..LIMD,SPO |
2 | ||
| 63669B - GROMMET, SLIDING ROOF DRAIN | ||||
| 63669-34010 |
ASU5#..LIMD,SPO |
2 | ||
| Common parts | ||||
| 85618-21010 | ||||
| 90029-01006 | ||||
| 90029-01008 | ||||
| 90105-C0118 | ||||
| 90119-C0232 | ||||
| 90178-C0011 | ||||
| Linked diagrams | ||||
| 6402 | ||||
| 8202 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
