ASU50L-BRTGTC (2015)

Toyota Highlander (China)

Production Mar 2015 - Mar 2018
Engine 8ARFTS
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1503- )

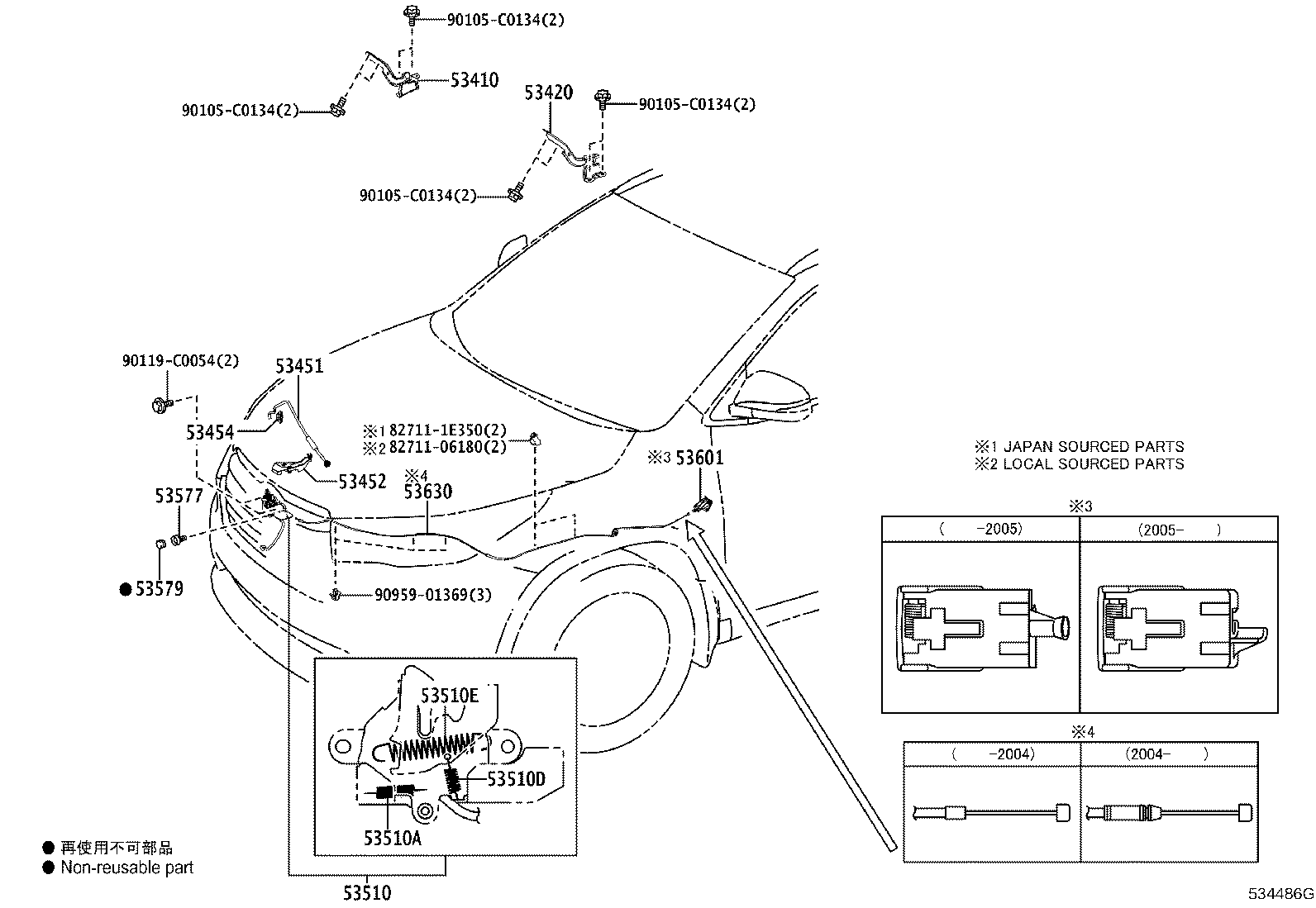

Click highlighted areas on diagram

diagram 53410 53420 53451 53452 53454 53510 53510A 53510D 53510E 53577 53579 53601 53630 8271106180 827111E350 90105C0134 90105C0134 90105C0134 90105C0134 90119C0054 9095901369
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53410-0E170

ASU5#

 1
53420 - HINGE ASSY, HOOD, LH
53420-0E160

ASU5#

 1
53451 - ROD, HOOD SUPPORT
53440-0E060

ASU5#

 1
53452 - HOLDER, HOOD STAY
53452-0E050

ASU5#

 1
53454 - CLIP, HOOD SUPPORT ROD
90480-15027

ASU5#

 1
53510 - LOCK ASSY, HOOD
53510-0E120

ASU5#

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-09055

ASU5#

WD=0.9,CW=21

 1
53510D - SPRING, TENSION(FOR HOOD LOCK)
90506-12063

ASU5#

WD=1.2,CW=8.5

 1
53510E - SPRING, TENSION(FOR HOOD LOCK)
90506-18067

ASU5#

WD=1.8,CW=13

 1
53577 - BOLT, HOOD LOCK
53577-33010

ASU5#

 1
53579 - CAP, HOOD LOCK NUT
53579-0E020

ASU5#

 1
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53601-52010C0

ASU5#,GSU55..LIMD,SPO

BLACK,TRIM2#

 1
53601-52010A8

ASU5#,GSU55

FLAXEN,TRIM0#

 1
53601-52010C1

ASU5#,GSU55..LIMD,SPO

BLACK,TRIM2#

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-0E070

ASU5#

 1
Common parts
82711-06180
82711-1E350
90105-C0134
90119-C0054
90959-01369
