ASU50L-BRTGTC (2015)
Toyota Highlander (China)
Production
Mar 2015
-
Mar 2018
Engine
8ARFTS
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

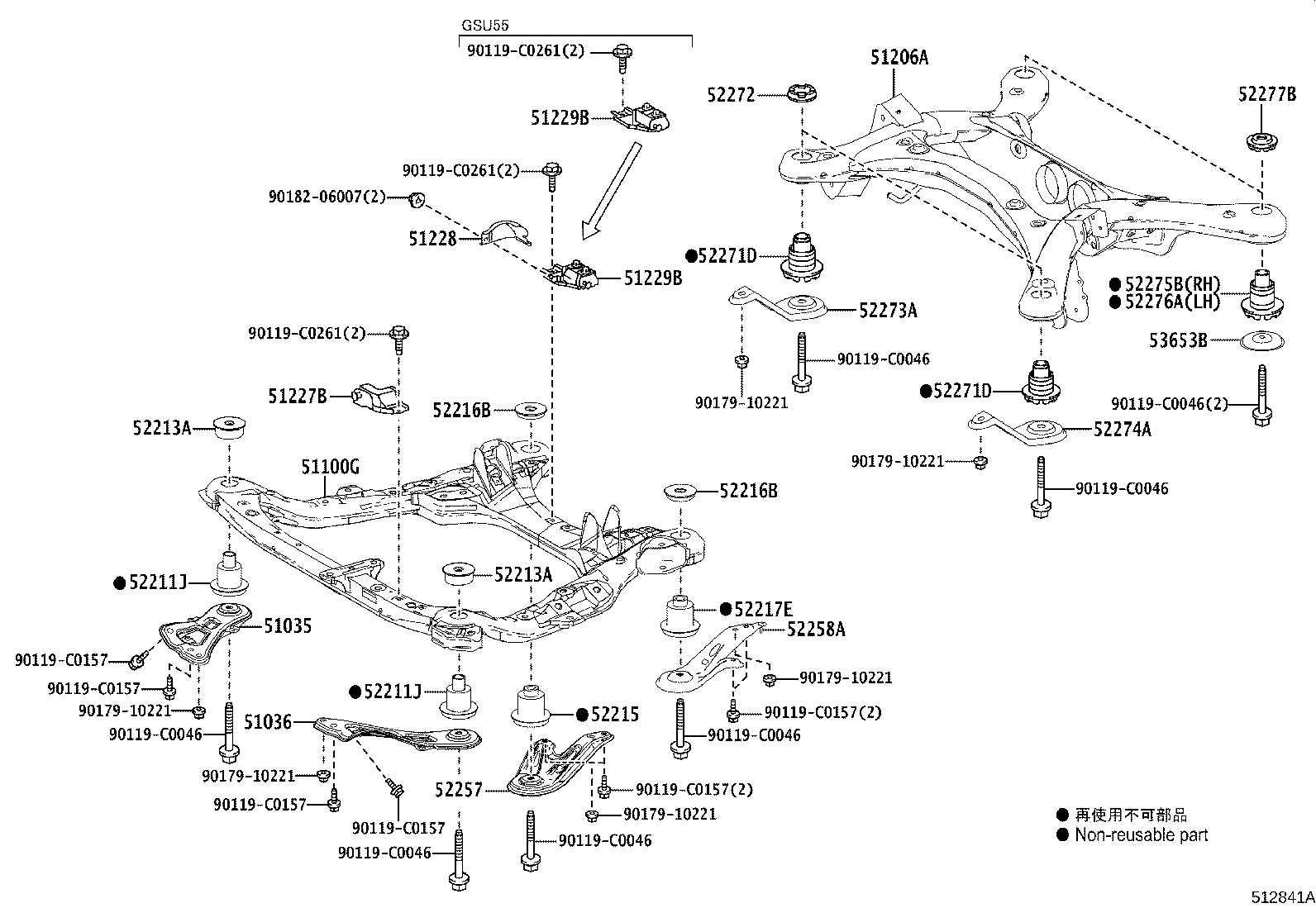

ILLUST NO. 1 OF 2(1503- )
Click highlighted areas on diagram
SUSPENSION CROSSMEMBER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51035 - PLATE SUB-ASSY, FRAME SIDE RAIL, RH | ||||
| 51035-0E060 |
ASU5# |
1 | ||
| 51036 - PLATE SUB-ASSY, FRAME SIDE RAIL, LH | ||||
| 51036-0E060 |
ASU5# |
1 | ||
| 51100G - FRAME ASSY, FRONT | ||||
| 51100-0E050 |
ASU5#,GSU55 |
1 | ||
| 51100-0E051 |
ASU5# |
1 | ||
| 51206A - MEMBER SUB-ASSY, REAR SUSPENSION | ||||
| 51206-0E090 |
ASU5# |
1 | ||
| 51227B - DAMPER, FRONT SUSPENSION MEMBER DYNAMIC | ||||
| 51227-0E130 |
ASU5# |
1 | ||
| 51228 - PLATE, SUSPENSION MEMBER SET | ||||
| 51228-0E010 |
ASU5# |
1 | ||
| 51229B - DUMPER, NO.2 FRAME CROSSMEMBER DYNAMIC | ||||
| 51227-0E140 |
ASU5# |
1 | ||
| 51229B - DUMPER, NO.2 FRAME CROSSMEMBER DYNAMIC | ||||
| 51227-0E140 |
ASU5# |
1 | ||
| 52211J - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT | ||||
| 52211-0E020 |
ASU5# |
2 | ||
| 52211J - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT | ||||
| 52211-0E020 |
ASU5# |
2 | ||
| 52213A - STOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT | ||||
| 52213-0E020 |
ASU5# |
2 | ||
| 52213A - STOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT | ||||
| 52213-0E020 |
ASU5# |
2 | ||
| 52215 - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR | ||||
| 52215-0E010 |
ASU5# |
1 | ||
| 52216B - STOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR | ||||
| 52216-0E010 |
ASU5# |
2 | ||
| 52216B - STOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR | ||||
| 52216-0E010 |
ASU5# |
2 | ||
| 52217E - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR LH | ||||
| 52217-0E020 |
ASU5# |
1 | ||
| 52257 - BRACE, FRONT SUSPENSION MEMBER, REAR RH | ||||
| 51023-0E020 |
ASU5# |
1 | ||
| 52258A - BRACE, FRONT SUSPENSION MEMBER, REAR LH | ||||
| 51024-0E020 |
ASU5# |
1 | ||
| 52271D - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT | ||||
| 52271-0E070 |
ASU5# |
2 | ||
| 52271D - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT | ||||
| 52271-0E070 |
ASU5# |
2 | ||
| 52272 - STOPPER, REAR SUSPENSION MEMBER, UPPER | ||||
| 52272-0E070 |
ASU5# |
2 | ||
| 52273A - STOPPER, REAR SUSPENSION MEMBER, LOWER RH | ||||
| 52273-0E040 |
ASU5# |
1 | ||
| 52274A - STOPPER, REAR SUSPENSION MEMBER, LOWER LH | ||||
| 52274-0E020 |
ASU5# |
1 | ||
| 52275B - CUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR RH | ||||
| 52275-0E070 |
ASU5# |
1 | ||
| 52276A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR LH | ||||
| 52276-0E020 |
ASU5# |
1 | ||
| 52277B - STOPPER, REAR SUSPENSION MEMBER, REAR UPPER | ||||
| 52277-0E070 |
ASU5# |
2 | ||
| 53653B - BRACE, REAR SUSPENSION, LOWER | ||||
| 53653-0E020 |
ASU5# |
2 | ||
| Common parts | ||||
| 90119-C0046 | ||||
| 90119-C0157 | ||||
| 90119-C0261 | ||||
| 90179-10221 | ||||
| 90182-06007 | ||||

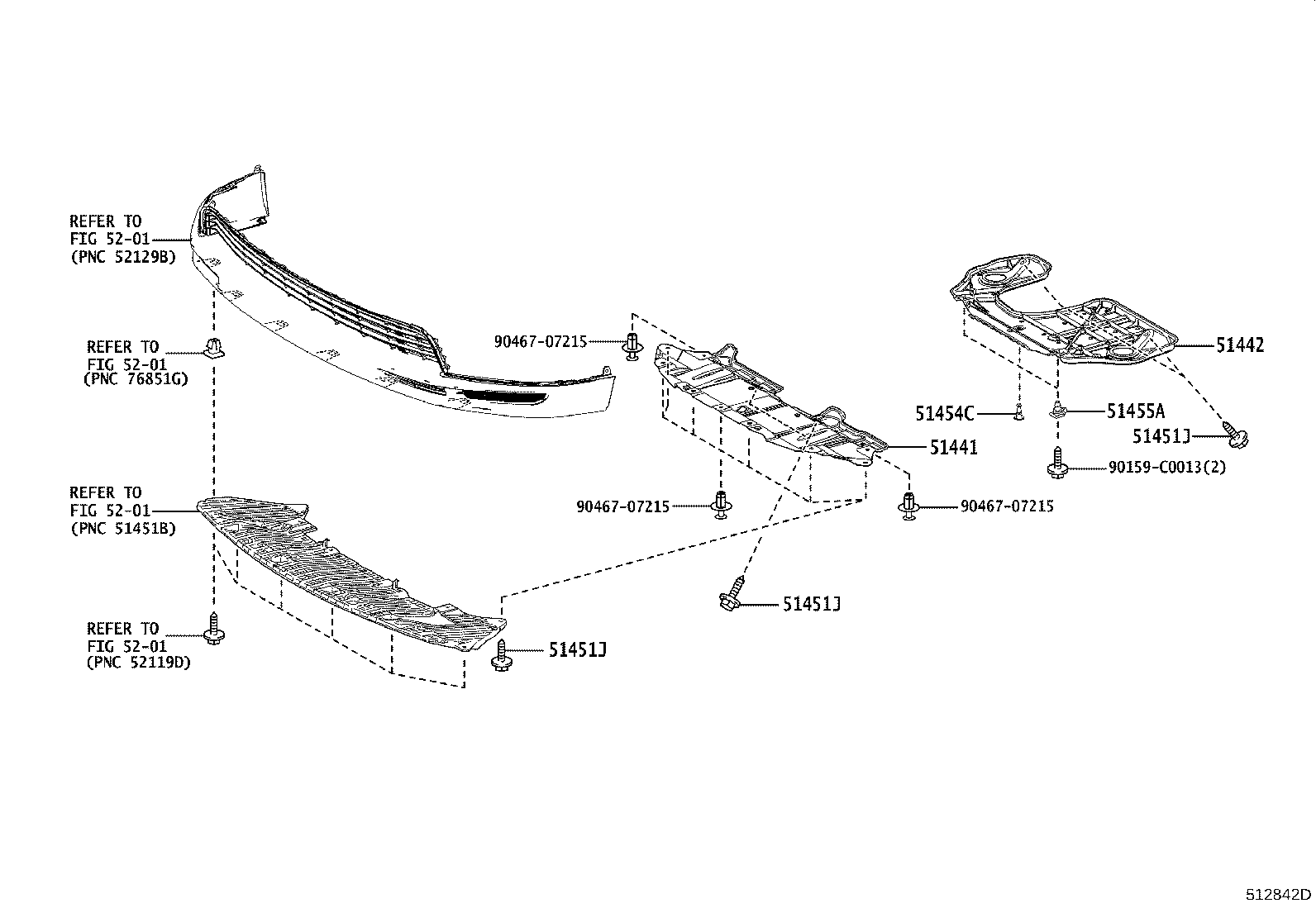

ILLUST NO. 2 OF 2(1503- )
Click highlighted areas on diagram
ENGINE UNDER COVER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51441 - COVER, ENGINE UNDER, NO.1 | ||||
| 51441-0E110 |
ASU5# |
1 | ||
| 51442 - COVER, ENGINE UNDER, NO.2 | ||||
| 51442-0E031 |
ASU5# |
1 | ||
| 51451J - BOLT, NO.1 | ||||
| 90119-C0186 |
ASU5#,GSU55 |
10 | ||
| 51451J - BOLT, NO.1 | ||||
| 90119-C0186 |
ASU5#,GSU55 |
10 | ||
| 51451J - BOLT, NO.1 | ||||
| 90119-C0186 |
ASU5#,GSU55 |
10 | ||
| 51454C - SILENCER, ENGINE UNDER COVER, REAR | ||||
| 51454-48010 |
ASU5# |
1 | ||
| 51455A - SEAL, ENGINE UNDER COVER, NO.1 | ||||
| 51455-48010 |
ASU5# |
2 | ||
| Common parts | ||||
| 90159-C0013 | ||||
| 90467-07215 | ||||
| Linked diagrams | ||||
| 5201 | ||||
