ASU50L-BRTGTC (2015)

Toyota Highlander (China)

Production Mar 2015 - Mar 2018
Engine 8ARFTS
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1503- )

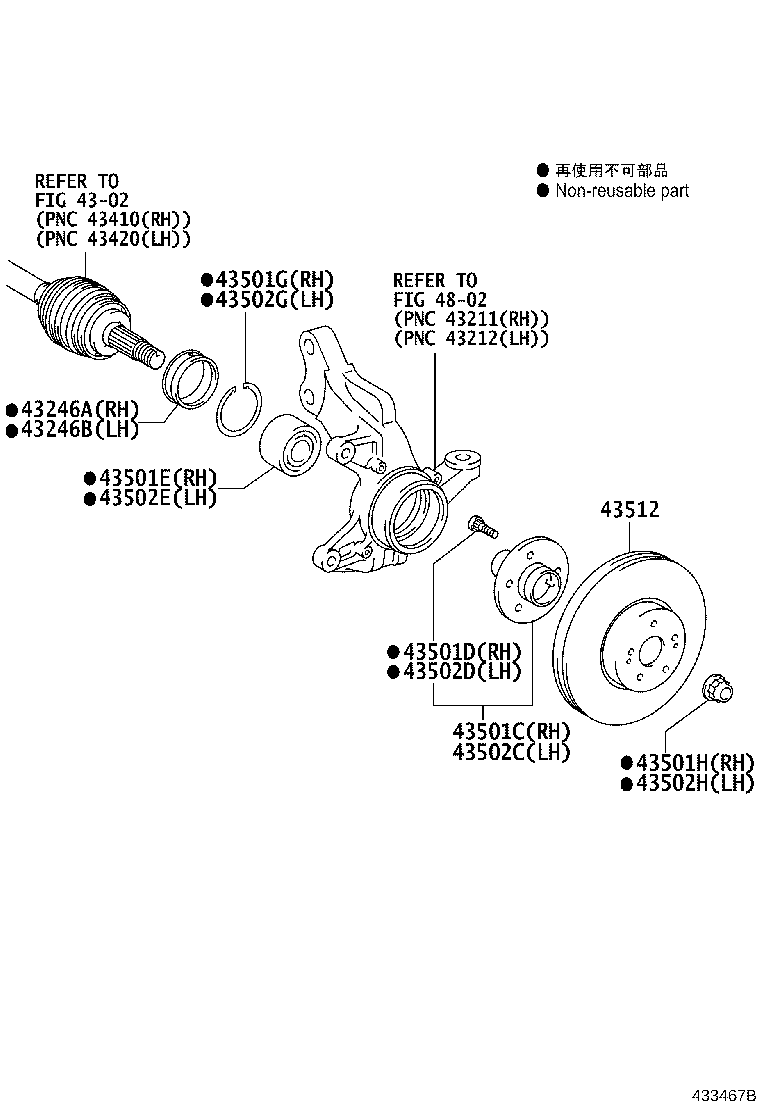

Click highlighted areas on diagram

diagram 4302 43246A 43246B 43501C 43501D 43501E 43501G 43501H 43502C 43502D 43502E 43502G 43502H 43512 4802
Part # Description Qty Price
43246A - DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH
43246-48011

ASU5#,GSU55

 1
43246B - DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH
43246-48011

ASU5#

 1
43501C - HUB SUB-ASSY, FRONT AXLE, RH
43502-0E050

ASU5#

 1
43501D - BOLT, HUB (FOR FRONT AXLE RH)
90942-02049

ASU5#

 5
43501E - BEARING (FOR FRONT AXLE HUB RH)
90369-C0006

ASU5#

 1
43501G - RING, HOLE SNAP (FOR FRONT AXLE HUB RH)
90520-79002

ASU5#

 1
43501H - NUT (FOR FRONT AXLE SHAFT RH)
90177-22001

ASU5#

 1
43502C - HUB SUB-ASSY, FRONT AXLE, LH
43502-0E050

ASU5#

 1
43502D - BOLT, HUB (FOR FRONT AXLE LH)
90942-02049

ASU5#

 5
43502E - BEARING (FOR FRONT AXLE HUB LH)
90369-C0006

ASU5#

 1
43502G - RING, HOLE SNAP (FOR FRONT AXLE HUB LH)
90520-79002

ASU5#

 1
43502H - NUT (FOR FRONT AXLE SHAFT LH)
90177-22001

ASU5#

 1
43512 - DISC, FRONT
43512-0E040

ASU5#,GSU55

 2
