ASU40L-BRTSKC (2009)

Toyota Highlander (China)

Production May 2009 - May 2012
Engine 1ARFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0905- )

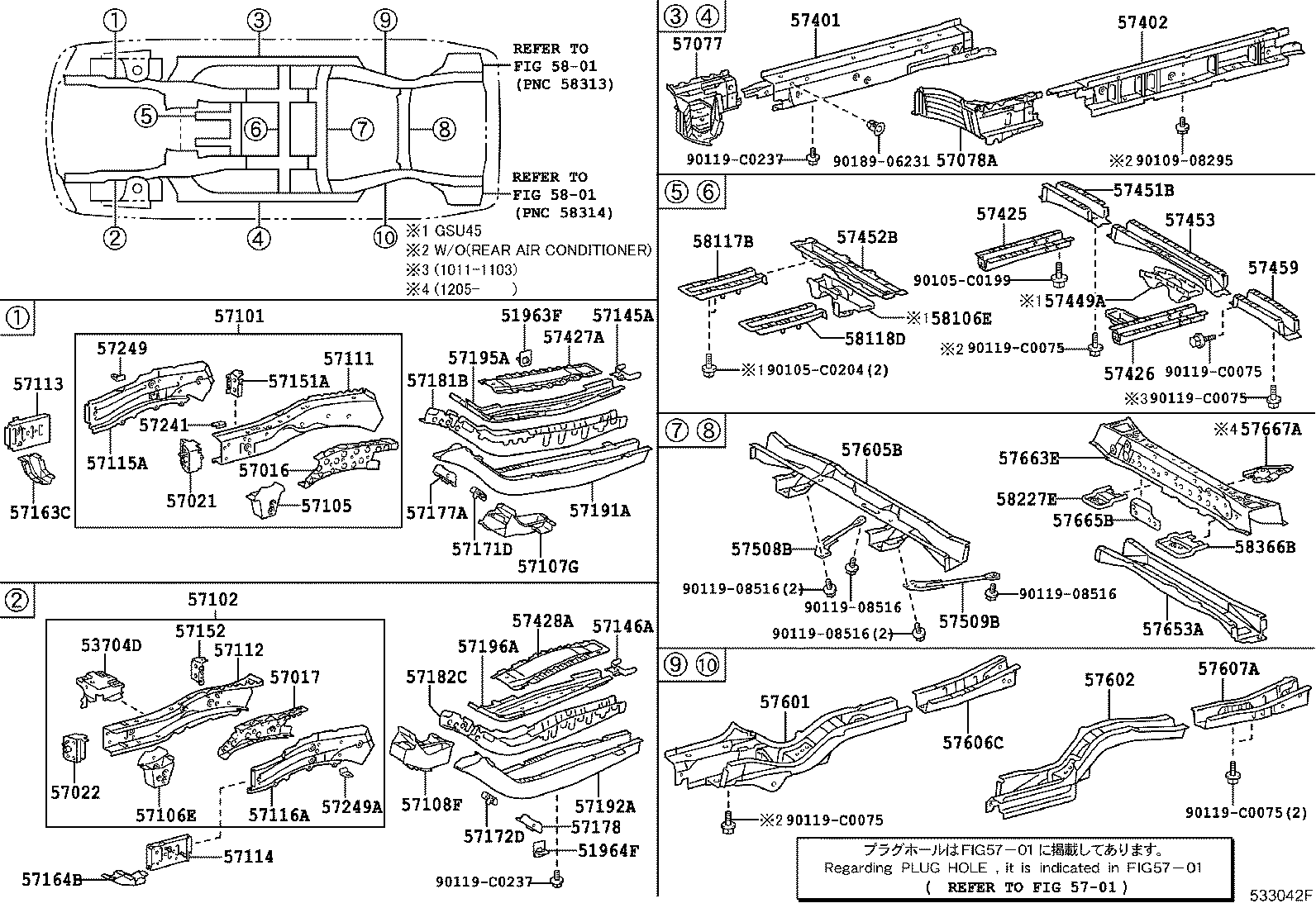

Click highlighted areas on diagram

diagram 51963F 51964F 53704D 5701 57016 57017 57021 57022 57077 57078A 57101 57102 57105 57106E 57107G 57108F 57111 57112 57113 57114 57115A 57116A 57145A 57146A 57151A 57152 57163C 57164B 57171D 57172D 57177A 57178 57181B 57182C 57191A 57192A 57195A 57196A 57241 57249 57249A 57401 57402 57425 57426 57427A 57428A 57449A 57451B 57452B 57453 57459 57508B 57509B 57601 57602 57605B 57606C 57607A 57653A 57663E 57665B 57667A 5801 5801 58106E 58117B 58118D 58227E 58366B 90105C0199 90105C0204 9010908295 9011908516 9011908516 9011908516 9011908516 90119C0075 90119C0075 90119C0075 90119C0075 90119C0075 90119C0237 90119C0237 9018906231
Part # Description Qty Price
51963F - HOOK, TRANSPORT
51961-0E040

ASU40,GSU45

 1
51964F - HOOK, TRANSPORT, LH
51961-0E040

ASU40,GSU45

 1
53704D - SUPPORT SUB-ASSY, BATTERY, LH
53704-0E020

ASU40,GSU45

 1
57016 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH
57016-0E020

ASU40,GSU45

 1
57017 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH
57017-0E020

ASU40,GSU45

 1
57021 - BRACKET SUB-ASSY, BODY MOUNTING, NO.1 RH
57021-0E020

ASU40,GSU45

 1
57022 - BRACKET SUB-ASSY, BODY MOUNTING, NO.1 LH
57022-0E020

ASU40,GSU45

 1
57077 - BOX SUB-ASSY, TORQUE, FRONT RH
57077-0E030

ASU40,GSU45

 1
57078A - BOX SUB-ASSY, TORQUE, FRONT LH
57078-0E030

ASU40,GSU45

 1
57101 - MEMBER SUB-ASSY, FRONT SIDE, RH
57027-0E900

ASU40,GSU45

 1
57102 - MEMBER SUB-ASSY, FRONT SIDE, LH
57028-0E900

ASU40,GSU45

 1
57105 - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRO
57105-06050

ASU40,GSU45

 1
57106E - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRO
57106-06040

ASU40,GSU45

 1
57107G - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REA
57107-0E020

ASU40,GSU45

 1
57108F - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REA
57108-0E020

ASU40,GSU45

 1
57111 - MEMBER, FRONT SIDE, RH
57111-48020

ASU40,GSU45

 1
57112 - MEMBER, FRONT SIDE, LH
57112-48021

ASU40,GSU45

 1
57113 - EXTENSION, FRONT SIDE MEMBER, RH
57113-0E020

ASU40,GSU45

 1
57114 - EXTENSION, FRONT SIDE MEMBER, LH
57114-0E020

ASU40,GSU45

 1
57115A - PLATE, FRONT SIDE MEMBER, OUTER RH
57115-06070

ASU40,GSU45

 1
57116A - PLATE, FRONT SIDE MEMBER, OUTER LH
57116-06050

ASU40,GSU45

 1
57145A - REINFORCEMENT, FRONT SIDE MEMBER, REAR RH
57145-0E020

ASU40,GSU45

 1
57146A - REINFORCEMENT, FRONT SIDE MEMBER, REAR LH
57146-0E020

ASU40,GSU45

 1
57151A - REINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH
57151-0E020

ASU40,GSU45

 1
57152 - REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH
57152-0E020

ASU40,GSU45

 1
57163C - REINFORCEMENT, FRONT CROSSMEMBER, NO.1 RH
57163-0E020

ASU40,GSU45

 1
57164B - REINFORCEMENT, FRONT CROSSMEMBER, NO.1 LH
57164-0E020

ASU40,GSU45

 1
57171D - PLATE, FRONT SIDE MEMBER TO FLOOR, RH
57171-0E020

ASU40,GSU45

 1
57172D - PLATE, FRONT SIDE MEMBER TO FLOOR, LH
57172-0E020

ASU40,GSU45

 1
57177A - PLATE, FRONT SIDE MEMBER, NO.7 RH
57177-0E020

ASU40,GSU45

 1
57178 - PLATE, FRONT SIDE MEMBER, NO.7 LH
57178-0E020

ASU40,GSU45

 1
57181B - PLATE, FRONT SIDE MEMBER, NO.3 RH
57181-0E020

ASU40,GSU45

 1
57182C - REINFORCEMENT, FRONT SIDE MEMBER, REAR NO.1 LH
57182-0E020

ASU40,GSU45

 1
57191A - MEMBER, FRONT SIDE, INNER REAR RH
57191-0E020

ASU40,GSU45

 1
57192A - MEMBER, FRONT SIDE, INNER REAR LH
57192-0E020

ASU40,GSU45

 1
57195A - REINFORCEMENT, FRONT SIDE MEMBER, FRONT RH
57195-0E020

ASU40,GSU45

 1
57196A - REINFORCEMENT, FRONT SIDE MEMBER, FRONT LH
57196-0E020

ASU40,GSU45

 1
57241 - REINFORCEMENT, FRONT SIDE MEMBER, NO.5 RH
57241-0E020

ASU40,GSU45

 1
57249 - BRACKET, FLEXIBLE HOSE, NO.1
57249-06060

ASU40,GSU45

 1
57249A - BRACKET, FREXIBLE HOUSE, NO.1, LH
57249-06060

ASU40,GSU45

 1
57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57401-0E030

ASU40,GSU45

 1
57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57402-0E030

ASU40,GSU45

 1
57425 - REINFORCEMENT, FRONT FLOOR, NO.2 RH
58107-0E030

ASU40,GSU45

 1
57426 - REINFORCEMENT, FRONT FLOOR, NO.2 LH
58108-0E030

ASU40,GSU45

 1
57427A - REINFORCEMENT, FRONT FLOOR, NO.3 RH
57427-0E030

ASU40,GSU45

 1
57428A - REINFORCEMENT, FRONT FLOOR, NO.3 LH
57428-0E030

ASU40,GSU45

 1
57451B - MEMBER, FRONT FLOOR CROSS, RH
57458-0E020

ASU40,GSU45

 1
57452B - MEMBER, FRONT FLOOR CROSS, NO.2
57452-0E020

ASU40,GSU45

 1
57453 - MEMBER, FRONT FLOOR CROSS, NO.3
57453-0E040

ASU40,GSU45

 1
57459 - MEMBER, FRONT FLOOR CROSS, NO.2
57459-0E020

ASU40,GSU45

 1
57508B - REINFORCEMENT SUB-ASSY, FRONT FLOOR, RH
57508-0E020

ASU40,GSU45

 1
57509B - REINFORCEMENT SUB-ASSY, FRONT FLOOR, LH
57509-0E020

ASU40,GSU45

 1
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-0E904

ASU40

 1
57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-0E904

ASU40

 1
57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57605-0E030

ASU40,GSU45

 1
57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57606-0E030

ASU40,GSU45

 1
57607A - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3
57607-0E030

ASU40,GSU45

 1
57653A - MEMBER, REAR FLOOR CROSS, NO.2
57653-0E021

ASU40,GSU45

 1
57663E - MEMBER, REAR FLOOR CROSS, CENTER
57663-0E030

ASU40,GSU45

 1
57665B - REINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.2
57665-0E020

ASU40,GSU45

 2
58117B - REINFORCEMENT, FRONT FLOOR SIDE, RH
58117-0E020

ASU40,GSU45

 1
58117-0E021

ASU40,GSU45

 1
58118D - REINFORCEMENT, FRONT FLOOR SIDE, LH
58118-0E020

ASU40,GSU45

 1
58227E - PLATE, FRONT FLOOR PANEL SIDE, RH
58127-0E020

ASU40,GSU45

 1
58366B - BRACKET, FUEL TANK SUPPORT, LH
58366-0E020

ASU40,GSU45

 1
Common parts
90105-C0199
90105-C0204
90109-08295
90119-08516
90119-C0075
90119-C0237
90189-06231
Linked diagrams
5701
5801
