ASU40L-BRTSKC (2009)

Toyota Highlander (China)

Production May 2009 - May 2012
Engine 1ARFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0905- )

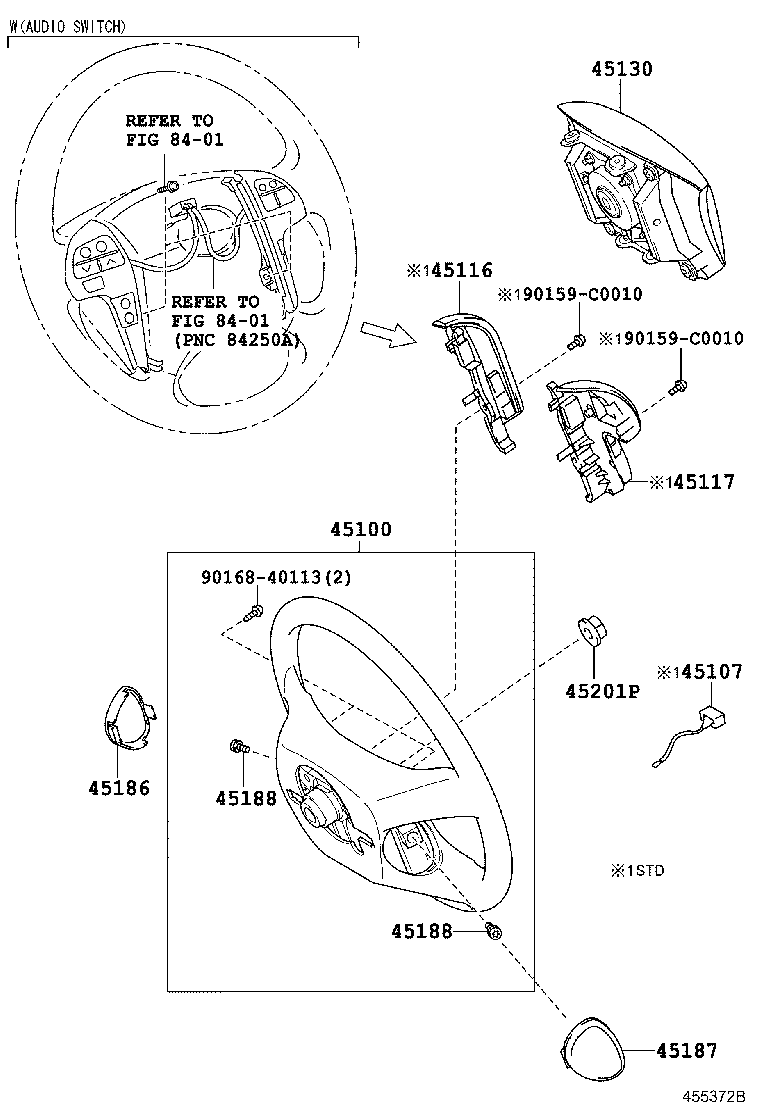

Click highlighted areas on diagram

4-SPOKE

diagram 45100 45107 45116 45117 45130 45186 45187 45188 45188 45201P 8401 8401 90159C0010 90159C0010 9016840113
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-0E240E0

ASU40,GSU45..LIMD,SPO

4-SPOKE,LEATHER,DK. BROWN,TRIM4#

 1
45100-0E240C0

ASU40,GSU45..LIMD,SPO

4-SPOKE,LEATHER,BLACK,TRIM2#

 1
45100-0E230E0

ASU40,GSU45..D

4-SPOKE,URETHANE,DK. BROWN,TRIM4#

 1
45107 - WIRE SUB-ASSY, HORN BUTTON
45107-06020

ASU40,GSU45..D

 1
45116 - ORNAMENT, STEERING WHEEL, NO.1
45116-0E010E0

ASU40,GSU45..D

DK. BROWN,TRIM4#

 1
45117 - ORNAMENT, STEERING WHEEL, NO.2
45117-0E010E0

ASU40,GSU45..D

DK. BROWN,TRIM4#

 1
45130 - BUTTON ASSY, HORN
45130-0E030C0

ASU40,GSU45..LIMD,SPO

BLACK,TRIM2#

 1
45130-0E030E0

ASU40,GSU45

DK. BROWN,TRIM4#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-06210C0

ASU40,GSU45..LIMD,SPO

BLACK,TRIM2#

 1
45186-06210E1

ASU40,GSU45..LIMD,SPO

DK. BROWN,TRIM4#

 1
45186-06220E1

ASU40,GSU45..D

DK. BROWN,TRIM4#

 1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-06130E1

ASU40,GSU45

DK. BROWN,TRIM4#

 1
45187-06130C0

ASU40,GSU45..LIMD,SPO

BLACK,TRIM2#

 1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-60010

ASU40,GSU45

L=18

 2
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-60010

ASU40,GSU45

L=18

 2
45201P - NUT, STEERING WHEEL SET
90178-C0025

ASU40,GSU45

 1
Common parts
90159-C0010
90168-40113
Linked diagrams
8401
