ASU40L-BRTSKC (2009)

Toyota Highlander (China)

Production May 2009 - May 2012
Engine 1ARFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0905- )1ARFE

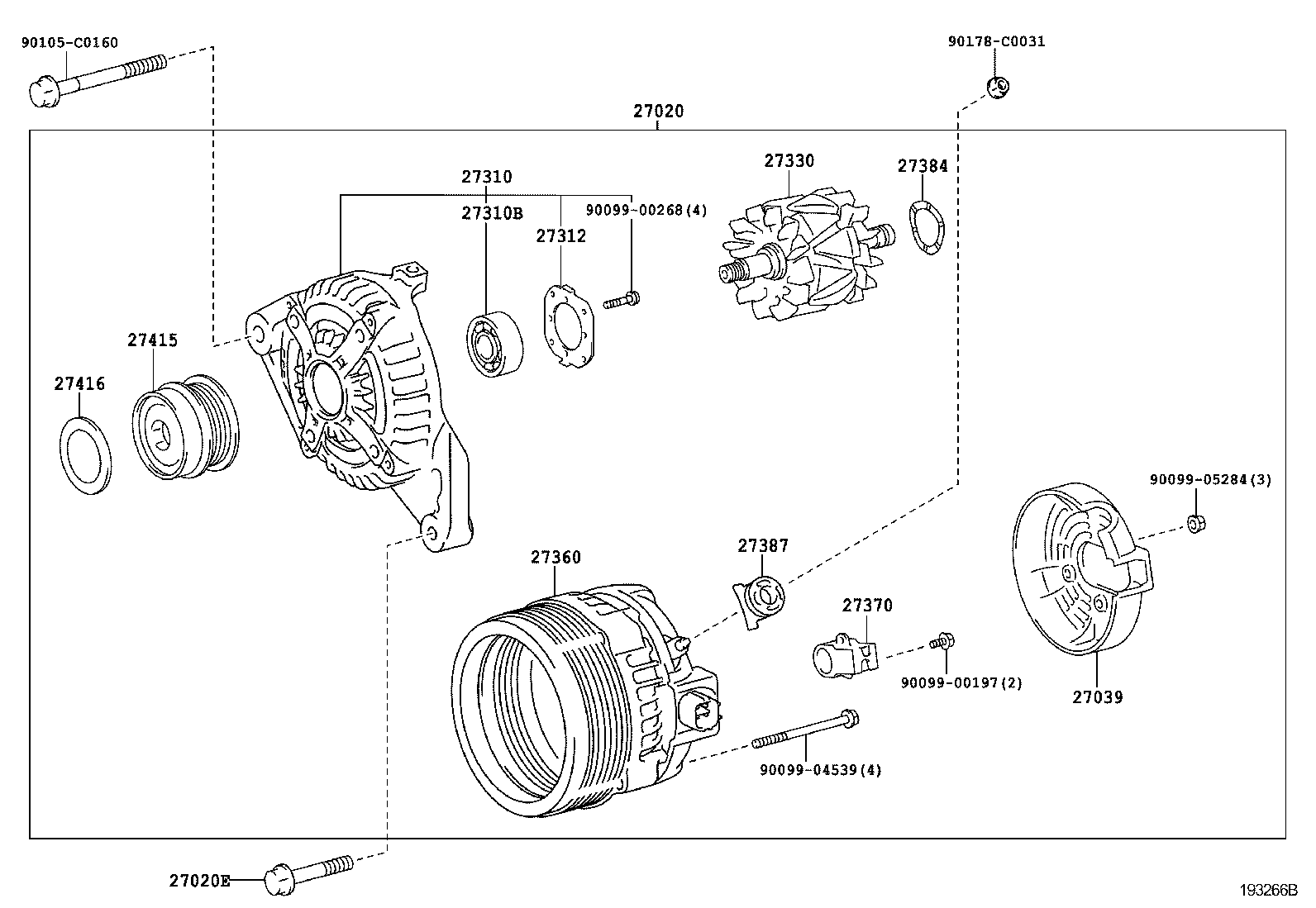

Click highlighted areas on diagram

12V 130A,150A

diagram 27020 27020E 27039 27310 27310B 27312 27330 27360 27370 27384 27387 27415 27416 9009900197 9009900268 9009904539 9009905284 90105C0160 90178C0031
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-0V040

1ARFE..ASU40..D,SPO

12V 130A,WITHOUT(REAR NO.2 SEAT)

 1
27060-0V050

1ARFE..ASU40

12V 150A

 1
27020E - BOLT(FOR ALTERNATOR)
90105-C0202

1ARFE..ASU40

 1
27039 - COVER, ALTERNATOR REAR END
27039-0T030

1ARFE,2GRFE..ASU40,GSU45

 1
27039-0P070

1ARFE,2GRFE..ASU40,GSU45

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-0V010

1ARFE..ASU40

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90068-10033

1ARFE,2GRFE..ASU40,GSU45

 1
27312 - PLATE, RETAINER
27312-72100

1ARFE,2GRFE..ASU40,GSU45

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-0V040

1ARFE..ASU40..D,SPO

WITHOUT(REAR NO.2 SEAT)

 1
27330-0P180

1ARFE,2GRFE..ASU40,GSU45

 1
27360 - COIL ASSY, ALTERNATOR
27360-0V040

1ARFE..ASU40..D,SPO

WITHOUT(REAR NO.2 SEAT)

 1
27360-0V050

1ARFE..ASU40

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-0T030

1ARFE,2GRFE..ASU40,GSU45

 1
27384 - WASHER
27384-50030

1ARFE,2GRFE..ASU40,GSU45

 1
27387 - INSULATOR, TERMINAL
27387-0T030

1ARFE,2GRFE..ASU40,GSU45

 1
27415 - PULLEY, ALTERNATOR W/CLUTCH
27415-0W110

1ARFE..ASU40

 1
27416 - CAP, ALTERNATOR PULLEY
27416-0W050

1ARFE,2GRFE..ASU40,GSU45

 1
Common parts
90099-00197
90099-00268
90099-04539
90099-05284
90105-C0160
90178-C0031
