ASU40L-BRTNKC (2012)

Toyota Highlander (China)

Production May 2012 - Mar 2015
Engine 3ARFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 3(1205- )

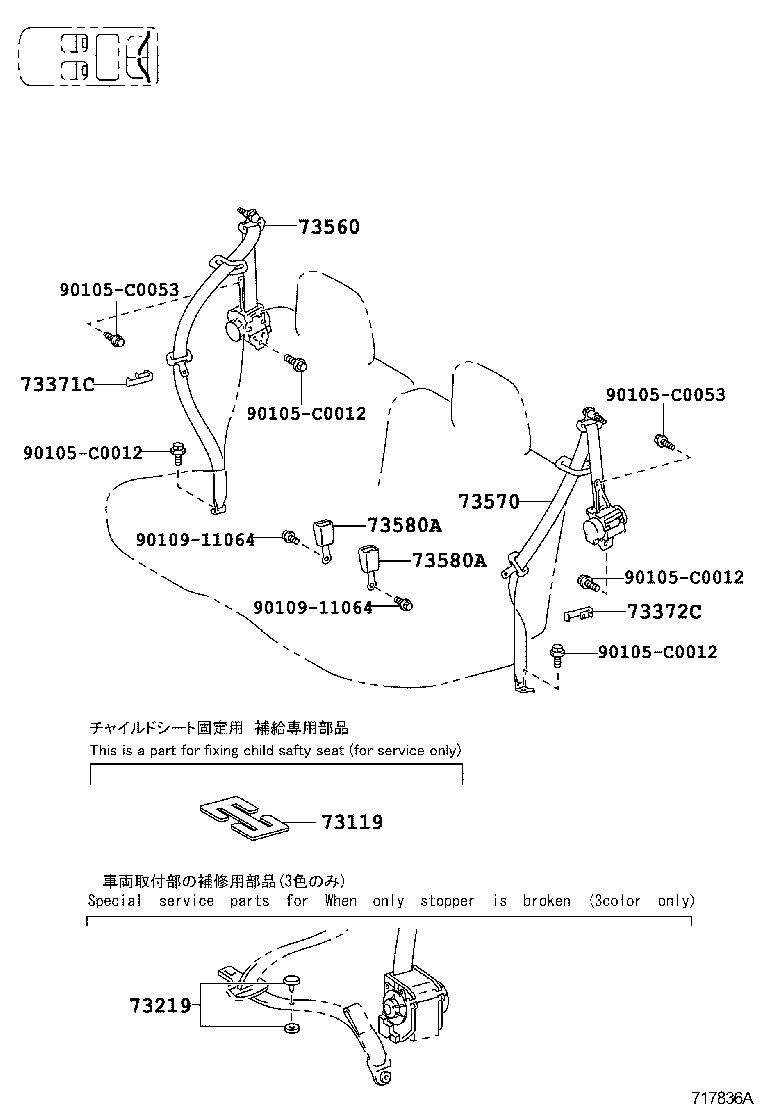

Click highlighted areas on diagram

REAR NO.2 SEAT

diagram 73119 73219 73371C 73372C 73560 73570 73580A 73580A 90105C0012 90105C0012 90105C0012 90105C0012 90105C0053 90105C0053 9010911064 9010911064
Part # Description Qty Price
73119 - PLATE, SEAT BELT WEBBING CLIP
73119-22010

ASU40,GSU45

 1
73219 - STOPPER, TONGUE PLATE
73219-33020

ASU40,GSU45

GRAY

 1
73219-33010

ASU40,GSU45

BLACK

 1
73219-33010

ASU40,GSU45

BLACK

 1
73219-33020

ASU40,GSU45

GRAY

 1
73219-33030

ASU40,GSU45

BEIGE

 1
73219-33030

ASU40,GSU45

BEIGE

 1
73371C - HANGER, REAR NO.2 SEAT SHOULDER BELT, RH
73371-0E030E0

ASU40,GSU45

SAND BEIGE,TRIM4#

 1
73371-0E030E0

ASU40..D,SPO

WITHOUT(REAR NO.2 SEAT),SAND BEIGE,TRIM4#

 1
73371-0E030E0

ASU40,GSU45

SAND BEIGE,TRIM4#

 1
73371-0E030E0

ASU40..D,SPO

WITHOUT(REAR NO.2 SEAT),SAND BEIGE,TRIM4#

 1
73372C - HANGER, REAR NO.2 SEAT SHOULDER BELT, LH
73371-0E030E0

ASU40,GSU45

SAND BEIGE,TRIM4#

 1
73371-0E030E0

ASU40..D,SPO

WITHOUT(REAR NO.2 SEAT),SAND BEIGE,TRIM4#

 1
73371-0E030E0

ASU40,GSU45

SAND BEIGE,TRIM4#

 1
73371-0E030E0

ASU40..D,SPO

WITHOUT(REAR NO.2 SEAT),SAND BEIGE,TRIM4#

 1
73560 - BELT ASSY, REAR NO.2 SEAT, OUTER RH
73560-0E010A0

ASU40,GSU45

SAND BEIGE,TRIM4#

 1
73560-0E040A0

ASU40..D,SPO

WITHOUT(REAR NO.2 SEAT),IVORY,TRIM4#

 1
73560-0E010A0

ASU40..D,SPO

WITHOUT(REAR NO.2 SEAT),SAND BEIGE,TRIM4#

 1
73560-0E040A0

ASU40,GSU45

IVORY,TRIM4#

 1
73570 - BELT ASSY, REAR NO.2 SEAT, OUTER LH
73570-0E010A0

ASU40..D,SPO

WITHOUT(REAR NO.2 SEAT),SAND BEIGE,TRIM4#

 1
73570-0E070A0

ASU40,GSU45..D,SPO

IVORY,TRIM4#

 1
73570-0E070A0

ASU40..D,SPO

WITHOUT(REAR NO.2 SEAT),IVORY,TRIM4#

 1
73570-0E010A0

ASU40,GSU45..D,SPO

SAND BEIGE,TRIM4#

 1
73580A - BELT SUB ASSY, REAR NO.2 SEAT, INNER
73580-0E040E0

ASU40,GSU45

SAND BEIGE,TRIM4#

 2
73580-0E010A0

ASU40,GSU45

SAND BEIGE,TRIM4#

 2
73580-0E040E0

ASU40..D,SPO

WITHOUT(REAR NO.2 SEAT),SAND BEIGE,TRIM4#

 2
73580-0E010A0

ASU40..D,SPO

WITHOUT(REAR NO.2 SEAT),SAND BEIGE,TRIM4#

 2
73580A - BELT SUB ASSY, REAR NO.2 SEAT, INNER
73580-0E040E0

ASU40,GSU45

SAND BEIGE,TRIM4#

 2
73580-0E010A0

ASU40,GSU45

SAND BEIGE,TRIM4#

 2
73580-0E040E0

ASU40..D,SPO

WITHOUT(REAR NO.2 SEAT),SAND BEIGE,TRIM4#

 2
73580-0E010A0

ASU40..D,SPO

WITHOUT(REAR NO.2 SEAT),SAND BEIGE,TRIM4#

 2
Common parts
90105-C0012
90105-C0053
90109-11064
