ASU40L-BRTNKC (2009)

Toyota Highlander (China)

Production May 2009 - May 2012
Engine 1ARFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 3(0905- )

Click highlighted areas on diagram

O-RING

diagram 9009914119 9009914120 9009914121
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121

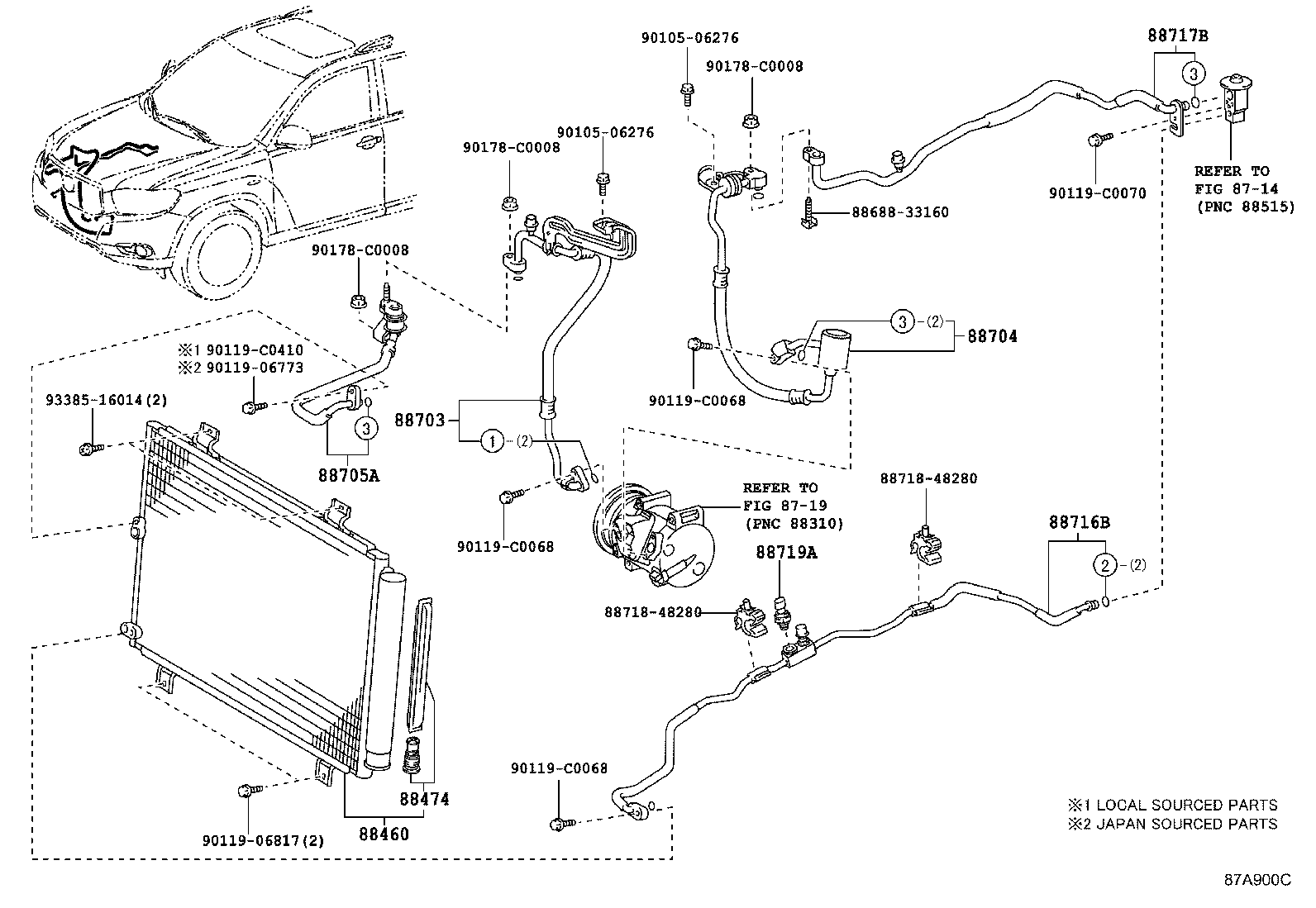

ILLUST NO. 1 OF 3(0905-1205)ASU40

Click highlighted areas on diagram

FRONT---W/O(REAR COOLER)

diagram 8714 8719 88460 88474 8868833160 88703 88704 88705A 88716B 88717B 8871848280 8871848280 88719A 9010506276 9010506276 9011906773 9011906817 90119C0068 90119C0068 90119C0068 90119C0070 90119C0410 90178C0008 90178C0008 90178C0008 9338516014
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-0E040

ASU40,GSU45

 1
88474 - DRYER, COOLER
88474-17010

ASU40,GSU45

 1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-0E050

ASU40

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-0E050

ASU40

 1
88705A - TUBE SUB-ASSY, DISCHARGE
88705-0E040

ASU40,GSU45

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-0E110

ASU40,GSU45

 1
88716-0E120

ASU40..D,SPO

WITHOUT(REAR NO.2 SEAT)

 1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-0E050

ASU40,GSU45

 1
88717-0E060

ASU40..D,SPO

WITHOUT(REAR NO.2 SEAT)

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020

ASU40,GSU45

 1
Common parts
88688-33160
88718-48280
90105-06276
90119-06773
90119-06817
90119-C0068
90119-C0070
90119-C0410
90178-C0008
93385-16014
Linked diagrams
8714
8719

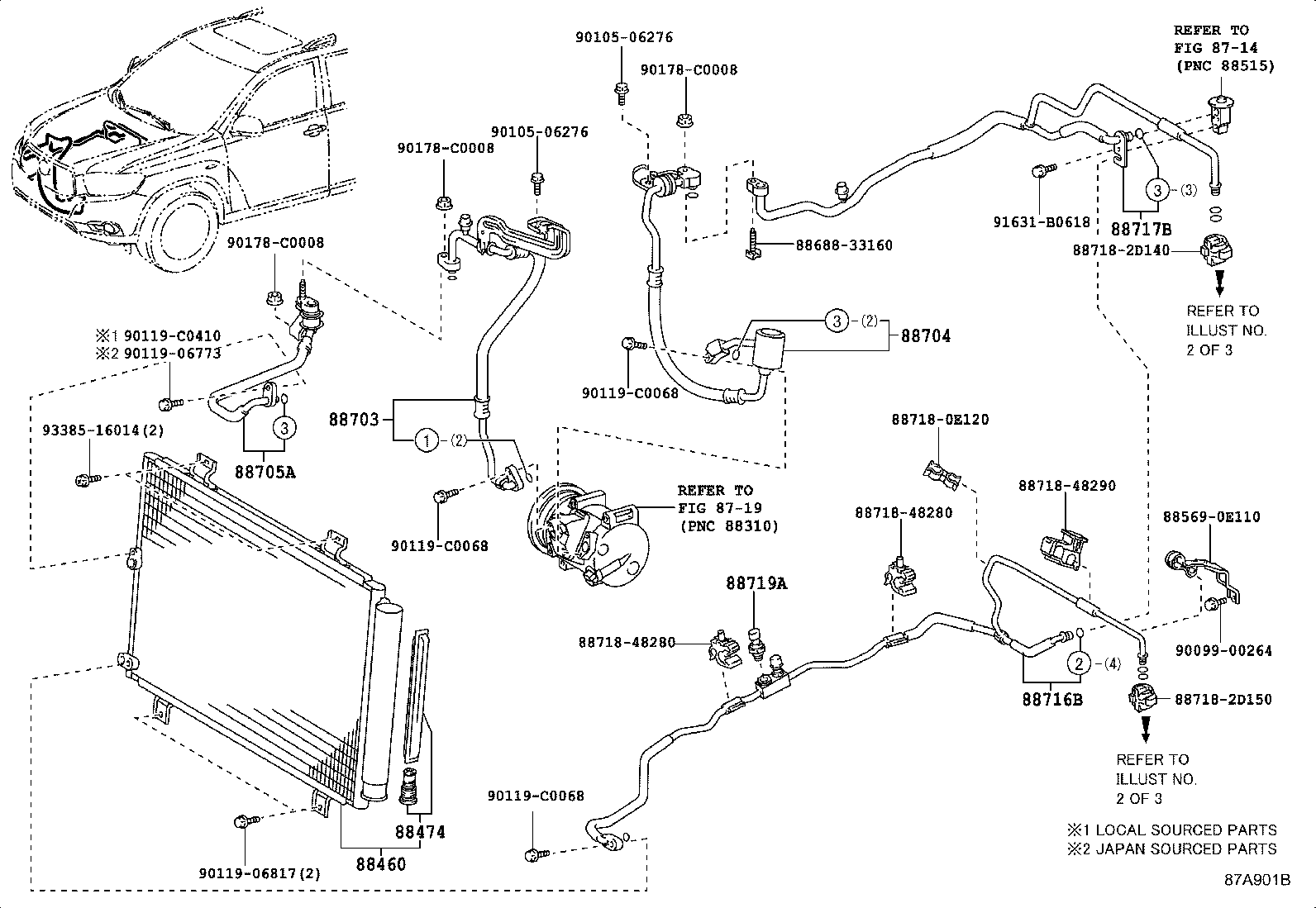

ILLUST NO. 1 OF 3(0905-1205)ASU40

Click highlighted areas on diagram

FRONT---W(REAR COOLER)

diagram 8714 8719 88460 88474 885690E110 8868833160 88703 88704 88705A 88716B 88717B 887180E120 887182D140 887182D150 8871848280 8871848280 8871848290 88719A 9009900264 9010506276 9010506276 9011906773 9011906817 90119C0068 90119C0068 90119C0068 90119C0410 90178C0008 90178C0008 90178C0008 91631B0618 9338516014
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-0E040

ASU40,GSU45

 1
88474 - DRYER, COOLER
88474-17010

ASU40,GSU45

 1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-0E050

ASU40

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-0E050

ASU40

 1
88705A - TUBE SUB-ASSY, DISCHARGE
88705-0E040

ASU40,GSU45

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-0E110

ASU40,GSU45

 1
88716-0E120

ASU40..D,SPO

WITHOUT(REAR NO.2 SEAT)

 1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-0E050

ASU40,GSU45

 1
88717-0E060

ASU40..D,SPO

WITHOUT(REAR NO.2 SEAT)

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020

ASU40,GSU45

 1
Common parts
88569-0E110
88688-33160
88718-0E120
88718-2D140
88718-2D150
88718-48280
88718-48290
90099-00264
90105-06276
90119-06773
90119-06817
90119-C0068
90119-C0410
90178-C0008
91631-B0618
93385-16014
Linked diagrams
8714
8719

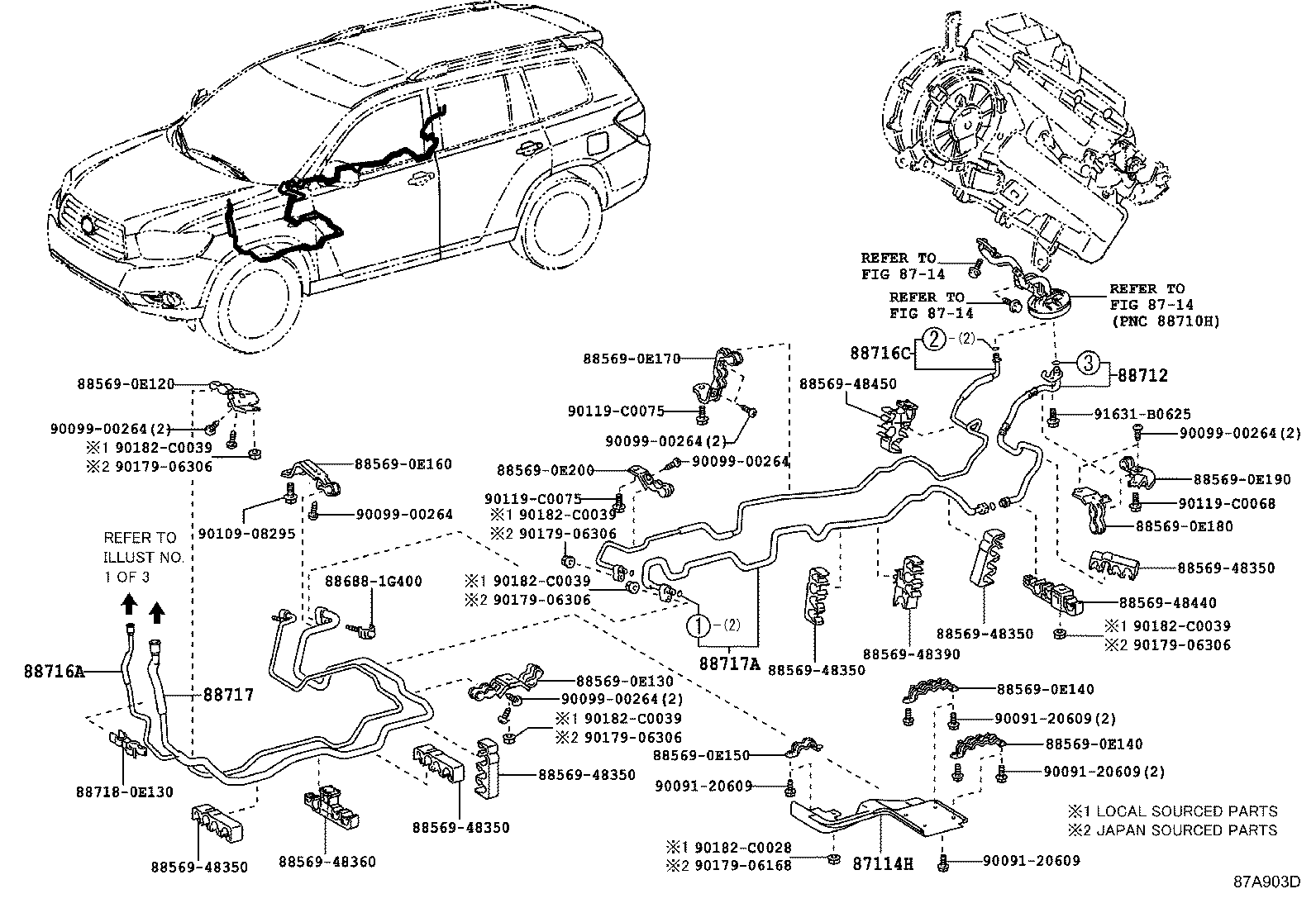

ILLUST NO. 2 OF 3(0905- )

Click highlighted areas on diagram

REAR

diagram 87114H 8714 8714 8714 885690E120 885690E130 885690E140 885690E140 885690E150 885690E160 885690E170 885690E180 885690E190 885690E200 8856948350 8856948350 8856948350 8856948350 8856948350 8856948350 8856948360 8856948390 8856948440 8856948450 886881G400 88712 88716A 88716C 88717 88717A 887180E130 9009120609 9009120609 9009120609 9009120609 9009900264 9009900264 9009900264 9009900264 9009900264 9009900264 9010908295 90119C0068 90119C0075 90119C0075 9017906168 9017906306 9017906306 9017906306 9017906306 9017906306 90182C0028 90182C0039 90182C0039 90182C0039 90182C0039 90182C0039 91631B0625
Part # Description Qty Price
87114H - COVER, HEATER
87114-0E010

ASU40,GSU45

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-0E080

ASU40,GSU45

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-0E130

ASU40,GSU45

 1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-0E140

ASU40,GSU45

 1
88717 - PIPE, COOLER REFRIGERANT SUCTION, NO.1
88717-0E070

ASU40,GSU45

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-0E080

ASU40,GSU45

 1
Common parts
88569-0E120
88569-0E130
88569-0E140
88569-0E150
88569-0E160
88569-0E170
88569-0E180
88569-0E190
88569-0E200
88569-48350
88569-48360
88569-48390
88569-48440
88569-48450
88688-1G400
88718-0E130
90091-20609
90099-00264
90109-08295
90119-C0068
90119-C0075
90179-06168
90179-06306
90182-C0028
90182-C0039
91631-B0625
Linked diagrams
8714
