ASU40L-BRTNKC (2009)

Toyota Highlander (China)

Production May 2009 - May 2012
Engine 1ARFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0905- )

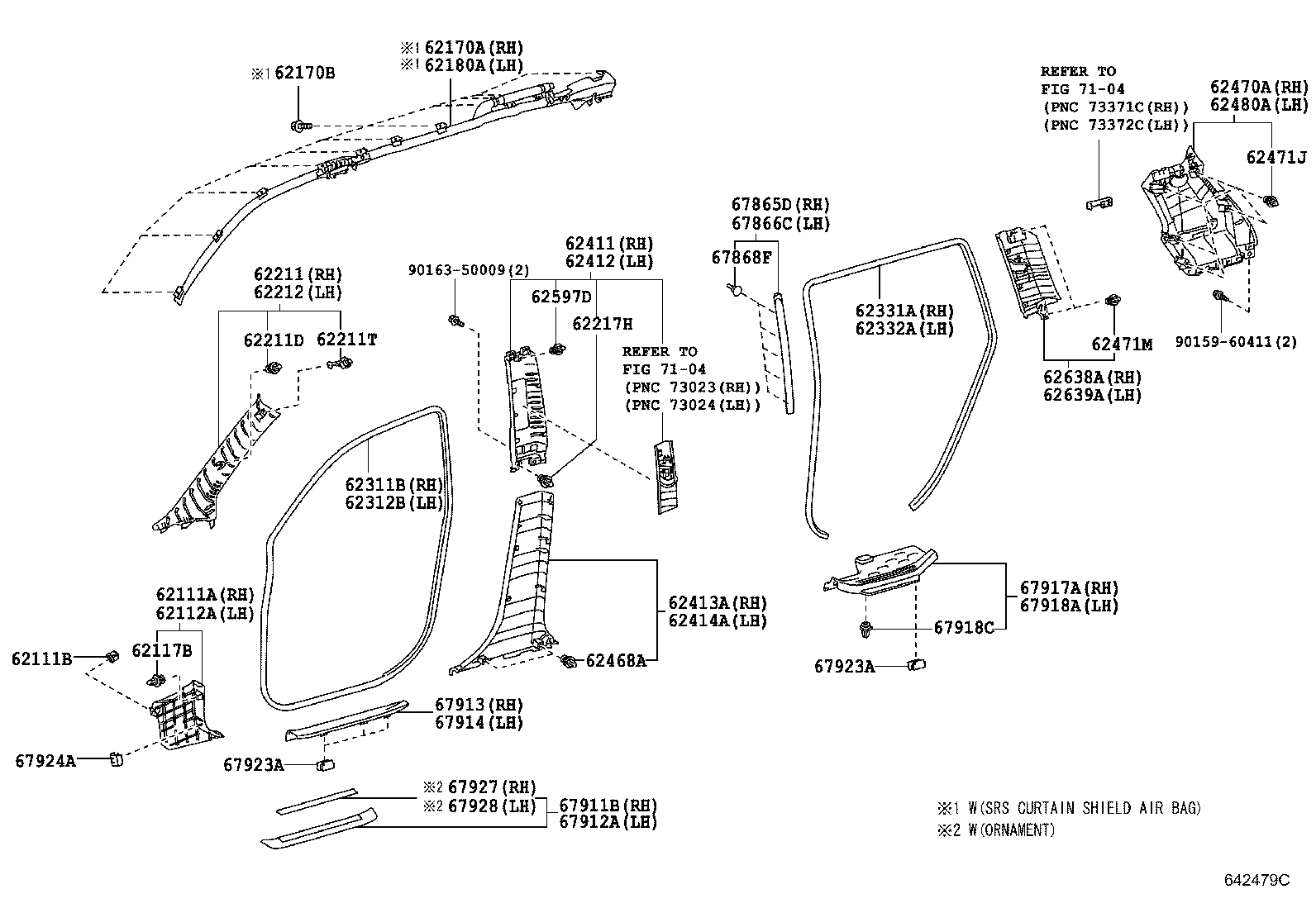

Click highlighted areas on diagram

diagram 62111A 62111B 62112A 62117B 62170A 62170B 62180A 62211 62211D 62211T 62212 62217H 62311B 62312B 62331A 62332A 62411 62412 62413A 62414A 62468A 62470A 62471J 62471M 62480A 62597D 62638A 62639A 67865D 67866C 67868F 67911B 67912A 67913 67914 67917A 67918A 67918C 67923A 67923A 67924A 67927 67928 7104 7104 9015960411 9016350009
Part # Description Qty Price
62111A - TRIM SUB-ASSY, COWL SIDE, RH
62101-0E030E0

ASU40,GSU45

SAND BEIGE,TRIM4#

 1
62111B - CLIP(FOR COWL SIDE TRIM)
90467-06193C0

ASU40,GSU45

BLACK

 2
62112A - TRIM SUB-ASSY, COWL SIDE, LH
62102-0E030E0

ASU40,GSU45

SAND BEIGE,TRIM4#

 1
62117B - CLIP, NO.1(FOR COWL SIDE TRIM)
90467-10161

ASU40,GSU45

 2
62170A - AIR BAG ASSY, CURTAIN SHIELD, RH
62170-0E030

ASU40,GSU45

 1
62170B - BOLT, W/WASHER
90119-06869

ASU40,GSU45

 22
90159-06001

ASU40,GSU45

 22
62180A - AIR BAG ASSY, CURTAIN SHIELD, LH
62180-0E030

ASU40,GSU45

 1
62211 - GARNISH, FRONT PILLAR, RH
62210-0E030E0

ASU40,GSU45

SAND BEIGE,TRIM4#

 1
62211D - CLIP(FOR FRONT BODY PILLAR GARNISH)
90467-10188

ASU40,GSU45

 2
62211T - CLIP(FOR FRONT PILLAR GARNISH)
90950-08005

ASU40,GSU45

 2
62212 - GARNISH, FRONT PILLAR, LH
62220-0E030E0

ASU40,GSU45

SAND BEIGE,TRIM4#

 1
62217H - CLIP, CENTER PILLER GARNISH
90467-10161

ASU40,GSU45

 2
62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62311-0E030E0

ASU40,GSU45

SAND BEIGE,TRIM4#

 1
62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62312-0E030E0

ASU40,GSU45

SAND BEIGE,TRIM4#

 1
62331A - WEATHERSTRIP, REAR DOOR OPENING TRIM, RH
62331-0E030E0

ASU40,GSU45

SAND BEIGE,TRIM4#

 1
62332A - WEATHERSTRIP, REAR DOOR OPENING TRIM, LH
62332-0E030E0

ASU40,GSU45

SAND BEIGE,TRIM4#

 1
62411 - GARNISH, CENTER PILLAR, RH
62410-0E030E0

ASU40,GSU45

SAND BEIGE,TRIM4#

 1
62412 - GARNISH, CENTER PILLAR, LH
62420-0E030E0

ASU40,GSU45

SAND BEIGE,TRIM4#

 1
62413A - GARNISH, CENTER PILLAR, LOWER RH
62413-0E030E0

ASU40,GSU45

SAND BEIGE,TRIM4#

 1
62414A - GARNISH, CENTER PILLAR, LOWER LH
62414-0E030E0

ASU40,GSU45

SAND BEIGE,TRIM4#

 1
62468A - CLIP (FOR CENTER PILLAR REAR GARNISH)
90467-10167

ASU40,GSU45

 4
62470A - GARNISH ASSY, ROOF SIDE, INNER RH
62470-0E090E0

ASU40,GSU45

SAND BEIGE,TRIM4#

 1
62470-0E100E0

ASU40..D,SPO

WITHOUT(REAR NO.2 SEAT),SAND BEIGE,TRIM4#

 1
62471J - CLIP (FOR ROOF SIDE GARNISH)
90467-10161

ASU40,GSU45

 10
62471M - CLIP
90467-10188

ASU40,GSU45

 4
62480A - GARNISH ASSY, ROOF SIDE, INNER LH
62480-0E080E0

ASU40..D,SPO

WITHOUT(REAR NO.2 SEAT),SAND BEIGE,TRIM4#

 1
62480-0E060E0

ASU40,GSU45..D,SPO

SAND BEIGE,TRIM4#

 1
62597D - CLIP
90467-10188

ASU40,GSU45

 2
62638A - GARNISH, QUARTER PILLAR, RH
62638-0E010E0

ASU40,GSU45

SAND BEIGE,TRIM4#

 1
62639A - GARNISH, QUARTER PILLAR, LH
62639-0E010E0

ASU40,GSU45

SAND BEIGE,TRIM4#

 1
67865D - WEATHERSTRIP, CENTER PILLAR UPPER END, RH
67865-0E020

ASU40,GSU45

 1
67866C - WEATHERSTRIP, CENTER PILLAR UPPER END, LH
67866-0E020

ASU40,GSU45

 1
67868F - RETAINER, DOOR WEATHERSTRIP, LH
67867-12150

ASU40,GSU45

 10
67911B - PLATE, FRONT DOOR SCUFF, OUTSIDE, RH
67911-0E020E0

ASU40,GSU45..D

SAND BEIGE,TRIM4#

 1
67912A - PLATE, FRONT DOOR SCUFF, OUTSIDE LH
67912-0E020E0

ASU40,GSU45..D

SAND BEIGE,TRIM4#

 1
67913 - PLATE, FRONT DOOR SCUFF, RH
67913-0E040E0

ASU40,GSU45

SAND BEIGE,TRIM4#

 1
67914 - PLATE, FRONT DOOR SCUFF, LH
67914-0E040E0

ASU40,GSU45

SAND BEIGE,TRIM4#

 1
67917A - PLATE, REAR DOOR SCUFF, RH
67917-0E030E0

ASU40,GSU45

SAND BEIGE,TRIM4#

 1
67918A - PLATE, REAR DOOR SCUFF, LH
67918-0E030E0

ASU40,GSU45

SAND BEIGE,TRIM4#

 1
67918C - CLIP(FOR REAR SCUFF PLATE)
90467-10161

ASU40,GSU45

NATURAL

 4
67921-48050

ASU40,GSU45

YELLOW

 2
67923A - CLAMP, DOOR SCUFF PLATE, NO.1
67923-30030

ASU40,GSU45

 10
67923A - CLAMP, DOOR SCUFF PLATE, NO.1
67923-30030

ASU40,GSU45

 10
67924A - CLAMP, DOOR SCUFF PLATE, NO.2
67923-30030

ASU40,GSU45

 2
Common parts
90159-60411
90163-50009
Linked diagrams
7104
