ASU40L-BRTNKC (2009)
Toyota Highlander (China)
Production
May 2009
-
May 2012
Engine
1ARFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

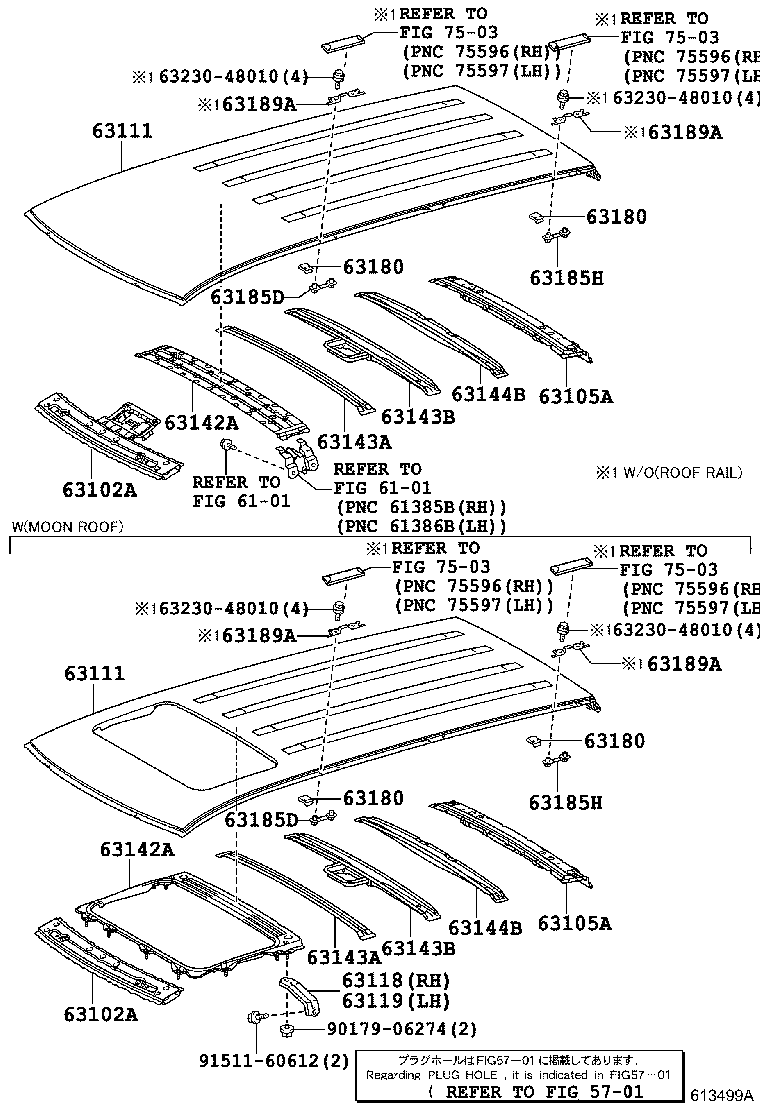

ILLUST NO. 1 OF 3(0905- )
Click highlighted areas on diagram
ROOF PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-0E070 |
ASU40..D |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-0E070 |
ASU40..D |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-0E030 |
ASU40,GSU45 |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-0E030 |
ASU40,GSU45 |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-0E030 |
ASU40,GSU45..D |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-0E030 |
ASU40,GSU45..D |
1 | ||
| 63142A - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63103-0E010 |
ASU40,GSU45..D |
1 | ||
| 63142A - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63103-0E010 |
ASU40,GSU45..D |
1 | ||
| 63143A - REINFORCEMENT, ROOF PANEL | ||||
| 63143-0E030 |
ASU40,GSU45 |
1 | ||
| 63143A - REINFORCEMENT, ROOF PANEL | ||||
| 63143-0E030 |
ASU40,GSU45 |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63104-0E010 |
ASU40,GSU45 |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63104-0E010 |
ASU40,GSU45 |
1 | ||
| 63144B - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-0E020 |
ASU40,GSU45 |
1 | ||
| 63144B - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-0E020 |
ASU40,GSU45 |
1 | ||
| 63180 - CLIP(BRACKET, ROOF RACK) | ||||
| 63479-48010 |
ASU40,GSU45 REAR |
2 | ||
| 63479-48020 |
ASU40,GSU45 FRONT |
2 | ||
| 63180 - CLIP(BRACKET, ROOF RACK) | ||||
| 63479-48010 |
ASU40,GSU45 REAR |
2 | ||
| 63479-48020 |
ASU40,GSU45 FRONT |
2 | ||
| 63180 - CLIP(BRACKET, ROOF RACK) | ||||
| 63479-48010 |
ASU40,GSU45 REAR |
2 | ||
| 63479-48020 |
ASU40,GSU45 FRONT |
2 | ||
| 63180 - CLIP(BRACKET, ROOF RACK) | ||||
| 63479-48010 |
ASU40,GSU45 REAR |
2 | ||
| 63479-48020 |
ASU40,GSU45 FRONT |
2 | ||
| 63185D - BRACKET, ROOF RACK, FRONT | ||||
| 63187-35020 |
ASU40,GSU45 |
2 | ||
| 63185D - BRACKET, ROOF RACK, FRONT | ||||
| 63187-35020 |
ASU40,GSU45 |
2 | ||
| 63185H - BRACKET, ROOF RACK | ||||
| 63187-48020 |
ASU40,GSU45 |
2 | ||
| 63185H - BRACKET, ROOF RACK | ||||
| 63187-48020 |
ASU40,GSU45 |
2 | ||
| 63189A - BRACKET, ROOF RACK, CENTER | ||||
| 63185-48010 |
ASU40,GSU45..D |
4 | ||
| 63189A - BRACKET, ROOF RACK, CENTER | ||||
| 63185-48010 |
ASU40,GSU45..D |
4 | ||
| 63189A - BRACKET, ROOF RACK, CENTER | ||||
| 63185-48010 |
ASU40,GSU45..D |
4 | ||
| 63189A - BRACKET, ROOF RACK, CENTER | ||||
| 63185-48010 |
ASU40,GSU45..D |
4 | ||
| Common parts | ||||
| 63230-48010 | ||||
| 90179-06274 | ||||
| 91511-60612 | ||||
| Linked diagrams | ||||
| 5701 | ||||
| 6101 | ||||
| 7503 | ||||

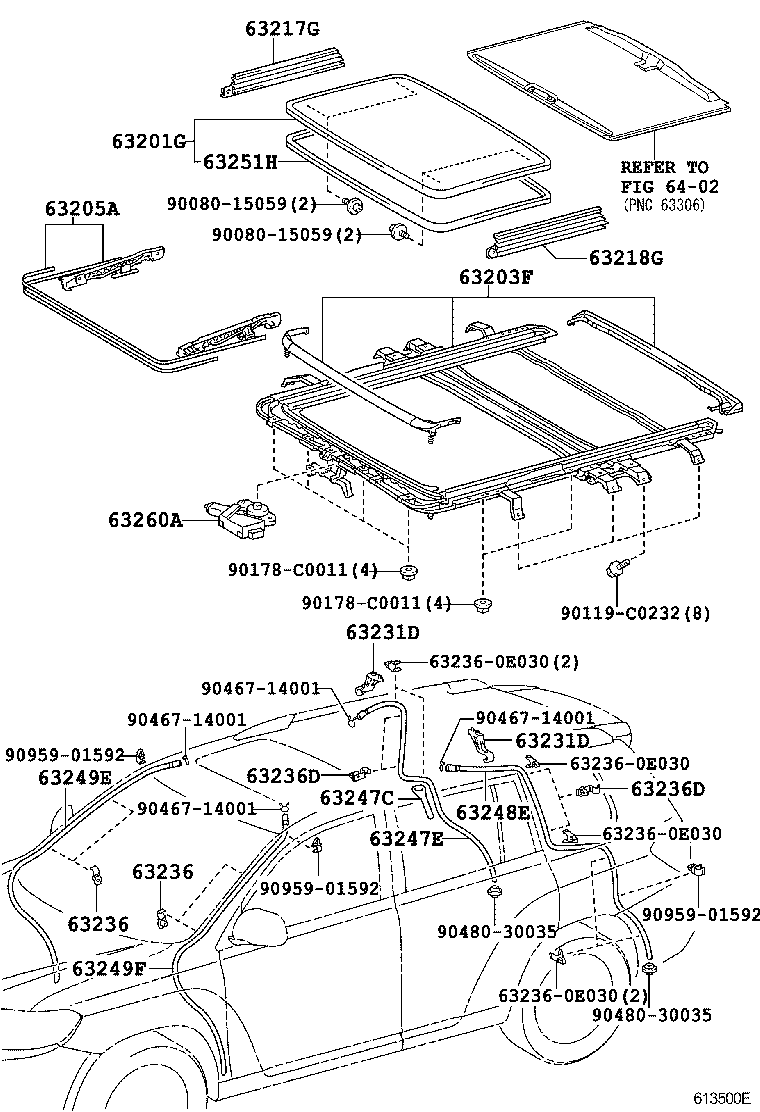

ILLUST NO. 2 OF 3(0905- )
Click highlighted areas on diagram
MOON ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 63236-0E030 | ||||
| 90080-15059 | ||||
| 90119-C0232 | ||||
| 90178-C0011 | ||||
| 90467-14001 | ||||
| 90480-30035 | ||||
| 90959-01592 | ||||
| Linked diagrams | ||||
| 6402 | ||||

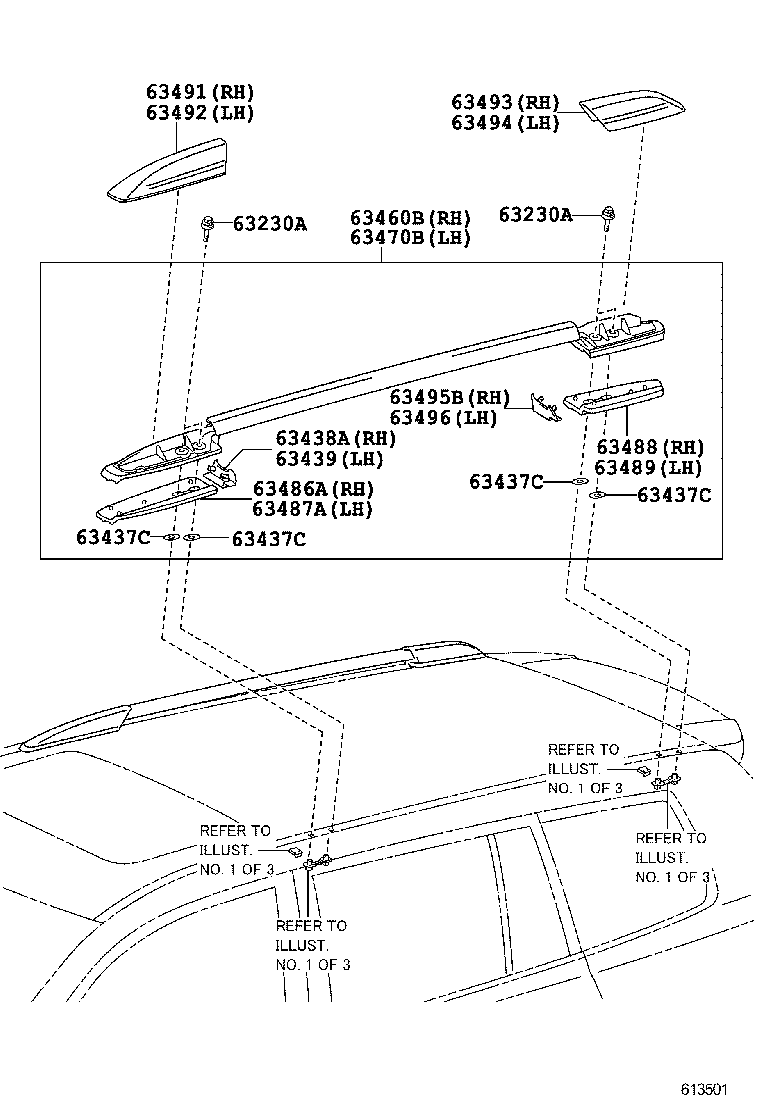

ILLUST NO. 3 OF 3(0905- )
Click highlighted areas on diagram
ROOF RAIL
| Part # | Description | Qty | Price |
|---|
