ASU40L-BRTNKC (2009)

Toyota Highlander (China)

Production May 2009 - May 2012
Engine 1ARFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0905- )

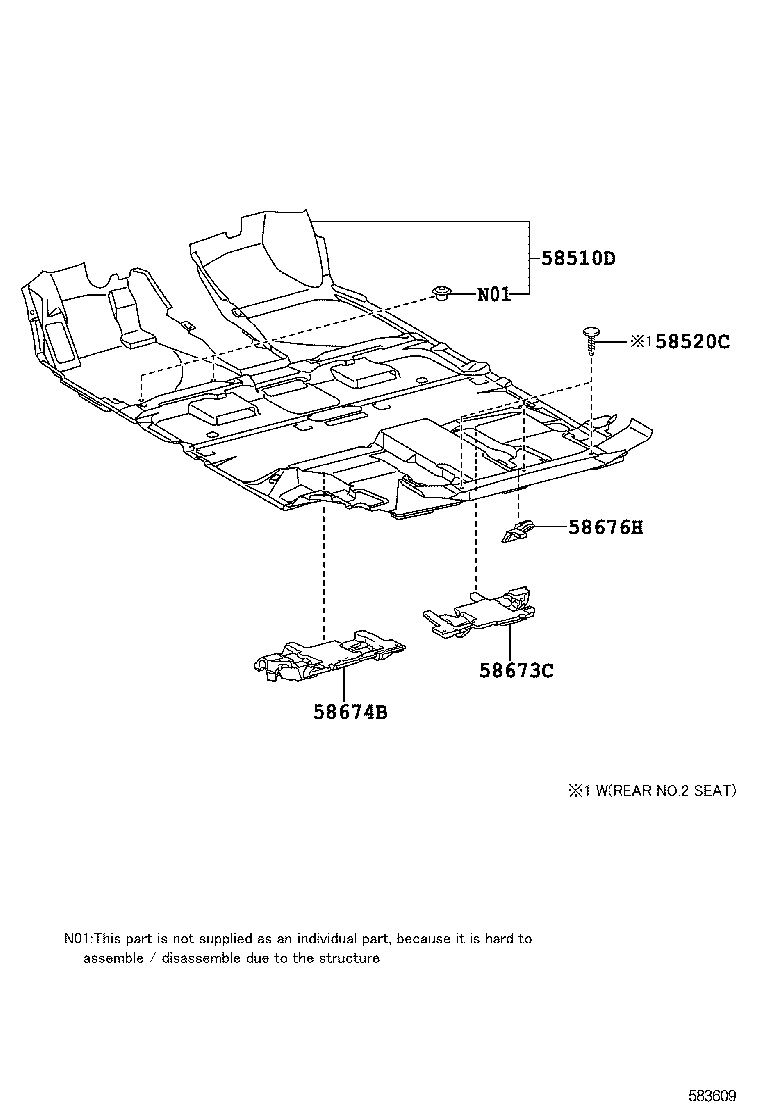

Click highlighted areas on diagram

diagram 58510D 58520C 58673C 58674B 58676H
Part # Description Qty Price
58510D - CARPET ASSY, FLOOR, FRONT
58510-0E040E1

ASU40..D,SPO

WITHOUT(REAR NO.2 SEAT),SAND BEIGE,TRIM4#

 1
58510-0E030E1

ASU40,GSU45

SAND BEIGE,TRIM4#

 1
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-07049E7

ASU40,GSU45

SAND BEIGE,TRIM4#

 3
58673C - PAD, REAR FLOOR SILENCER, NO.1
58673-0E010

ASU40,GSU45

 1
58673-0E020

ASU40..D,SPO

WITHOUT(REAR NO.2 SEAT)

 1
58674B - PAD, REAR FLOOR SILENCER, NO.2
58674-0E010

ASU40,GSU45

 1
58674-0E020

ASU40..D,SPO

WITHOUT(REAR NO.2 SEAT)

 1
58676H - PAD, REAR FLOOR SILENCER
58675-0E010

ASU40,GSU45

 1
