ASU40L-BRTGKC (2009)

Toyota Highlander (China)

Production May 2009 - May 2012
Engine 1ARFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0905-1205)

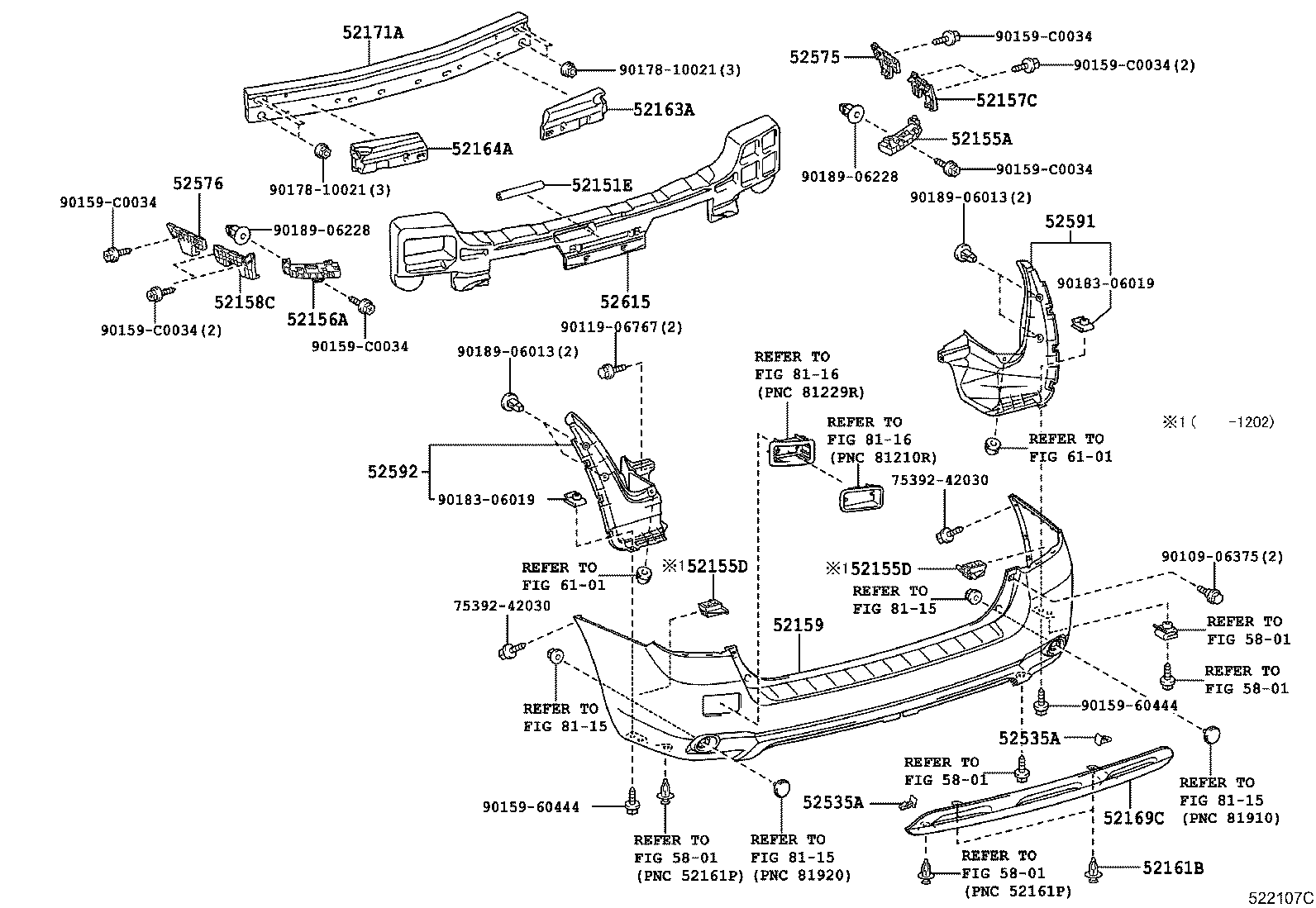

Click highlighted areas on diagram

diagram 52151E 52155A 52155D 52155D 52156A 52157C 52158C 52159 52161B 52163A 52164A 52169C 52171A 52535A 52535A 52575 52576 52591 52592 52615 5801 5801 5801 5801 5801 6101 6101 7539242030 7539242030 8115 8115 8115 8115 8116 8116 9010906375 9011906767 9015960444 9015960444 90159C0034 90159C0034 90159C0034 90159C0034 90159C0034 90159C0034 9017810021 9017810021 9018306019 9018306019 9018906013 9018906013 9018906228 9018906228
Part # Description Qty Price
52151E - BAR, REAR BUMPER
52151-0E020

ASU40,GSU45

NO PAINT REQ.

 1
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-0E030

ASU40,GSU45

 1
52155D - SUPPORT, REAR BUMPER SIDE
52154-0E020

ASU40,GSU45

 2
52155D - SUPPORT, REAR BUMPER SIDE
52154-0E020

ASU40,GSU45

 2
52156A - SUPPORT, REAR BUMPER SIDE, LH
52156-0E030

ASU40,GSU45

 1
52157C - SUPPORT, REAR BUMPER SIDE, NO.2 RH
52157-0E010

ASU40,GSU45

 1
52158C - SUPPORT, REAR BUMPER SIDE, NO.2 LH
52158-0E010

ASU40,GSU45

 1
52159 - COVER, REAR BUMPER
52159-0E903

ASU40,GSU45

PAINT REQ.

 1
52161B - PIECE, REAR BUMPER
52161-16010

ASU40,GSU45

 2
52163A - PLATE, REAR BUMPER, RH
52163-0E010

ASU40,GSU45

 1
52164A - PLATE, REAR BUMPER, LH
52164-0E010

ASU40,GSU45

 1
52169C - COVER, REAR BUMPER, LOWER
52169-0E010A0

ASU40,GSU45..LIMD,SPO

WHITE PEARL CS.,070

 1
52169-0E010B0

ASU40,GSU45..LIMD,SPO

SILVER ME.,1D4

 1
52169-0E010E0

ASU40,GSU45..LIMD,SPO

BEIGE ME.,4T8

 1
52169-0E010B1

ASU40,GSU45..LIMD,SPO

GRAY ME.,1G3

 1
52169-0E010G0

ASU40,GSU45..LIMD,SPO

GREEN M.M.,6V2

 1
52169-0E020

ASU40,GSU45..D

NO PAINT REQ.

 1
52169-0E010C0

ASU40,GSU45..LIMD,SPO

BLACK,202

 1
52169-0E010J0

ASU40,GSU45..LIMD,SPO

DK.BLUE MC.,8S6

 1
52171A - REINFORCEMENT, REAR BUMPER, NO.1
52171-48140

ASU40,GSU45

 1
52535A - RETAINER, REAR BUMPER SIDE, RH
52535-28020

ASU40,GSU45

 2
52535A - RETAINER, REAR BUMPER SIDE, RH
52535-28020

ASU40,GSU45

 2
52575 - RETAINER, REAR BUMPER SIDE, RH
52575-0E030

ASU40,GSU45

 1
52575-0E031

ASU40,GSU45

 1
52576 - RETAINER, REAR BUMPER SIDE, LH
52576-0E031

ASU40,GSU45

 1
52576-0E030

ASU40,GSU45

 1
52591 - SEAL, REAR BUMPER SIDE, RH
52591-0E020

ASU40,GSU45

 1
52592 - SEAL, REAR BUMPER SIDE, LH
52592-0E010

ASU40,GSU45

 1
52615 - ABSORBER, REAR BUMPER ENERGY
52615-0E030

ASU40,GSU45

 1
Common parts
75392-42030
90109-06375
90119-06767
90159-60444
90159-C0034
90178-10021
90183-06019
90189-06013
90189-06228
Linked diagrams
5801
6101
8115
8116
