ASU40L-BRTGKC (2009)

Toyota Highlander (China)

Production May 2009 - May 2012
Engine 1ARFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0905- )1ARFE

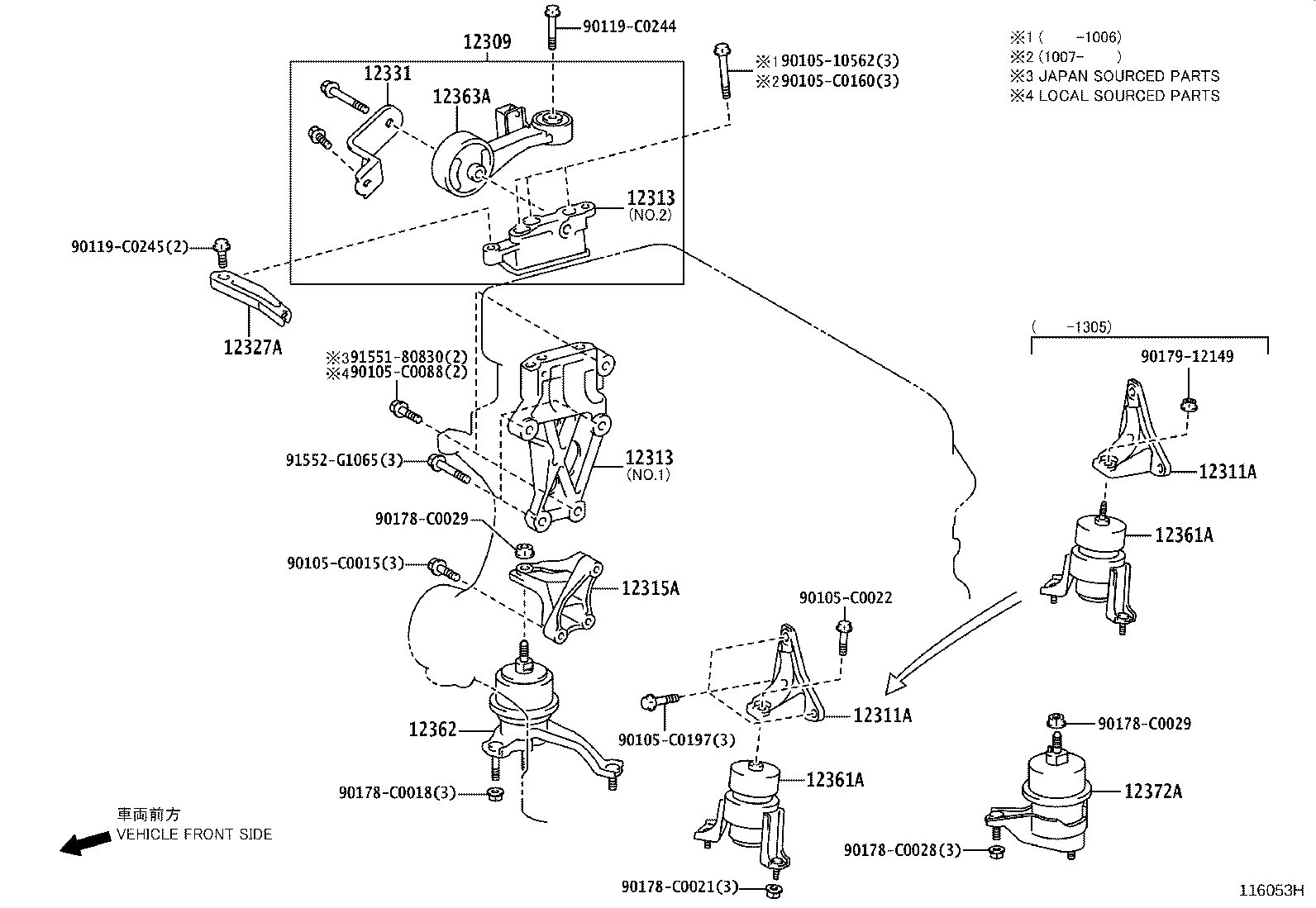

Click highlighted areas on diagram

diagram 12309 12311A 12311A 12313 12313 12315A 12327A 12331 12361A 12361A 12362 12363A 12372A 9010510562 90105C0015 90105C0022 90105C0088 90105C0160 90105C0197 90119C0244 90119C0245 90178C0018 90178C0021 90178C0028 90178C0029 90178C0029 9017912149 9155180830 91552G1065
Part # Description Qty Price
12309 - ROD SUB-ASSY, ENGINE MOVING CONTROL
12309-0V020

1ARFE..ASU40

 1
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-0V010

1ARFE..ASU40

 1
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-0V010

1ARFE..ASU40

 1
12313 - BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE)
12313-0V020

1ARFE..ASU40

NO.2

 1
12313-36010

1ARFE..ASU40

(J),NO.1

 1
12313-36010

1ARFE..ASU40

NO.1

 1
12313-0V080

1ARFE..ASU40

(L),NO.1

 1
12313 - BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE)
12313-0V020

1ARFE..ASU40

NO.2

 1
12313-36010

1ARFE..ASU40

(J),NO.1

 1
12313-36010

1ARFE..ASU40

NO.1

 1
12313-0V080

1ARFE..ASU40

(L),NO.1

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12319-0V010

1ARFE..ASU40

 1
12327A - STAY, ENGINE MOUNTING, NO.2 RH
12327-0V030

1ARFE..ASU40

 1
12331 - STAY, ENGINE MOUNTING, NO.3 RH
12331-0V020

1ARFE..ASU40

 1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-0V020

1ARFE..ASU40

 1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-0V020

1ARFE..ASU40

 1
12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12362-0V030

1ARFE..ASU40

 1
12363A - ROD, ENGINE MOVING CONTROL
12363-0V020

1ARFE..ASU40

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-0H110

1ARFE..ASU40

 1
Common parts
90105-10562
90105-C0015
90105-C0022
90105-C0088
90105-C0160
90105-C0197
90119-C0244
90119-C0245
90178-C0018
90178-C0021
90178-C0028
90178-C0029
90179-12149
91551-80830
91552-G1065
