GSU75L-ARZGHX (2020)
Toyota Highlander/Kluger
Production
Mar 2020
-
Sep 9999
Engine
2GRFKS
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(2003- )RUS

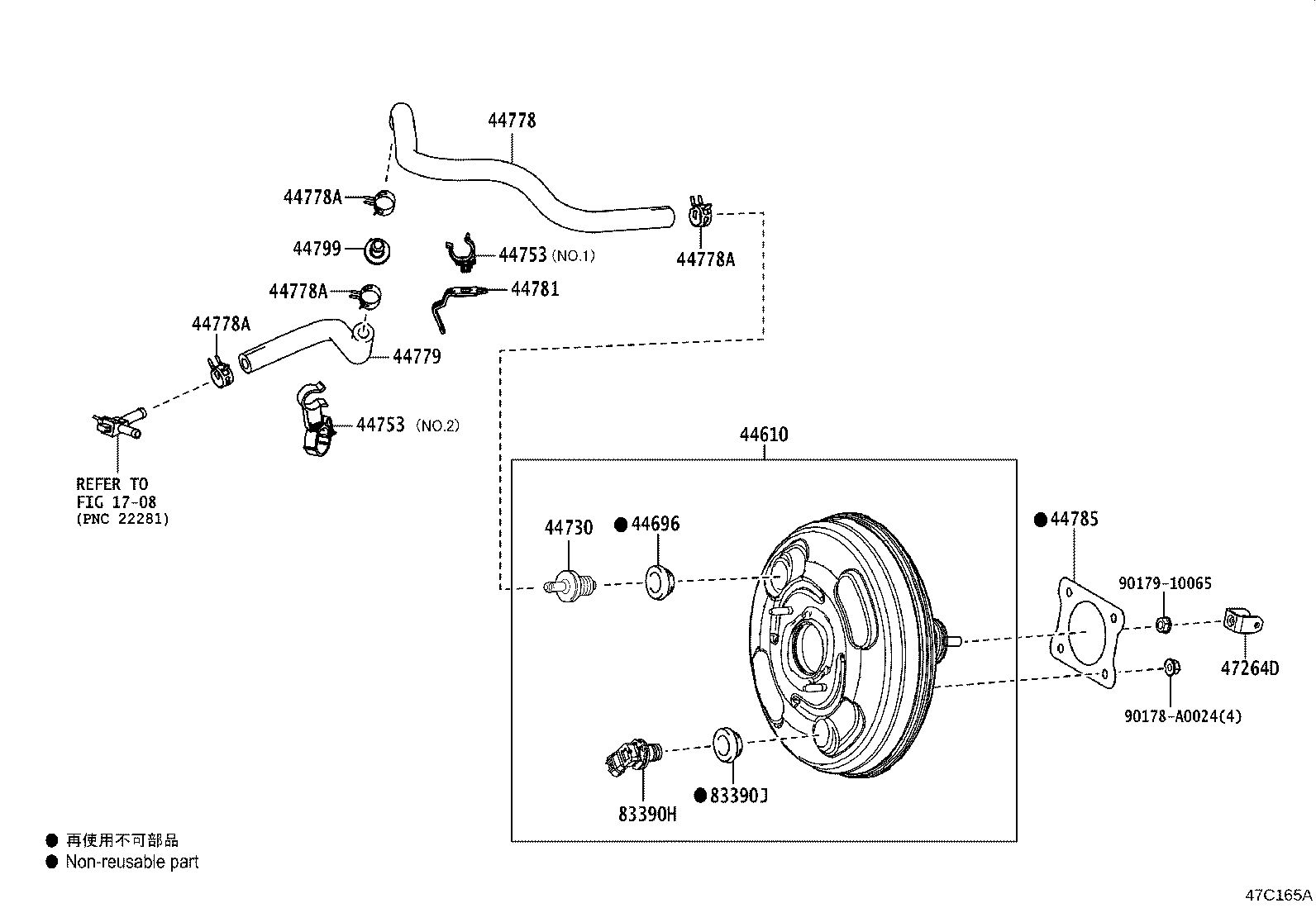

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-0E200 |
GSU75..RUS |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90080-48071 |
GSU7# |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-30060 |
GSU7# |
1 | ||
| 44753 - CLAMP, VACUUM RESERVOIR, NO.2 | ||||
| 44753-48340 |
GSU75..RUS NO.2 |
1 | ||
| 44753-30320 |
GSU75..RUS NO.1 |
1 | ||
| 44753 - CLAMP, VACUUM RESERVOIR, NO.2 | ||||
| 44753-48340 |
GSU75..RUS NO.2 |
1 | ||
| 44753-30320 |
GSU75..RUS NO.1 |
1 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44778-0E010 |
GSU75..RUS |
1 | ||
| 44778A - CLIP(FOR CONNECTOR TO CHECK VALVE HOSE) | ||||
| 90467-16014 |
GSU75..RUS |
4 | ||
| 44778A - CLIP(FOR CONNECTOR TO CHECK VALVE HOSE) | ||||
| 90467-16014 |
GSU75..RUS |
4 | ||
| 44778A - CLIP(FOR CONNECTOR TO CHECK VALVE HOSE) | ||||
| 90467-16014 |
GSU75..RUS |
4 | ||
| 44778A - CLIP(FOR CONNECTOR TO CHECK VALVE HOSE) | ||||
| 90467-16014 |
GSU75..RUS |
4 | ||
| 44779 - HOSE, UNION TO CONNECTOR | ||||
| 44779-0E010 |
GSU75..RUS |
1 | ||
| 44781 - BRACKET, HOSE | ||||
| 44781-0E010 |
GSU75..RUS |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-02060 |
GSU7# |
1 | ||
| 44799 - WAY, BRAKE VACUUM HOSE | ||||
| 44799-0E010 |
GSU75..RUS |
1 | ||
| 47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD | ||||
| 47264-0R020 |
GSU75 |
1 | ||
| 47264-42020 |
GSU7# |
1 | ||
| 83390H - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-28120 |
GSU75..RUS |
1 | ||
| 83390J - GROMMET, VACUUM WARNING SWITCH | ||||
| 90080-48071 |
GSU7# |
1 | ||
| Common parts | ||||
| 90178-A0024 | ||||
| 90179-10065 | ||||
| Linked diagrams | ||||
| 1708 | ||||
